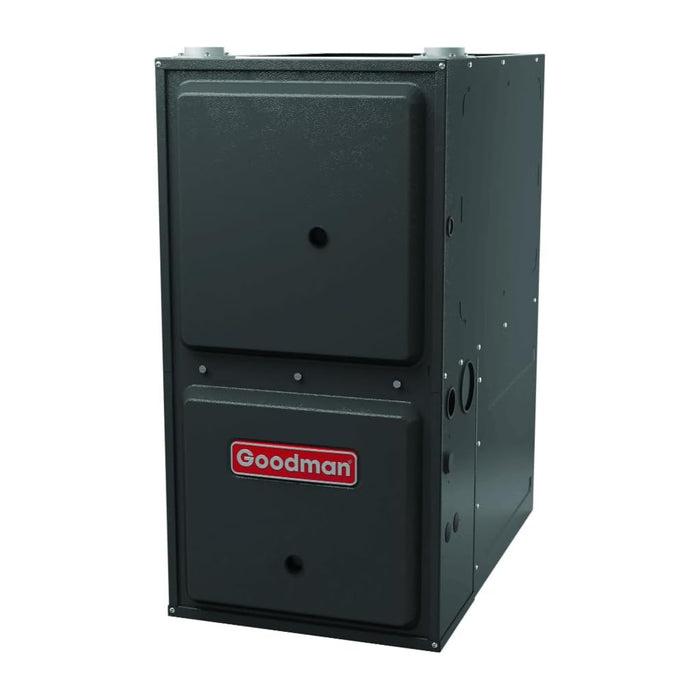

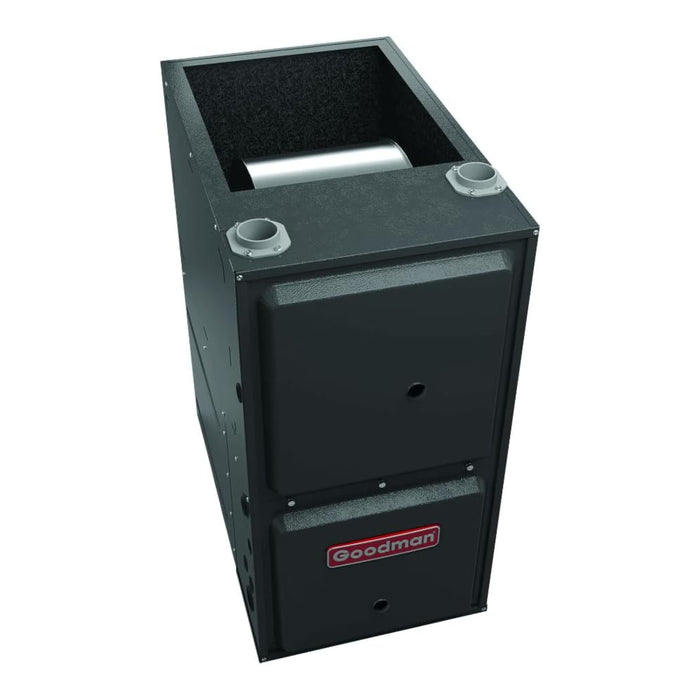

Goodman R32 96% AFUE Gas Furnace 60000 BTU Two Stage Downflow/Horizontal

Goodman R32 96% AFUE Gas Furnace 60000 BTU Two Stage Downflow/Horizontal

By Goodman | SKU: GD9T960603BN | ID: 100919
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,202.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman R32 96% AFUE Gas Furnace 60000 BTU Two Stage Downflow/Horizontal

The Goodman Two-Stage R32 Gas Furnace GD9T960603BN delivers 60,000 BTU with 96% AFUE efficiency, ensuring quiet, economical heating. Featuring a multi-speed ECM blower, heavy-duty aluminized-steel and stainless-steel heat exchangers, and a two-stage gas valve, it provides optimal air circulation and enhanced heat transfer. This energy-efficient furnace includes self-diagnostic controls, low NOx compliance, and versatile installation options. It's ideal for downflow or horizontal configurations, offering reliable comfort and long-term performance. Not suitable for some California regions.

  • Unit Height: 34.5 in
  • Unit Width: 17.5 in
  • AFUE: 96 %
  • Two-Stage
  • 60,000 BTU
  • 1200 CFM
  • Installation Configuration: Downflow/Horizontal
  • Max Overcurrent Protection: 15 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 112 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Two Stage R32 Gas Furnace GD9T960603BN

  • Energy-Efficient Multi-Speed ECM Blower Motor: Maximizes airflow and reduces energy consumption.
  • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Built for long-lasting durability and reliable heat transfer.
  • Stainless-Steel Secondary Heat Exchanger: Enhances heat transfer efficiency for better heating performance.
  • Two-Stage Gas Valve: Ensures quiet, reliable, and economical heating.
  • Durable Silicon Nitride Igniter: Provides consistent, dependable ignition for improved operation.
  • Quiet Two-Speed Induced Draft Blower: Reduces noise levels while maintaining optimal airflow.
  • Self-Diagnostic Control Board: Includes memory fault code history and LED output for easy troubleshooting.
  • Color-Coded Low-Voltage Terminals: Simplifies installation of air cleaners and humidifiers.
  • Low Continuous Fan Speed Options: Ensures quiet, efficient air circulation.
  • Complies with California's 40 ng/J Low NOx Emissions Standard: Meets strict California air quality standards.
  • Not Compatible with SCAQMD and SJVAPCD Installations: Excluded from installations in specific California air quality districts.
  • AHRI Certified & ETL Listed: Certified for performance, safety, and quality assurance.
  • Flexible Multi-Position Installation:
    • GR9T96: Upflow, horizontal left or right
    • GD9T96: Downflow, horizontal left or right
  • Certified for Direct or Non-Direct Vent Configurations: Offers installation flexibility.
  • Easy-to-Install Top Venting with Optional Side Venting: Available for GR9T96/upflow models.
  • Left or Right Gas & Electrical Service Connections: Flexible connections for easy installation.
  • Cabinet Air Leakage (QLeak) ≤ 2%: Ensures energy efficiency by minimizing air loss.
  • Heavy-Gauge Steel Cabinet with Durable Finish: Long-lasting and corrosion-resistant for enhanced durability.
  • Fully Insulated Heat Exchanger & Blower Section: Improves heat retention for better energy efficiency.
  • Airtight Solid Bottom or Side Return: Easy-cut tabs for quick removal in bottom air-inlet applications.

View More Furnaces

Specifications

Goodman R32 96% AFUE Gas Furnace 60000 BTU Two Stage Downflow/Horizontal

Brand Goodman SKU GD9T960603BN
Type Gas Heat Category Gas Furnaces
Refrigerant Type R-32 AHRI Certificate Number 215225020
Airflow Direction Downflow/Horizontal Exhaust Flue Requirement Plastic / PVC
Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
Heating BTU Input 60,000 High Fire Output 57,600
Blower Motor 9-Speed - ECM Maximum CFM 1200
Horsepower 1/2 HP Configuration Downflow/Horizontal
Energy Star Yes Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 15 Amps Min. Breaker Size 7.8 Amps
Burner Stages Two Fuel Type Propane, Natural Gas
Height 34.5" Width 17.5"
Depth 28.75" No. of Burners 3
Vent Diameter 2" - 3" Shipping Weight 115
UPC 633190210234
Warranty

Goodman R32 96% AFUE Gas Furnace 60000 BTU Two Stage Downflow/Horizontal

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 96% AFUE Gas Furnace 60000 BTU Two Stage Downflow/Horizontal

GD9T96 Installation Manual

GD9T96 Specification Sheets

GD9T96 Parts Manual

GD9T96 Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
