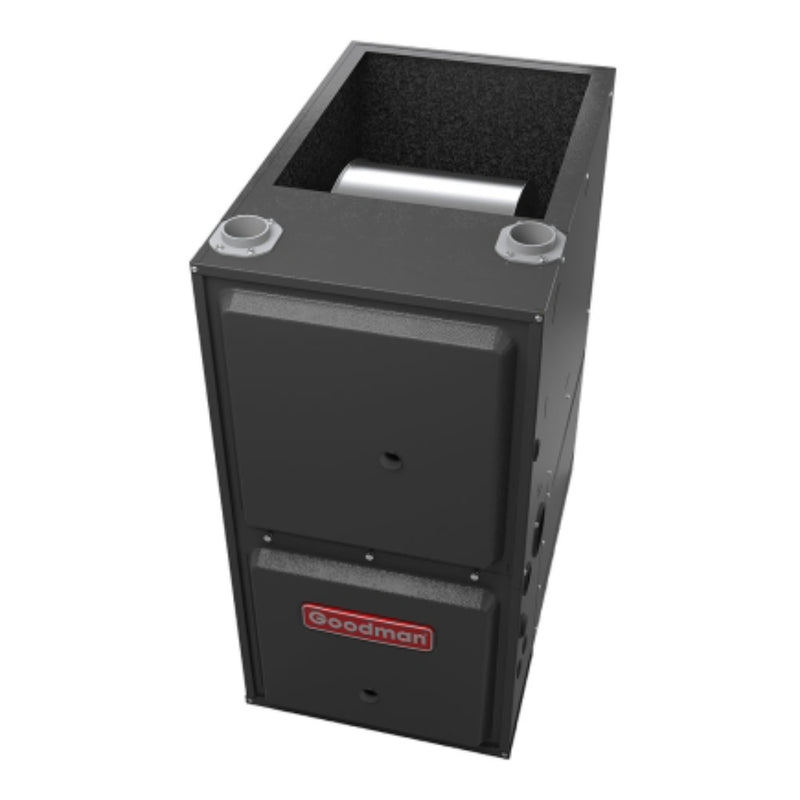

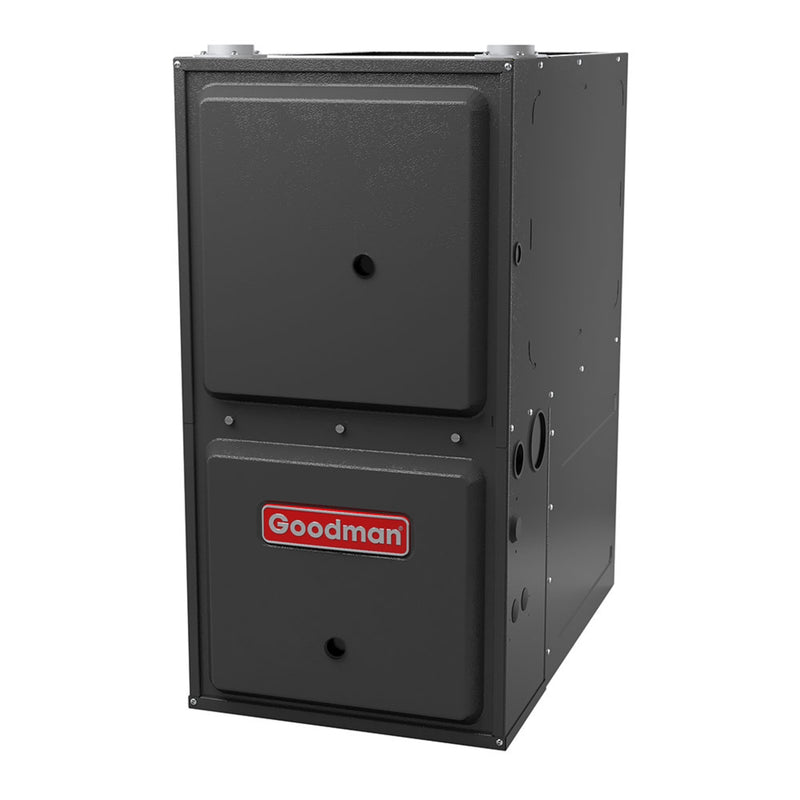

Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Downflow/Horizontal
PROPOSITION 65 WARNING

Some products sold on our site, including this one, may contain substances recognized by the State of California to cause cancer, birth defects, or other reproductive harm. For details on Proposition 65, visit this page.

Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Downflow/Horizontal

By Goodman | SKU: GD9S960804CN | ID: 100915
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,136.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Downflow/Horizontal

This highly efficient Goodman gas furnace offers 80,000 BTU of heating power with a 96% AFUE rating, providing excellent energy savings. Designed for downflow or horizontal installations, it features a durable aluminized-steel tubular heat exchanger and a stainless-steel secondary heat exchanger for enhanced efficiency. The multi-speed ECM motor ensures quiet, reliable performance, while the silicon nitride igniter boosts longevity. It comes with a self-diagnostic control board and is compliant with California’s Low NOx emissions standard, offering flexible venting options for installation. Not suitable for certain California regions.

  • Unit Height: 34.5  in
  • Unit Width: 21 in
  • AFUE: 96 %
  • 80,000 BTU
  • R32
  • Installation Configuration: Downflow/Horizontal
  • Max Overcurrent Protection: 20 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 141 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Highly Efficient 96% AFUE Gas Furnace

    • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Durable and long-lasting for optimal heat transfer.
    • Stainless-Steel Secondary Heat Exchanger: Improves overall system efficiency and performance.
    • Single-Stage Gas Valve: Ensures consistent and reliable operation.
    • Durable Silicon Nitride Igniter: Provides long-lasting and dependable ignition.
    • Quiet, Single-Speed Induced Draft Blower: Minimizes operational noise for a more comfortable environment.
    • Self-Diagnostic Control Board: Features LED fault code display and constant memory history for easy troubleshooting.
    • Low NOx Compliance: Meets California’s 40 ng/J Low NOx emissions standard for environmental protection.
    • Non-Compatible with South Coast AQMD & San Joaquin Valley APCD Regions: Not suitable for installation in these areas.

    Certifications

    • AHRI Certified and ETL Listed: Guarantees quality and performance.

    Installation Flexibility

    • Multi-Position Installation Options:
      • GR9S96: Upflow, horizontal left, or horizontal right.
      • GD9S96: Downflow, horizontal left, or horizontal right.
    • Vent Configuration: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) options.
    • Easy Installation: Top venting with optional side venting for GR9S96/upflow models.
    • Gas and Electrical Service: Left or right connections for installation flexibility.

    Cabinet Features

    • Energy Efficiency: Cabinet air leakage (QLeak) ≤ 2% for improved performance.
    • Heavy-Gauge Steel Cabinet: Ensures durability with a long-lasting finish.
    • Fully Insulated Heat Exchanger & Blower Section: Enhances heat retention and overall system performance.
    • Airtight Solid Bottom or Side Return: Easy-cut tabs for hassle-free bottom air inlet applications.

    Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Downflow/Horizontal

    Brand Goodman SKU GD9S960804CN
    Type Gas Heat Category Gas Furnaces
    Refrigerant Type R-32 AHRI Certificate Number 215224960
    Airflow Direction Downflow/Horizontal Exhaust Flue Requirement Plastic / PVC
    Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
    Heating BTU 80,000 Blower Motor 9 Speed - ECM
    Maximum CFM 1600 Horsepower 3/4 HP
    Configuration Downflow/Horizontal Energy Star Yes
    Electrical 115 V. 1 Phase 60 Hz Max Breaker Size 20 Amps
    Min. Breaker Size 13.7 Amps Burner Stages Single
    Fuel Type Propane, Natural Gas Height 34.5"
    Width 21" Depth 28.75"
    Filter Size (2) 10 x 20 or (1) 16 x 25 (top return) No. of Burners 4
    Vent Diameter 2"-3" Shipping Weight 141



    Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Downflow/Horizontal

    Warranty Type Residential Multi-Family Commercial
    Standard Warranty 5 year parts 5 year parts 5 year parts
    Registered Warranty 10 year parts 10 year parts 5 year parts

    Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Downflow/Horizontal

    GR9S96 GD9S96 Installation Manual

    GR9S96 GD9S96 Specification Sheets

    GR9S96 GD9S96 Parts Manual

    GR9S96 GD9S96 Warranty Information
