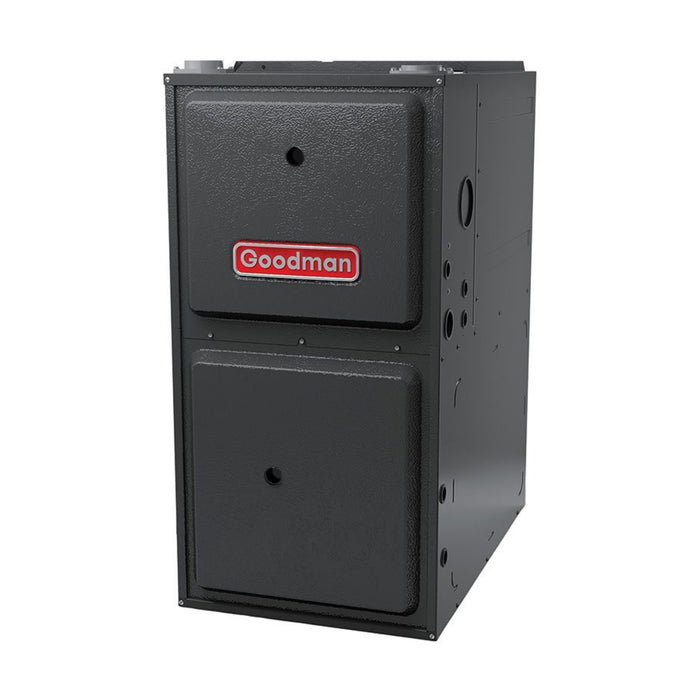

Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Upflow/Horizontal

Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Upflow/Horizontal

By Goodman | SKU: GR9S960803BN | ID: 100908
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,904.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Upflow/Horizontal

This 96% AFUE gas furnace delivers reliable performance and energy efficiency with 80,000 BTU heating power. Designed for upflow or horizontal installations, it features a durable aluminized-steel primary and stainless-steel secondary heat exchanger for enhanced heat transfer. The nine-speed ECM motor, single-stage gas valve, and quiet draft blower ensure efficient and quiet operation. Certified for flexible venting options, it boasts a self-diagnostic control board, a robust steel cabinet with low air leakage, and compliance with Low NOx standards, excluding certain California regions.

  • Unit Height: 34.5  in
  • Unit Width: 17-1/2 in
  • AFUE: 96 %
  • R32
  • Installation Configuration: Upflow/Horizontal
  • Max Overcurrent Protection: 15 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Nine Speed ECM
  • Unit Weight: 114 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Highly Efficient 96% AFUE Gas Furnace

    • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Ensures long-lasting durability.
    • Stainless-Steel Secondary Heat Exchanger: Provides enhanced efficiency.
    • Single-Stage Gas Valve: Offers reliable operation.
    • Durable Silicon Nitride Igniter: Guarantees long-lasting performance.
    • Quiet, Single-Speed Induced Draft Blower: Minimizes noise during operation.
    • Self-Diagnostic Control Board: Includes LED fault code display with memory history for easy troubleshooting.
    • Complies with California's 40 ng/J Low NOx Emissions Standard: Meets environmental standards.
    • Installation Restrictions: Not suitable for South Coast AQMD and San Joaquin Valley APCD regions in California.
    • AHRI Certified & ETL Listed: Ensures quality and safety.

    Installation Flexibility:

    • Multi-Position Installation Options:
      • GR9S96: Upflow, horizontal left, or horizontal right.
      • GD9S96: Downflow, horizontal left, or horizontal right.
    • Vent Configurations: Compatible with both direct vent (2-pipe) and non-direct vent (1-pipe).
    • Vent Placement: Easy-to-install top venting with optional side venting.
    • Gas & Electrical Service: Left or right connection options for convenience.

    Cabinet Features:

    • Energy-Efficient Design: Cabinet air leakage (QLeak) ≤ 2%.
    • Durable Heavy-Gauge Steel Cabinet: Built to last with a long-lasting finish.
    • Fully Insulated Heat Exchanger & Blower Section: Improves overall performance and heat retention.
    • Airtight Return: Solid bottom or side return with easy-cut tabs for hassle-free bottom air inlet applications.

    Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Upflow/Horizontal

    Brand Goodman SKU GR9S960803BN
    Type Gas Heat Category Gas Furnaces
    Refrigerant Type R-32 AHRI Certificate Number 215224973
    Airflow Direction Upflow/Horizontal Exhaust Flue Requirement Plastic / PVC
    Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
    Heating BTU 80,000 High Fire Output 76,880
    Blower Motor 9 Speed - ECM Maximum CFM 1200
    Horsepower 1/2 HP Configuration Upflow/Horizontal
    Energy Star Yes Electrical 115 V. 1 Phase 60 Hz
    Max Breaker Size 15 Amps Min. Breaker Size 10.1 Amps
    Burner Stages Single Fuel Type Propane, Natural Gas
    Height 34.5" Width 17.5"
    Depth 28.75" Filter Size (1) 16 X 25 (side or bottom)
    No. of Burners 4 Vent Diameter 2" - 3"
    Replaces GM9S960803BN UPC 633190210364

    Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Upflow/Horizontal

    Warranty Type Residential Multi-Family Commercial
    Standard Warranty 5 year parts 5 year parts 5 year parts
    Registered Warranty 10 year parts 10 year parts 5 year parts

    Goodman R32 96% AFUE Gas Furnace 80000 BTU Nine-Speed Upflow/Horizontal

    GR9S96 Installation Manual

    GR9S96 Specification Sheets

    GR9S96 Parts Manual

    GR9S96 Warranty Information

    We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

    Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

    Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

    Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

    Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

    Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

    Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
