ACiQ R5A5S18AKAWA EVM5X24M17A G80CTL0901716

ACiQ 1.5 Ton 15.5 SEER2 Furnace AC System Multi-Position 80% 88K BTU R454B

Name: ACiQ 1.5 Ton 15.5 SEER2 Furnace AC System Multi-Position 80% 88K BTU R454B
Brand: ACiQ
SKU: R5A5S18AKAWA EVM5X24M17A G80CTL0901716
Price: 4679.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | Model: R5A5S18AKAWA EVM5X24M17A G80CTL0901716 | ID: 111453

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,679.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

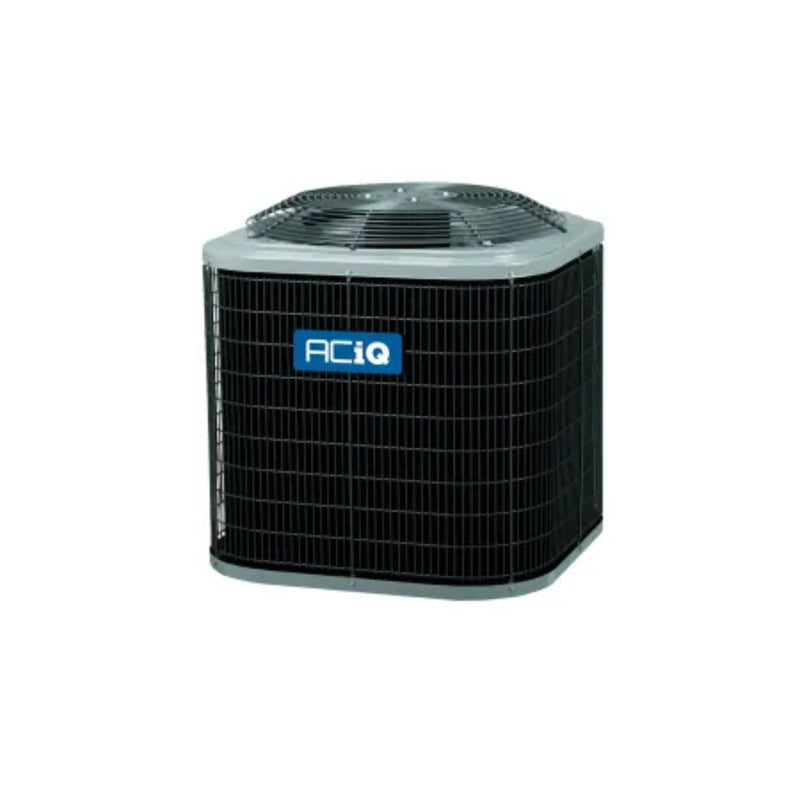

ACiQ 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S18AKAWA

The ACiQ R5A5S18AKAWA Air Conditioner Condensing Unit is a dependable, cost-effective cooling solution for residential applications. With a 1.5-ton capacity, this unit is ideal for cooling smaller homes in average conditions. Offering a 14.3 SEER2 efficiency rating, it is more efficient than standard 13.4 SEER2 systems, providing long-term energy savings. Built with a scroll compressor and pre-charged with R454B refrigerant, this unit is designed for both efficiency and convenience. Its durable cabinet construction with reinforced corner posts and protective inlet grilles ensures lasting reliability. As an AC-only system, it requires pairing with a compatible R454B air handler or evaporator coil to deliver full comfort performance.

Key Features

1.5 Ton Cooling Capacity – Delivers 18,000 BTU performance
14.3 SEER2 efficiency for improved energy savings
Single stage scroll compressor for reliable cooling
Pre-charged with R454B refrigerant for faster installation
Durable cabinet with reinforced corners and protective grilles
Filter drier included for field installation
Quiet operation with scroll compressor design
AHRI certified for trusted quality and performance

The ACiQ R5A5S18AKAWA is designed for homeowners looking for an affordable and efficient cooling solution. With its advanced features, durable build, and extended warranty protection, this condenser provides comfort and reliability year after year.

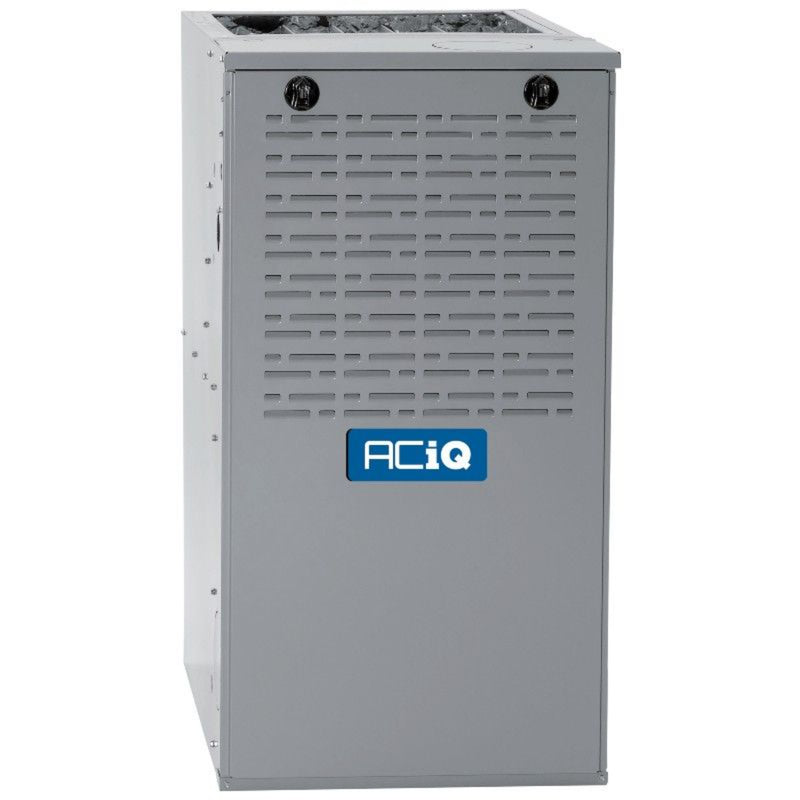

ACiQ 80% 88,000 BTU Gas Furnace Two Stage Multi-Positional 17.5" Width G80CTL0901716

The ACiQ G80CTL0901716 natural gas furnace delivers efficient, reliable performance for medium-sized homes. With an 88,000 BTU input and 80% AFUE efficiency, it provides 71,000 BTU of heating power. This model is designed with a communicating variable-speed ECM blower motor and a two-stage burner, ensuring precise temperature control and consistent airflow throughout the year. It can be installed in multiple positions—upflow, downflow, or horizontal—offering flexibility for various HVAC configurations. Built to last with a durable outer casing and compliant with California Low NOx standards, it’s field-convertible to propane and includes onboard self-diagnostics for easier maintenance.

Key Features

88,000 BTU Heating Capacity with 80% AFUE Efficiency
Two-Stage Burner for Enhanced Temperature Control
Variable Speed ECM Blower Motor for Quiet, Efficient Operation
Multi-Position Installation: Upflow, Downflow, or Horizontal
California Low NOx Compliant for Cleaner Emissions
Convertible to Propane with Optional LP Kit
Metal Flue Venting Required
Onboard Diagnostics for Easier Maintenance and Servicing
Built with Durable Outer Casing and Aluminized Steel Heat Exchanger

This furnace is ideal for residential installations in standard single-family homes. Due to its metal flue requirement, it’s best suited for applications not needing PVC venting. For mobile homes, additional approvals may be necessary.

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

The ACiQ EVM5X multi-positional evaporator coil with Power-V™ Technology delivers reliable comfort and long-lasting performance. Designed with a compact V-coil structure, it ensures efficient heat transfer, enhanced airflow, and easier installation for a variety of HVAC system setups. Built with durable all-aluminum construction and a fully insulated cabinet, this coil provides lasting corrosion resistance and energy-efficient operation.

Product Features

Compact V-Coil Design – Maximizes heat transfer while saving space
Thermostatic Expansion Valve (TXV) – Optimizes refrigerant flow for efficiency
All-Aluminum Construction – Corrosion-resistant for long coil life
Fully Insulated Cabinet – Reduces energy loss and improves efficiency
Durable Drain Pan – Made from PBT material for superior strength and resistance
Eco-Friendly Design – 100% recyclable aluminum coil supports sustainability
Flexible Installation – Multi-positional (upflow, downflow, and horizontal)
Service-Friendly Build – Improved design for easier technician access
10-Year Limited Parts Warranty – Available with registration

View More Air Conditioner & Furnace Systems

Specifications

ACiQ 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S18AKAWA

Brand	ACiQ	SKU	R5A5S18AKAWA
Refrigerant Charge	15'	Weight (in lbs)	149
Product Features	New Refrigerant Compliant	Cooling BTU	18,000
Maximum CFM	2300	Decibel Level (dBA)	72
Motor RPM	825	Horsepower	1/12 HP
Refrigerant	R454B	SEER2 (Efficiency)	14.3
Condenser Stages	Single Stage	Compressor Type	Scroll
Liquid Valve Size	3/8"	Suction Valve Size	5/8"
Electrical	208 / 230 V. 1 Phase 60 Hz	Tonnage	1.5 Ton
Height	31 11/16"	Width	31 3/16"
Depth	31 3/16"	Warranty	10 Year Parts Limited Warranty with Online Registration

ACiQ 80% 88,000 BTU Gas Furnace Two Stage Multi-Positional 17.5" Width G80CTL0901716

Brand	ACiQ	SKU	G80CTL0901716
Weight (in lbs)	126	AHRI Certificate Number	213148663
Exhaust Flue Requirement	Metal	Carrier Equivalent	58TP0A090V17--16
Tempstar Equivalent	F80CTL0901716A	Bryant Equivalent	880TA48090C17
Product Features	Low NOx, New Refrigerant Compliant	Furnace Efficiency / AFUE	80%
Heating BTU	88,000	Blower Motor	Variable Speed - ECM
Maximum CFM	1595	Configuration	Upflow/Downflow/Horizontal
Electrical	115v 1 Phase 60 Hz	Burner Stages	Two
Ignition Type	Direct Ignition with Silicon Nitride Hot Surface Ignitor	Fuel Type	Propane, Natural Gas
Height	33 1/3"	Width	17 1/2"
Depth	29"	Warranty	10 Year No Hassle Replacement / Lifetime Heat Exchanger and 10 Year Parts with Online Registration

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

Brand	ACiQ	SKU	EVM5X24M17A
Replaces	EVM4X	Weight	41.3 lbs
Metering Device	TXV	Coil Type	Aluminum V-Coil
Configuration	Multi-Positional	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Tonnage	2 Ton	Style	V-Coil
Connection	Sweat	Certification	UL and c-UL Listed
Height	14 11/16"	Width	17 1/2"
Depth	20 5/8"	Warranty	10 Year Parts Limited Warranty with Registration

Warranty

ACiQ 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S18AKAWA

Warranty Type	Parts	Compressor
Standard Warranty	3 Years Parts	5 Years Parts
Registered Warranty	10 Years Parts	10 Years Parts

ACiQ 80% 88,000 BTU Gas Furnace Two Stage Multi-Positional 17.5" Width G80CTL0901716

Warranty Type	No Hassle Replacement	Heat Exchanger	Parts
Standard Warranty	Not Included	Not Included	5 Years Parts
Registered Warranty	10 Years Parts	Lifetime	10 Years Parts

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

Warranty Type	Parts
Registered Warranty	10 Years Parts

Documents

ACiQ 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S18AKAWA

R5A5S Owner's Manual

R5A5S Specifications Sheet

ACiQ Condenser Warranty

ACiQ 80% 88,000 BTU Gas Furnace Two Stage Multi-Positional 17.5" Width G80CTL0901716

ACiQ Product Specifications

ACiQ Catalog

ACiQ Warranty

ACiQ Owners Manual

ACiQ Installation Manual

ACiQ 2 Ton EVM5X Cased Evaporator Coil 17.5" Width Multi-Positional EVM5X24M17A

EVM5X Specifications Sheet

EVM5X Installation Manual

ACiQ Evaporator Coil Warranty
