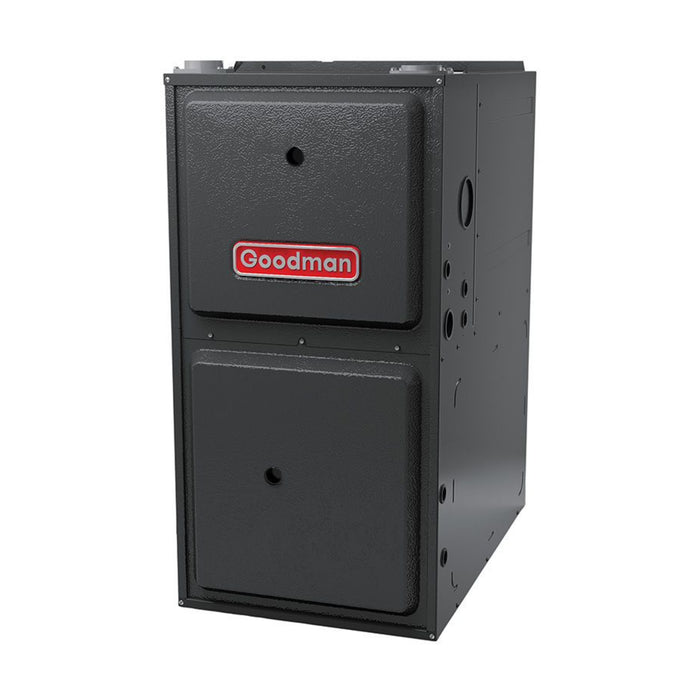

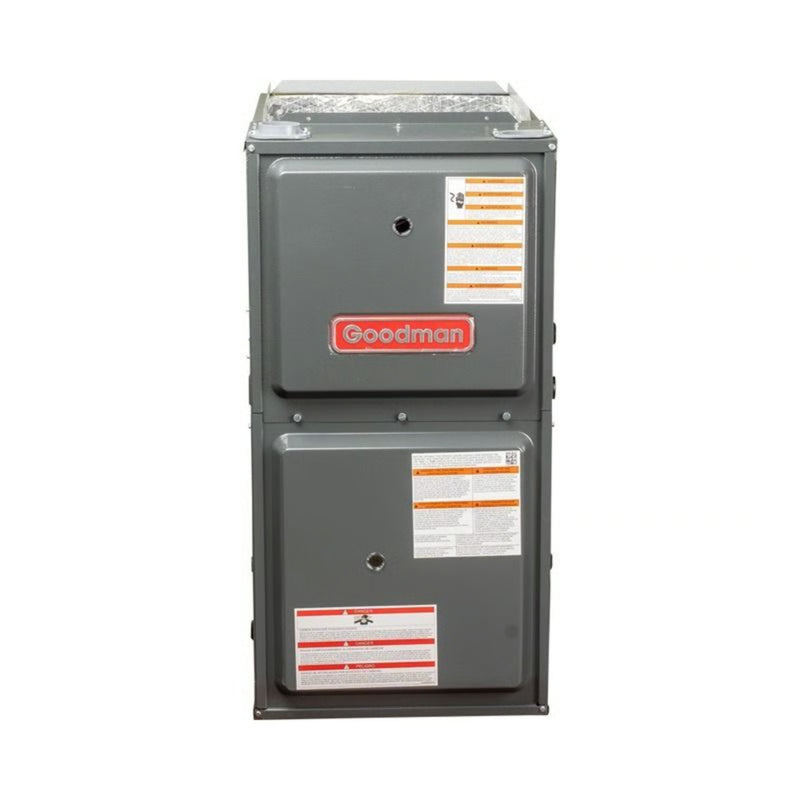

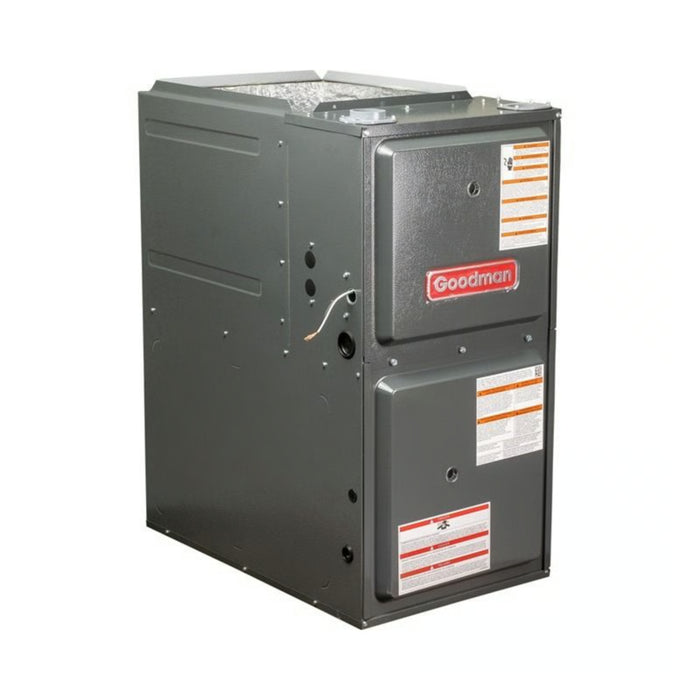

Goodman R32 96% AFUE Gas Furnace 80K BTU Two Stage 21"W Upflow/Horizontal

Goodman R32 96% AFUE Gas Furnace 80K BTU Two Stage 21"W Upflow/Horizontal

By Goodman | SKU: GR9T960804CN | ID: 100927
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,439.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman R32 96% AFUE Gas Furnace 80K BTU Two Stage 21"W Upflow/Horizontal

The Goodman Two-Stage R32 Gas Furnace GR9T960804CN offers 80,000 BTU and 96% AFUE efficiency, ensuring reliable, quiet, and economical heating. Featuring a multi-speed ECM blower motor, heavy-duty aluminized-steel heat exchanger, and a stainless-steel secondary heat exchanger, it maximizes heat transfer and performance. With a two-stage gas valve, Silicon Nitride igniter, and self-diagnostic control board, it provides efficient, long-lasting operation. This furnace offers flexible installation options, is Low NOx compliant, and is suitable for various venting configurations. Not compatible with certain California regions.

  • Unit Height: 34.5 in
  • Unit Width: 21 in
  • AFUE: 96 %
  • 80,000 BTU
  • 1600 CFM
  • Installation Configuration: Upflow/Horizontal
  • Max Overcurrent Protection: 20 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 123 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28.75 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Two Stage R32 Gas Furnace GR9T960804CN

  • Energy-Efficient Multi-Speed ECM Blower Motor: Optimizes performance while conserving energy.
  • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Built for durability and efficient heat transfer.
  • Stainless-Steel Secondary Heat Exchanger: Enhances heat transfer for improved efficiency.
  • Two-Stage Gas Valve: Provides quiet, economical heating.
  • Durable Silicon Nitride Igniter: Ensures reliable operation and long-lasting performance.
  • Quiet Two-Speed Induced Draft Blower: Reduces noise while maintaining efficient airflow.
  • Self-Diagnostic Control Board: Features fault code history and LED output for easy troubleshooting.
  • Color-Coded Low-Voltage Terminals: Simplifies installation of air cleaners and humidifiers.
  • Low Continuous Fan Speed Options: Quiet air circulation for a comfortable environment.
  • California 40 ng/J Low NOx Emissions Compliant: Meets strict California emissions standards.
  • Not Compatible with SCAQMD & SJVAPCD Installations: Excluded from South Coast AQMD and San Joaquin Valley.
  • AHRI Certified & ETL Listed: Ensures quality, safety, and energy efficiency.
  • Flexible Multi-Position Installation:
    • GR9T96: Upflow, horizontal left or right
    • GD9T96: Downflow, horizontal left or right
  • Certified for Direct or Non-Direct Vent Configurations: Offers flexible venting options.
  • Easy-to-Install Top Venting: Optional side venting for GR9T96/upflow models.
  • Left or Right Gas & Electrical Connections: Convenient installation options.
  • Cabinet Air Leakage (QLeak) ≤ 2%: Maximizes energy efficiency with minimal air leakage.
  • Heavy-Gauge Steel Cabinet with Durable Finish: Built for long-term durability and protection.
  • Fully Insulated Heat Exchanger & Blower Section: Improves heat retention and energy efficiency.
  • Airtight Solid Bottom or Side Return: Features easy-cut tabs for quick removal in bottom air-inlet applications.

View More Furnaces

Specifications

Goodman R32 96% AFUE Gas Furnace 80K BTU Two Stage 21"W Upflow/Horizontal

Brand Goodman SKU GR9T960804CN
Type Gas Heat Category Gas Furnaces
Refrigerant Type R-32 AHRI Certificate Number 215225028
Airflow Direction Upflow/Horizontal Exhaust Flue Requirement Plastic / PVC
Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
Heating BTU input 80,000 High Fire Output 76,800
Blower Motor 9 Speed - ECM Maximum CFM 1600
Horsepower 3/4 HP Configuration Upflow/Horizontal
Energy Star Yes Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 20 Amps Min. Breaker Size 11.4 Amps
Burner Stages Two Fuel Type Propane, Natural Gas
Height 34.5" Width 21"
Depth 28.75" No. of Burners 4
Vent Diameter 2" - 3" Filter Size (1) 16 x 25 (side or bottom)
Replaces GMVC960804CN UPC 633190210616
Warranty

Goodman R32 96% AFUE Gas Furnace 80K BTU Two Stage 21"W Upflow/Horizontal

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 96% AFUE Gas Furnace 80K BTU Two Stage 21"W Upflow/Horizontal

GD9T96 GR9T96 Installation Manual

GD9T96 GR9T96 Specification Sheets

GD9T96 GR9T96 Parts Manual

GD9T96 GR9T96 Warranty Information

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
