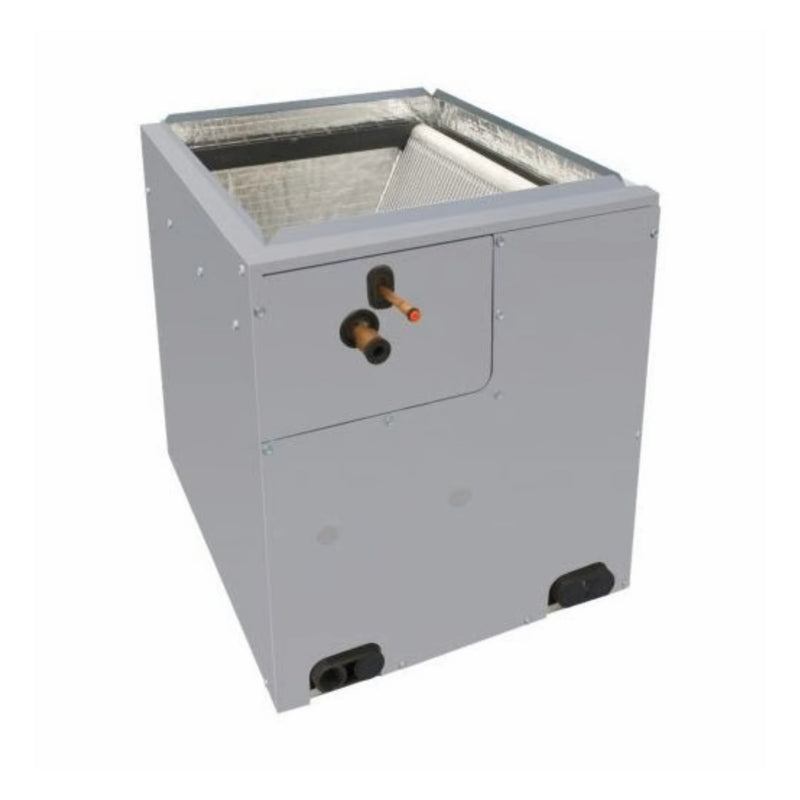

ACiQ 1.5 Ton Cased Evaporator Coil 14"W Upflow/Downflow With TXV R454B

By ACiQ | Model: EVD5X18M14A | ID: 889169
No Sales Tax - in most states excluding California
Free Shipping - on items over $1000
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$795.00 + SHIPPING
Product Details

ACiQ 1.5 Ton Cased Evaporator Coil 14"W Upflow/Downflow With TXV R454B EVD5X18M14A

The ACiQ EVD5X18M14A vertical evaporator coil is engineered for reliable and efficient performance in residential air conditioning systems. Featuring a compact, fully insulated V-coil design, this unit supports both upflow and downflow installations, making it a versatile choice for a variety of HVAC configurations. Its factory-installed TXV ensures precise refrigerant metering and enhanced system efficiency, optimizing cooling performance across a range of operating conditions. Built for durability and long-term use, this evaporator coil seamlessly integrates into your home’s HVAC system.

Key Features

  • 1.5 Ton Cooling Capacity - Provides efficient and reliable cooling performance for residential systems.
  • Vertical Installation Design - Supports both upflow and downflow configurations for installation flexibility.
  • Factory-Installed TXV Kit - Delivers precise refrigerant control for enhanced system performance and energy efficiency.
  • Fully Insulated Cased V-Coil - Maximizes airflow and heat transfer while reducing condensation and thermal loss.
  • Corrosion-Resistant Drain Pan - Constructed from durable PBT polymer to prevent rust and extend service life.
  • Sweat Connection Ports - Ensures secure, leak-free refrigerant connections for reliable operation.
  • UL Listed and Safety Certified - Meets strict safety and quality standards for residential HVAC applications.
  • R-454B Refrigerant Compatible - Designed for use with modern, eco-friendly refrigerants meeting current efficiency standards.

Installation Requirements: The ACiQ EVD5X18M14A must be paired with a compatible condenser and indoor blower or furnace to function properly. Standalone operation is not supported. For maximum system efficiency and full warranty protection, ensure proper matching, professional installation, and manufacturer registration.

View More Coils

Specifications

ACiQ 1.5 Ton Cased Evaporator Coil 14"W Upflow/Downflow With TXV R454B EVD5X18M14A

Brand ACiQ SKU EVD5X18M14A
Tonnage 1.5 Ton Style Cased V-Coil
Configuration Upflow / Downflow Refrigerant R-454B
Liquid Line 3/8" Suction Line 5/8"
Connection Type Sweat Certification UL Listed
Cabinet Dimensions (H x W x D) 14 11/16" x 14 3/16" x 20 5/8" Weight 30 lbs
Factory-Installed TXV Yes Drain Pan Material Polybutylene Terephthalate (PBT)
Replaces END4X18L14A, EVD4X18M14A Carrier Equivalent CVPVA1814XMC
Tempstar Equivalent END4X18L14A Bryant Equivalent CNPVP1814ALA
Warranty 10 Year Parts Limited Warranty with Online Registration
Warranty

ACiQ 1.5 Ton Cased Evaporator Coil 14"W Upflow/Downflow With TXV R454B EVD5X18M14A

Warranty Type Parts Compressor
Standard Warranty 3 Year Parts 5 Year Compressor
Registered Warranty 10 Year Parts (with Online Registration) 10 Year Compressor
Documents

ACiQ 1.5 Ton Cased Evaporator Coil 14"W Upflow/Downflow With TXV R454B EVD5X18M14A

EVD5X Specifications Sheet

EVD5X Installation Manual

ACiQ Evaporator Coil Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
