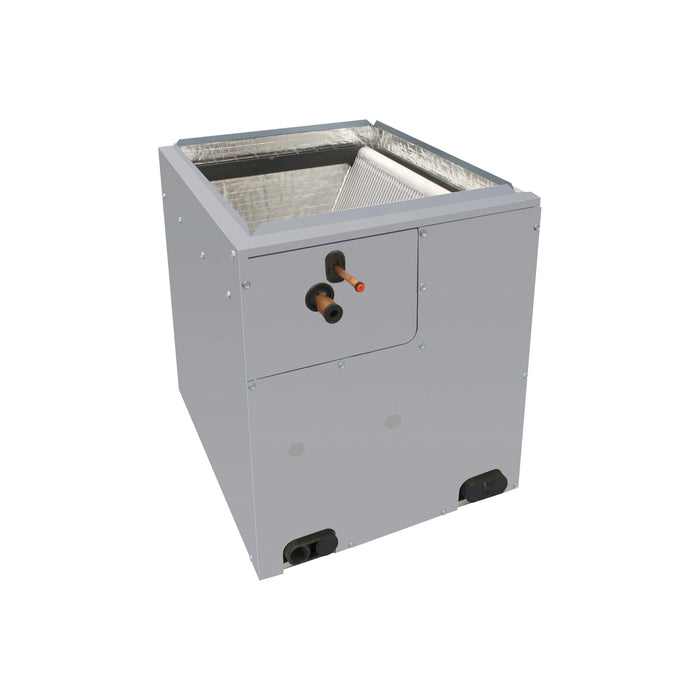

ACiQ EVD5X19M17A

ACiQ 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV R454B

By ACiQ | Model: EVD5X19M17A | ID: 889166
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$890.00 + SHIPPING
Product Details

ACiQ 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV EVD5X19M17A

The ACiQ EVD5X19M17A is a high-performance vertical evaporator coil designed to deliver exceptional cooling efficiency and reliable operation in residential HVAC systems. Featuring a factory-installed TXV kit, this 1.5-ton V-coil ensures precise refrigerant flow for superior energy optimization and system performance. Engineered for both upflow and downflow installations, its compact, fully insulated cased design promotes efficient heat transfer, space-saving installation, and long-term durability.

Key Features

  • 1.5 Ton Cooling Capacity - Ideal for efficient residential cooling applications and small system configurations.
  • Upflow and Downflow Compatible - Supports flexible installation options to fit various HVAC system layouts.
  • Factory-Installed TXV Kit - Provides optimal refrigerant metering for improved energy efficiency and consistent performance.
  • Compact Cased V-Coil Design - Maximizes airflow and heat exchange efficiency while saving valuable installation space.
  • Corrosion-Resistant Drain Pan - Constructed from durable PBT polymer for long-lasting resistance to rust and degradation.
  • Sweat Connection Fittings - Ensures secure, leak-resistant refrigerant connections during installation.
  • UL Listed - Certified for safety, quality, and reliable performance in residential applications.
  • R-454B Refrigerant Compatible - Designed for use with eco-friendly, modern refrigerants to meet current efficiency standards.

Installation Requirements: The ACiQ EVD5X19M17A evaporator coil must be paired with a compatible condenser and indoor blower or furnace to function properly. It cannot operate as a standalone component. Proper system matching, professional installation, and manufacturer registration are essential for achieving optimal performance and maintaining warranty coverage.

View More Coils

Specifications

ACiQ 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV EVD5X19M17A

Brand ACiQ SKU EVD5X19M17A
Weight (in lbs) 39 Replaces END4X18L14A, EVD4X19M17A
Carrier Equivalent CVPVA1814XMC Tempstar Equivalent END4X18L14A
Bryant Equivalent CNPVP1814ALA Configuration Upflow / Downflow
Refrigerant R454B Liquid Line 3/8"
Suction Line 5/8" Tonnage 1.5 Ton
Style V-Coil Connection Sweat
Certification UL Listed Height 19 7/16"
Width 17 1/2" Depth 20 5/8"
Warranty 10 Year Parts Limited Warranty with Online Registration
Warranty

ACiQ 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV EVD5X19M17A

Warranty Type Parts Compressor
Standard Warranty 3 Years 5 Years
Registered Warranty 10 Years  10 Years
Documents

ACiQ 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV EVD5X19M17A

EVD5X Specifications Sheet

EVD5X Installation Manual

ACiQ Evaporator Coil Warranty
