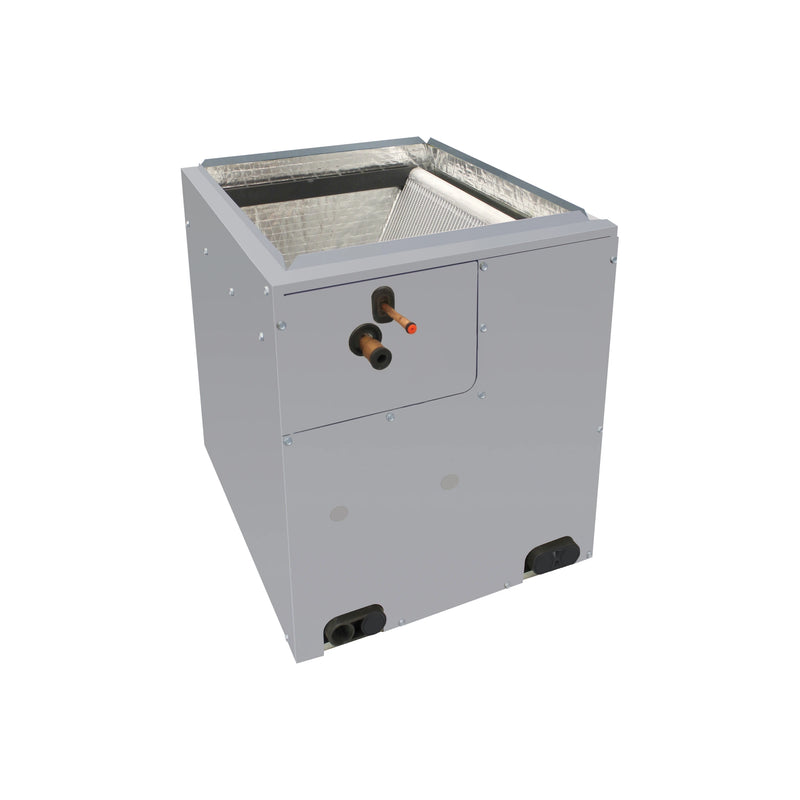

ACiQ 1.5 Ton Evaporator Coil Vertical Cased 17.5" Width Fully-Insulated EVD4X

By ACiQ | Model: EVD4X19M17A | ID: 089801
No Sales Tax - in most states excluding California
Free Shipping - on items over $1000
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$720.00 + SHIPPING
Product Details

ACiQ 1.5 Ton Evaporator Coil Vertical Cased 17.5" Width Fully-Insulated EVD4X19M17A

The ACiQ EVD4X19M17A is a high-performance 1.5 ton vertical evaporator coil designed for heat pump applications. With a fully insulated, cased V-coil design, it delivers efficient heat transfer while maintaining a compact footprint. A factory-installed TXV kit ensures precise refrigerant control for optimized energy efficiency. Built with a corrosion-resistant PBT drain pan, this coil combines durability and performance to meet a variety of residential cooling needs.

Key Features

  • 1.5 Ton Cooling Capacity – Ideal for small to medium residential applications.
  • Upflow & Downflow Compatible – Flexible installation options for different system configurations.
  • Fully Insulated Cased V-Coil – Maximizes heat transfer efficiency in a compact design.
  • Factory-Installed TXV Kit – Ensures precise refrigerant flow and optimized energy performance.
  • Corrosion-Resistant PBT Drain Pan – Durable and resistant to warping, cracking, or microbial growth.

For optimal performance, the coil should always be paired with a properly sized condenser. This ensures maximum efficiency and reliability in your heat pump system.

View More Coils

Specifications

ACiQ 1.5 Ton Evaporator Coil Vertical Cased 17.5" Width Fully-Insulated EVD4X19M17A

Brand ACiQ Model # EVD4X19M17A
Weight 37 Equivalent
Carrier Equivalent: CNPVP1917ALA
Tempstar Equivalent: END4X19L17A
Bryant Equivalent: CNPVP1917ALA
Configuration Upflow / Downflow Replaces END4X19L17A
Liquid Line 3/8" Suction Line 3/4"
Tonnage 1.5 Ton Style V-Coil
Certification UL Listed Height 19 7/16"
Width 17 1/2" Depth 20 5/8"
Warranty

ACiQ 1.5 Ton Evaporator Coil Vertical Cased 17.5" Width Fully-Insulated EVD4X19M17A

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

ACiQ 1.5 Ton Evaporator Coil Vertical Cased 17.5" Width Fully-Insulated EVD4X19M17A

Installation Manual

Specification Sheets

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
