ACiQ RGF120HE3A0AAA

ACiQ 10 Ton 180K BTU 11 EER Gas Commercial Packaged Unit 230V 3-Ph R454B

By ACiQ | Model: RGF120HE3A0AAA | ID: 90109
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$18,299.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

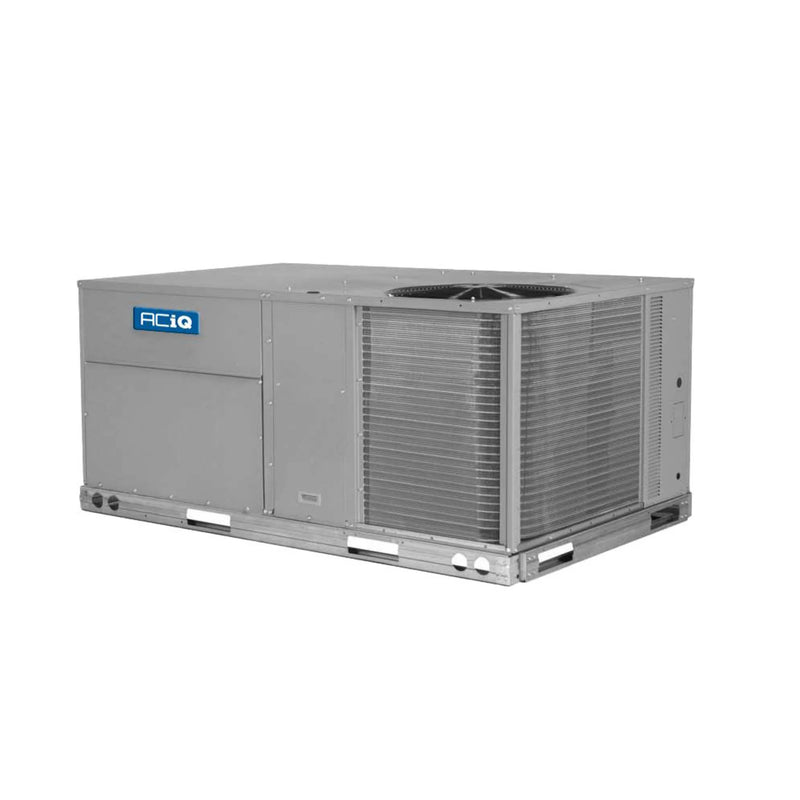

ACiQ 10 Ton 180K BTU 11 EER Gas Commercial Packaged Unit 230V 3-Ph R454B RGF120HE3A0AAA

The ACiQ RGF120HE3A0AAA is a commercial-grade 10 Ton gas/electric packaged rooftop unit engineered for high-efficiency performance and simplified service. Built with X-Vane Fan Technology, this unit delivers up to 118,000 BTU cooling and 180,000 BTU heating at 80% AFUE. It features a two-stage scroll compressor, ECM-driven vane axial fan, and rugged cabinet design for long-lasting operation. Pre-charged with eco-friendly R-454B refrigerant, this model replaces Carrier 48FCFM12A3A5-0A0A0 and supports horizontal airflow conversion, making it ideal for retrofit and new installations alike.

Key Features

  • 10 Ton capacity with 15.0 IEER and 11.0 EER energy performance
  • Delivers 180,000 BTU of heating power at 80% AFUE
  • Two-stage scroll compressor for improved load control
  • X-Vane fan system with ECM motor – eliminates belts and pulleys
  • High static pressure support for demanding commercial applications
  • R-454B refrigerant with reduced global warming potential
  • Field-convertible to horizontal airflow for flexible installation
  • Single-point electrical and gas connections for quick setup
  • Pre-charged and factory wired for faster installation
  • Corrosion-resistant composite drain pan and copper tube/aluminum fin coil
  • Large, accessible control box with intuitive fan configuration
  • Quiet operation at 79 decibels

This rooftop unit is ideal for large-scale HVAC applications including commercial facilities, institutions, and warehouses seeking low-maintenance comfort systems that meet modern efficiency and refrigerant standards.

View More Commercial Packaged Units

Specifications

ACiQ 10 Ton 180K BTU 11 EER Gas Commercial Packaged Unit 230V 3-Ph R454B RGF120HE3A0AAA

Brand ACiQ SKU RGF120HE3A0AAA
Refrigerant Charge Pre-Charged Weight 878
Carrier Equivalent 48FCFM12A3A5-0A0A0 Furnace Efficiency / AFUE 80%
Cooling BTU 118,000 BTU Heating BTU 180,000 BTU
Drive Type Direct Maximum CFM 3500
Decibel Level (dBA) 79 Decibels Refrigerant R454B
EER 11.0 IEER 15.0
Condenser Stages Two Stage Compressor Type Scroll
Electrical 208/230v 3 Phase 60 Hz Electric Phase Filter Three Phase
Tonnage 10 Ton Burner Stages Two
Height 49 3/8" Width 84 7/8"
Depth 53 7/8" Warranty 10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Warranty

ACiQ 10 Ton 180K BTU 11 EER Gas Commercial Packaged Unit 230V 3-Ph R454B RGF120HE3A0AAA

Warranty Type Parts Compressor Heat Exchanger
Standard Warranty 1 Year 5 Years 10 Years
Registered Warranty 1 Year 5 Years 10 Years
Documents

ACiQ 10 Ton 180K BTU 11 EER Gas Commercial Packaged Unit 230V 3-Ph R454B RGF120HE3A0AAA

RGF Installation Manual

RGF Specifications Sheet

ACiQ Warranty Information
