ACiQ 100K BTU 80% Gas Furnace Two-Stage 1600 CFM 21" Upflow/Horizontal R32

ACiQ 100K BTU 80% Gas Furnace Two-Stage 1600 CFM 21" Upflow/Horizontal R32

By ACiQ | SKU: AQ-GR9T801004CN | ID: 089562
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,513.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

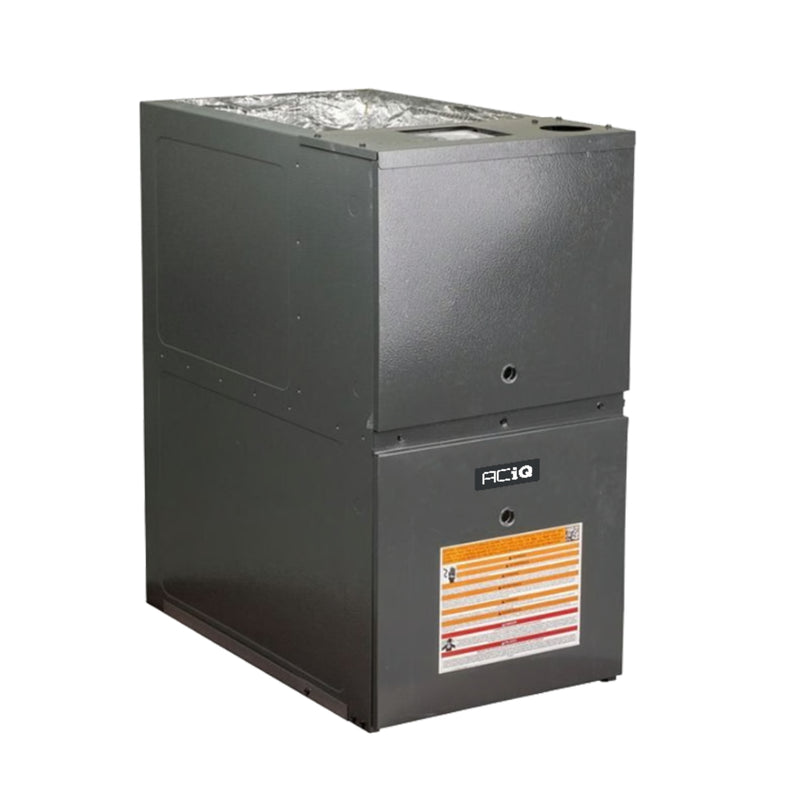

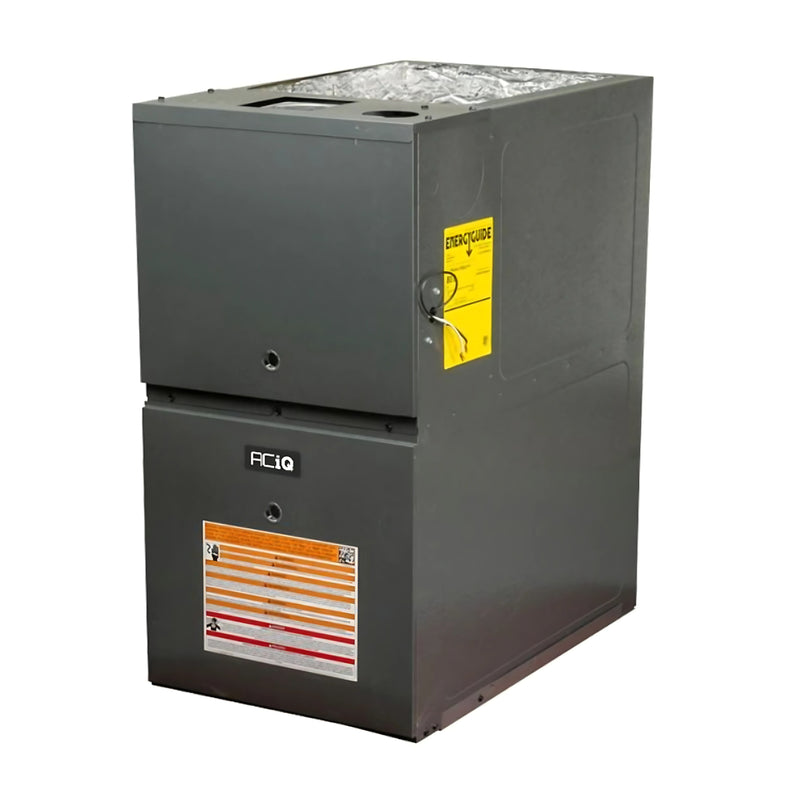

ACiQ 100K BTU 80% Gas Furnace Two-Stage 1600 CFM 21" Upflow/Horizontal R32 AQ-GR9T801004CN

The ACiQ AQ-GR9T801004CN gas furnace is engineered for high performance, long-term reliability, and energy-saving operation. Featuring a 100,000 BTU input and 80% AFUE efficiency, this two-stage, 9-speed furnace is the perfect heating solution for medium to large homes. With quiet, smart airflow control and flexible installation options, this model offers both comfort and value without compromise.

Key Features of the ACiQ AQ-GR9T801004CN Gas Furnace

  • 100,000 BTU Heating Capacity
    Ideal for medium to large homes in moderate to cold climates, with an 80,000 BTU heat output (based on 80% AFUE).

  • 80% AFUE Efficiency Rating
    Delivers energy-conscious performance—80% of the gas used is converted into heat, helping reduce monthly utility costs.

  • Two-Stage Gas Valve
    Operates at a low stage for everyday efficiency and quieter performance, ramping to full output only during colder weather.

  • 9-Speed ECM Blower Motor
    Offers more precise airflow control and reduced energy use compared to traditional PSC motors, enhancing overall HVAC system efficiency.

  • Natural Gas or LP Compatible
    Factory configured for natural gas; easily convertible to propane with an LP conversion kit (sold separately).

  • Quiet Performance
    Equipped with a two-speed induced draft blower and low constant fan speed to reduce sound and maintain consistent comfort.

  • SureStart® Silicon Nitride Igniter
    A long-lasting hot surface igniter provides safe and efficient ignition, replacing older pilot flame systems.

  • Self-Diagnostic Control Board
    Smart internal diagnostics simplify troubleshooting, identify basic service issues, and increase operational safety.

  • Durable, Insulated Steel Cabinet
    Heavy-gauge cabinet with baked-enamel finish ensures long-term durability, reduced heat loss, and lower operating noise.

  • Flexible Installation Options
    Supports upflow and horizontal installations; bottom panel is removable for side- or bottom-return air applications.

  • Tight Air Leakage Control (<2%)
    Factory-sealed cabinet minimizes heated air loss for improved efficiency and airflow performance.

  • Certified Performance and Safety
    AHRI Certified and ETL Listed; not compliant with SCAQMD or SJVAPCD air quality regulations in certain California regions.

  • Warranty Coverage
    Includes a lifetime heat exchanger warranty, 10-year parts warranty, and 10-year unit replacement warranty with online registration.

Why Choose the ACiQ AQ-GR9T801004CN Gas Furnace?

With its two-stage operation, intelligent ECM motor, and quiet, efficient performance, the ACiQ AQ-GR9T801004CN offers serious heating power without sacrificing comfort or affordability. Built for ease of installation and reliable performance in demanding climates, this furnace is a smart investment for homeowners upgrading to a modern HVAC solution.

View More Furnaces

Specifications

ACiQ 100K BTU 80% Gas Furnace Two-Stage 1600 CFM 21" Upflow/Horizontal R32 AQ-GR9T801004CN

Brand ACiQ SKU AQ-GR9T801004CN
Weight (in lbs) 124 AHRI Certificate Number 215358032
Airflow Direction Upflow/Horizontal Exhaust Flue Requirement Metal
Brand/Manufacturer ACiQ Replaces GM9C801004CN & GMEC801004CN
Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 80%
Heating BTU 100,000 Blower Motor 9 Speed - ECM
Maximum CFM 1600 Configuration Upflow/Horizontal
Electrical 115v 1 Phase 60 Hz Max Breaker Size 20 Amps
Min. Breaker Size 11.3 Amps Burner Stages Two
Fuel Type Propane, Natural Gas Height 33 3/8"
Width 21" Depth 28"
Warranty Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration
Warranty

ACiQ 100K BTU 80% Gas Furnace Two-Stage 1600 CFM 21" Upflow/Horizontal R32 AQ-GR9T801004CN

Warranty Type Heat Exchanger Unit Replacement Parts
Standard Warranty NA NA 5-Year Parts
Registered Warranty Lifetime (Manufacturer) 10-Years 10-Year Parts
Documents

ACiQ 100K BTU 80% Gas Furnace Two-Stage 1600 CFM 21" Upflow/Horizontal R32 AQ-GR9T801004CN

Specification Sheets

Installation Manual

Warranty Information
