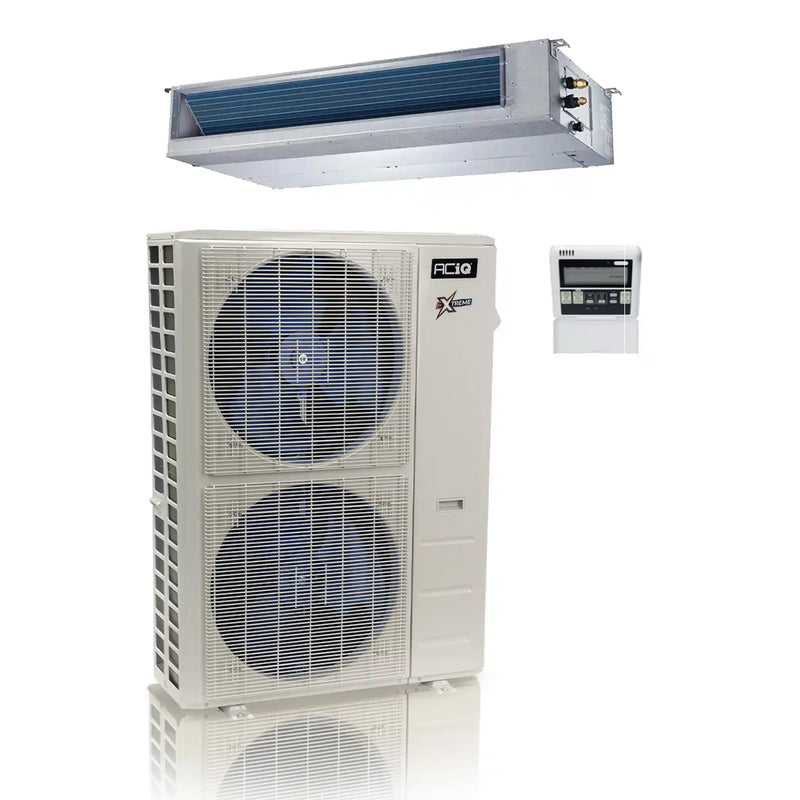

ACiQ 36,000 BTU 23 SEER Extreme Concealed Duct Mini Split System R454B 230V

Name: ACiQ 36,000 BTU 23 SEER Extreme Concealed Duct Mini Split System R454B 230V
Brand: ACiQ
SKU: ACIQ-36CD-HH-MC ACiQ-36ZPL-HP230C
Price: 4314.49 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-36CD-HH-MC ACiQ-36ZPL-HP230C | ID: 88271

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,314.49 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

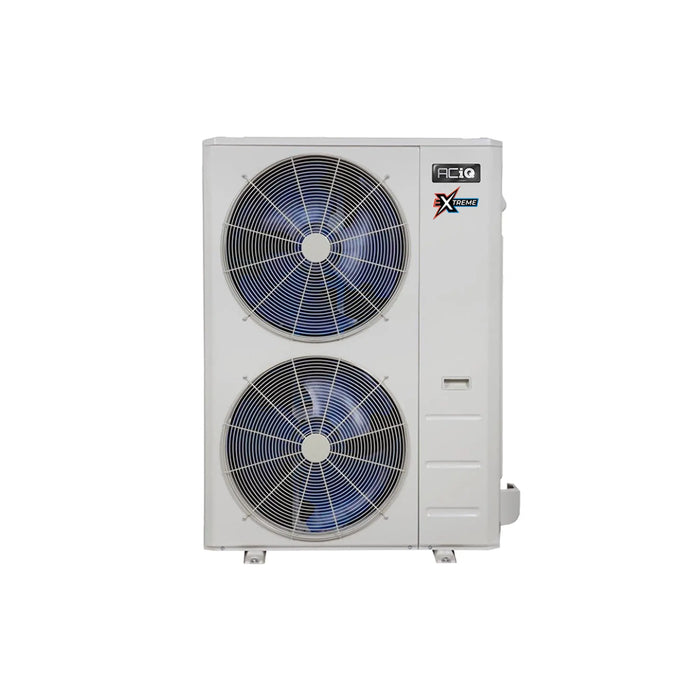

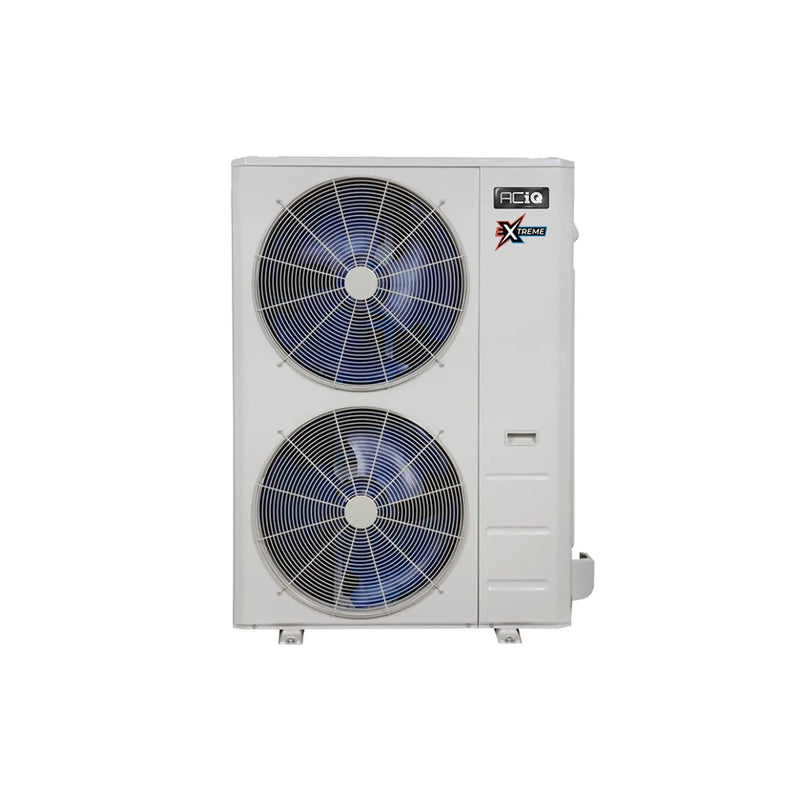

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

The ACiQ 36,000 BTU Extreme Series Single Zone Condenser delivers ultra-efficient performance at a competitive price. Powered by Hyper Heat technology, it ensures reliable heating down to -22°F and cooling up to 122°F. Built for large rooms, this condenser utilizes advanced inverter technology and a twin rotary compressor to provide powerful, quiet, and dependable operation. Designed for compatibility with multiple air handler types, this unit adapts to a variety of installation needs while reducing long-term energy costs.

Key Features

Hyper Heat performance down to -22°F for year-round comfort
High-efficiency rotary compressor with inverter control
SEER2 rating of 21.2 for superior energy savings
Gold fin condenser coil for enhanced durability
Quiet operation with max sound level of 64.5 dBA
R454B refrigerant for next-gen environmental compliance
Maximum airflow up to 3,001.9 CFM
Ideal coverage for areas between 1,200–1,800 sq. ft.
Compatible with concealed duct, wall, ceiling, and floor mount air handlers

This is not a DIY unit. Professional installation is required. Quick connect line sets not included.

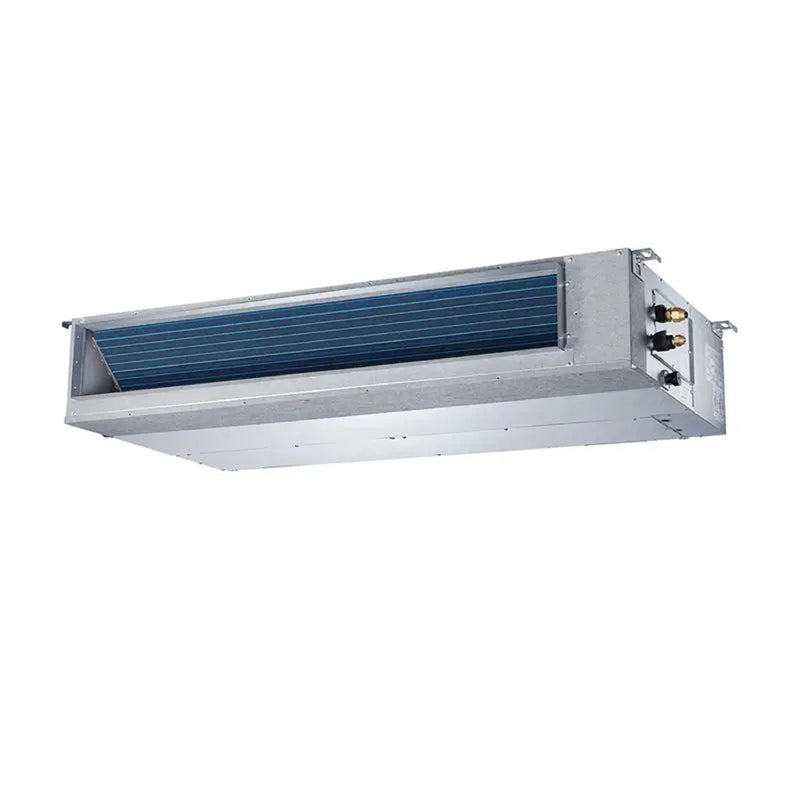

ACiQ 36,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-36CD-HH-MC

The ACiQ 36,000 BTU Concealed Duct Mini Split Air Handler delivers powerful heating and cooling without any visible equipment inside your living space. Designed for hidden installations above ceilings or below floors, it utilizes flex ducting to distribute air discreetly throughout the room. This unit is perfect for homeowners or builders seeking a clean, minimalistic aesthetic without compromising on performance. With whisper-quiet operation, a built-in condensate pump, and flexible installation options, it’s ideal for custom home designs or additions.

Key Features

36,000 BTU heating and cooling capacity
Fits in ceilings, attics, or behind soffits for hidden installation
Delivers airflow through flex ducting to multiple vents
Integrated condensation pump for drainage management
Wall-mounted thermostat included
Supports up to four flex duct runs
Quiet operation with max sound level of 49.5 dBA
Ideal for medium to large rooms or master suites

Best suited for new construction or renovation projects requiring custom duct routing and minimal visual impact.

View More Single Zone Mini Splits

Specifications

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-36ZPL-HP230C
Cooling Capacity	36,000 BTU	Heating Capacity	42,000 BTU
SEER2	21.2	HSPF2	10.6
Max CFM	3001.9	Sound Level	64.5 dBA
Voltage	208/230V 1 Phase 60Hz	Max Breaker Size	50 Amps
Min Breaker Size	41 Amps	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Dimensions (H x W x D)	38.39" x 38.58" x 16.34"

ACiQ 36,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-36CD-HH-MC

Brand	ACiQ	Model #	ACIQ-36CD-HH-MC
Cooling Capacity	36,000 BTU	Heating Capacity	42,000 BTU
Max CFM	1081.76	Sound Level	49.5 dBA
Voltage	208/230V 1 Phase 60Hz	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Dimensions (H x W x D)	9.80" x 53.54" x 30.47"

Warranty

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

ACiQ 36,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-36CD-HH-MC

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

Documents

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Submittal with Concealed Duct

ACiQ 36,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-36CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information
