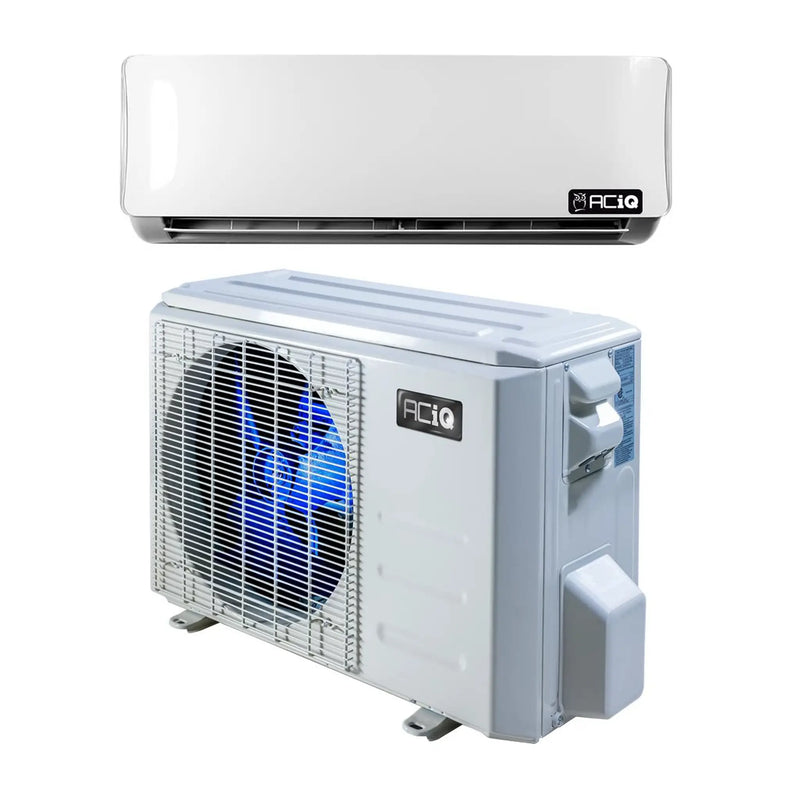

ACiQ 23.2 SEER2 Wall Mounted Mini Split System With WiFi 12K BTU 115V R454B

By ACiQ | Model: ACIQ-12ZS-HP115C / ACIQ-12WS-HP115C | ID: 88299
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,230.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

ACiQ 12K BTU 20.8 SEER2 Wall Mounted Mini Split System With WiFi 115V R454B

The ACiQ 12,000 BTU Single Zone Mini Split System delivers high-efficiency heating and cooling with advanced inverter technology and eco-friendly R454B refrigerant. Ideal for small to medium-sized rooms, this 1-ton system ensures quiet comfort, precise temperature control, and smart home integration. Built for durability and intelligent performance, the system is backed by a long-life rotary compressor and extended warranty coverage.

Key Features

  • 12,000 BTU capacity – suitable for small to medium spaces
  • High-efficiency 23.2 SEER2 inverter system with R454B refrigerant
  • WiFi-enabled for app control and smart assistant compatibility
  • Rotary compressor with Gold Fin corrosion protection
  • Wall-mounted air handler with remote control and LED display
  • Quiet operation – rated at 44 dBA indoors and 53 dBA outdoors
  • Not a DIY system – professional installation required

View More Single Zone Mini Splits

Specifications

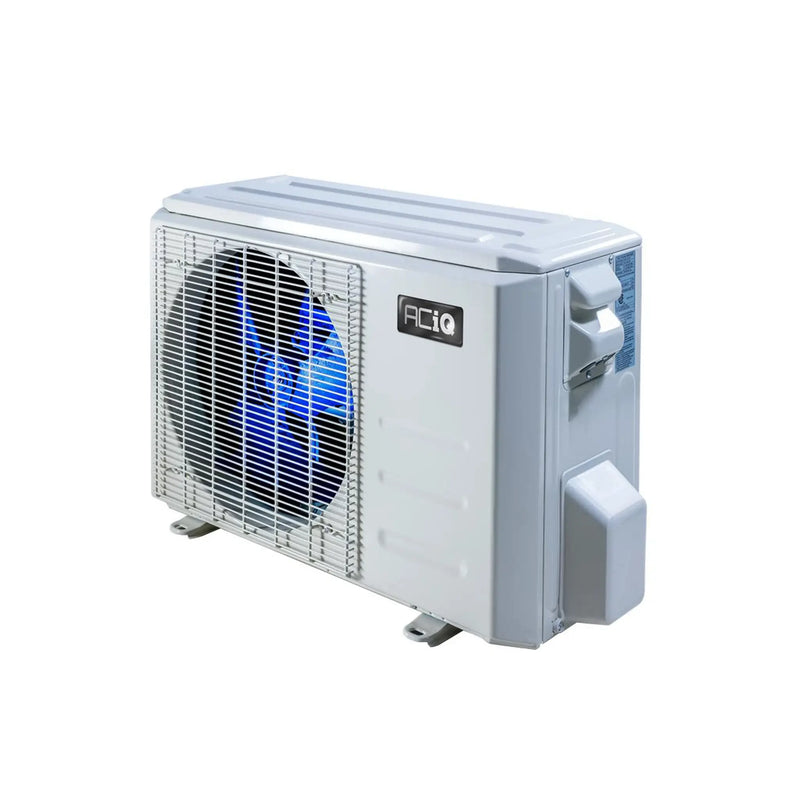

ACiQ 12K BTU Standard Single Zone Mini Split Heat Pump Condenser ACIQ-12ZS-HP115C

Brand ACiQ SKU ACIQ-12ZS-HP115C
BTU / Tonnage 12,000 BTU / 1 Ton Cooling BTU 12,000 BTU
Heating BTU 12,000 BTU SEER2 23.2
HSPF2 10.4 Energy Star Yes
Max Airflow (CFM) 1235.3 Sound Level 53 dBA
Width 30.12" Height 21.85"
Depth 11.93" Weight 70.11 lbs
Electrical 115V, 1 Phase, 60 Hz Phase Single Phase
Max Breaker Size 20 Min Breaker Size 18
Compressor Type Rotary Mini Split Type Wall Mounted
Refrigerant R454B Refrigerant Charge 33.51 oz.
Liquid Line 1/4" Suction Line 3/8"
Electric Heat Heat Pump Product Features Line Voltage
AHRI Certificate 216980866

ACiQ 12,000 BTU Air Handler With WiFi ACIQ-12WS-HP115C

Brand / Manufacturer ACiQ SKU ACIQ-12WS-HP115C
Maximum CFM 370.8 AHRI Certificate # 216980866
Depth 7.87" Height 11.61"
Width 31.57" Weight 26.01 lbs
HSPF2 10.4 SEER2 23.2
Decibel Level Up to 44 dBA Energy Star Yes
Electrical 115V, 1 Phase, 60 Hz BTU / Tonnage 12,000 BTU / 1 Ton
Cooling BTU 12,000 BTU Heating BTU 12,000 BTU
Liquid Line 1/4" Suction Line 3/8"
Refrigerant R454B Phase Single Phase
Compressor Type Rotary Mini Split Type Wall Mounted
Warranty

ACiQ 12K BTU Standard Single Zone Mini Split Heat Pump Condenser ACIQ-12ZS-HP115C

Component Warranty Coverage
Compressor 12 Years (with online registration)
Parts 7 Years (with online registration)

ACiQ 12,000 BTU Air Handler With WiFi ACIQ-12WS-HP115C

Component Warranty Coverage
Compressor 12 Years (with online registration)
Parts 7 Years (with online registration)
Documents

ACiQ 12K BTU Standard Single Zone Mini Split Heat Pump Condenser ACIQ-12ZS-HP115C

Brochure

Installation Manual

Service Manual

Remote Control Manual

Submittal

AHRI Certificate

Warranty Information

ACiQ 12,000 BTU Air Handler With WiFi ACIQ-12WS-HP115C

Wi-Fi Manual

Remote Control Manual

Submittal

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
