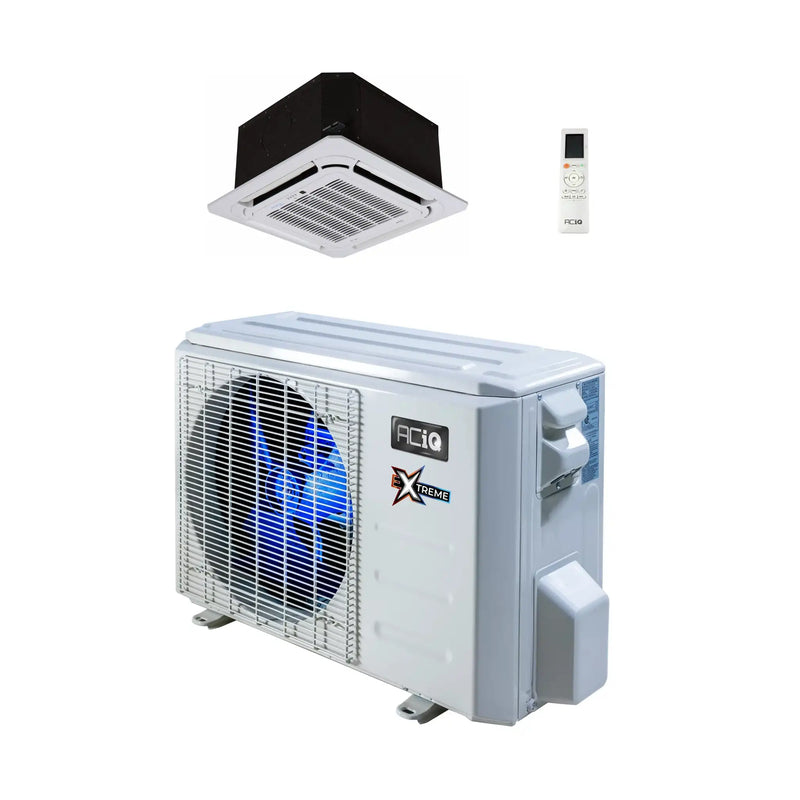

ACiQ 12K BTU 23 SEER Extreme Ceiling Cassette Mini Split System R454B 230V

Name: ACiQ 12K BTU 23 SEER Extreme Ceiling Cassette Mini Split System R454B 230V
Brand: ACiQ
SKU: ACIQ-12CC-HH-MC ACiQ-12ZPL-HP230C
Price: 2421.98 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-12CC-HH-MC ACiQ-12ZPL-HP230C | ID: 88286

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,421.98 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

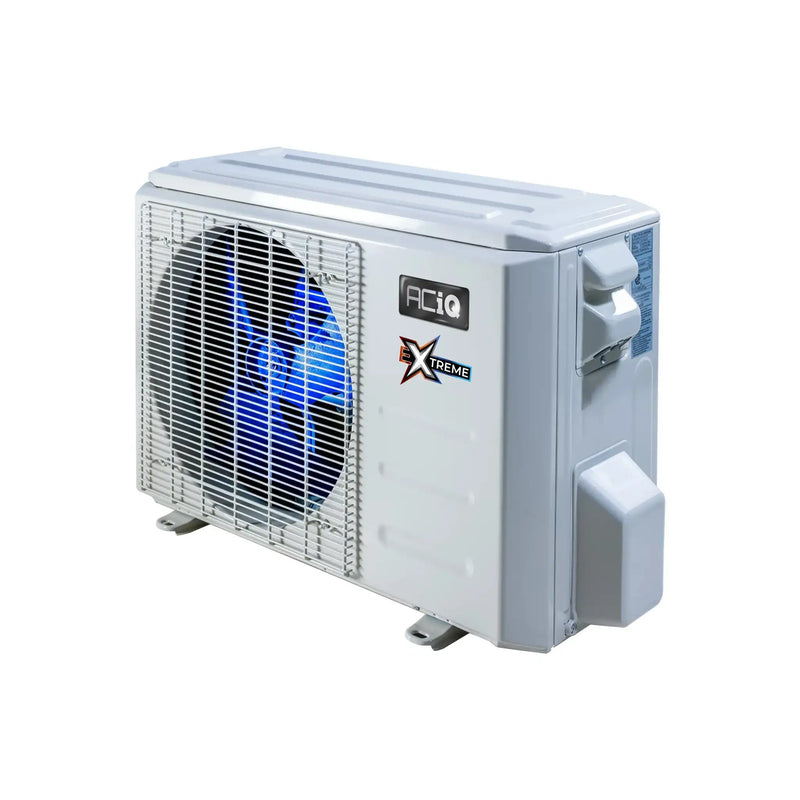

ACiQ 12,000 BTU 25.5 SEER2 Extreme Heat Pump Condenser R454B 230V ACIQ-12ZPL-HP230C

Experience high-efficiency performance with the ACiQ 12,000 BTU Extreme Series single zone condenser. Engineered with advanced inverter technology and R454B refrigerant, this system offers up to 25.5 SEER2 and delivers consistent heating and cooling performance in harsh climates—down to -22°F. Built for long-term reliability and low ambient operation, this condenser provides a cost-effective, energy-conscious solution for year-round comfort.

Key Features

12,000 BTU single zone inverter condenser with 25.5 SEER2 and 10.5 HSPF2
Rated for extreme temperatures from -22°F to 122°F
Low ambient heating performance with R454B refrigerant
Quiet 56 dBA operation for minimal outdoor noise
Energy Star and NEEP certified for high energy performance
Compatible with various indoor unit types including ceiling cassette

Ideal for smaller rooms or zones, this 1-ton condenser delivers top-tier comfort with one of the highest SEER2 ratings in its class.

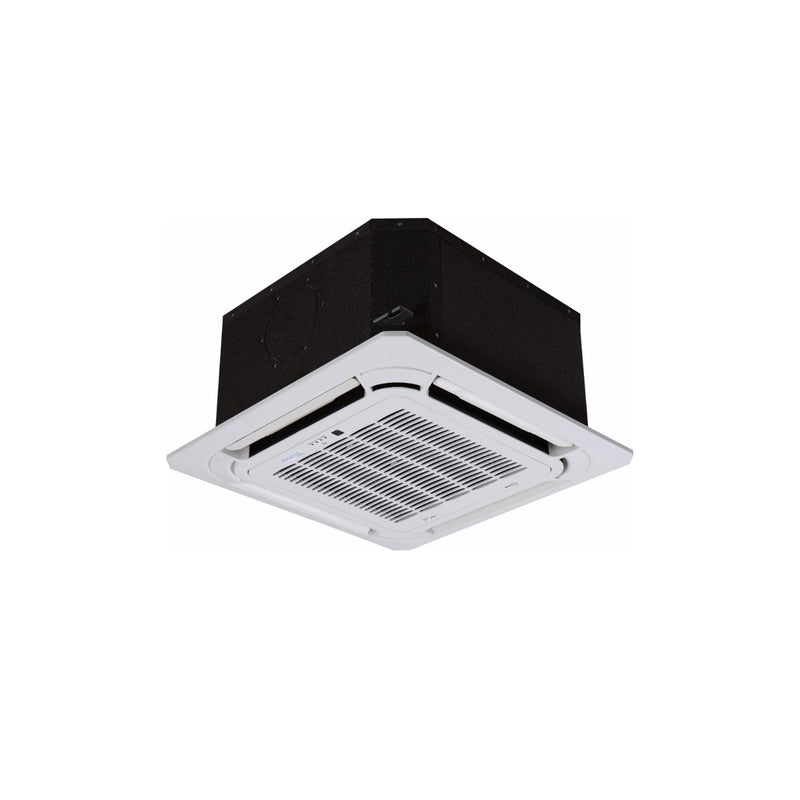

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

12,000 BTU of Heating or Cooling power
Dry and Fan modes for versatile comfort
Perfect for small rooms in most climates
4 Way Air Supply for consistent room coverage
Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.

View More Single Zone Mini Splits

Specifications

ACiQ 12,000 BTU 25.5 SEER2 Extreme Heat Pump Condenser R454B 230V ACIQ-12ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-12ZPL-HP230C
Cooling Capacity	12,000 BTU	Heating Capacity	12,000 BTU
SEER2	25.5	HSPF2	10.5
Voltage / Phase / Hz	208/230V, 1 Phase, 60 Hz	BTU/Tonnage	12,000 BTU / 1 Ton
Sound Level (dBA)	56	Max CFM	1470.6
Refrigerant	R454B	Energy Star	Yes
Breaker Size (Min/Max)	15A / 15A
Operating Temps (Cooling / Heating)	-22°F to 122°F / -22°F to 75°F
Certifications	Energy Star, NEEP, UL AHRI
Dimensions (H x W x D)	21.81" x 31.69" x 12.99"
Zone Compatibility	Single Zone

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC

Brand	ACiQ	SKU	ACIQ-12CC-HH-MC
Replaces	ACIQ-12CC-HH-MB	Product Features	Low Ambient Heating, Wireless Controller
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	As low as 31.5
Electric Heat	Heat Pump	Refrigerant	R454B
Capacity	Dehumidification Rate: 0.45 gal/hr	SEER2	22.3
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone	Length	22.44"
Height	10.24"	Depth	22.44"

Warranty

ACiQ 12,000 BTU 25.5 SEER2 Extreme Heat Pump Condenser R454B 230V ACIQ-12ZPL-HP230C

Compressor Warranty

12 Years

Parts Warranty

7 Years

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 12,000 BTU 25.5 SEER2 Extreme Heat Pump Condenser R454B 230V ACIQ-12ZPL-HP230C

Submittal

Installation Manual

Owner's Manual

Remote Manual

Service Manual

Warranty Information

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-12CC-HH-MC

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information
