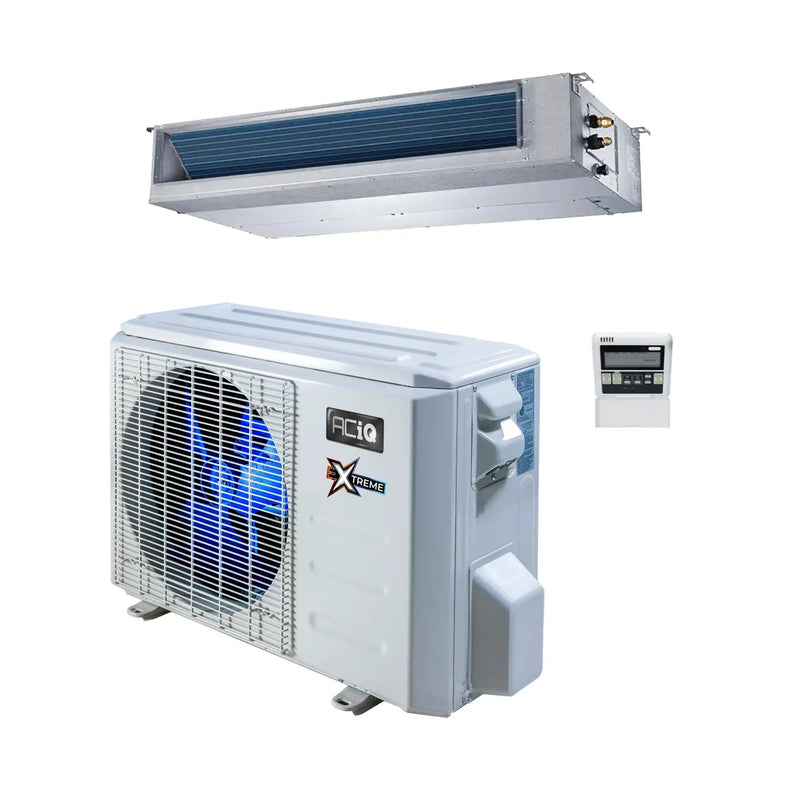

ACiQ 18,000 BTU 23 SEER Extreme Concealed Duct Mini Split System R454B 230V

Name: ACiQ 18,000 BTU 23 SEER Extreme Concealed Duct Mini Split System R454B 230V
Brand: ACiQ
SKU: ACIQ-18CD-HH-MC ACiQ-18ZPL-HP230C
Price: 2729.99 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-18CD-HH-MC ACiQ-18ZPL-HP230C | ID: 88280

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,729.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

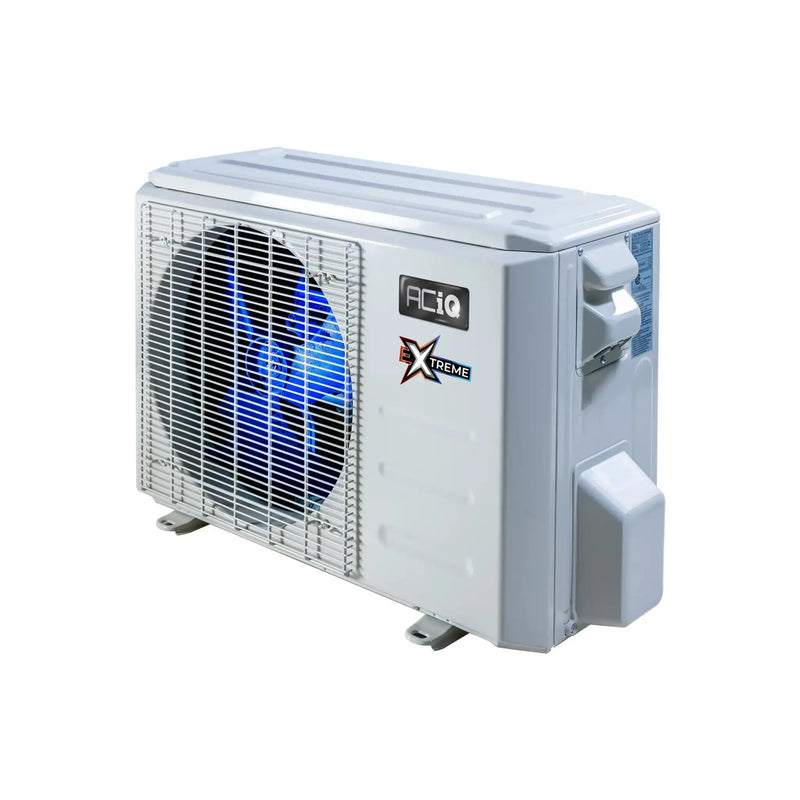

ACiQ 18,000 BTU Single Zone Heat Pump Condenser 21.4 SEER2 R454B 230V ACIQ-18ZPL-HP230C

The ACiQ 18,000 BTU Extreme Series condenser delivers reliable year-round comfort with superior efficiency. Engineered for challenging climates, it includes Extreme Heat technology to maintain performance even in sub-zero conditions. With a SEER2 rating of 21.4 and R454B refrigerant, this system delivers affordable, environmentally responsible heating and cooling.

Key Features

High-efficiency inverter heat pump condenser with 18,000 BTU output
Rated up to 21.4 SEER2 and 11.0 HSPF2 for reduced energy costs
R454B refrigerant meets new low-GWP environmental standards
Effective in extreme temperatures: -22°F to 122°F
Low ambient heating support with quiet 59 dBA operation
NEEP and Energy Star certified for energy performance
Professional installation required (non-DIY)

This 1.5-ton system is an ideal solution for energy-conscious homeowners looking to condition medium-sized rooms or zones with consistent and powerful performance.

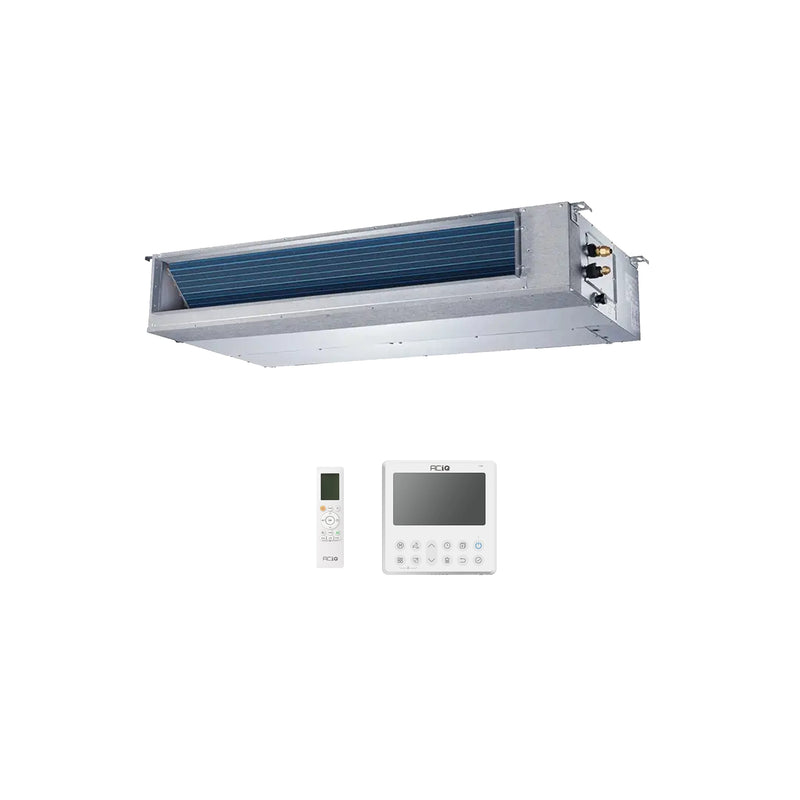

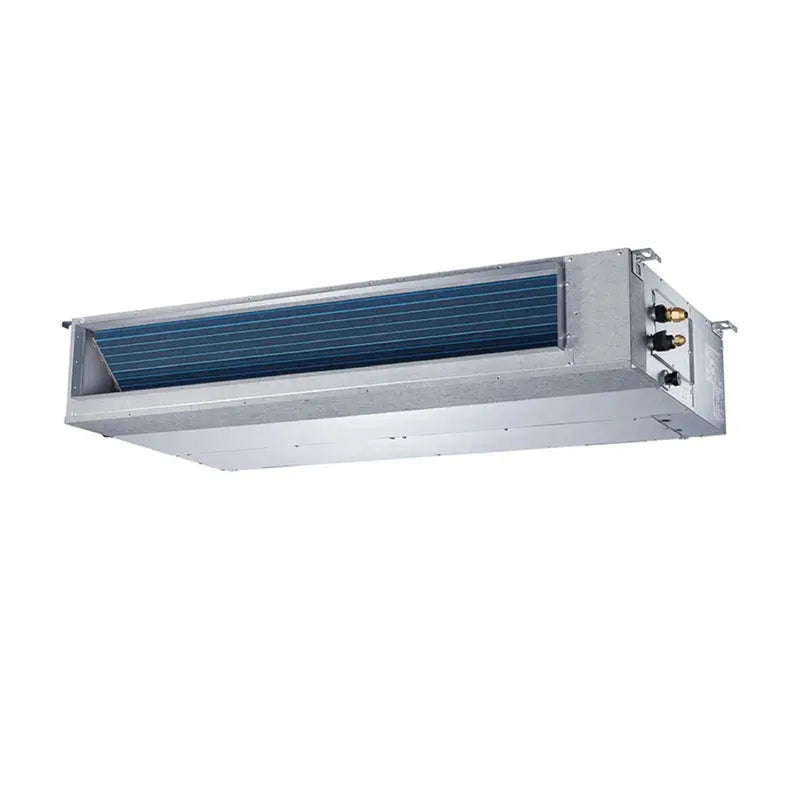

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC offers the advantages of a multi-zone mini split system without visible air handlers on your walls or ceilings. This flexible unit can be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Air distribution is achieved using flex ducting to ceiling or wall registers in your desired location.

Key Features

18,000 BTU of Heating or Cooling Capacity
Dry and Fan Modes Available
Good for Medium Rooms in Most Climates
Wall Mounted Thermostat Included
Concealed Duct Design for Flexible Installation

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC is designed for quiet comfort, with precision engineering to quickly achieve and maintain set temperatures. The system features whisper-quiet indoor and outdoor units for minimal disruption.

View More Single Zone Mini Splits

Specifications

ACiQ 18,000 BTU Single Zone Heat Pump Condenser 21.4 SEER2 R454B 230V ACIQ-18ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-18ZPL-HP230C
Cooling Capacity	18,000 BTU	Heating Capacity	18,000 BTU
SEER2	21.4	HSPF2	11.0
Voltage / Phase / Hz	208/230V, 1 Phase, 60 Hz	Tonnage	1.5 Ton
Sound Level (dBA)	59	Max CFM	1764.7
Refrigerant	R454B	Compressor Type	Inverter Rotary
Liquid Line	1/4"	Suction Line	1/2"
Breaker Size (Min/Max)	20A / 25A
Operating Temps (Cooling / Heating)	-22°F to 122°F / -22°F to 75°F
Certifications	Energy Star, NEEP, UL AHRI
Unit Dimensions (H x W x D)	26.5" x 35.04" x 13.46"
Zone Compatibility	Single Zone

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Brand	ACiQ	SKU	ACIQ-18CD-HH-MC
Cooling BTU	17,500 BTU	Heating BTU	18,000 BTU
Maximum CFM	706.3	Decibel Level (dBA)	As low as 28
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Concealed Duct	Zone Compatibility	Multi Zone
Height	9.65"	Width	39.37"
Depth	29.53"

Warranty

ACiQ 18,000 BTU Single Zone Heat Pump Condenser 21.4 SEER2 R454B 230V ACIQ-18ZPL-HP230C

Compressor Warranty

12 Years

Parts Warranty

7 Years

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 18,000 BTU Single Zone Heat Pump Condenser 21.4 SEER2 R454B 230V ACIQ-18ZPL-HP230C

Submittal

Installation Manual

Owner's Manual

Remote Manual

Service Manual

Warranty Information

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
