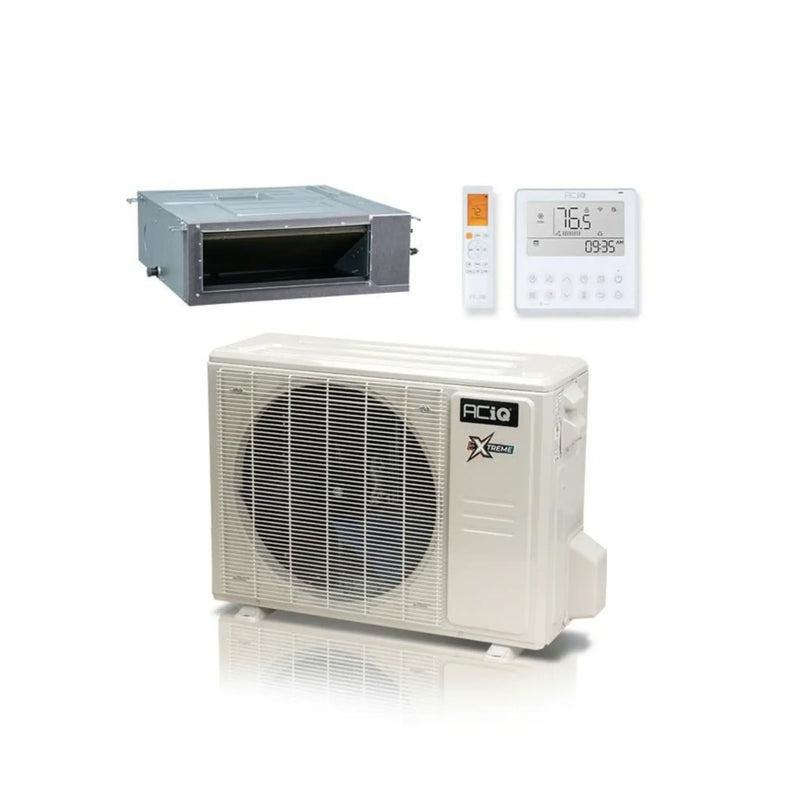

ACIQ 18K BTU 18.4 SEER2 Single Zone Concealed Duct Mini Split R454B 230V

Name: ACIQ 18K BTU 18.4 SEER2 Single Zone Concealed Duct Mini Split R454B 230V
Brand: ACiQ
SKU: ACIQ-18ZPL-HP230C
Price: 2249.99 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: ACIQ-18ZPL-HP230C / ACIQ-18CD-HH-MC | ID: 90816

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,249.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

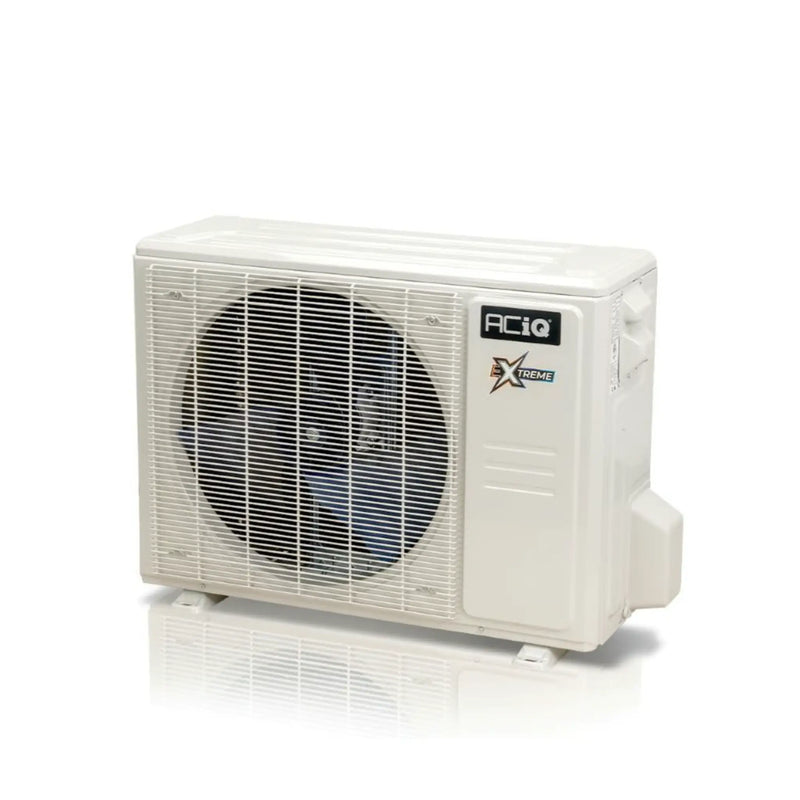

ACiQ 18K BTU 21.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACiQ-18ZPL-HP230C

The ACiQ 18K BTU Extreme Heat Pump Condenser ACIQ-18ZPL-HP230C is a high-performance single-zone mini split outdoor unit designed for efficient cooling and heating. Operating on 230V and using eco-friendly R454B refrigerant, this 1.5-ton inverter system provides reliable year-round comfort with advanced efficiency and quiet operation. Ideal for homes, offices, and medium-sized spaces, the Extreme Series offers premium climate control with durable construction and cutting-edge technology.

Key Features

18,000 BTU cooling and heating capacity for medium-sized rooms and living spaces
High-efficiency performance with SEER2 21.4 and HSPF2 11.0 for reduced energy costs
Single-zone 230V mini split heat pump system for targeted comfort control
Uses R454B eco-friendly refrigerant for improved environmental compliance
Inverter rotary compressor for stable, efficient, and quiet operation
Outdoor noise level around 59 dBA to help maintain a quiet environment
Extreme cold-climate heating capable of operating down to -22°F
High airflow output for strong and consistent cooling and heating performance
Compatible with various indoor unit types including wall-mount, cassette, and ducted air handlers
Durable construction with performance certifications for long-lasting reliability

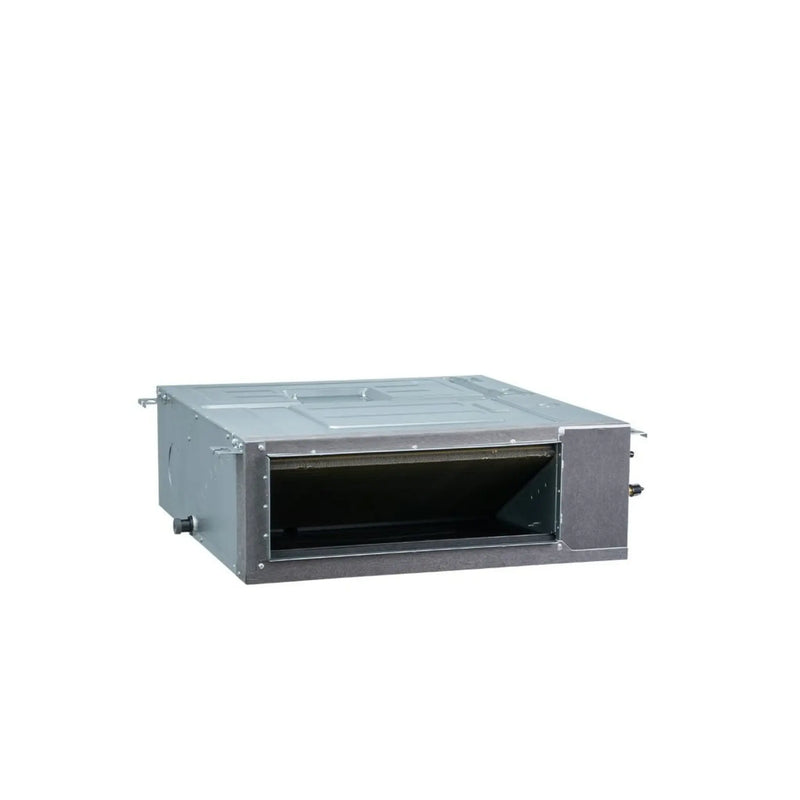

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC offers the advantages of a multi-zone mini split system without visible air handlers on your walls or ceilings. This flexible unit can be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Air distribution is achieved using flex ducting to ceiling or wall registers in your desired location.

Key Features

18,000 BTU of Heating or Cooling Capacity
Dry and Fan Modes Available
Good for Medium Rooms in Most Climates
Wall Mounted Thermostat Included
Concealed Duct Design for Flexible Installation

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC is designed for quiet comfort, with precision engineering to quickly achieve and maintain set temperatures. The system features whisper-quiet indoor and outdoor units for minimal disruption.

View More Single Zone Mini Splits

Specifications

ACiQ 18K BTU 21.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACiQ-18ZPL-HP230C

Brand	ACiQ	SKU	ACIQ-18ZPL-HP230C
SEER2 Rating	21.4	Tonnage	1.5 Ton
BTU	18,000 BTU	Weight	107.8
Manufacturer	ACiQ	Refrigerant Charge	55.38 oz.
Product Features	Low Ambient Heating	HSPF2	11.0
Cooling BTU	18,000 BTU	Heating BTU	18,000 BTU
Maximum CFM	1764.70	Decibel Level	59.0
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	Compressor Type	Rotary
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V, 1 Phase, 60 Hz	Electric Phase Filter	Single Phase
Max Breaker Size	20A	Min Breaker Size	19A
BTU/Tonnage	18,000 BTU / 1.5 Ton	Min/Max Outdoor Temp Heating	-22~75 °F / -30~24 °C
Min/Max Outdoor Temp Cooling	-22~122 °F / -30~50 °C	Zone Compatibility	Single Zone
Operating Mode	Heating/Cooling	Certification	Energy Star, NEEP, UL AHRI
Height	26.50"	Width	35.04"
Depth	13.46"	Warranty	12 year compressor, 7 year parts with online registration

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Brand	ACiQ	SKU	ACIQ-18CD-HH-MC
Cooling BTU	17,500 BTU	Heating BTU	18,000 BTU
Maximum CFM	706.3	Decibel Level (dBA)	As low as 28
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Concealed Duct	Zone Compatibility	Multi Zone
Height	9.65"	Width	39.37"
Depth	29.53"	Warranty	12 year compressor, 7 year parts with online registration

Warranty

ACiQ 18K BTU 21.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACiQ-18ZPL-HP230C

Warranty Type	Parts	Compressor
Standard Warranty	5 year parts	7 year parts
Registered Warranty	7 year parts	12 year parts

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years
Registered Warranty	7 years	12 years

Documents

ACiQ 18K BTU 21.4 SEER2 Extreme Heat Pump Condenser Single Zone R454B 230V ACiQ-18ZPL-HP230C

AHRI Certificates (18K with all available air handlers)

Submittal with 18K Ceiling Cassette

Submittal with 18K Concealed Duct

Submittal with 18K Floor/Ceiling Mount

Submittal with 18K Slim Ceiling Cassette

Submittal with 18k Wall Mount

Service Manual

Nominal Capacity Performance Charts

Warranty

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information
