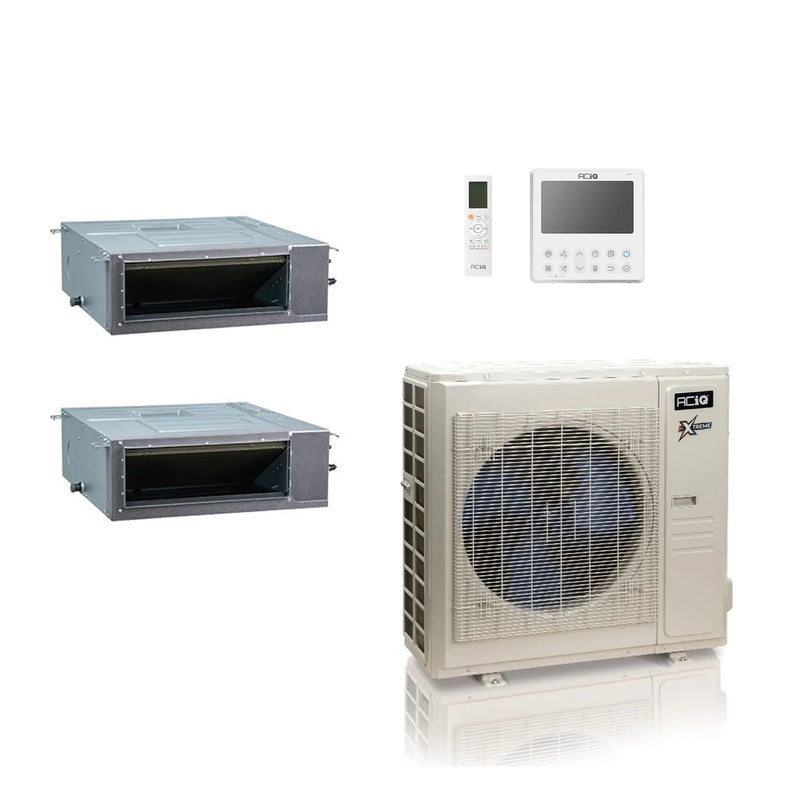

ACiQ 18K BTU 20 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 12+12

Name: ACiQ 18K BTU 20 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 12+12
Brand: ACiQ
SKU: ACiQ-18Z-HH-M3C ACIQ-12CD-HH-MC-2
Price: 4341.07 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACiQ-18Z-HH-M3C ACIQ-12CD-HH-MC-2 | ID: 89090

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,341.07 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

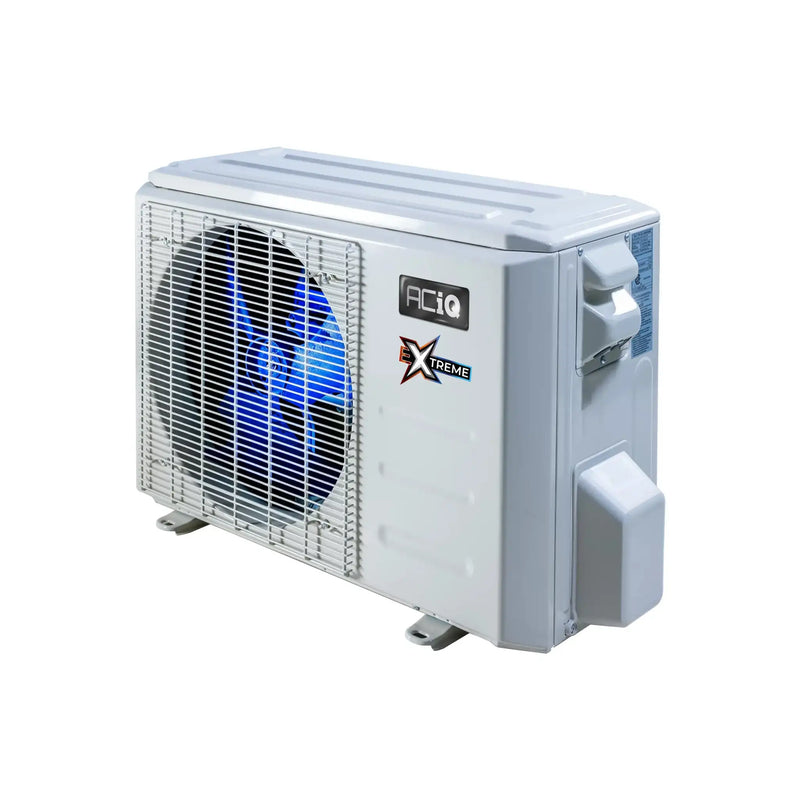

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Experience adaptive heating and cooling with the ACiQ-18Z-HH-M3C multi zone condenser from the Extreme Series. This inverter condenser is designed to efficiently run up to 3 air handlers, providing precise temperature control in each room or zone.

Key Features

18,000 BTU, 25 SEER multi zone heat pump condenser
Supports up to 3 attached air handlers
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Integrated Extreme Heat technology with base pan heater
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

Ensure comfort in your home with the ACiQ-18Z-HH-M3C multi zone condenser. This unit is pre-charged with R410-A refrigerant and is designed for easy installation and maintenance. Register your equipment at ACiQ.com for extended warranty protection.

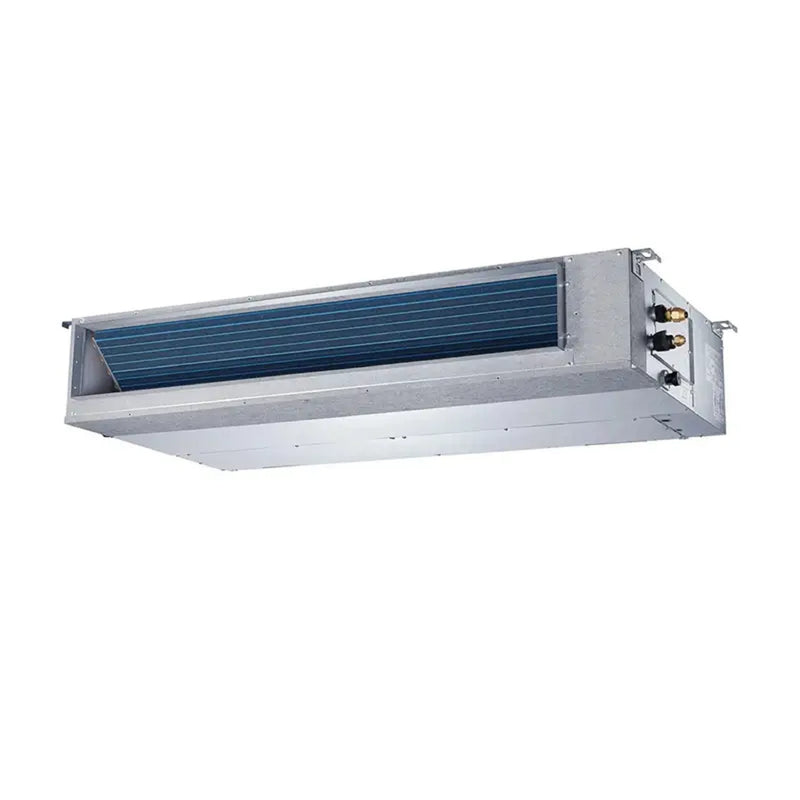

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

12,000 BTU of heating or cooling power
Dry and Fan modes for added versatility
Includes a wall-mounted thermostat for easy temperature control
Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

View More 2 Zone Mini Splits

Specifications

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Brand	ACiQ	SKU	ACIQ-18Z-HH-M3C
Replaces	ACIQ-18Z-HH-M2B	Refrigerant Charge	73.8'
Weight	148.150000	AHRI Certificate Number	216032361
Product Features	Low Ambient Heating, Rebate Available	HSPF2	10.4
Cooling BTU	19000 BTU	Heating BTU	20000 BTU
Decibel Level (dBA)	61.5	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
SEER	21-22	SEER2	22
EER	12.5	Compressor Type	Rotary
Liquid Line	1/4" (3)	Suction Line	3/8" (3)
Electrical	208/230V 1 Phase 60 Hz	Max Breaker Size	20 Amps
Min. Breaker Size	17.5 Amps	Tonnage	1.5 Ton
BTU/Tonnage	18,000 BTU/1.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-22 ~ 122
Height	34.84	Width	42.91
Depth	19.68

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Brand	ACiQ	SKU	ACIQ-12CD-HH-MC
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 26.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

Warranty

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 1.5 Ton 25 SEER2 Multi Zone Condenser Extreme Series Inverter R454B ACIQ-18Z-HH-M3C

Installation and Owner's Manual

Submittal Ducted

Submittal Non-Ducted

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Installation & Owner's Manual

Remote Controller Manual

Submittal

Brochure

Warranty Information
