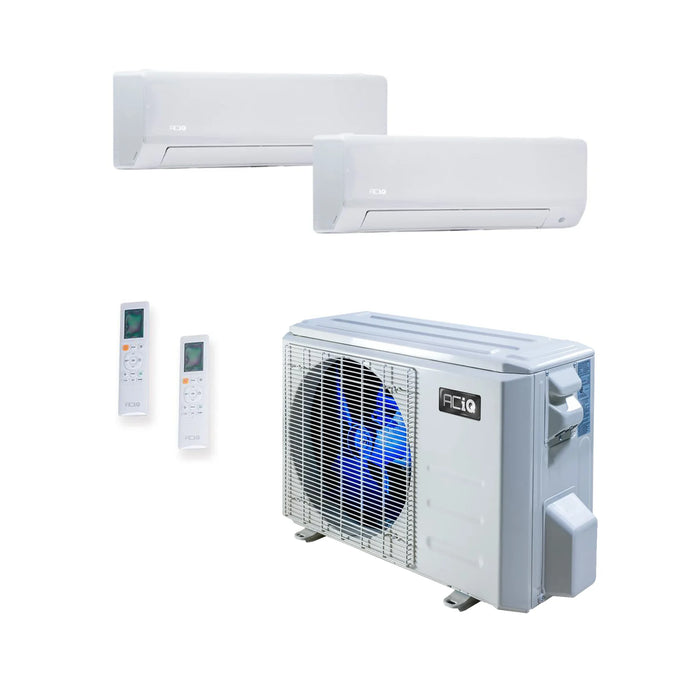

ACiQ 18K BTU 25.1 SEER2 Mini Split System 2-Zone Wall Mount R454B 230V 6+9

Name: ACiQ 18K BTU 25.1 SEER2 Mini Split System 2-Zone Wall Mount R454B 230V 6+9
Brand: ACiQ
SKU: ES-18Z-M3C ACIQ-06W-HH-MD ACIQ-09W-HH-MD
Price: 2814.99 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-18Z-M3C ACIQ-06W-HH-MD ACIQ-09W-HH-MD | ID: 89127

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,814.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

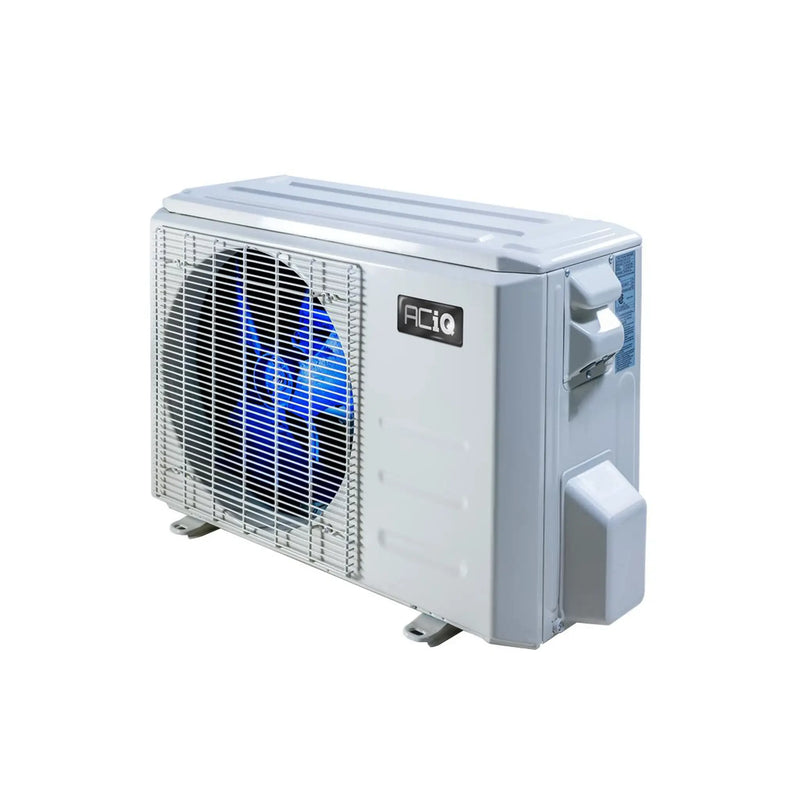

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

ACiQ offers the ES-18Z-M3C multi-zone condenser, providing adaptive heating and cooling solutions for various spaces and climates at an affordable cost. This unit allows up to 3 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

18,000 BTU, 25.1 SEER2 multi-zone heat pump condenser
Designed to function with up to 3 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation even at high workloads

ACiQ's ES-18Z-M3C condenser is designed to support multiple air handlers, providing intelligent temperature control and high efficiency with a SEER2 rating of 25.1. This system is cost-effective and energy-efficient, offering long-term savings. Please note that professional installation is required for this model, as it does not have quick connect line set connectors. Additional installation materials are available for purchase separately. Registering the equipment at ACiQ extends the warranty to 7 years for parts and 12 years for the compressor.

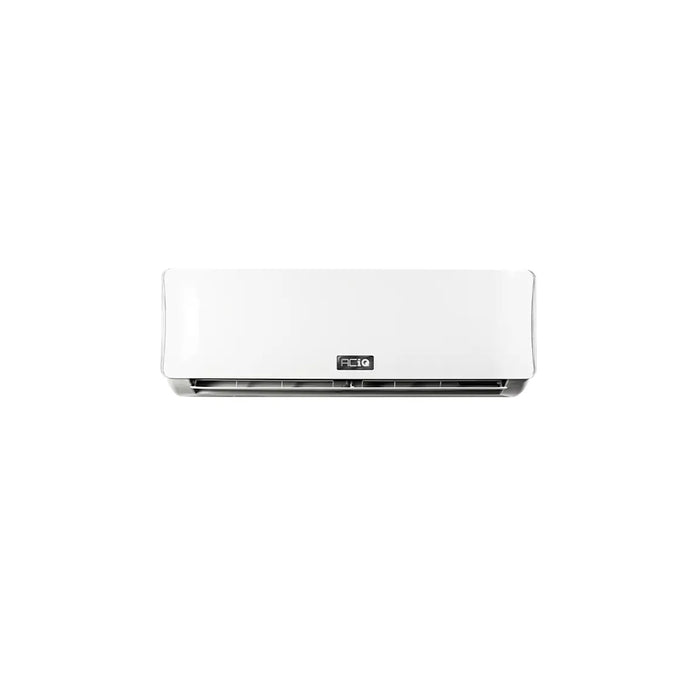

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD

The 6,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser for a highly efficient Hyper Heat system. The adaptive technology ensures your ideal temperature is maintained regardless of the outdoor weather conditions.

Key Features

6,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-06W-HH-MD air handler features a soft LED display for easy monitoring, along with intelligent heating and cooling capabilities. It is WiFi ready, allowing you to control your home's temperature from anywhere using a smart device. Please note that installation with a condenser and other equipment is required for proper functionality.

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.

Key Features

9,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.

View More 2 Zone Mini Splits

Specifications

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

Brand	ACiQ	SKU	ES-18Z-M3C
Replaces	ES-18Z-M2B	HSPF2	9.8
Cooling BTU	18000 BTU	Heating BTU	19000 BTU
Maximum CFM	1766	Decibel Level (dBA)	59.5
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	25
Compressor Type	Twin Rotary	Liquid Line	1/4" (3)
Suction Line	3/8" (3)	Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	20 A	Min. Breaker Size	16 A
Tonnage	1.5 Ton	BTU/Tonnage	18,000 BTU/1.5 Ton
Zone Compatibility	Multi Zone	Ambient Temperature Range	-13 ~ 122
Height	26.50"	Width	35.04"
Depth	13.46"

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD

Brand	ACiQ	SKU	ACIQ-06W-HH-MD
Cooling BTU	6000 BTU	Heating BTU	7000 BTU
Maximum CFM	364.71	Decibel Level (dBA)	As low as 23
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	6,000 BTU/0.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Height	11.76"
Width	33.40"	Depth	9.18"

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Brand	ACiQ	SKU	ACIQ-09W-HH-MD
Cooling BTU	9000 BTU	Heating BTU	10000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	38
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	23-24	SEER2	22.3
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Length	33.40"	Height	11.76"
Depth	9.18"	Replaces	N/A

Warranty

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser Inverter R454B ES-18Z-M3C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

Warranty Information

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-06W-HH-MD

Remote Control Manual

Submittal

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Submittal

Remote Control Manual

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information
