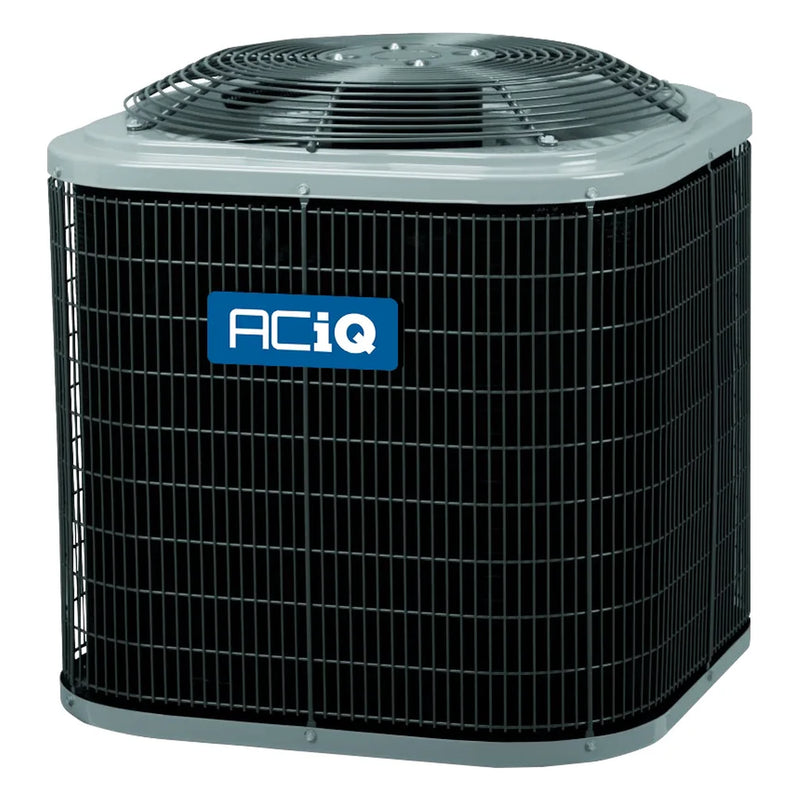

ACiQ 2.5 Ton Air Conditioner Condenser 13.4 SEER2 R454B R5A4S30AKANA-MH
The ACiQ R5A4S30AKANA-MH is a reliable and cost-effective 2.5 ton central air conditioner condenser, ideal for cooling mid-sized homes or zones in moderate climates. Engineered for energy efficiency and dependable performance, this AC-only outdoor unit is a smart choice for homeowners seeking long-lasting comfort at a competitive price. With its 13.4 SEER2 rating and pre-charged refrigerant design, it simplifies installation while reducing long-term energy costs.
Key Features and Benefits:
-
2.5 Ton Cooling Capacity - Effectively cools mid-sized homes or zones in average climates with consistent and efficient performance.
-
13.4 SEER2 Energy Efficiency Rating - Offers up to 7% improved efficiency over standard 13 SEER models, helping lower monthly utility bills.
-
Single Stage Compressor - Provides reliable, steady cooling with a simplified design for long-term durability and lower maintenance.
-
Pre-Charged with R-454B Refrigerant - Comes factory pre-charged for a 15-foot line set, ensuring quick, accurate installation and optimal performance.
-
Includes Filter Drier for Field Installation - Enhances system protection by removing moisture and contaminants, promoting longer equipment life.
-
Durable, Reinforced Cabinet Design - Built to last with reinforced corner posts and a protective inlet grille to guard internal components.
-
10-Year Limited Parts Warranty - Backed by a comprehensive parts warranty when installed according to local codes and registered online.
-
Ideal for Residential Cooling Applications - A dependable, efficient cooling solution for homeowners not requiring integrated heating.
Note: This unit is not eligible for installation in the following states due to SEER2 compliance regulations: AL, AZ, AR, CA, DE, FL, GA, KY, LA, MD, MS, NV, NM, NC, OK, SC, TN, TX, and VA.
Installation Requirements
This condenser must be paired with a compatible indoor coil or air handler to operate. It does not provide heating capabilities. For maximum performance and to maintain warranty eligibility, professional installation following all local and state codes is required.
ACiQ 3 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH36BU3VWEC
The ACiQ ACIQ-MH36BU3VWEC is an uncased downflow evaporator coil purpose-built for mobile and manufactured home installations, rated up to 3 tons. Rifled aluminum tubing and enhanced aluminum fins keep heat transfer efficient, while a heavy-duty polypropylene drain pan and included downflow plate kit are built specifically for downflow furnace and air handler cabinets.
Key Features and Benefits:
-
Up to 3 Ton Capacity
Sized to match 2.5-3 ton mobile home condensers for balanced system performance.
-
Uncased Downflow Design
Purpose-built uncased coil sized to drop into downflow mobile home furnace and air handler cabinets.
-
Rifled Aluminum Tubing
Enhanced aluminum fins and rifled tubing improve heat transfer efficiency and durability.
-
Left-Hand Sweat/Braze Connections
Factory-configured left-hand refrigerant connections simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Corrosion-resistant drain pan is built to withstand mobile home service conditions.
-
Downflow Plate Kit Included
Ships with the plate kit needed to complete a proper downflow installation.
Installation Requirements
This coil cannot operate independently and must be paired with a compatible mobile home condenser and downflow furnace, each sold separately. It should never be undersized relative to the condenser it supports.
ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH
The ACiQ-EFS1520FD-MH is a 15 kilowatt electric downflow furnace rated at 49,100 BTU, sized to pair with 2 to 3 ton mobile home air conditioning systems. An ECM multi-speed blower delivers up to 1,710 CFM through a direct-drive 3/4 HP motor, and the unit draws power through a 240V single-phase circuit protected by dual breakers.
Like the rest of the ACiQ mobile home furnace lineup, this model uses factory-installed sequencers and temperature limit switches for safe, efficient staged heating, with heat modules that install via molex plug in the field or ship pre-installed from the factory. Front-accessible controls and a flush-mounted disconnect keep routine service simple.
Key Features
-
15kW / 49,100 BTU Output - Delivers electric resistance heat sized for 2 to 3 ton mobile home AC systems.
-
ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,710 CFM for even heat distribution.
-
Dual Circuit Breakers - Ships with a 60 amp and a 25 amp breaker to protect the staged heating elements.
-
Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
-
Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
-
Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
-
Flush-Mounted Disconnect - The electrical disconnect does not protrude through the wall panel, keeping installs tidy.
-
Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
