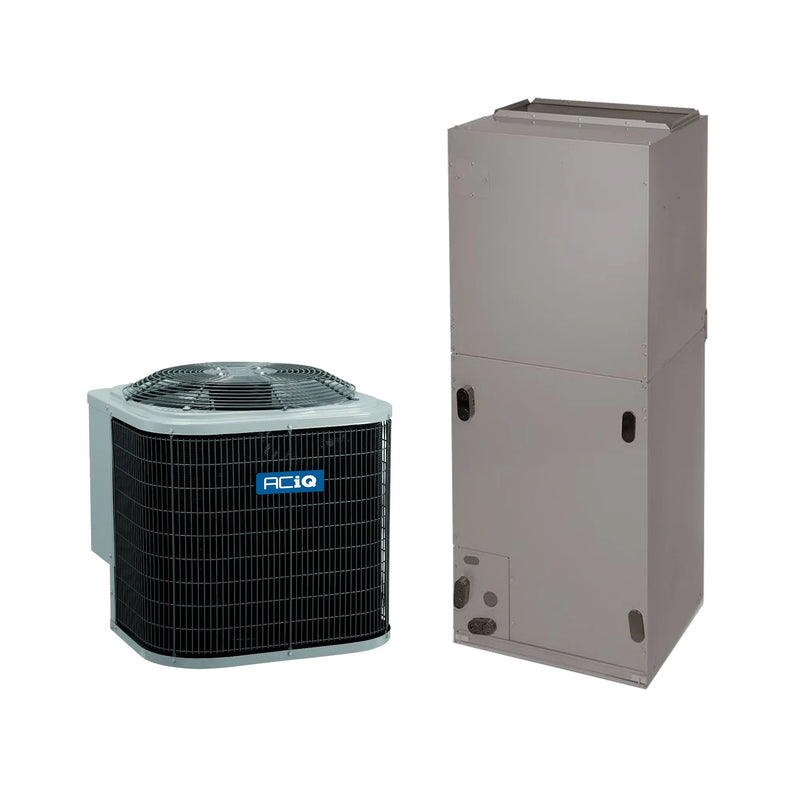

ACiQ 2.5 Ton 15.2 SEER2 Heat Pump Condenser Split System Single Stage R454B

Name: ACiQ 2.5 Ton 15.2 SEER2 Heat Pump Condenser Split System Single Stage R454B
Brand: ACiQ
SKU: R5H5S30AKAAA FHMA5X42L0CA
Price: 4816.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | Model: R5H5S30AKAAA FHMA5X42L0CA | ID: 111522

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,816.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

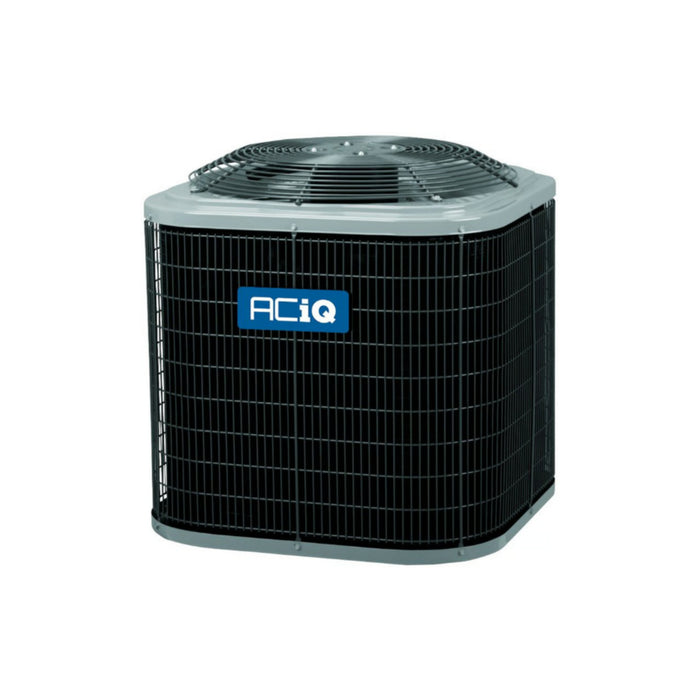

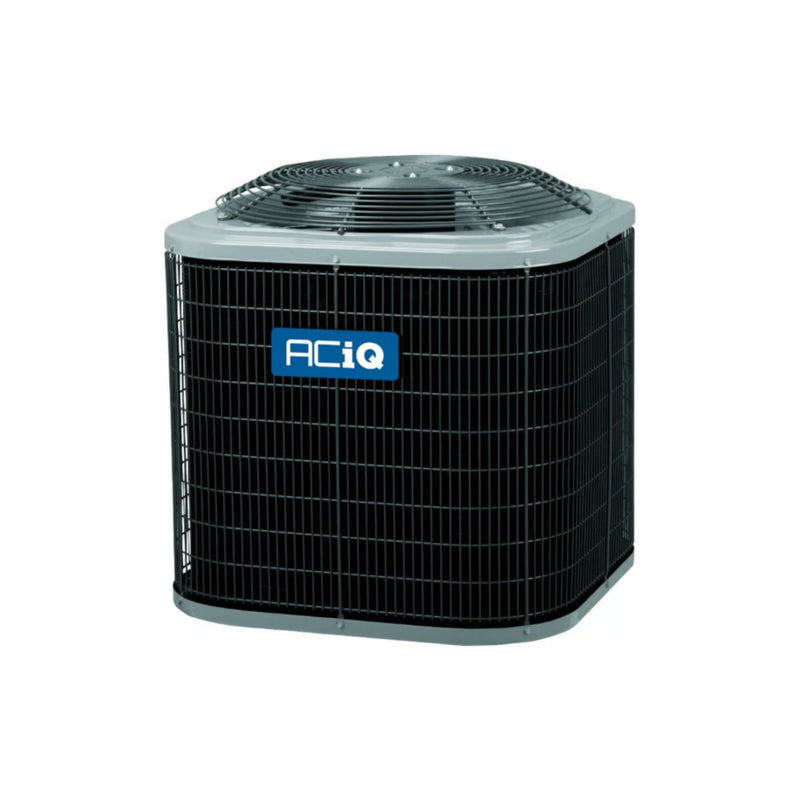

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Condenser Single Stage R454B R5H5S30AKAAA

The ACiQ R5H5S30AKAAA is a standard heat pump condenser engineered to provide efficient heating and cooling for small to medium homes. Designed with comfort and affordability in mind, this 2.5 ton heat pump offers a reliable and energy-saving solution for nearly any residential application. With its 14.3 SEER2 rating and factory pre-charged refrigerant, this condenser delivers consistent year-round performance and easy installation.

Key Features and Benefits:

2.5 Ton Cooling and Heating Capacity
Ideal for heating and cooling small to medium-sized houses or living spaces in average climate conditions.
14.3 SEER2 Energy Efficiency Rating
Provides 5–7% higher energy efficiency compared to standard 13.4 SEER2 units, helping reduce electricity bills and environmental impact.
Single Stage Compressor
Offers steady and reliable operation for effective temperature control year-round.
Pre-Charged with R454B Refrigerant
Comes pre-charged with eco-friendly R454B refrigerant for a 15-foot line set, ensuring optimal refrigerant charge and quicker installation.
Filter Drier Included
Enhances system longevity by filtering moisture and contaminants during field installation.
Durable and Weather-Resistant Cabinet
Designed with reinforced corner posts and a protective inlet grille to shield internal components from damage and harsh weather conditions.
Efficient Heat Pump Operation
Efficiently heats down to approximately 35°F; for temperatures below this, a compatible backup electric heat strip is recommended to maintain comfort.
Pre-Charged for 15-Foot Line Set Installation
Saves installation time and labor by eliminating the need for manual refrigerant charging. Additional refrigerant may be required for longer line sets.
Safety Compliance with R454B Refrigerant
Must be paired with an R454B-compatible air handler or evaporator coil equipped with a leakage detection system to meet safety standards and maintain warranty coverage.

Important Notes

This heat pump condenser is designed for use with an indoor coil or air handler and cannot operate independently. It provides both heating and cooling functions but requires supplemental heating below 35°F with a compatible backup heat strip. Proper installation and registration with certified indoor components are essential to uphold warranty coverage and ensure safety compliance.

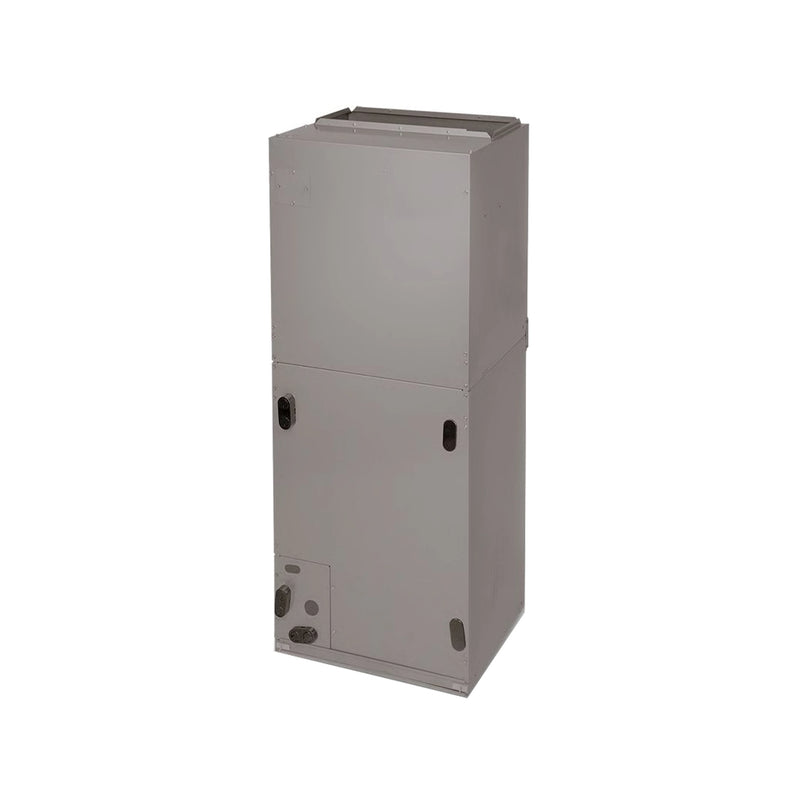

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

Experience enhanced indoor comfort and lasting performance with the ACiQ FHMA5X42L0CA air handler. Engineered for energy efficiency, durability, and flexible installation, this 3.5 ton air handler is an excellent solution for homeowners seeking a reliable HVAC component compatible with both AC and heat pump systems.

Product Features:

3.5 Ton Cooling Capacity
Delivers powerful airflow and comfort for medium to large residential spaces.
Uses Eco-Friendly R454B Refrigerant
Reduces global warming potential by 75% while preserving non-ozone depleting characteristics.
Multi 5-Speed High-Efficiency ECM Blower Motor
Promotes precise airflow control, quieter performance, and improved energy efficiency.
Multi-Positional Installation
Can be installed in upflow, downflow, or horizontal configurations, making it ideal for varied HVAC setups.
Factory-Installed TXV Kit
Optimizes refrigerant flow for enhanced system performance, reducing the need for extra installation labor.
Compatible with AC-Only and Heat Pump Condensers
Ensures flexibility across a range of HVAC system configurations.
Sturdy, Fully Insulated Cabinet
Includes a corrosion-resistant aluminum coil and heavy-duty casing to protect internal components.
Intelligent Comfort Control
Integrated control board adjusts blower speed automatically based on thermostat feedback, maintaining stable home temperatures.

Warranty Information:

ACiQ backs the FHMA5X42L0CA with a 5-year no-hassle replacement warranty and a 10-year parts warranty. To maintain warranty eligibility, proper installation is required in accordance with local codes, along with use of a certified coil and timely system registration. Our team will assist you post-purchase to complete the registration process.

Installation and Durability:

Engineered for versatility, this air handler supports multiple installation configurations. A pre-installed TXV kit helps streamline the installation process. Its rugged, single-piece outer cabinet and corrosion-resistant aluminum coil ensure lasting durability and efficient operation over the unit’s lifespan.

View More Heat Pump Split Systems

Specifications

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Condenser Single Stage R454B R5H5S30AKAAA

Brand	ACiQ	SKU	R5H5S30AKAAA
Refrigerant Charge	15'	Weight	188
Manufacturer	ACiQ	Replaces	R4H5S
Product Features	New Refrigerant Compliant
HSPF2	7.5
Cooling BTU	30,000	Heating BTU	30,000
Maximum CFM	3000	Decibel Level (dBA)	70
Motor RPM	Motor RPM	Horsepower	1/10 HP
Refrigerant	R454B	SEER2	14.3
Condenser Stages	Single Stage	Compressor Type	Scroll
Liquid Valve Size	3/8"	Suction Valve Size	3/4"
Electrical	208/230v 1Ph 60Hz
Max Breaker Size	25 Amps	Min. Breaker Size	16.3 Amps
Tonnage	2.5 Ton	Height	38 7/16"
Width	31 3/16"	Depth	31 3/16"
Warranty	10 Years Parts with Online Registration

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

Brand	ACiQ	SKU	FHMA5X42L0CA
Weight	166	Manufacturer	ACiQ
Cooling BTU	42,000	Blower Motor	Multi-tap 5-Speed ECM
Maximum CFM	1225	Horsepower	1/2 HP
Electric Backup Heat Capabilities (Optional)	5, 8, 10, 15, 20 Kilowatts	Configuration	Multi-Positional
Refrigerant	R454B	Filter Size	20" x 20"
Liquid Line	3/8"	Suction Line	7/8"
Electrical	208/230v 1 Phase 60 Hz	Max Breaker Size	15 Amps
Min. Breaker Size	5.3 Amps	Tonnage	3.5 Ton
Connection	Sweat	Height	49 5/8"
Width	21 1/8"	Depth	22 1/16"
Warranty	10 Years Parts and 5 Years No Hassle Replacement with Online Registration

Warranty

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Condenser Single Stage R454B R5H5S30AKAAA

Warranty Type	Parts
Registered Warranty	10 Years

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

Warranty Type	Parts	Replacement
Registered Warranty	10 Years	5 Years

Documents

ACiQ 2.5 Ton 14.3 SEER2 Heat Pump Condenser Single Stage R454B R5H5S30AKAAA

R5H5S Owner's Manual

R5H5S Specifications Sheet

R5H5S Warranty

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

FHMA5 Installation Manual

FHMA5 Specifications Sheet

FHMA5 Service Manual

FHMA5 Warranty
