ACiQ R5A5S30AKAWA EVD5X30M17A R92MSN0801716A

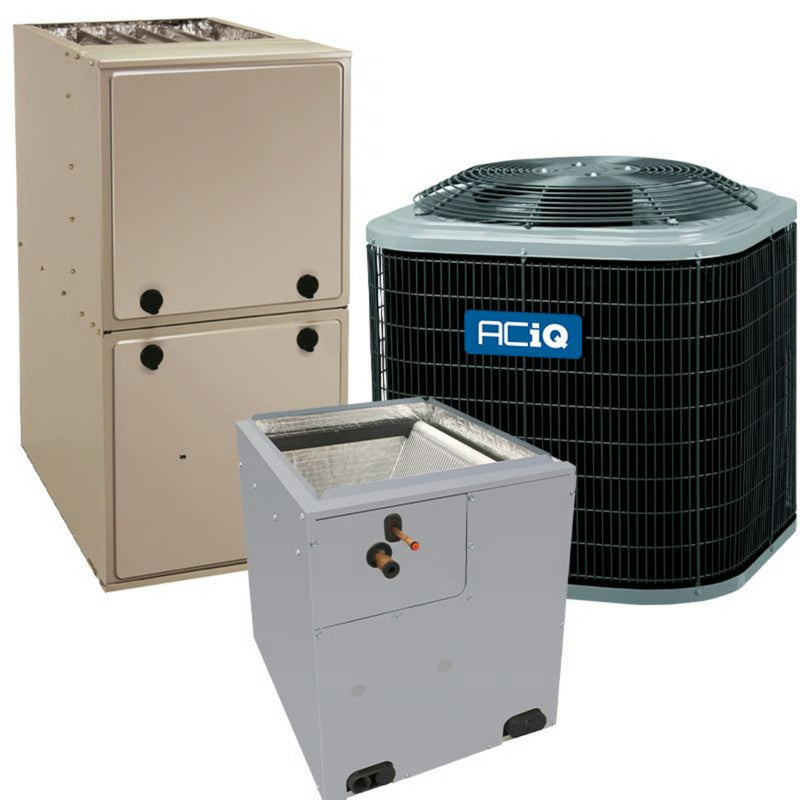

ACiQ 2.5 Ton 15.5 SEER2 Furnace and AC System Vertical 92% 80,000 BTU R454B

Name: ACiQ 2.5 Ton 15.5 SEER2 Furnace and AC System Vertical 92% 80,000 BTU R454B
Brand: ACiQ
SKU: R5A5S30AKAWA EVD5X30M17A R92MSN0801716A
Price: 4746.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | Model: R5A5S30AKAWA EVD5X30M17A R92MSN0801716A | ID: 111412

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,746.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

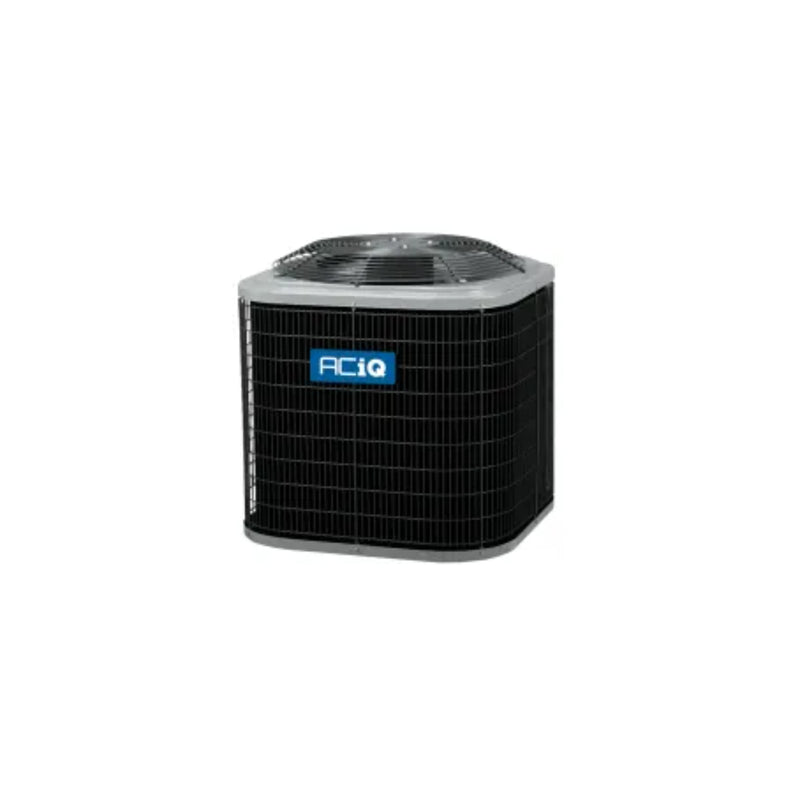

ACiQ 2.5 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S30AKAWA

The ACiQ R5A5S30AKAWA is a reliable and efficient standard AC-only condenser designed to deliver consistent cooling comfort for medium-sized homes. Offering a cost-effective yet higher-than-standard energy efficiency option, this 2.5 ton condenser is ideal for a wide range of residential air conditioning applications. With a 14.3 SEER2 rating and factory pre-charged refrigerant, it ensures optimal performance and easy installation right out of the box.

Product Features and Benefits:

2.5 Ton Cooling Capacity
Effectively cools medium-sized homes or larger rooms in moderate climates, ensuring consistent and comfortable indoor temperatures.
14.3 SEER2 Energy Efficiency Rating
Delivers 5–7% greater energy savings compared to standard 13.4 SEER2 units, helping reduce electricity costs and environmental impact.
Single Stage Compressor
Provides steady and dependable cooling performance with a simple, long-lasting design.
Pre-Charged with R454B Refrigerant
Comes pre-charged from the factory with eco-friendly R454B refrigerant for a 15-foot line set, enabling quick and accurate installation.
Filter Drier Included
Enhances system performance and durability by filtering out moisture and debris during field installation.
Robust and Durable Cabinet
Built with reinforced corner posts and a protective inlet grille to shield internal components from weather and damage.
10-Year Limited Parts Warranty
Covered by ACiQ’s 10-year parts warranty when installed according to local codes and registered with a certified indoor coil.
Pre-Charged for 15-Foot Line Set
Saves installation time and labor costs by eliminating the need for manual refrigerant charging. Installers may need to add refrigerant for longer line sets.
Safety Compliance with R454B Refrigerant
Requires an R454B-compatible air handler or evaporator coil with a leakage detection system to comply with safety standards and maintain warranty coverage.

Important Information

This condenser is designed solely for cooling and must be paired with a compatible indoor coil or air handler. It does not offer heating functionality.

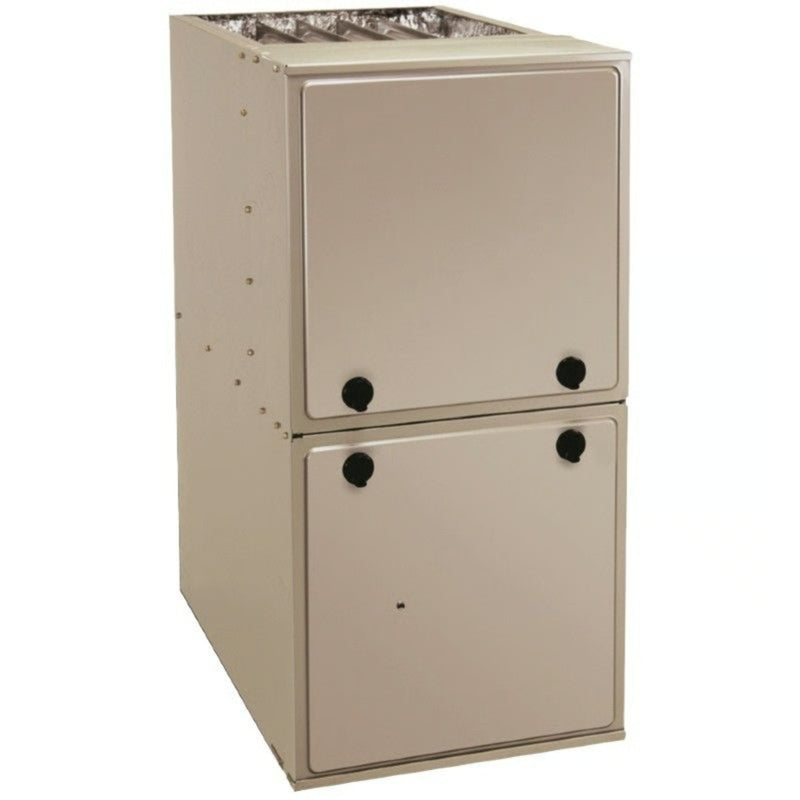

ACiQ 92% AFUE 80,000 BTU Gas Furnace Single Stage Multi-Positional 17.5"W R92MSN0801716A

The ACiQ 80,000 BTU Gas furnace series represents ACiQ's standard 92% efficiency. These units are Low NOx compliant and are suitable for installation in mobile or manufactured homes with the appropriate conversion kit. It's important to note that these furnaces require a plastic or PVC exhaust flue for installation.

92% Gas Furnace
18-speed ECM blower motor
Single stage gas valve
Multi-positional – Can be installed in upflow, downflow, or horizontal orientations
Field-convertible to propane with an optional propane conversion kit
On board self-diagnostics
Low NOx compliant with NOx emissions of less than 40 ng/J
Approved for mobile/manufactured housing installation with the appropriate conversion kit

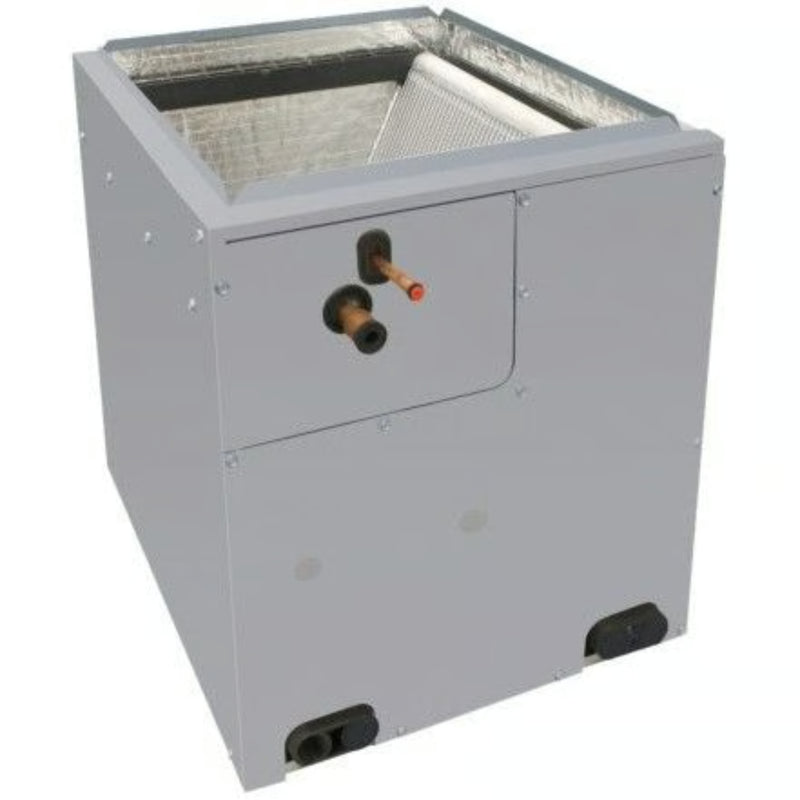

ACiQ 2.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV R454B EVD5X30M17A

The ACiQ EVD5X30M17A is a high-efficiency 2.5 ton vertical evaporator coil designed for use in both upflow and downflow configurations. Engineered with a compact cased V-coil design, it offers efficient heat transfer while minimizing the space required during installation. The factory-installed TXV kit ensures optimal refrigerant control for enhanced energy savings and system performance. Built to resist wear and corrosion, this coil includes a PBT polymer drain pan for superior durability and reliability.

Key Features

2.5 Ton Cooling Capacity
Vertical Cased Coil for Upflow and Downflow Applications
Factory-Installed TXV Kit for Refrigerant Optimization
Fully Insulated V-Coil Design for Improved Efficiency
Refrigerant Compatible with R-454B
Corrosion-Resistant Drain Pan with PBT Construction
UL Listed for Safety and Compliance
Compatible with Sweat Connections
Compact Design Ideal for Tight Installation Spaces

Note: This coil must be installed as part of a complete system and is not a standalone product. It must be matched with a compatible condenser and blower or furnace to function properly.

View More Air Conditioner & Furnace Systems

Specifications

ACiQ 2.5 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S30AKAWA

Brand	ACiQ	SKU	R5A5S30AKAWA
Refrigerant Charge	15'	Weight	169
Manufacturer	ACiQ	Replaces	R4A5S
Product Features	New Refrigerant Compliant
Cooling BTU	30,000	Maximum CFM	3300
Decibel Level (dBA)	71	Motor RPM	825
Horsepower	1/10 HP	Refrigerant	R454B
SEER2	14.3	Condenser Stages	Single Stage
Compressor Type	Scroll	Liquid Valve Size	3/8"
Suction Valve Size	3/4"	Electrical	208 / 230 V. 1 Phase 60 Hz
Tonnage	2.5 Ton	Height	35 1/16"
Width	31 3/16"	Depth	31 3/16"
Warranty	10 Year Parts Limited Warranty with Online Registration

ACiQ 92% AFUE 80,000 BTU Gas Furnace Single Stage Multi-Positional 17.5"W R92MSN0801716A

Brand	ACiQ	Model #	R92MSN0801716A
Weight (in lbs)	142	Exhaust Flue Requirement	Plastic / PVC
Furnace Efficiency / AFUE	92%	Equivalent	Carrier Equivalent: 59SC2D080E17--16 Tempstar Equivalent: R92ESN0801716A Bryant Equivalent: 912SD48080E17
Heating BTU	80,000	Blower Motor	Multi 18-Speed Constant Torque (MCT)
Maximum CFM	1,600	Motor RPM	1200
Horsepower	.5 HP	Configuration	Upflow/Downflow/Horizontal
Energy Star	U.S. South Only	Electrical	115v 1 Phase 60 Hz
Connection	1/2" NPT	Maximum Inlet Pressure	13.6"wc
Burner Stages	Single	Ignition Type	Direct Ignition with Silicon Nitride Hot Surface Ignitor
Fuel Type	Propane, Natural Gas	Height	35"
Width	17 1/2"	Depth	29-1/2"

ACiQ 2.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV R454B EVD5X30M17A

Brand	ACiQ	Model #	EVD5X30M17A
Tonnage	2.5 Ton	Coil Style	Cased V-Coil
Configuration	Upflow / Downflow	Refrigerant Type	R-454B
TXV Kit	Factory-Installed	Connection Type	Sweat
Liquid Line Size	3/8"	Suction Line Size	3/4"
Certification	UL Listed	Weight	39 lbs
Height	19 7/16"	Width	17 1/2"
Depth	20 5/8"	SKU	EVD5X30M17A
Replaces	EVD4X	Replace
Equivalent Models	Carrier CVPVA1814XMC Tempstar END4X18L14A Bryant CNPVP1814ALA

Warranty

ACiQ 2.5 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S30AKAWA

Warranty Type	Parts
Registered Warranty	10 Years

ACiQ 92% AFUE 80,000 BTU Gas Furnace Single Stage Multi-Positional 17.5"W R92MSN0801716A

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

ACiQ 2.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV R454B EVD5X30M17A

Warranty Type	Coverage
Parts Warranty	10 Years (with Registration)

Documents

ACiQ 2.5 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S30AKAWA

R5A5S Owner's Manual

R5A5S Specifications Sheet

ACiQ Warranty

ACiQ 92% AFUE 80,000 BTU Gas Furnace Single Stage Multi-Positional 17.5"W R92MSN0801716A

ACiQ Owners Manual

ACiQ Installation Manual

ACiQ Product Specifications

ACiQ Warranty

ACiQ 2.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow With TXV R454B EVD5X30M17A

EVD5X Specifications Sheet

EVD5X Installation Manual

ACiQ Evaporator Coil Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
