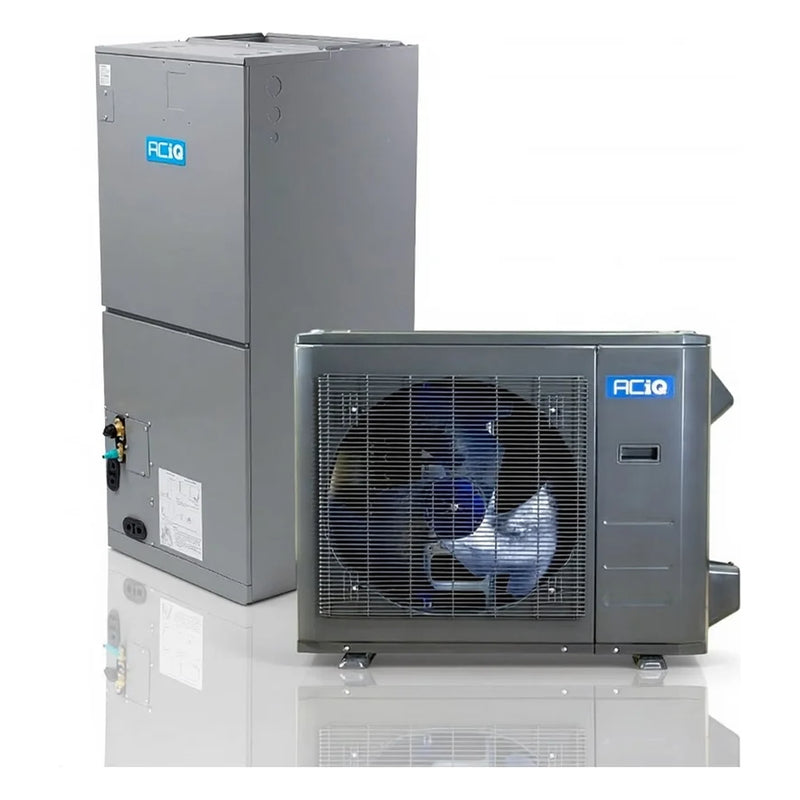

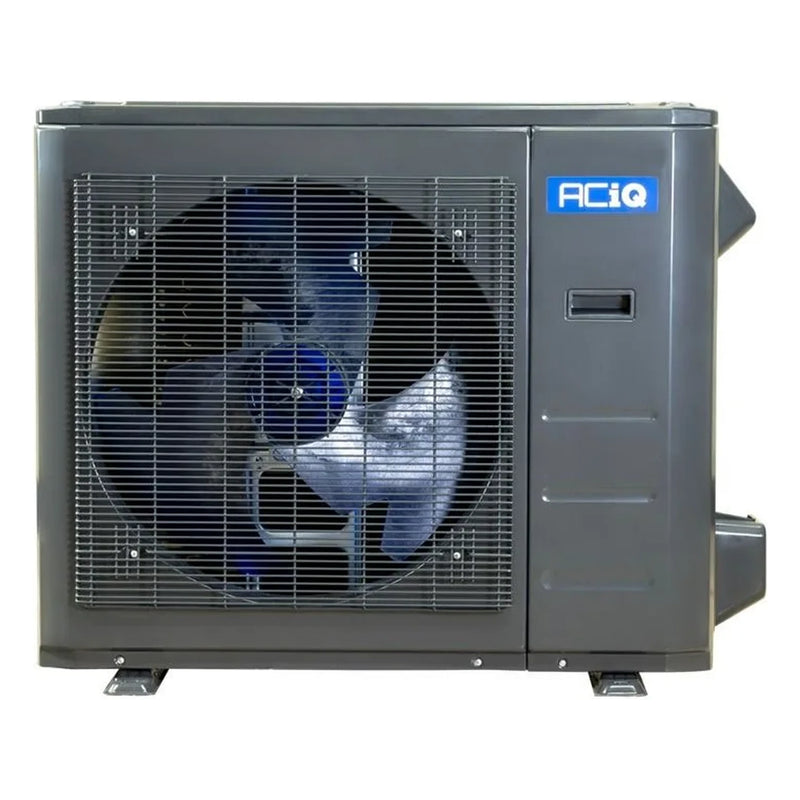

ACiQ 2.5 Ton 15.2 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-30-AC-B
The ACIQ-30-AC-B is a 2.5 ton, 15.2 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 30,000 BTU of cooling with up to 1,825 CFM airflow and as low as 58 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 105.6 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
15.2 SEER2 Efficiency - Rated 15.2 SEER2 / 10.2 EER2 for lower cooling operating costs.
-
30,000 BTU Cooling Capacity - Delivers 30,000 BTU of cooling with up to 1,825 CFM of airflow.
-
Quiet Operation - Runs as low as 58 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 20 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.

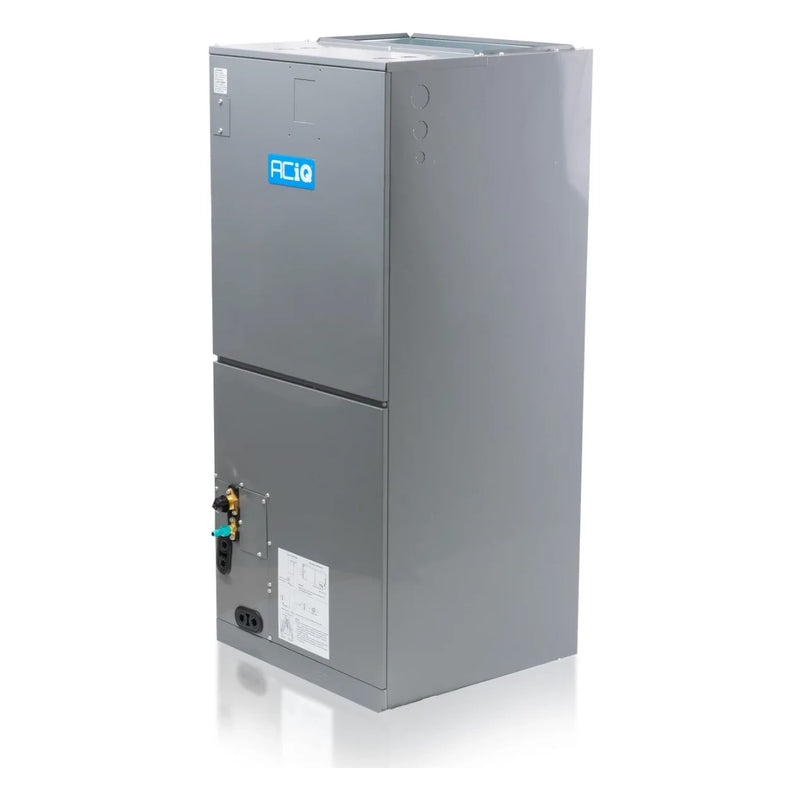

ACiQ 2.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-30-AHD
ACiQ 2.5 Ton Central Ducted Air Handler – Multi-Position (Model ACiQ-30-AHD) The ACiQ-30-AHD is a powerful 2.5-ton central air handler designed to deliver exceptional comfort and energy efficiency. Equipped with a variable speed DC blower and advanced communicating technology, this air handler works in conjunction with your inverter condenser, allowing the system to automatically adjust BTU output for maximum performance. With its multi-positional design (upflow, downflow, or horizontal), it offers versatile installation options to fit a variety of spaces. Compatible with R454B refrigerant, this air handler efficiently distributes both cooled and heated air throughout your home by seamlessly connecting to your existing ductwork.
ACiQ-30-AHD 2.5 Ton Air Handler – Key Features
-
Variable Speed DC Blower: The ACiQ-30-AHD Air Handler comes equipped with a variable speed DC blower that ensures precise airflow control for consistent comfort and enhanced energy efficiency. This advanced blower adjusts its speed based on the system’s needs, optimizing both heating and cooling performance.
-
Communicating Technology for Maximum Efficiency: The air handler features communicating technology, allowing it to seamlessly interact with the inverter condenser. This communication enables the system to self-adjust BTU output in real-time, ensuring both comfort and energy savings throughout the year.
-
Efficient Air Distribution: Designed for central ducted applications, the ACiQ-30-AHD effectively distributes heated and cooled air throughout your living space. Its integration with existing ductwork ensures easy installation and reliable air flow, improving overall home comfort.
-
30,000 BTU Capacity (2.5 Ton): With a 30,000 BTU (2.5 ton) capacity, the ACiQ-30-AHD is ideal for larger homes or spaces that require higher heating and cooling power. This air handler provides ample output to maintain ideal temperatures across various rooms.
-
Multi-Positional Installation: The multi-positional design of the ACiQ-30-AHD gives you flexibility in installation. It can be installed in upflow, downflow, or horizontal left/right orientations, making it suitable for a variety of layouts and applications.
-
24V Thermostat Compatibility: The ACiQ-30-AHD is compatible with any 24V thermostat, offering convenience and flexibility when selecting the best thermostat to control your home’s heating and cooling system.
-
R454B Refrigerant Compatibility: This air handler is compatible with the R454B refrigerant, a highly energy-efficient and environmentally-friendly refrigerant that contributes to lower carbon emissions and supports sustainable living practices.
Installation and Maintenance
Installing the ACiQ central ducted air handler is similar to installing any standard replacement air handler. Your technician will handle the electrical, refrigerant, thermostat, and communication connections, as well as linking the air handler to your return and supply ductwork. This unit is highly versatile, as it is multi-positional—capable of being installed in upflow, downflow, or horizontal orientations.
The system can be controlled by any 24V thermostat with two stages of heating, and supplemental electric heat kits are available for backup heating during the coldest days. Should maintenance be necessary, the intelligent control board in the air handler will display fault codes to help identify any issues with the system.
Please Note: For proper operation, the air handler must be paired with a condenser and other installation equipment, which are sold separately if not included in the product bundle. Additionally, if you wish to use straight electric heating, an electric heat kit is required, which is also available at an additional cost.
