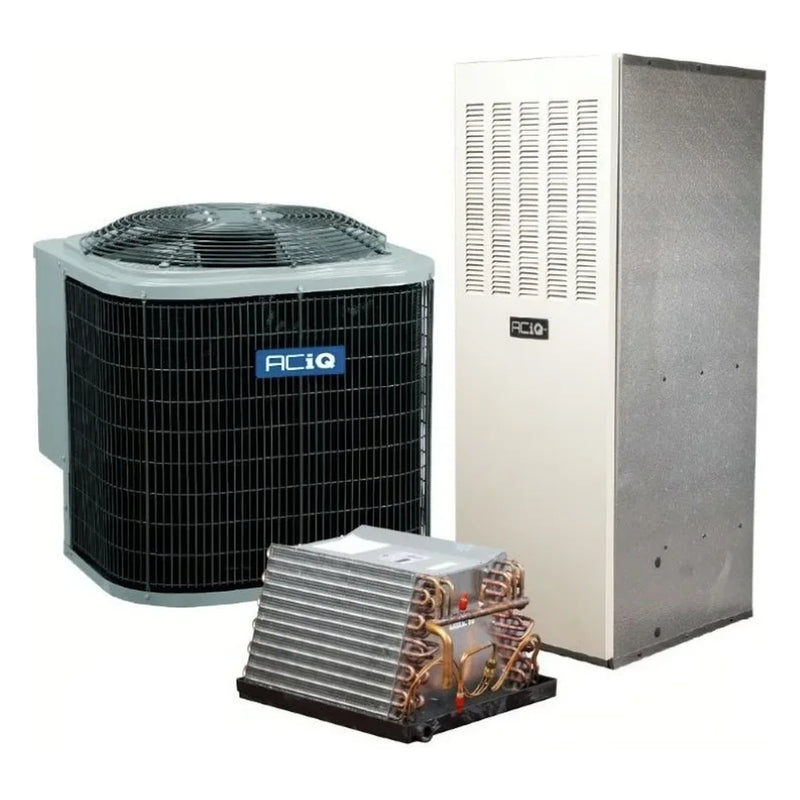

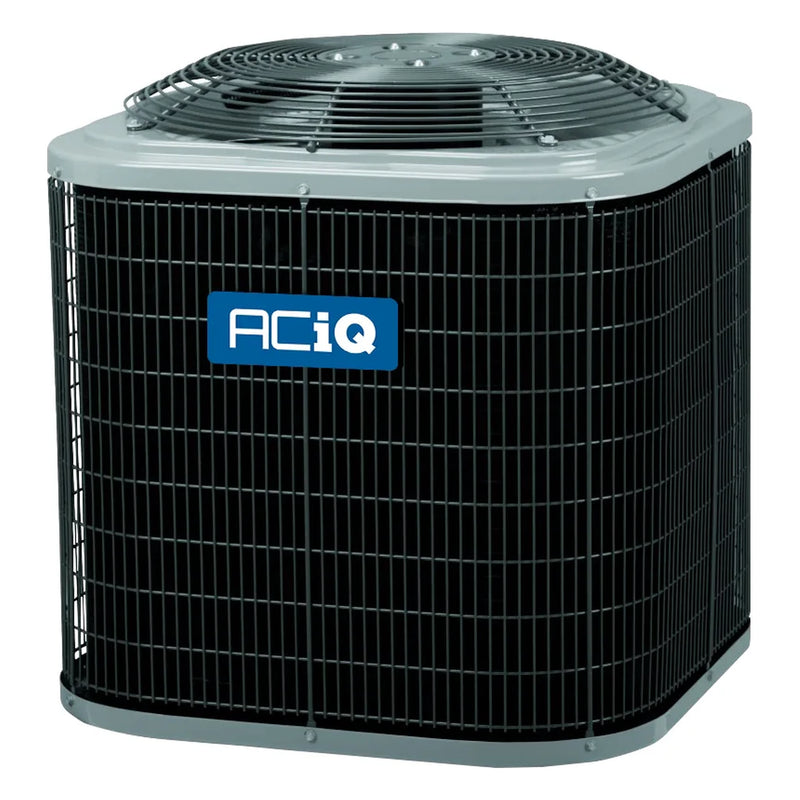

ACiQ 2 Ton 13.4 SEER2 Central Air Conditioner Condenser Single Stage R5A4S24AKANA-MH
The ACiQ R5A4S24AKANA-MH is a reliable and cost-effective 2 ton central air conditioner condenser, ideal for cooling small to mid-sized homes or spaces in moderate climates. Engineered for energy efficiency and dependable performance, this AC-only outdoor unit is a great fit for homeowners seeking long-lasting comfort at a competitive price. With its 13.4 SEER2 rating and pre-charged refrigerant design, it simplifies installation while reducing energy bills over time.
Key Features and Benefits:
-
2 Ton Cooling Capacity - Effectively cools small to mid-sized homes or zones in average climates with reliable performance.
-
13.4 SEER2 Energy Efficiency Rating - Provides up to 7% better efficiency than older 13 SEER units, helping lower long-term energy costs.
-
Single Stage Compressor - Designed for consistent cooling performance with simplified operation and reduced maintenance needs.
-
Pre-Charged with R-454B Refrigerant - Factory pre-charged for a 15-foot line set, ensuring optimal system performance and ease of installation.
-
Includes Filter Drier for Field Installation - Protects the system from moisture and contaminants to enhance lifespan and efficiency.
-
Durable, Reinforced Cabinet Design - Reinforced corner posts and protective inlet grille safeguard internal components from physical damage and environmental exposure.
-
10-Year Limited Parts Warranty - Enjoy peace of mind with a comprehensive manufacturer warranty when installed per local codes and registered online.
-
Versatile Residential Applications - A strong all-around choice for budget-conscious homeowners needing efficient cooling without heating capability.
Note: This unit is not suitable for installation in the following states due to SEER2 regulations: AL, AZ, AR, CA, DE, FL, GA, KY, LA, MD, MS, NV, NM, NC, OK, SC, TN, TX, and VA.
Installation Requirements
This condenser must be paired with a compatible indoor coil or air handler to operate. It cannot provide heating on its own. For optimal system performance and warranty eligibility, professional installation is required, and all local and state codes must be followed.

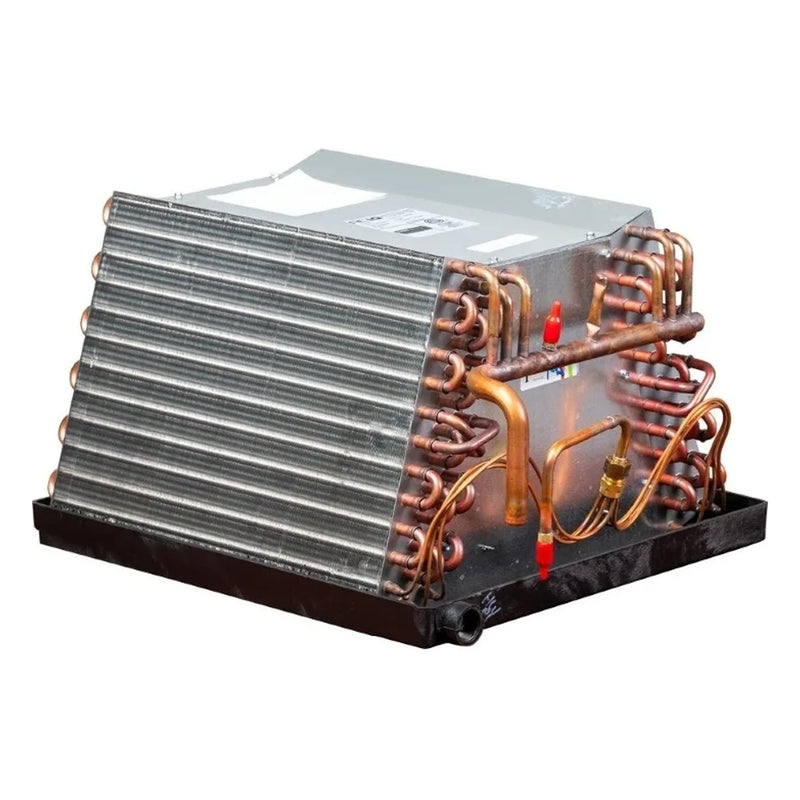

ACiQ 2.5 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH30BU3VWEC
The ACiQ ACIQ-MH30BU3VWEC is an uncased downflow evaporator coil purpose-built for mobile and manufactured home installations, rated for 2.5 ton systems. Rifled aluminum tubing and enhanced aluminum fins keep heat transfer efficient, while a heavy-duty polypropylene drain pan and included downflow plate kit are built specifically for downflow furnace and air handler cabinets.
Key Features and Benefits:
-
2.5 Ton Cooling Capacity
Sized to match 2 ton mobile home condensers for balanced system performance.
-
Uncased Downflow Design
Purpose-built uncased coil sized to drop into downflow mobile home furnace and air handler cabinets.
-
Rifled Aluminum Tubing
Enhanced aluminum fins and rifled tubing improve heat transfer efficiency and durability.
-
Left-Hand Sweat/Braze Connections
Factory-configured left-hand refrigerant connections simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Corrosion-resistant drain pan is built to withstand mobile home service conditions.
-
Downflow Plate Kit Included
Ships with the plate kit needed to complete a proper downflow installation.
Installation Requirements
This coil cannot operate independently and must be paired with a compatible mobile home condenser and downflow furnace, each sold separately. It should never be undersized relative to the condenser it supports.

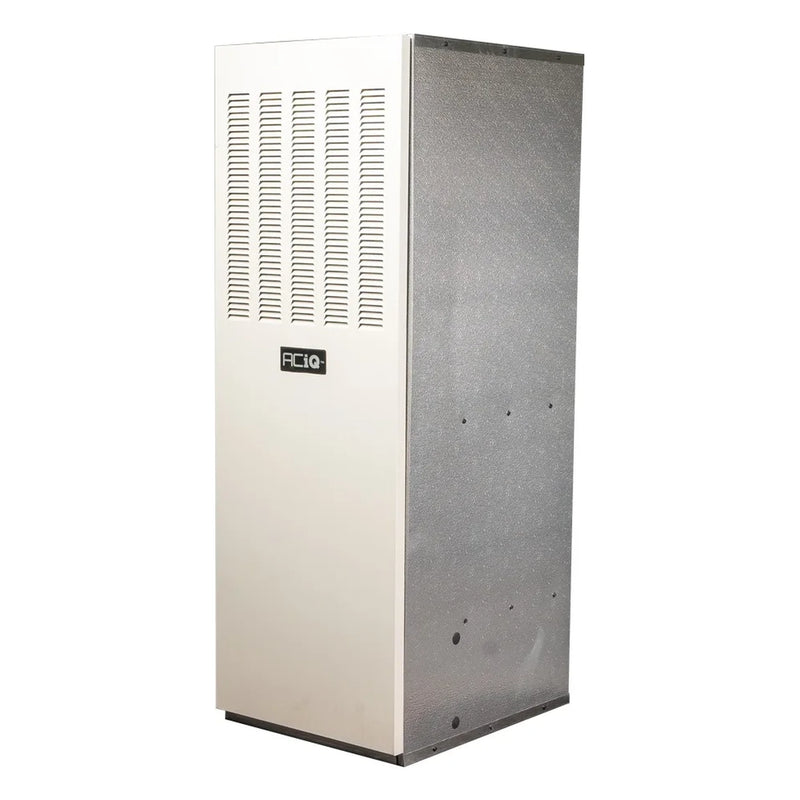

ACiQ 32,800 BTU Mobile Home Electric Furnace Downflow 10KW R454B & R32 ACIQ-EFS1020FD-MH
The ACiQ-EFS1020FD-MH is a 10 kilowatt electric downflow furnace rated at 32,800 BTU, built specifically for mobile and manufactured home heating applications. An ECM multi-speed blower moves up to 1,760 CFM through the direct-drive 3/4 HP motor, and factory-installed sequencers with temperature limit switches keep operation safe and efficient on a 240V single-phase circuit.
Field technicians will appreciate the front-accessible controls and a disconnect that doesn't protrude through the wall panel, both of which make routine service quicker. The washable/replaceable filter keeps ongoing maintenance costs low, and heat modules can be added or serviced in the field using molex plug connections or ordered pre-installed from the factory.
Key Features
-
10kW / 32,800 BTU Output - Delivers reliable electric resistance heat sized for mobile and manufactured home applications.
-
ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,760 CFM for even heat distribution.
-
Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
-
Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
-
Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
-
Flush-Mounted Disconnect - The electrical disconnect does not protrude through the wall panel, keeping installs tidy.
-
Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
-
240V Single-Phase Electrical - Runs on a standard 240V 1-phase circuit with a 60 amp max breaker.
