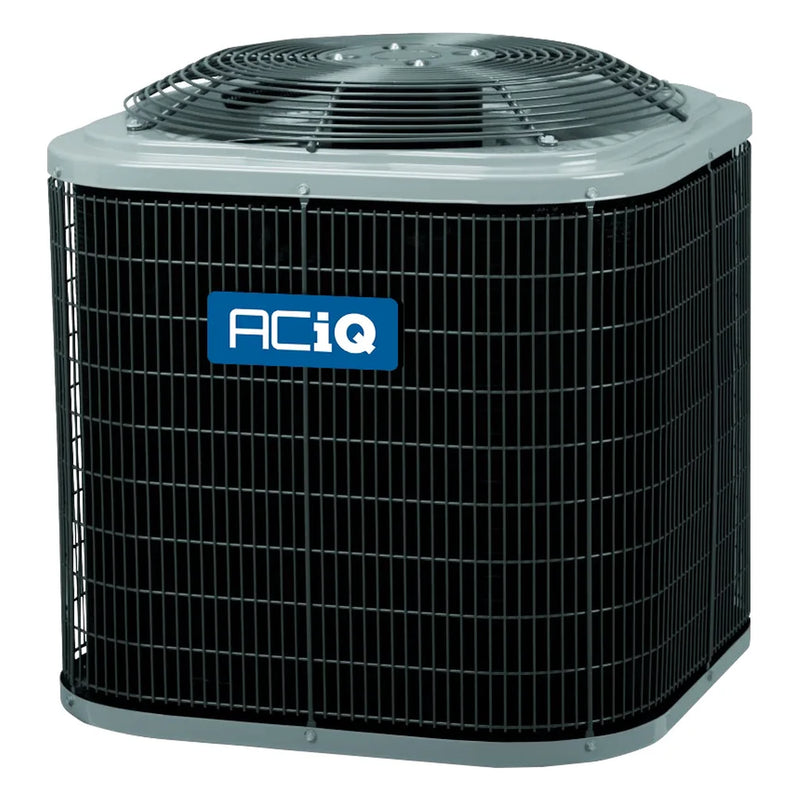

ACiQ 2 Ton 14.3 SEER2 Central Air Conditioner Condenser Single Stage R5A5S24AKAWA-MH
The ACiQ R5A5S24AKAWA-MH is a durable and efficient 2-ton air conditioner condensing unit, ideal for residential cooling applications. With a 14.3 SEER2 rating, it offers improved energy efficiency compared to standard 13.4 SEER2 models, helping reduce long-term operating costs. Built with reinforced cabinet construction and protected internal components, this AC-only unit ensures reliable performance and durability. Equipped with a scroll compressor and pre-charged with R454B refrigerant, it delivers quiet, eco-conscious operation and simplified installation when paired with a compatible indoor coil or air handler.
Key Features
-
2 Ton Cooling Capacity - Provides 24,000 BTU cooling for small homes and residential spaces.
-
14.3 SEER2 Efficiency Rating - Offers energy-conscious operation and reduced utility costs.
-
Single-Stage Scroll Compressor - Ensures long-lasting reliability and consistent cooling performance.
-
Factory Pre-Charged with R454B Refrigerant - Simplifies installation and supports eco-friendly performance.
-
Durable Cabinet Construction - Reinforced corner posts and protective inlet grille safeguard internal components.
-
Filter Drier Included - Protects the system from moisture and contaminants during field installation.
-
Quiet Condenser Operation - Scroll technology minimizes noise while maintaining efficient cooling.
-
AHRI Certified - Ensures verified performance and quality assurance.
The ACiQ R5A5S24AKAWA-MH combines energy efficiency, reliability, and durable construction, making it an ideal choice for homeowners seeking cost-effective residential cooling backed by a 10-year parts warranty. Note: Must be paired with a compatible R454B air handler or coil for proper operation.
ACiQ 2 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH24AU3VWEC
The ACiQ ACIQ-MH24AU3VWEC is an uncased downflow evaporator coil built specifically for mobile and manufactured home split-system installations. It uses left-hand refrigerant and plumbing connections with sweat/braze fittings, and a factory-installed TXV for accurate refrigerant metering.
Constructed with rifled aluminum tubing, enhanced aluminum fins, and a heavy-duty polypropylene drain pan, this 2 ton coil is AHRI certifiable with any brand of compatible condenser and includes a downflow plate kit for straightforward field installation.
Key Features and Benefits:
-
2 Ton Downflow Coil
Sized for mobile and manufactured home split systems.
-
R454B Refrigerant Compatible
Built for use with modern R454B split systems.
-
Factory-Installed TXV
Ensures precise refrigerant metering for improved efficiency.
-
Rifled Aluminum Tubing
Enhanced aluminum fins promote efficient heat transfer.
-
Left-Hand Connections
Sweat/braze fittings simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Resists corrosion for long-term reliability.
-
Downflow Plate Kit Included
Built specifically for mobile and manufactured home use.
Installation Requirements
This coil is designed for mobile and manufactured home applications only and must be matched with a compatible condenser and mobile home furnace or air handler cabinet; it cannot operate as a standalone unit. Disclaimer: This coil is intended for use with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, ensure the paired condenser and system include proper leak detection where required. Please call us at 1-888-557-9206 if you have any questions.
ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH
The ACiQ-EFS1520FD-MH is a 15 kilowatt electric downflow furnace rated at 49,100 BTU, sized to pair with 2 to 3 ton mobile home air conditioning systems. An ECM multi-speed blower delivers up to 1,710 CFM through a direct-drive 3/4 HP motor, and the unit draws power through a 240V single-phase circuit protected by dual breakers.
Like the rest of the ACiQ mobile home furnace lineup, this model uses factory-installed sequencers and temperature limit switches for safe, efficient staged heating, with heat modules that install via molex plug in the field or ship pre-installed from the factory. Front-accessible controls and a flush-mounted disconnect keep routine service simple.
Key Features
-
15kW / 49,100 BTU Output - Delivers electric resistance heat sized for 2 to 3 ton mobile home AC systems.
-
ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,710 CFM for even heat distribution.
-
Dual Circuit Breakers - Ships with a 60 amp and a 25 amp breaker to protect the staged heating elements.
-
Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
-
Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
-
Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
-
Flush-Mounted Disconnect - The electrical disconnect does not protrude through the wall panel, keeping installs tidy.
-
Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
