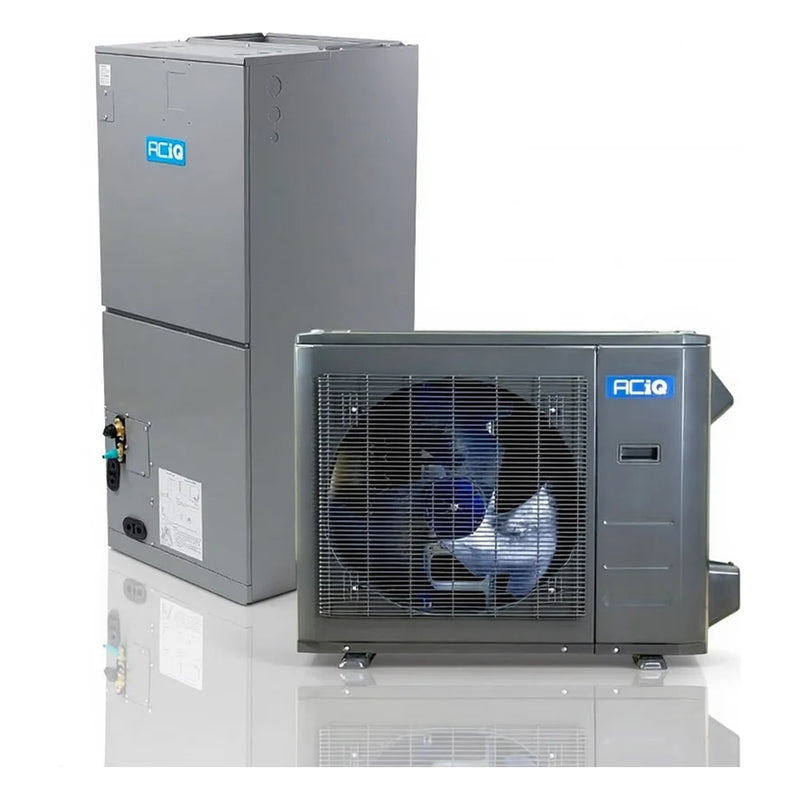

ACiQ 2 Ton 17.2 SEER2 Air Conditioner Split System Multi-Position R454B

By ACiQ | Model: ACIQ-24-AC-B / ACIQ-24-AHD | ID: 902789
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$3,124.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

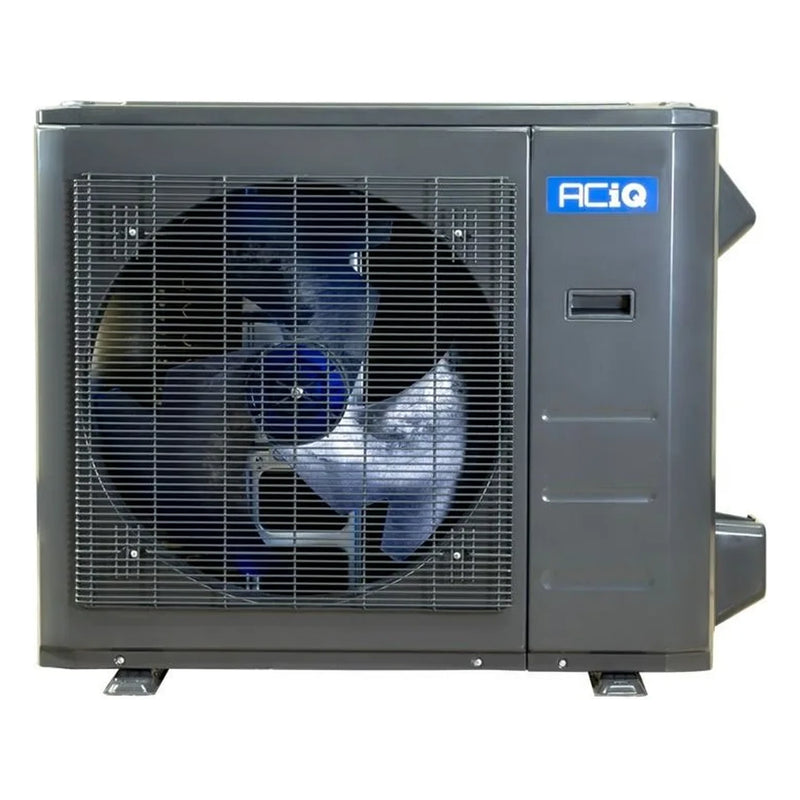

ACiQ 2 Ton 15.5 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-24-AC-B

The ACiQ ACIQ-24-AC-B is a 2 ton, 15.5 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.

Key Features and Benefits:

  • Variable-Speed Inverter Compressor
    Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
  • Learning Condenser Technology
    Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
  • 15.5 SEER2 Efficiency
    Rated 15.5 SEER2 / 10.6 EER2 for lower cooling operating costs.
  • 24,000 BTU Cooling Capacity
    Delivers 24,000 BTU of cooling with up to 1,766 CFM of airflow.
  • Quiet Operation
    Runs as low as 56 dBA, noticeably quieter than a fixed-speed condenser at full load.
  • Down to 1 Ton Operation
    Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.

Installation Requirements

This condenser must be paired with a compatible indoor coil or air handler to operate. It does not provide heating capabilities. Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

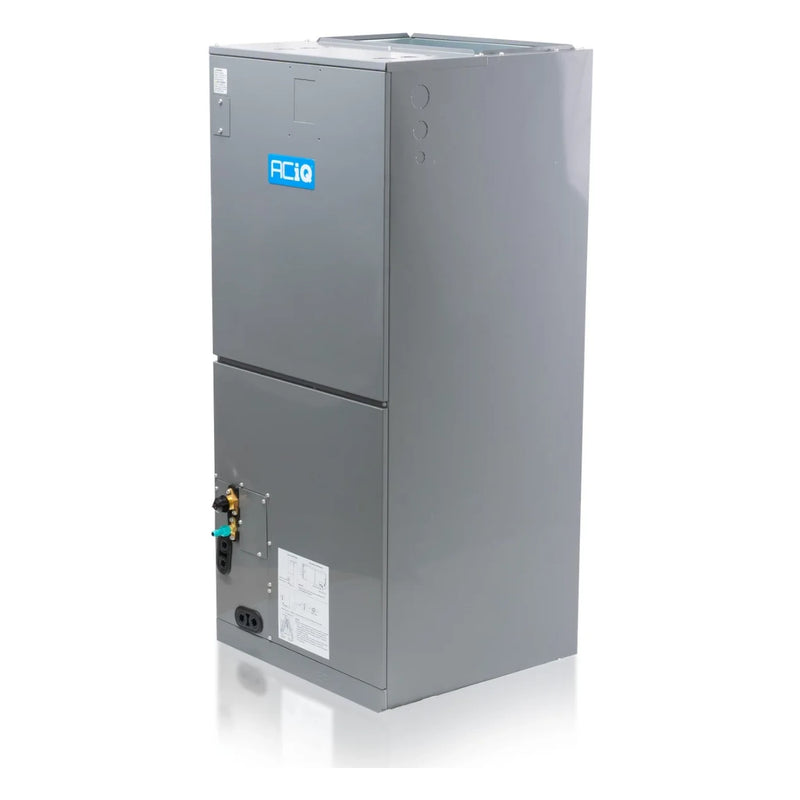

ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-24-AHD

The ACiQ ACIQ-24-AHD is a 2 ton, 24,000 BTU central ducted air handler with a variable-speed DC blower and communicating technology. Working in sync with a compatible thermostat and inverter condenser, it automatically adjusts BTU output for peak efficiency, and its multi-positional cabinet is designed for smooth integration with existing ductwork.

Key Features and Benefits:

  • 24,000 BTU / 2 Ton Capacity
    Efficient, compact solution for smaller homes or zones.
  • Central Ducted Air Handler
    Designed for smooth integration with existing ductwork.
  • Variable Speed DC Blower Motor
    Delivers quiet, energy-efficient operation with consistent airflow.
  • 24V Thermostat Compatible
    Fully supports standard 24V thermostats, including smart and programmable models.
  • Multi-Positional Cabinet
    Installs in upflow, downflow, or horizontal configurations.

Installation Requirements

This air handler must be paired with a compatible inverter condenser to operate. Disclaimer: This air handler is intended for use with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, this unit must be paired with an R454B condenser and system equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

View More Air Conditioner Split Systems

Specifications

ACiQ 2 Ton 15.5 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-24-AC-B

Brand ACiQ SKU ACIQ-24-AC-B
Weight (in lbs) 97 UPC 810175553573
Cooling BTU 24,000 BTU Maximum CFM 1766
Decibel Level (dBA) 56 Refrigerant R454B
SEER2 (Efficiency) 15.5 EER2 10.6
Condenser Stages Variable Speed Compressor Type Rotary
Liquid Line 3/8" Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz Max Breaker Size 20 Amps
Min. Breaker Size 19 Amps Tonnage 2 Ton
Operating Mode Cooling Height 26.5"
Width 35.04" Depth 13.46"

ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-24-AHD

Brand ACiQ SKU ACiQ-24-AHD
Weight 127.430000 Replaces ACiQ-24-AHB
Cooling BTU 24,000 BTU Maximum CFM 824
Decibel Level (dBA) Up to 44 Decibels Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Configuration Multi-Positional Refrigerant R454B
Liquid Line 3/8" Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz Max Breaker Size 15 Amps
Min. Breaker Size 5.5 Amps / 4.0 Amps Tonnage 2 Ton
BTU/Tonnage 24,000 BTU/2 Ton Mini Split Type Multi-Positional
Zone Compatibility Single Zone Connection Flared
Height 45" Width 17.5"
Depth 21" Warranty 12 Years Compressor and 7 Years Parts with Online Registration
Warranty

ACiQ 2 Ton 15.5 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-24-AC-B

Warranty Type Parts Compressor
Standard Warranty 5 years 5 years
Registered Warranty 7 years 12 years

ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-24-AHD

Warranty Type Parts Compressor
Standard Warranty 5 year parts 7 year parts
Registered Warranty 7 year parts 12 year parts
Documents

ACiQ 2 Ton 15.5 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-24-AC-B

Cooling Only Wiring Guide

Installation Manual

Owner's Manual

Service Manual

Warranty Information

ACiQ 24 Volt Wiring Notice

ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-24-AHD

AHD Installation Manual

AHD Owner's Manual
