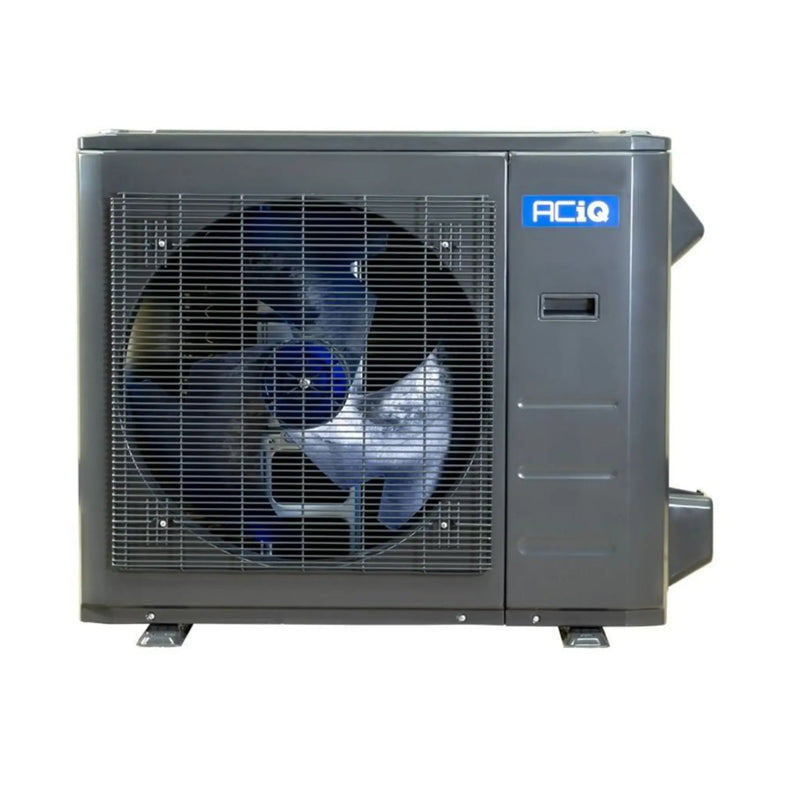

ACIQ Standard Series 2 Ton 18.1 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter ACIQ-24-EHPD
The ACIQ-24-EHPD is a 2 ton high-efficiency inverter heat pump condenser rated at 18.1 SEER2, engineered to deliver adaptable, variable-speed comfort across a wide range of climates. Inverter technology converts AC power to DC, allowing the compressor to adjust its speed and modify BTU output based on real-time demand for efficient, consistent performance.
Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During initial startup it enters a learning mode, collecting and storing data to optimize future operation for maximum efficiency. Its self-adjusting inverter design also enables adaptive sizing, automatically scaling output to avoid the excess humidity and discomfort that can result from a heat pump sized for heating demand.
Key Features
- 2 ton, 18.1 SEER2 high-efficiency inverter heat pump condenser
- Variable output based on demand: 12,000-24,000 BTU cooling, 12,000-26,000 BTU heating
- R454B refrigerant
- Inverter heat pump system for ducted applications
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Reliable heating from -13°F to 75°F outdoor temperatures
- Durable gold fin condenser coil coating for longevity
- Quiet operation, even under high workloads
Performance Overview
Boasting an efficiency rating of 18.1 SEER2, the ACIQ-24-EHPD provides versatile comfort across a range of climates with a variable output that eliminates short cycling for lasting efficiency. At 0°F, this heat pump operates at 81% efficiency, making it a strong fit for maximizing heating efficiency in the coldest climates. Please note that this condenser cannot operate independently and must be installed with a compatible indoor air handler.
Important Refrigerant Safety Notice
This condenser uses R454B refrigerant, classified as an A2L refrigerant. To comply with safety standards and maintain warranty coverage, the unit must be paired with an R454B-compatible air handler or evaporator coil equipped with a refrigerant leak detection system. Failure to follow these requirements may result in safety hazards and could void the manufacturer warranty. For compatibility questions, please call 1-888-557-9206.

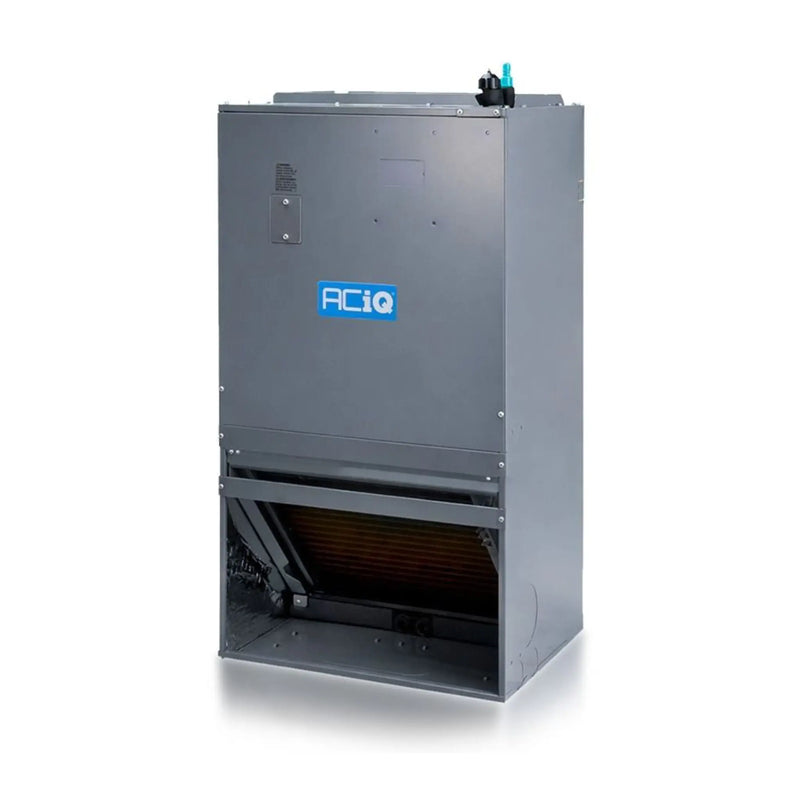

ACiQ 2 Ton Ducted Air Handler Wall Mounted - R454B ACIQ-24W-WMB
The ACIQ-24W-WMB Ducted Air Handler Wall Mounted is designed for vertical wall or stud mounting, giving you versatile installation options for multi-tenant and space-constrained applications. Encased in a fully insulated, galvanized-steel cabinet, this air handler ensures dependable performance and long-term durability.
Key Features
- 2 ton wall-mounted ducted air handler for residential HVAC systems
- Connects to ductwork
- Suitable for use with R454B refrigerant
- Fully adjustable TXV for cooling and heat pump operation
- Direct-drive, multi-speed motor for adjustable air volume in heating and cooling
- Factory-installed pull-type disconnect for convenience
- Aluminum tube coils included in all models
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack with filter for improved indoor air quality
- Wall-hanging bracket included for easy installation
- Compatible with optional 3 kW, 5 kW, 8 kW or 10 kW electric backup heat strips
Performance Overview
This air handler is designed for vertical wall mounting with an up-flow-only configuration. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as connecting to your return and supply ductwork. Any 24V thermostat with 2 stages of heating can control the system, and the intelligent control board displays fault codes if maintenance is needed. To function as a heat pump, this air handler must be installed with a compatible condenser; to use straight electric heating, an electric heater coil is required.
