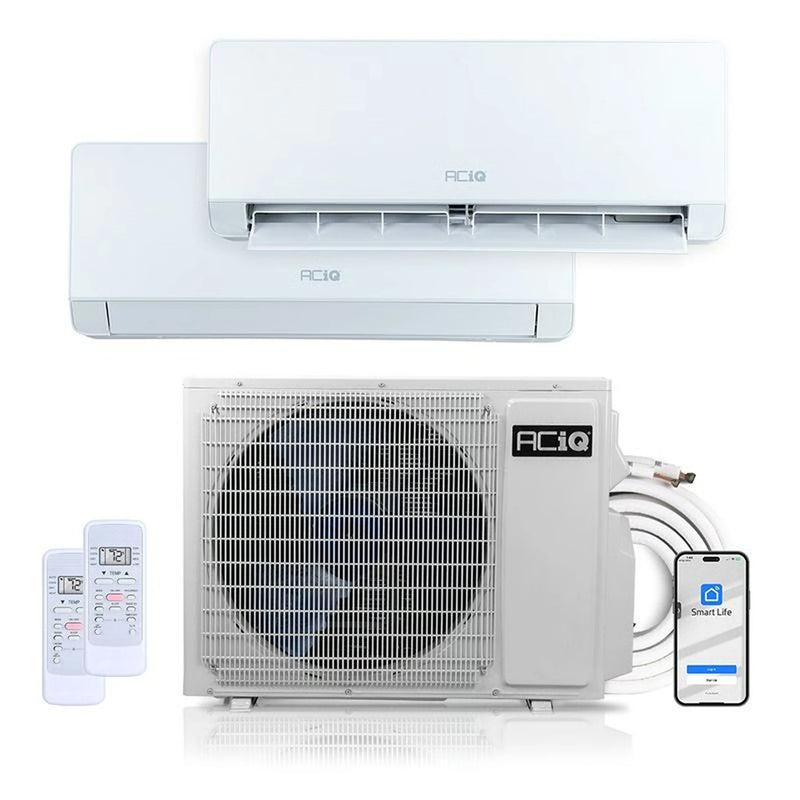

ACIQ-24Z-E-M3 ACIQ-12W-E-M-2

ACiQ 24,000 BTU 23 SEER2 Wall Mount Mini Split System 2-Zone R32 230V 12+12

By ACiQ | Model: ACIQ-24Z-E-M3 / ACIQ-12W-E-M-2 | ID: 902463
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,300.60 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Lowest Price Guarantee Find it cheaper? We'll match it. See terms
Speak with an Expert Call us at (833) 658-3387

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

ACiQ 24,000 BTU Essentials Multi-Zone Mini Split Heat Pump Condenser R32 230V ACIQ-24Z-E-M3

Key Features

  • Cooling BTU: 24,000 BTU
  • Heating BTU: 24,000 BTU
  • Refrigerant: R32
  • SEER2 (Efficiency): 23
  • Electrical: 208/230V | 1 Phase | 60 Hz

ACiQ 12,000 BTU Essentials Multi-Zone Wall Mount Mini Split Air Handler R32 230V ACIQ-12W-E-M x2

Key Features

  • Controller: Wired Included
  • Cooling BTU: 12,000 BTU
  • Heating BTU: 12,300 BTU
  • Maximum CFM: 353 Turbo / 335 Hi / 282 Med / 247 Lo (Airflow)
  • Refrigerant: R32
  • Electrical: 208/230V | 1 Phase | 60 Hz

View More 2 Zone Mini Splits

Specifications

ACiQ 24,000 BTU Essentials Multi-Zone Mini Split Heat Pump Condenser R32 230V ACIQ-24Z-E-M3

Brand ACiQ SKU ACIQ-24Z-E-M3
Refrigerant Charge 3.2 lbs (Pre-charged for 74 ft line set) Weight (in lbs) 109.1
AHRI Certificate Number 217751655, 217751646, 217751637 UPC 810175553528
Cooling BTU 24,000 BTU Heating BTU 24,000 BTU
Decibel Level (dBA) 67 dBA Energy Star Yes
Refrigerant R32 HSPF2 8.5
SEER2 (Efficiency) 23 EER2 12.5
Compressor Type Rotary Liquid Line 1/4"(4),3/8"(1)
Suction Line 3/8"(3),1/2"(1),5/8"(1) Electrical 208/230V | 1 Phase | 60 Hz
Max Breaker Size 30 Amps Min. Breaker Size 20 Amps
BTU/Tonnage 24,000 BTU/2 Ton Min/Max Outdoor Temp for Heating -13° - 75° F
Min/Max Outdoor Temp for Cooling -13° - 125° F Zone Compatibility Multi Zone
Height 27.56" Width 38.58"
Depth 15.28"

ACiQ 12,000 BTU Essentials Multi-Zone Wall Mount Mini Split Air Handler R32 230V ACIQ-12W-E-M x2

Brand ACiQ SKU ACIQ-12W-E-M
Weight (in lbs) 22.05 UPC 810175553542
Controller Wired Included Cooling BTU 12,000 BTU
Heating BTU 12,300 BTU Maximum CFM 353 Turbo / 335 Hi / 282 Med / 247 Lo (Airflow)
Decibel Level (dBA) 35 - 42 dBA Refrigerant R32
Liquid Line 1/4" Suction Line 3/8"
Electrical 208/230V | 1 Phase | 60 Hz BTU/Tonnage 12,000 BTU/1 Ton
Mini Split Type Wall Mounted Zone Compatibility Multi Zone, Single Zone
Height 11.77" Width 30.24"
Depth 7.87"

Warranty

ACiQ 24,000 BTU Essentials Multi-Zone Mini Split Heat Pump Condenser R32 230V ACIQ-24Z-E-M3

Warranty Type Parts Compressor
Registered Warranty 4 Years 6 Years

ACiQ 12,000 BTU Essentials Multi-Zone Wall Mount Mini Split Air Handler R32 230V ACIQ-12W-E-M x2

Warranty Type Parts Compressor
Registered Warranty 4 Years 6 Years
Documents

ACiQ 24,000 BTU Essentials Multi-Zone Mini Split Heat Pump Condenser R32 230V ACIQ-24Z-E-M3

Multi Zone Brochure

Submittal

Installation and Owner's Manual

Service and Technical Manual

Warranty

AHRI Certificate

Surge Protector Install Guide

ACiQ 12,000 BTU Essentials Multi-Zone Wall Mount Mini Split Air Handler R32 230V ACIQ-12W-E-M x2

Submittal

Installation & Owner's Manual

Remote Control User Manual

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.

Reviews

Product Q&A

Have a specific question?

Be the first to ask a question about this product.

Our Real Customer Reviews

See what our customers have said about us.

Customers rate us 4.8/5 based on 34 reviews.
Connect with HVAC Store Support
