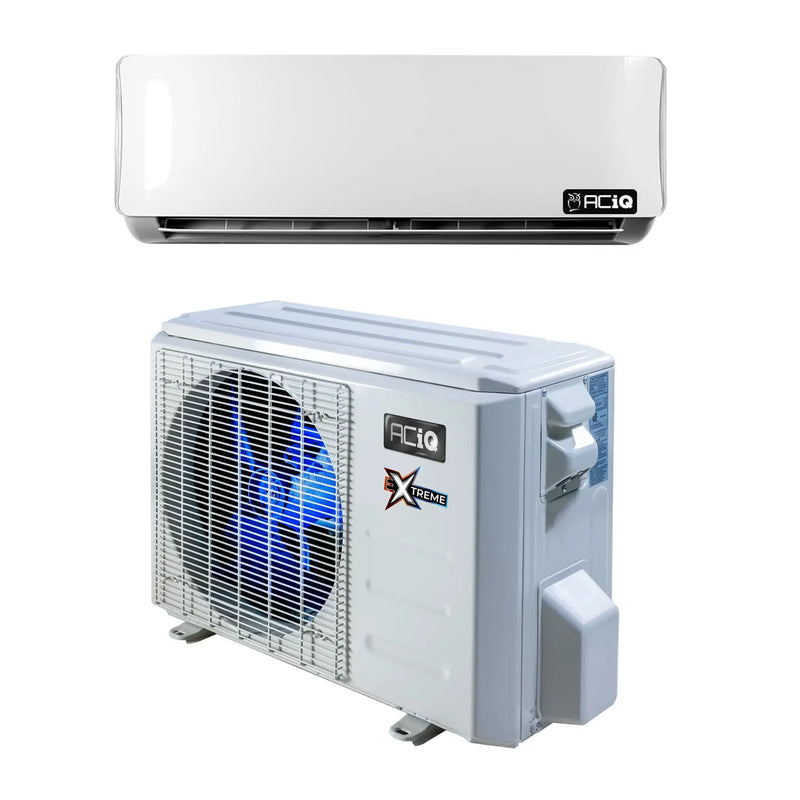

ACiQ 24K BTU 21.5 SEER Extreme Single Zone Wall Mount Mini Split R454B 230V

Name: ACiQ 24K BTU 21.5 SEER Extreme Single Zone Wall Mount Mini Split R454B 230V
Brand: ACiQ
SKU: ACIQ-24W-HH-MD ACiQ-24ZPL-HP230C
Price: 2655.99 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-24W-HH-MD ACiQ-24ZPL-HP230C | ID: 88282

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$2,655.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

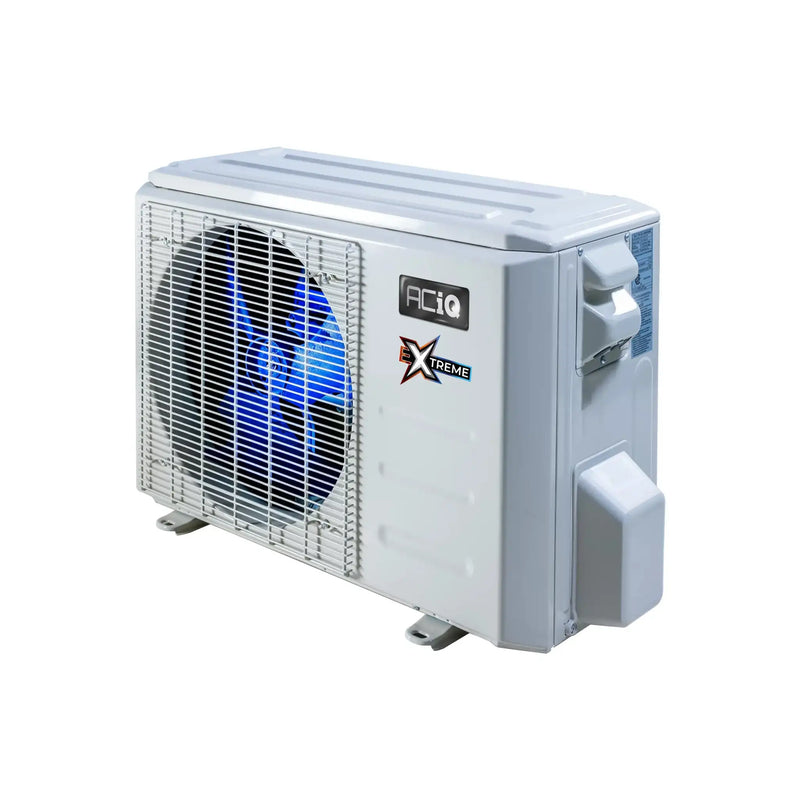

ACiQ 24,000 BTU 21 SEER2 Mini Split Condenser Extreme Series R454B 230V ACIQ-24ZPL-HP230C

The ACiQ 24,000 BTU Extreme Series condenser delivers powerful, energy-efficient comfort even in the most demanding climates. Engineered with advanced inverter technology and low ambient heating capability, this unit performs consistently in outdoor temperatures ranging from -22°F to 122°F. With an impressive SEER2 of 21 and HSPF2 of 13.5, this unit is both Energy Star and NEEP certified, making it an ideal solution for single-zone applications that require premium performance without premium costs.

Key Features

24,000 BTU cooling and 29,000 BTU heating capacity
High efficiency: 21 SEER2 and 13.5 HSPF2
Reliable operation from -22°F to 122°F outdoor temperatures
Low ambient heating support
Certified by Energy Star, AHRI, NEEP, and UL
Environmentally friendly R454B refrigerant
Quiet performance at 61.5 dBA
Single zone compatibility with inverter heat pump technology

This condenser is perfect for residential applications demanding quiet, efficient, and high-performance heating and cooling in extreme environments.

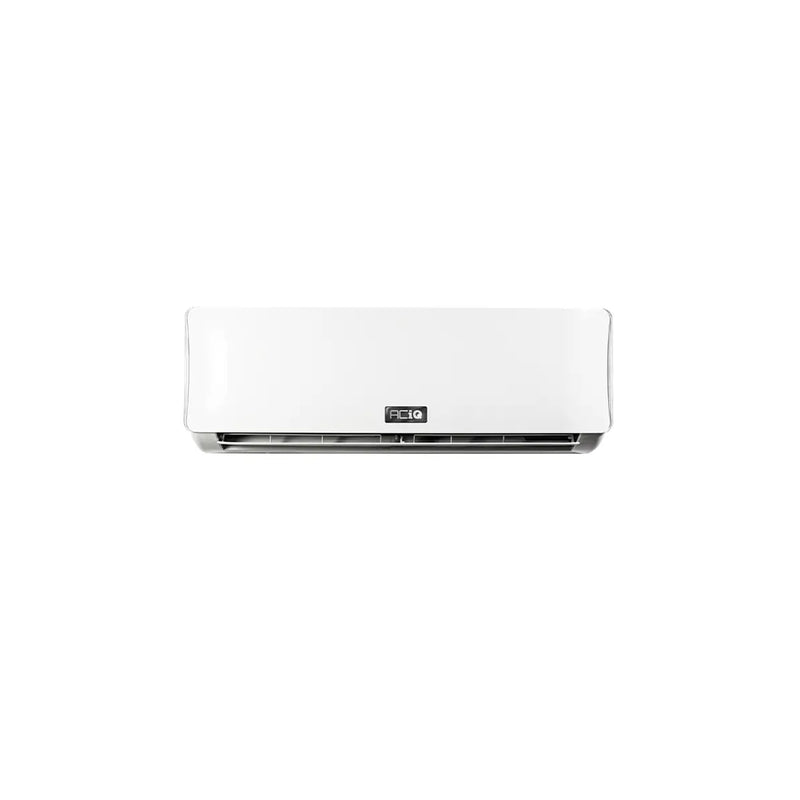

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

The 24,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance and can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser for a highly efficient Hyper Heat system. This air handler is ideal for small to medium sized rooms, utilizing adaptive technology to monitor and maintain your desired temperature regardless of external weather conditions.

Key Features

24,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACIQ-24W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. This unit is WiFi ready, allowing control via smart devices and voice assistants like Amazon Alexa and Google Assistant. Please note that installation with a condenser and other equipment is required for proper functionality.

View More Single Zone Mini Splits

Specifications

ACiQ 24,000 BTU 21 SEER2 Mini Split Condenser Extreme Series R454B 230V ACIQ-24ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-24ZPL-HP230C
BTU / Tonnage	24,000 BTU / 2 Ton	Heating BTU	29,000 BTU
SEER2	21	HSPF2	13.5
Decibel Level	61.5 dBA	Refrigerant	R454B
Electrical	208/230V \| 1 Phase \| 60 Hz	Breaker Size (Min/Max)	25A / 35A
Outdoor Temp Range (Cooling)	-22°F to 122°F	Outdoor Temp Range (Heating)	-22°F to 75°F
Operating Mode	Heating/Cooling	Zone Compatibility	Single Zone
Certifications	Energy Star, NEEP, UL, AHRI	Dimensions (H x W x D)	31.89" x 37.24" x 16.14"

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Brand	ACiQ	SKU	ACIQ-24W-HH-MD
Weight	39.680000	Product Features	Low Ambient Heating, WiFi
Cooling BTU	24000 BTU	Heating BTU	24000 BTU
Maximum CFM	611.18	Decibel Level (dBA)	44
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	18-20	Liquid Line	3/8"
Suction Line	5/8"	Electrical	208/230V 1 Phase 60 Hz
BTU/Tonnage	24,000 BTU/2 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Length	46.85"
Height	14.59"	Depth	11.20"

Warranty

ACiQ 24,000 BTU 21 SEER2 Mini Split Condenser Extreme Series R454B 230V ACIQ-24ZPL-HP230C

Compressor Warranty

12 Years (with registration)

Parts Warranty

7 Years (with registration)

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 24,000 BTU 21 SEER2 Mini Split Condenser Extreme Series R454B 230V ACIQ-24ZPL-HP230C

Submittal

Installation Manual

Owner's Manual

Remote Manual

Service Manual

Warranty Information

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

Remote Control Manual

Submittal

Installation & Owner's Manual

Wi-Fi Manual

Warranty Information
