ACiQ ACiQ-27Z-HH-M4C ACIQ-09CD-HH-MC ACIQ-18CD-HH-MC

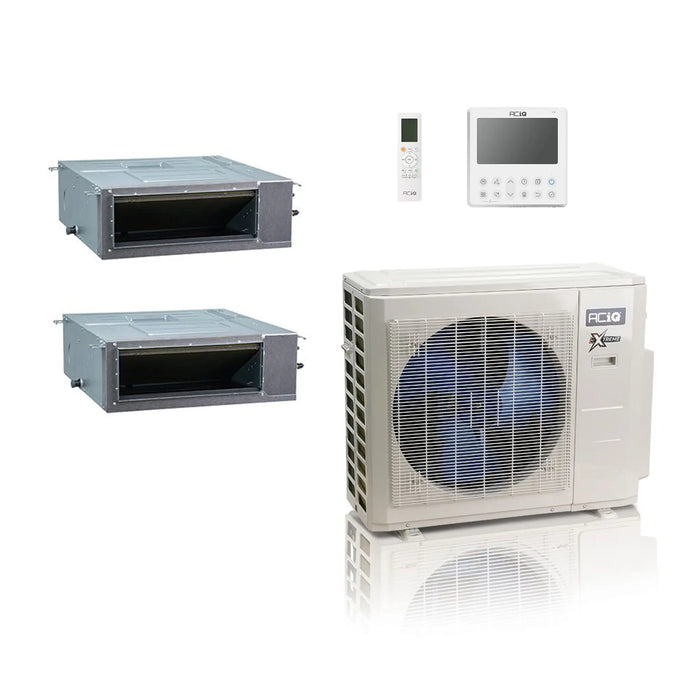

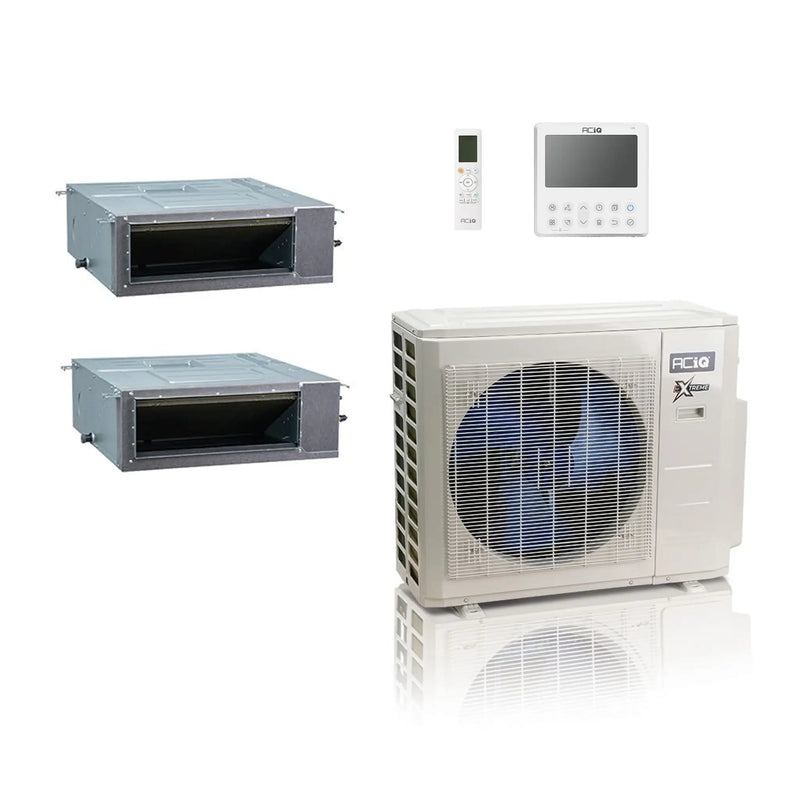

ACiQ 27K BTU 19 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 9+18

By ACiQ | SKU: ACiQ-27Z-HH-M4C ACIQ-09CD-HH-MC ACIQ-18CD-HH-MC | ID: 89053
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,676.90 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

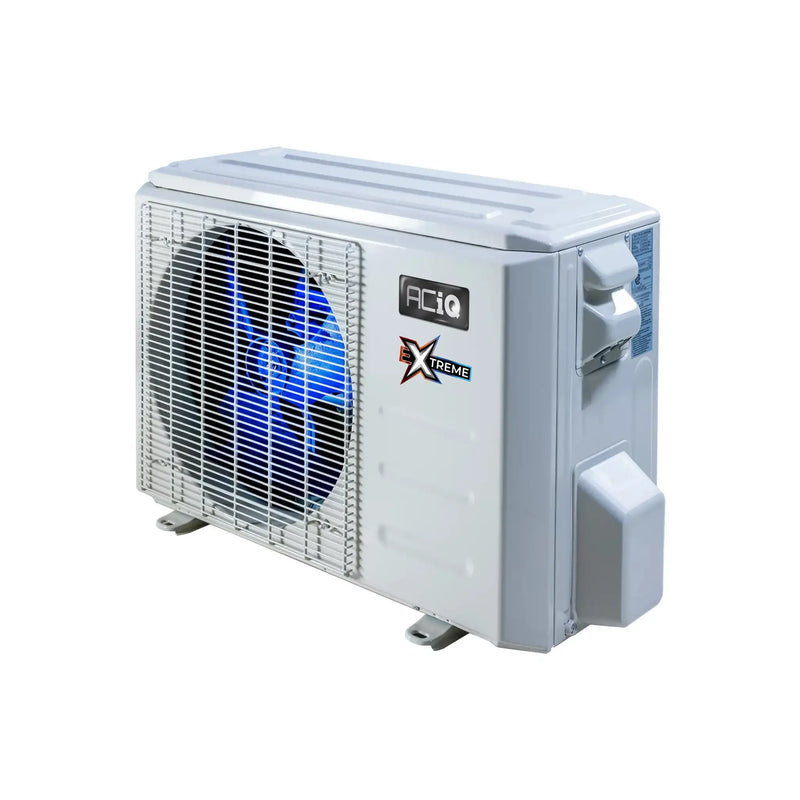

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

The ACIQ-27Z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.

Key Features

  • 27,000 BTU, 23 SEER multi zone heat pump condenser
  • Designed to function with up to 3 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

The ACIQ-27Z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler ACIQ-09CD-HH-MC

Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler ACIQ-09CD-HH-MC. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.

Key Features

  • 9,000 BTU of heating or cooling power
  • Dry and fan modes for added versatility
  • Perfect for smaller rooms in most climates
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed duct design for a seamless look

Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.

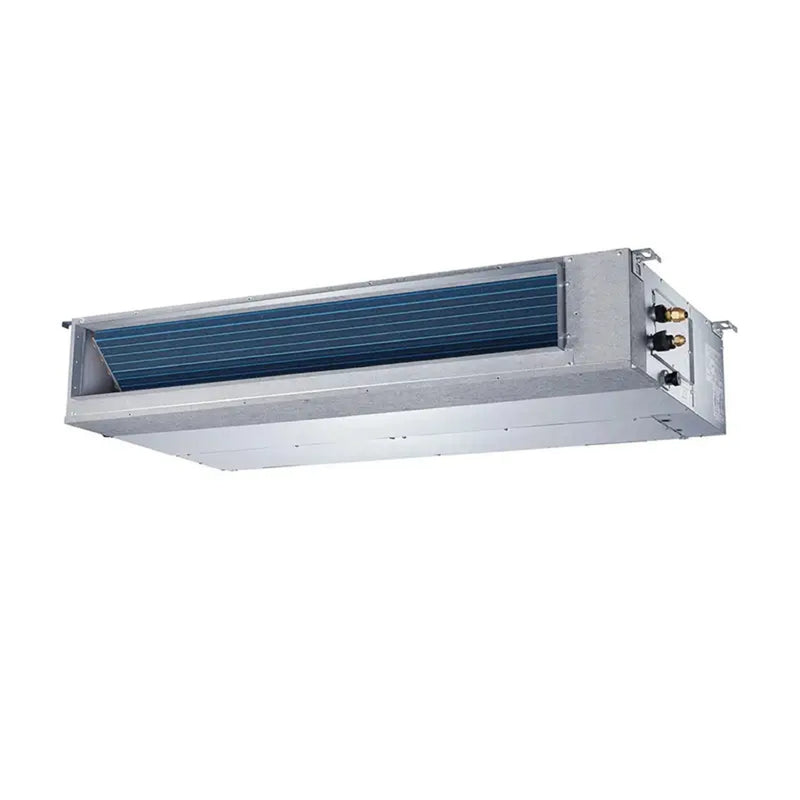

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC offers the advantages of a multi-zone mini split system without visible air handlers on your walls or ceilings. This flexible unit can be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Air distribution is achieved using flex ducting to ceiling or wall registers in your desired location.

Key Features

  • 18,000 BTU of Heating or Cooling Capacity
  • Dry and Fan Modes Available
  • Good for Medium Rooms in Most Climates
  • Wall Mounted Thermostat Included
  • Concealed Duct Design for Flexible Installation

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC is designed for quiet comfort, with precision engineering to quickly achieve and maintain set temperatures. The system features whisper-quiet indoor and outdoor units for minimal disruption.

View More 2 Zone Mini Splits

Specifications

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Brand ACiQ SKU ACIQ-27Z-HH-M4C
Replaces ACIQ-27Z-HH-M3B Product Features Low Ambient Heating
HSPF2 10.5 Cooling BTU 27000 BTU
Heating BTU 27000 BTU Decibel Level (dBA) 61
Electric Heat Heat Pump Energy Star Yes
Refrigerant R454B SEER2 23
Compressor Type Rotary Liquid Line 1/4" (4)
Suction Line 3/8" (3); 1/2 (1) Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 35 Amps Min. Breaker Size 30 Amps
Tonnage 2 Ton to 2.5 Ton BTU/Tonnage 27,000 BTU/2.25 Ton
Mini Split Type Wall Mounted Zone Compatibility Multi Zone
Ambient Temperature Range -22 ~ 122 Height 31.89"
Width 37.24" Depth 16.14"

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler ACIQ-09CD-HH-MC

Brand ACiQ SKU ACIQ-09CD-HH-MC
Cooling BTU 9,000 BTU Heating BTU 10,000 BTU
Maximum CFM 352.94 Decibel Level (dBA) As low as 27
Electric Heat Heat Pump Refrigerant R454B
Liquid Line 1/4" Suction Line 3/8"
Electrical 208/230V 1 Phase 60Hz Electric Phase Filter Single Phase
Max Breaker Size 15 Min. Breaker Size 15
BTU/Tonnage 9,000 BTU/0.75 Ton Mini Split Type Concealed Duct
Zone Compatibility Multi Zone Length 27.56"
Height 7.87" Depth 19.92"

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Brand ACiQ SKU ACIQ-18CD-HH-MC
Cooling BTU 17,500 BTU Heating BTU 18,000 BTU
Maximum CFM 706.3 Decibel Level (dBA) As low as 28
Electric Heat Heat Pump Refrigerant R454B
Liquid Line 1/4" Suction Line 1/2"
Electrical 208/230V 1 Phase 60Hz BTU/Tonnage 18,000 BTU/1.5 Ton
Mini Split Type Concealed Duct Zone Compatibility Multi Zone
Height 9.65" Width 39.37"
Depth 29.53"
Warranty

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler ACIQ-09CD-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts
Documents

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler ACIQ-09CD-HH-MC

Installation & Owner's Manual

Remote Controller Manual

Submittal

Brochure

Warranty Information

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information
