ACiQ ACiQ-27Z-HH-M4C ACIQ-09CD-HH-MC ACIQ-24CD-HH-MC

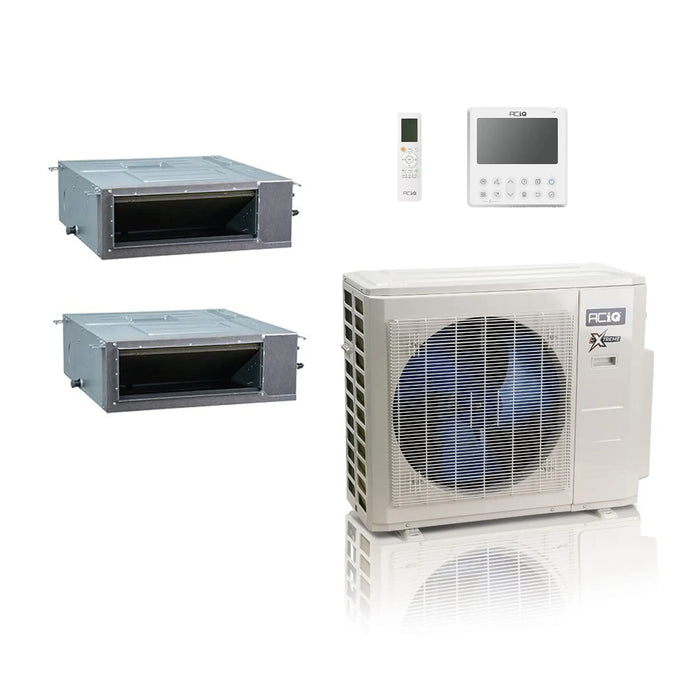

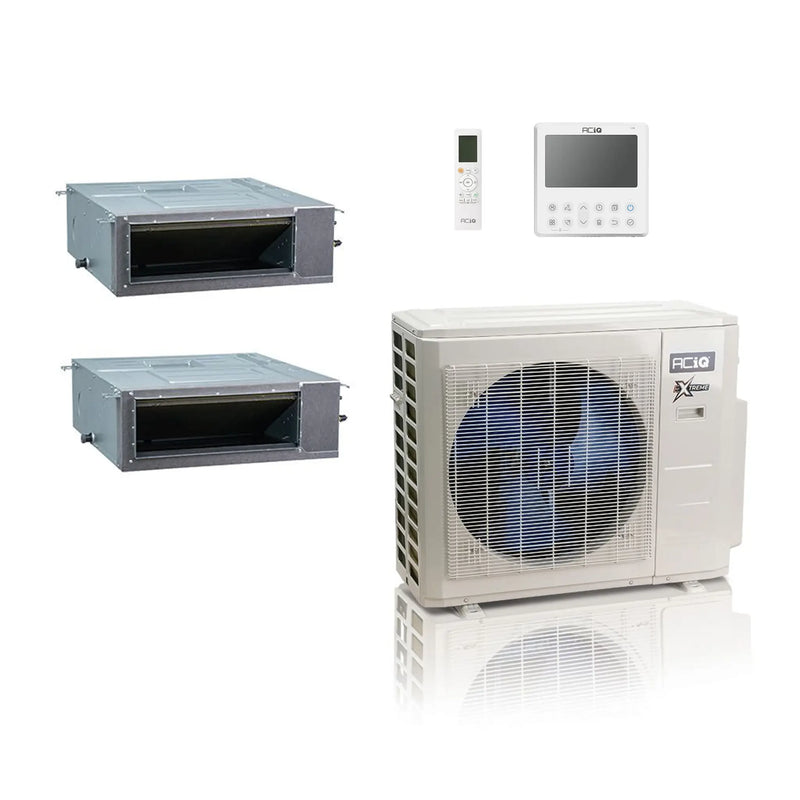

ACiQ 27K BTU 19 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 9+24

Name: ACiQ 27K BTU 19 SEER2 Extreme Concealed Duct Mini Split System 2-Zone 9+24
Brand: ACiQ
SKU: ACiQ-27Z-HH-M4C ACIQ-09CD-HH-MC ACIQ-24CD-HH-MC
Price: 5856.89 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACiQ-27Z-HH-M4C ACIQ-09CD-HH-MC ACIQ-24CD-HH-MC | ID: 89051

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,856.89 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

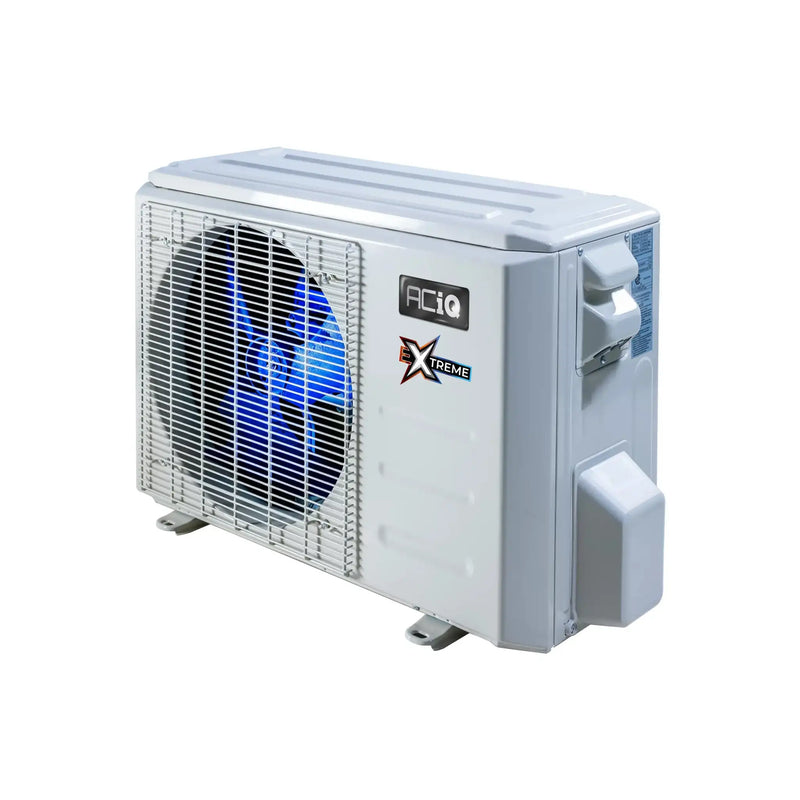

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.

Key Features

27,000 BTU, 23 SEER multi zone heat pump condenser
Designed to function with up to 3 attached air handlers
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Integrated Extreme Heat technology with base pan heater
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

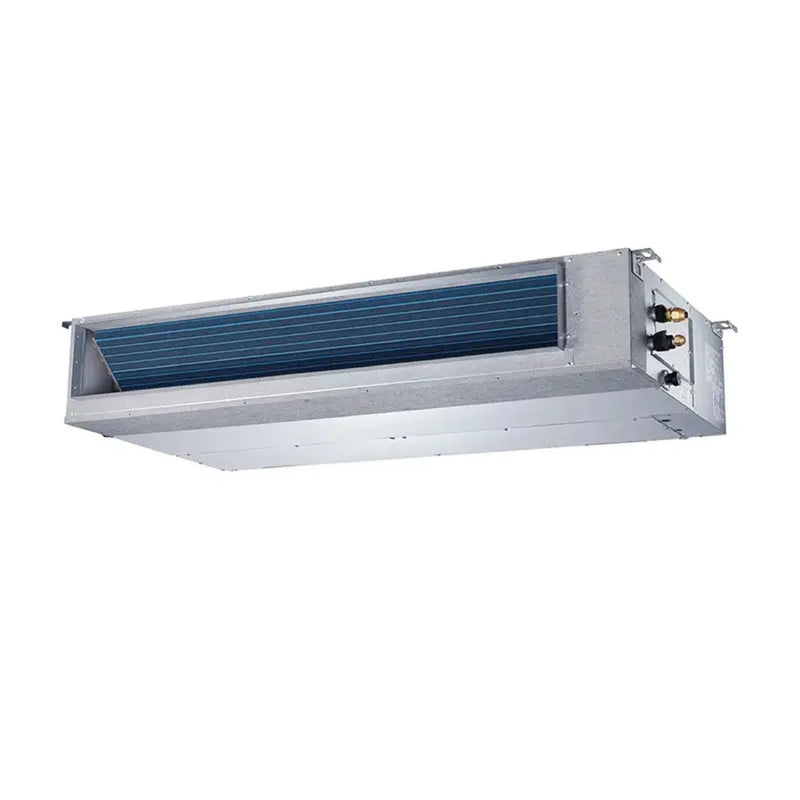

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.

Key Features

9,000 BTU of heating or cooling power
Dry and fan modes for added versatility
Perfect for smaller rooms in most climates
Includes a wall-mounted thermostat for easy temperature control
Concealed duct design for a seamless look

Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

24,000 BTU for heating or cooling
Dry and Fan modes available
Suitable for medium-sized rooms in most climates
Includes wall-mounted thermostat
Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

View More 2 Zone Mini Splits

Specifications

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Brand	ACiQ	SKU	ACIQ-27Z-HH-M4C
Replaces	ACIQ-27Z-HH-M3B	Product Features	Low Ambient Heating
HSPF2	10.5	Cooling BTU	27000 BTU
Heating BTU	27000 BTU	Decibel Level (dBA)	61
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	23
Compressor Type	Rotary	Liquid Line	1/4" (4)
Suction Line	3/8" (3); 1/2 (1)	Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	35 Amps	Min. Breaker Size	30 Amps
Tonnage	2 Ton to 2.5 Ton	BTU/Tonnage	27,000 BTU/2.25 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Ambient Temperature Range	-22 ~ 122	Height	31.89"
Width	37.24"	Depth	16.14"

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Brand	ACiQ	SKU	ACIQ-09CD-HH-MC
Cooling BTU	9,000 BTU	Heating BTU	10,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 27
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	9,000 BTU/0.75 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Brand	ACiQ	SKU	ACIQ-24CD-HH-MC
Cooling BTU	24,000 BTU	Heating BTU	26,000 BTU
Maximum CFM	853.5	Decibel Level (dBA)	As Low as 29.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Height	9.65"
Width	39.37"	Depth	29.53"

Warranty

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Installation & Owner's Manual

Remote Controller Manual

Submittal

Brochure

Warranty Information

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information
