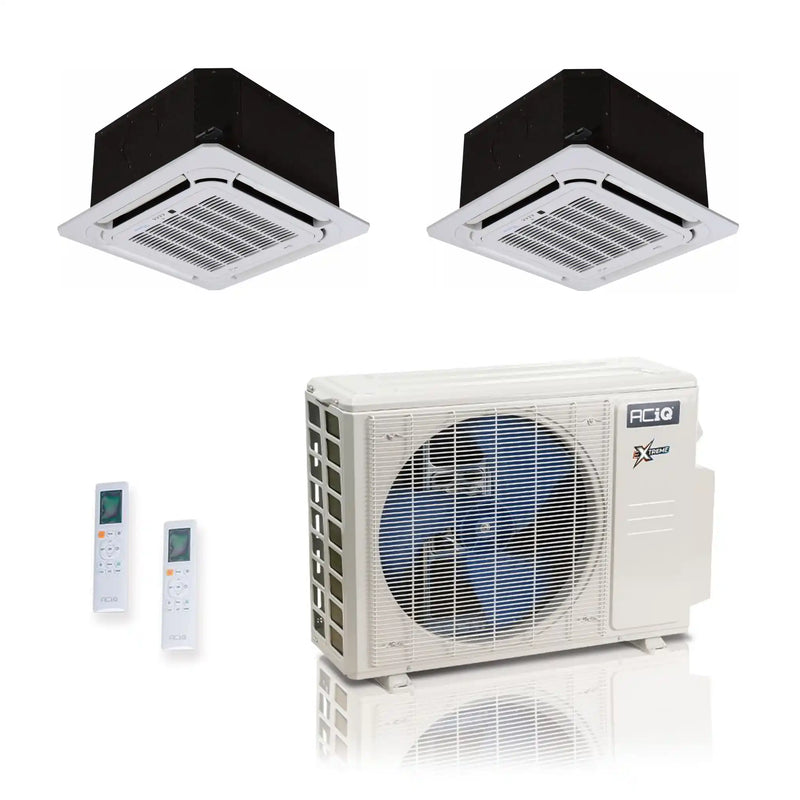

ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 12+12

Name: ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 12+12
Brand: ACiQ
SKU: ACiQ-27Z-HH-M4C ACIQ-12CC-HH-MC-2
Price: 5446.9 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACiQ-27Z-HH-M4C ACIQ-12CC-HH-MC-2 | ID: 89064

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,446.90 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

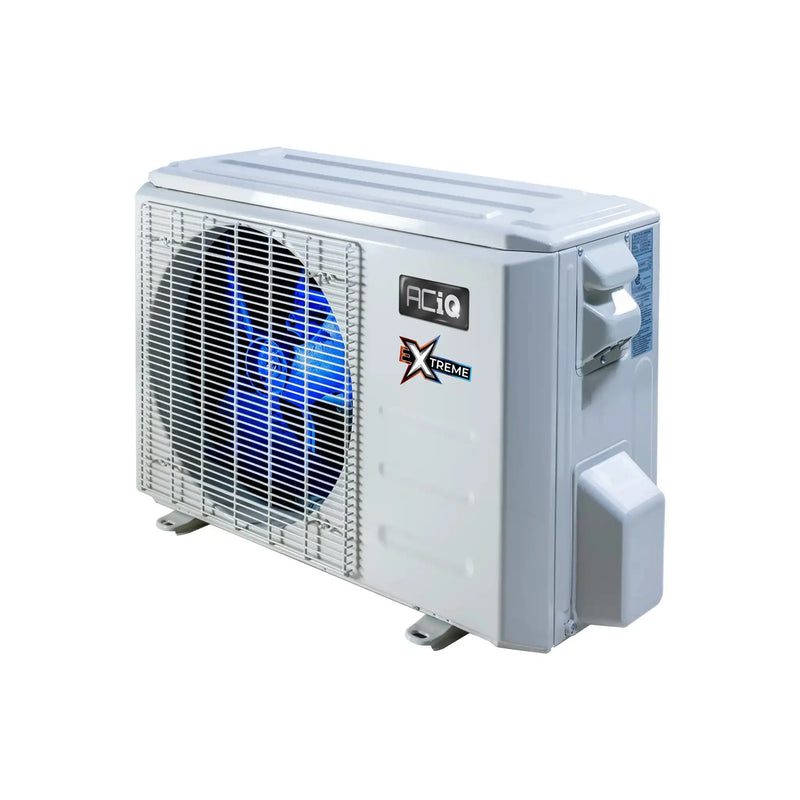

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.

Key Features

27,000 BTU, 23 SEER multi zone heat pump condenser
Designed to function with up to 3 attached air handlers
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Integrated Extreme Heat technology with base pan heater
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

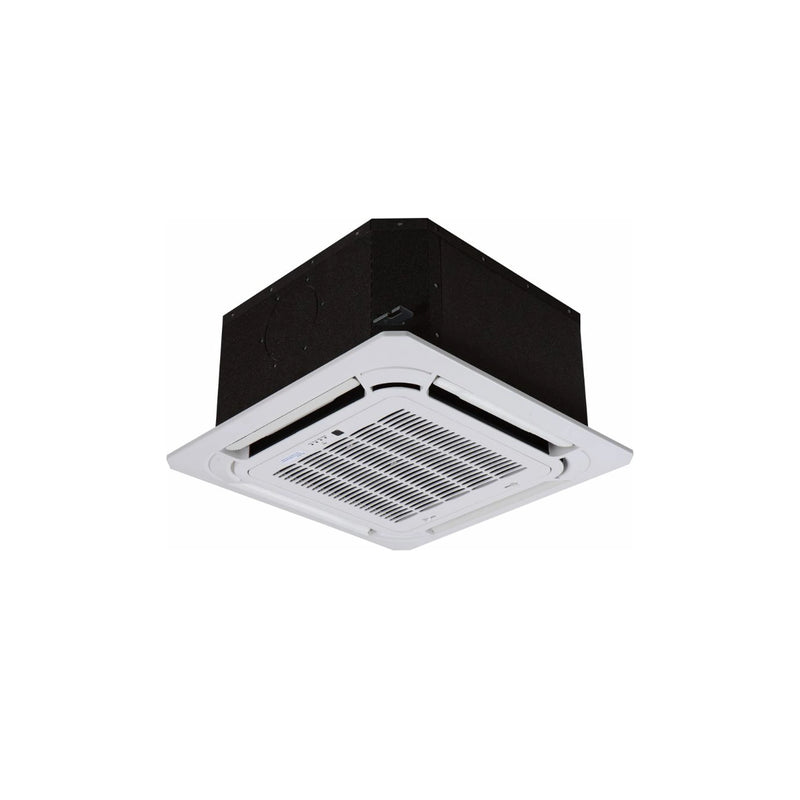

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC X2

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

12,000 BTU of Heating or Cooling power
Dry and Fan modes for versatile comfort
Perfect for small rooms in most climates
4 Way Air Supply for consistent room coverage
Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.

View More 2 Zone Mini Splits

Specifications

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Brand	ACiQ	SKU	ACIQ-27Z-HH-M4C
Replaces	ACIQ-27Z-HH-M3B	Product Features	Low Ambient Heating
HSPF2	10.5	Cooling BTU	27000 BTU
Heating BTU	27000 BTU	Decibel Level (dBA)	61
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	23
Compressor Type	Rotary	Liquid Line	1/4" (4)
Suction Line	3/8" (3); 1/2 (1)	Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	35 Amps	Min. Breaker Size	30 Amps
Tonnage	2 Ton to 2.5 Ton	BTU/Tonnage	27,000 BTU/2.25 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Ambient Temperature Range	-22 ~ 122	Height	31.89"
Width	37.24"	Depth	16.14"

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC X2

Brand	ACiQ	SKU	ACIQ-12CC-HH-MC
Controller	Wireless Included	Product Features	Low Ambient Heating
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	As low as 31.5
Electric Heat	Heat Pump	Refrigerant	R454B
Capacity	Dehumidification Rate: 0.45 gal/hr	SEER2	22.3
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone	Length	22.44"
Height	10.24"	Depth	22.44"

Warranty

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC X2

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC X2

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information
