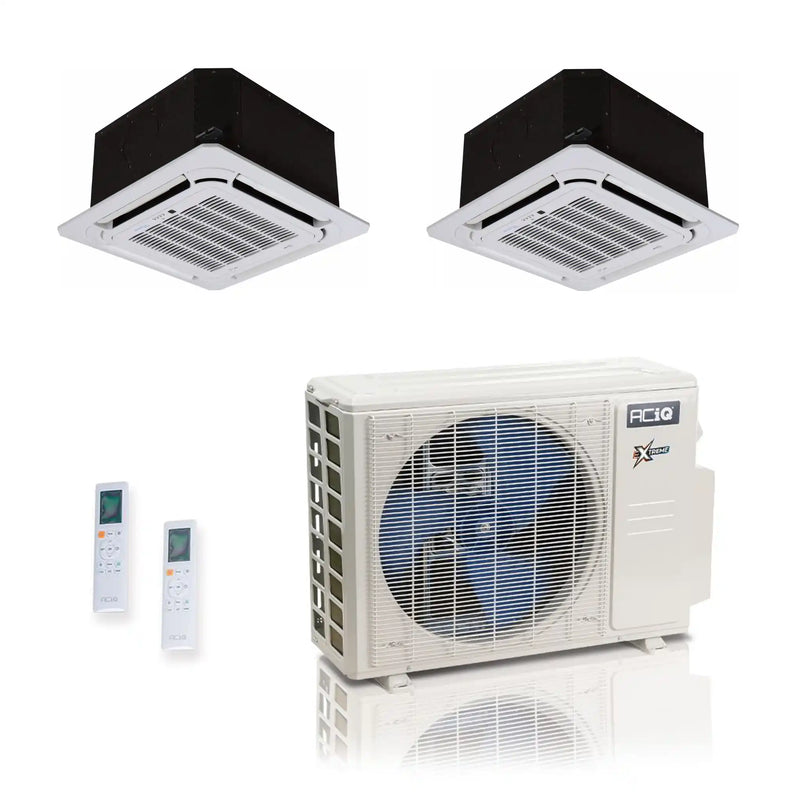

ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 12+18

By ACiQ | Model: ACiQ-27Z-HH-M4C ACIQ-12CC-HH-MC ACIQ-18CC-HH-MC | ID: 89060
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,528.90 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

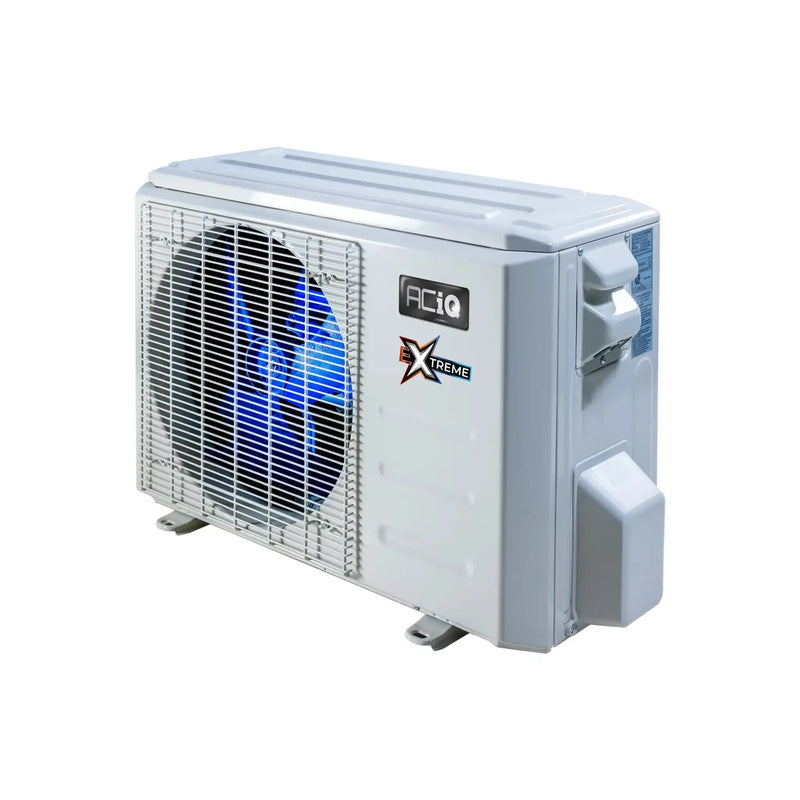

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.

Key Features

  • 27,000 BTU, 23 SEER multi zone heat pump condenser
  • Designed to function with up to 3 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

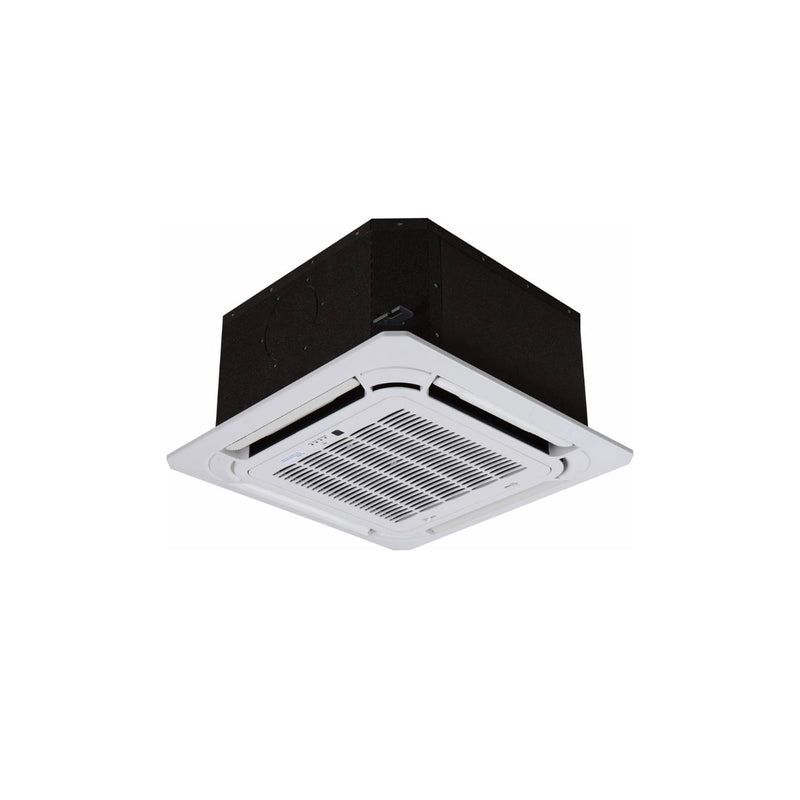

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC

Upgrade your home comfort with the ACiQ-12CC-HH-MC ceiling cassette air handler. Say goodbye to bulky wall units and hello to a sleek, centralized air distribution system. The ceiling cassette offers high-efficiency heating and cooling with a discreet appearance, complete with a handheld remote control for easy operation.

Key Features

  • 12,000 BTU of Heating or Cooling power
  • Dry and Fan modes for versatile comfort
  • Perfect for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Elevate your home with the understated elegance of a flush-mounted Ceiling Cassette air handler from ACiQ. Enjoy quiet comfort and efficient performance all year round.

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC

Looking for a more discreet air handler option for your Mini Split system? The ACiQ-18CC-HH-MC ceiling cassette air handler offers a hidden appearance and centralized air distribution. With high-efficiency heating and cooling capabilities, this ceiling cassette unit comes with a handheld remote control for easy operation. Once installed in the ceiling, only the grille is visible for a sleek and understated look.

Key Features

  • 18,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Suitable for medium rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included
  • Flush-mounted Ceiling Cassette design for understated appearance
  • Factory installed condensation pump for easy maintenance

ACiQ systems are designed for quiet comfort, quickly reaching and maintaining set temperatures while operating quietly both indoors and outdoors, ensuring a peaceful environment.

View More 2 Zone Mini Splits

Specifications

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Brand ACiQ SKU ACIQ-27Z-HH-M4C
Replaces ACIQ-27Z-HH-M3B Product Features Low Ambient Heating
HSPF2 10.5 Cooling BTU 27000 BTU
Heating BTU 27000 BTU Decibel Level (dBA) 61
Electric Heat Heat Pump Energy Star Yes
Refrigerant R454B SEER2 23
Compressor Type Rotary Liquid Line 1/4" (4)
Suction Line 3/8" (3); 1/2 (1) Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 35 Amps Min. Breaker Size 30 Amps
Tonnage 2 Ton to 2.5 Ton BTU/Tonnage 27,000 BTU/2.25 Ton
Mini Split Type Wall Mounted Zone Compatibility Multi Zone
Ambient Temperature Range -22 ~ 122 Height 31.89"
Width 37.24" Depth 16.14"

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC

Brand ACiQ SKU ACIQ-12CC-HH-MC
Controller Wireless Included Product Features Low Ambient Heating
Cooling BTU 12,000 BTU Heating BTU 12,000 BTU
Maximum CFM 335.29 Decibel Level (dBA) As low as 31.5
Electric Heat Heat Pump Refrigerant R454B
Capacity Dehumidification Rate: 0.45 gal/hr SEER2 22.3
Liquid Line 1/4" Suction Line 1/2"
Electrical 208/230V 1 Phase 60Hz Electric Phase Filter Single Phase
Max Breaker Size 15 Min. Breaker Size 15
BTU/Tonnage 12,000 BTU/1 Ton Mini Split Type Ceiling Cassette
Zone Compatibility Multi Zone Length 22.44"
Height 10.24" Depth 22.44"

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC

Brand ACiQ SKU ACIQ-18CC-HH-MC
Controller Wireless Included Product Features Low Ambient Heating
Cooling BTU 18,000 BTU Heating BTU 18,000 BTU
Maximum CFM 562.35 Decibel Level (dBA) As low as 35.5
Electric Heat Heat Pump Refrigerant R454B
Capacity Dehumidification Rate: 0.586 gal/hr Liquid Line 1/4"
Suction Line 1/2" Electrical 208/230V 1 Phase 60Hz
Electric Phase Filter Single Phase Max Breaker Size 25
Min. Breaker Size 20 BTU/Tonnage 18,000 BTU/1.5 Ton
Mini Split Type Ceiling Cassette Zone Compatibility Multi Zone
Height 10.25" Width 22.5"
Depth 22.5"
Warranty

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts
Documents

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 12,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-12CC-HH-MC

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-18CC-HH-MC

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information
