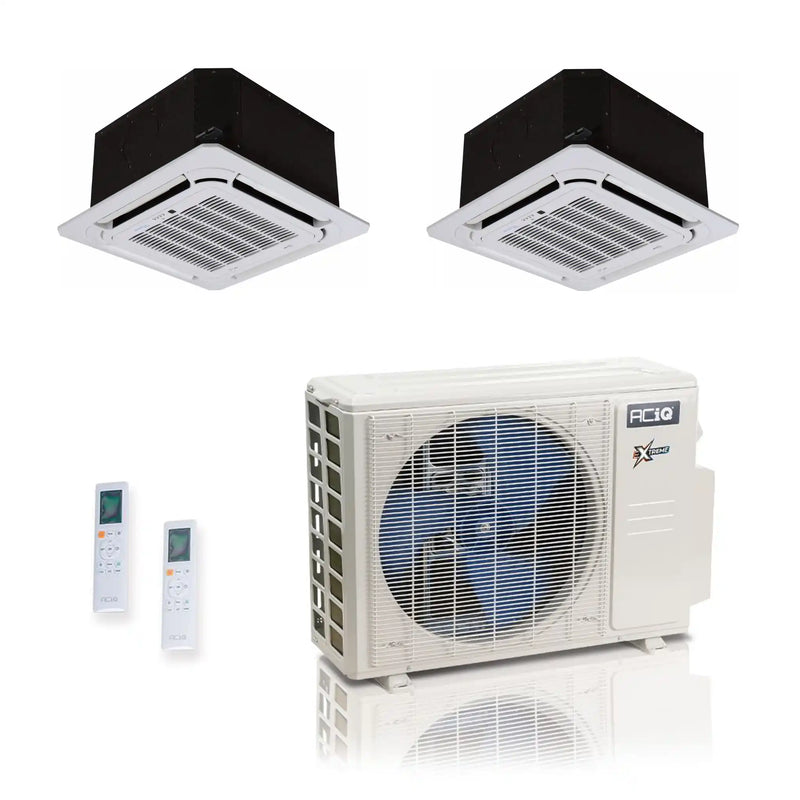

ACiQ 27K BTU 23 SEER2 Extreme 2-Zone Mini Split Ceiling Cassette 230V 9+24

By ACiQ | SKU: ACiQ-27Z-HH-M4C ACIQ-09CC-HH-MC ACIQ-24CC-HH-MC | ID: 89056
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,626.90 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

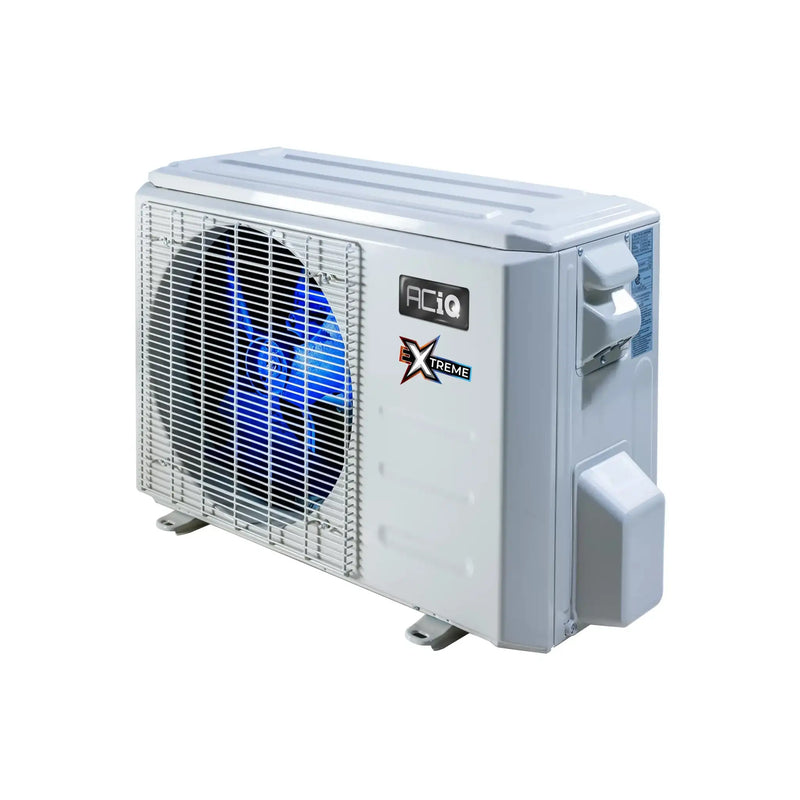

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

The ACiQ-27z-HH-M4C is the smart solution to adaptive heating and cooling in almost any space and climate, all at an affordable cost. With the ability to support up to 4 air handlers off a single condenser, this system saves space outside while keeping you perfectly comfortable inside your home.

Key Features

  • 27,000 BTU, 23 SEER multi zone heat pump condenser
  • Designed to function with up to 3 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

The ACiQ-27z-HH-M4C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, providing adaptive heating and cooling that adjusts to maintain your desired temperature in each room or zone. With a high efficiency rating of 23 SEER, this system is designed to save you money both upfront and over its lifetime.

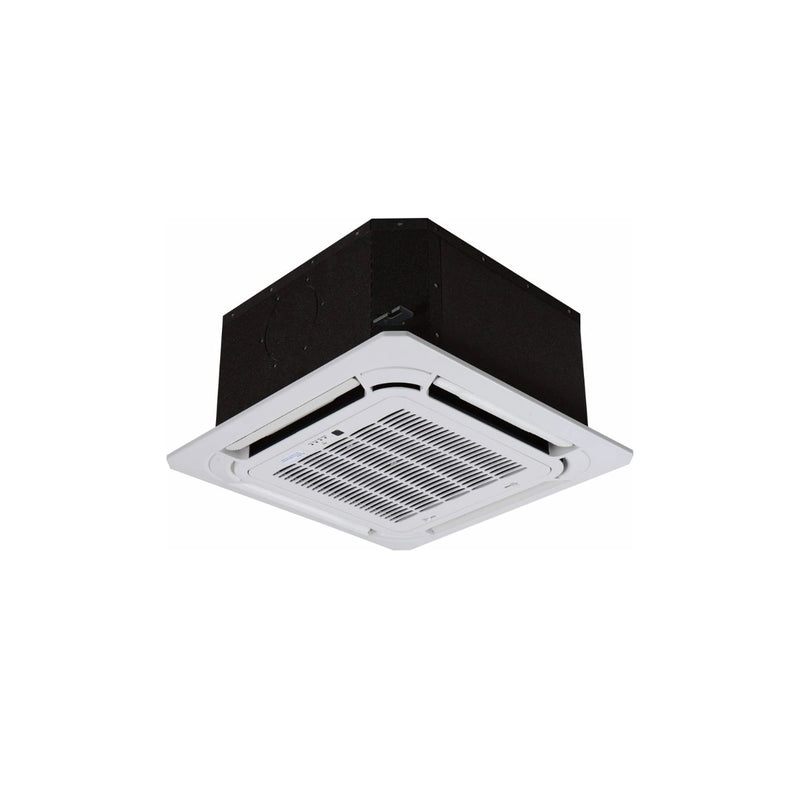

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Looking for a more discreet air handler option? The ACiQ-09CC-HH-MC ceiling cassette mini split system is the perfect solution. With a hidden appearance and centralized air distribution, this ceiling cassette unit offers high-efficiency heating and cooling with a sleek design. The included hand-held remote control makes operation a breeze, and once installed, only the grille is visible for a seamless look.

Key Features

  • 9,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Ceiling Cassettes provide a quiet and efficient way to cool or heat your space, with the added benefit of a flush-mounted design for a discreet appearance. The factory-installed condensation pump ensures proper drainage, while the 4-way air supply delivers comfort in all directions.

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Looking for a more hidden appearance and centralized air distribution? The ACiQ-24CC-HH-MC ceiling cassette air handler is the perfect solution. This ceiling cassette unit offers high-efficiency heating and cooling, with a sleek and understated appearance once installed.

Key Features

  • 24,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for a medium room in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote included
  • Decorative Grille included
  • Ceiling Cassette for hidden appearance

Ceiling Cassettes offer a flush-mounted design for a discreet look and provide quiet comfort with precision engineering to maintain set temperatures efficiently. The unit comes with a factory-installed condensation pump for easy maintenance.

View More 2 Zone Mini Splits

Specifications

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Brand ACiQ SKU ACIQ-27Z-HH-M4C
Replaces ACIQ-27Z-HH-M3B Product Features Low Ambient Heating
HSPF2 10.5 Cooling BTU 27000 BTU
Heating BTU 27000 BTU Decibel Level (dBA) 61
Electric Heat Heat Pump Energy Star Yes
Refrigerant R454B SEER2 23
Compressor Type Rotary Liquid Line 1/4" (4)
Suction Line 3/8" (3); 1/2 (1) Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 35 Amps Min. Breaker Size 30 Amps
Tonnage 2 Ton to 2.5 Ton BTU/Tonnage 27,000 BTU/2.25 Ton
Mini Split Type Wall Mounted Zone Compatibility Multi Zone
Ambient Temperature Range -22 ~ 122 Height 31.89"
Width 37.24" Depth 16.14"

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Brand ACiQ SKU ACIQ-09CC-HH-MC
Controller Wireless Included Product Features Low Ambient Heating
Cooling BTU 9,000 BTU Heating BTU 9,800 BTU
Maximum CFM 352.94 CFM Decibel Level (dBA) As low as 32.5
Electric Heat Heat Pump Refrigerant R454B
Capacity Dehumidification Rate: 0.272 gal/hr SEER2 20.5
Liquid Line 1/4" Suction Line 3/8"
Electrical 208/230V 1 Phase 60Hz Electric Phase Filter Single Phase
Max Breaker Size 15 Min. Breaker Size 15
BTU/Tonnage 9,000 BTU/0.75 Ton Mini Split Type Ceiling Cassette
Zone Compatibility Multi Zone Length 22.44"
Height 10.24" Width 22.44"
Depth 22.44"

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Brand ACiQ SKU ACIQ-24CC-HH-MC
Controller Wireless Included Product Features WiFi
Cooling BTU 24,000 BTU Heating BTU 24,000 BTU
Maximum CFM 765.2 Decibel Level (dBA) As low as 33.5
Electric Heat Heat Pump Refrigerant R454B
SEER2 20 Liquid Line 3/8"
Suction Line 5/8" Electrical 208/230V 1 Phase 60Hz
Electric Phase Filter Single Phase BTU/Tonnage 24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split Type Ceiling Cassette Zone Compatibility Multi Zone, Single Zone
Height 8.07" Width 32.68"
Depth 32.68" Replaces N/A
Warranty

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts
Documents

ACiQ 2.25 Ton 23 SEER2 Multi Zone Condenser Extreme Series 230V R454B ACIQ-27Z-HH-M4C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information
