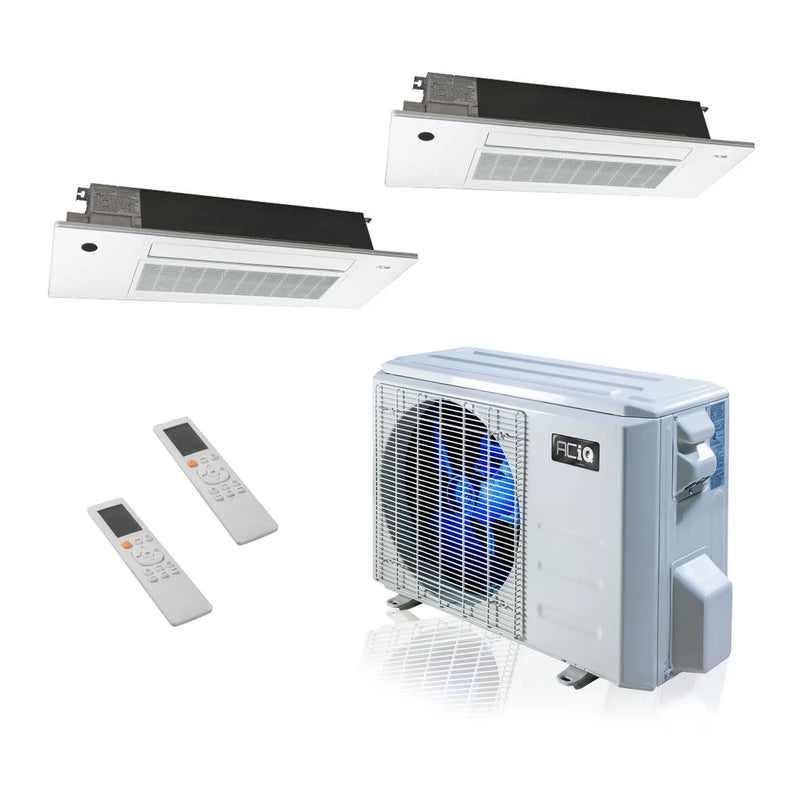

ACiQ 27K BTU 25 SEER2 Mini Split 2-Zone Slim Ceiling Cassette R454B 18+18

By ACiQ | Model: ES-27Z-M4C / SCC-18-HH-MB-2 | ID: 89081
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,409.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

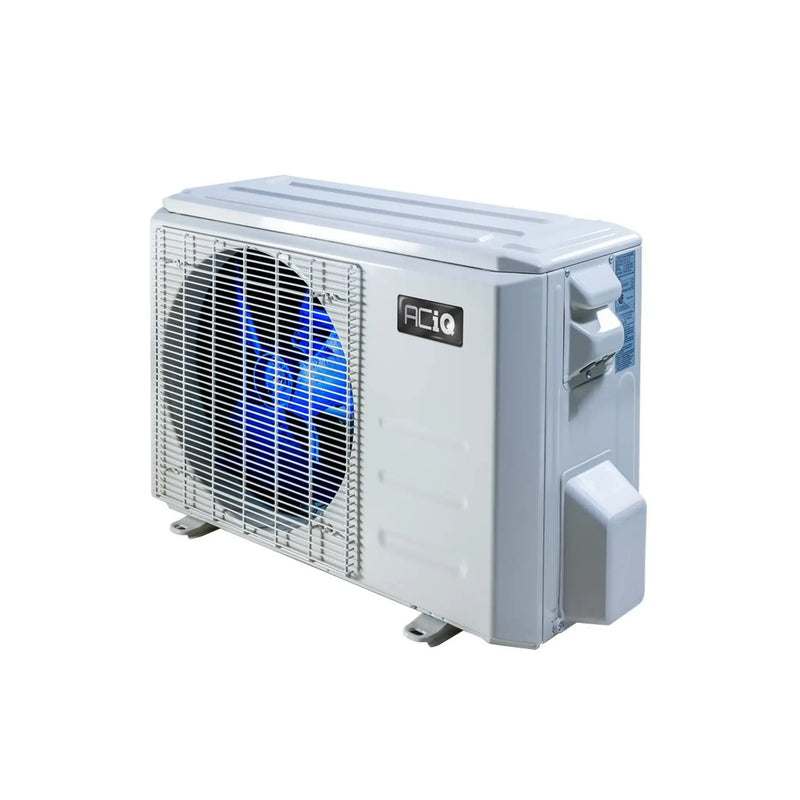

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

ACiQ offers the smart solution to adaptive heating and cooling in nearly any space and climate, all at an affordable cost. The ES-27Z-M4C allows for up to 4 air handlers to run off a single condenser, saving space outside and ensuring optimal comfort in your home.

Key Features

  • 27,000 BTU, 25 SEER2 multi zone heat pump condenser
  • Designed to function with up to 4 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

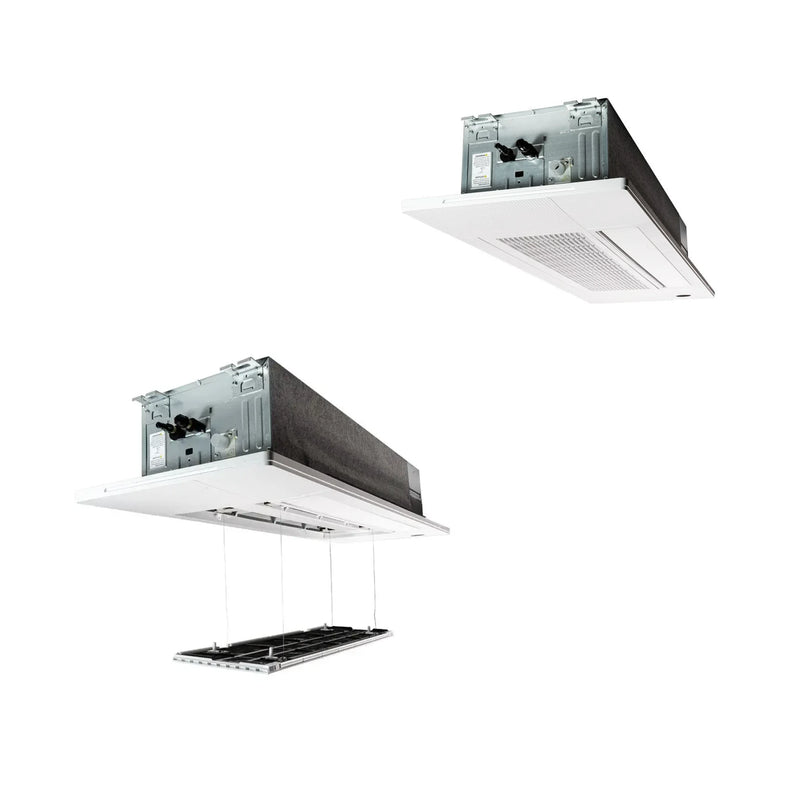

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

The ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2 offers the advantages of a traditional cassette in a slimmer profile that fits between 16”-on-center joists, making installation easier in many cases. This air handler provides high-efficiency heating and cooling with a one-way air delivery system for a sleek and understated appearance.

Key Features

  • Narrow profile fits between 16 inch-on-center joists
  • Switchable size – select between 12,000 BTU and 18,000 BTU
  • No-ladder filter cleaning – grille lowers on cables for easy access to filter
  • Handheld remote included
  • Decorative Grille included

Installation of the Slim Ceiling Cassette requires flush-mounting and may involve constructing a PVC drain system for condensation. The unit comes with a factory-installed condensate pump and has the same refrigerant and wiring connections as wall-mounted units.

View More 2 Zone Mini Splits

Specifications

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

Brand ACiQ SKU ES-27Z-M4C
Replaces ES-27Z-M3B HSPF2 9.5
Cooling BTU 27000 BTU Heating BTU 27000 BTU
Maximum CFM 2131 Decibel Level (dBA) 61
Electric Heat Heat Pump Energy Star Yes
Refrigerant R454B SEER2 25
Compressor Type Rotary Liquid Line 1/4" (4)
Suction Line 3/8" (3); 1/2" (1) Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 25 A Min. Breaker Size 23 A
Tonnage 2 Ton to 2.5 Ton BTU/Tonnage 27,000 BTU/2.25 Ton
Mini Split Type Wall Mounted Zone Compatibility Multi Zone
Ambient Temperature Range -13 ~ 122 Height 31.89"
Width 37.24" Depth 16.14"

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

Brand ACiQ SKU SCC-18-HH-MB
Cooling BTU 16700 BTU Heating BTU 20000 BTU
Maximum CFM 400 Decibel Level (dBA) 35
Electric Heat Heat Pump Refrigerant R454B
Liquid Line 1/4" Suction Line 1/2"
Electrical 208/230V 1 Phase 60Hz BTU/Tonnage 18,000 BTU/1.5 Ton
Mini Split Type Ceiling Cassette Zone Compatibility Multi Zone
Height 8.98" Width 50.31"
Depth 13.19"
Warranty

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts
Documents

ACiQ 2.25 Ton 25 SEER2 Multi Zone Condenser Inverter R454B 230V ES-27Z-M4C

Installation and Owner's Manual

Submittal Ducted

Submittal Non-Ducted

AHRI Certificate - Ducted Indoor Units

Warranty Information

ACiQ 18,000 BTU Slim Ceiling Cassette Mini Split Air Handler R454B 230V SCC-18-HH-MB x2

Installation & Owner's Manual

Submittal - 12K

Submittal - 18K

Remote Manual

Service Manual

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
