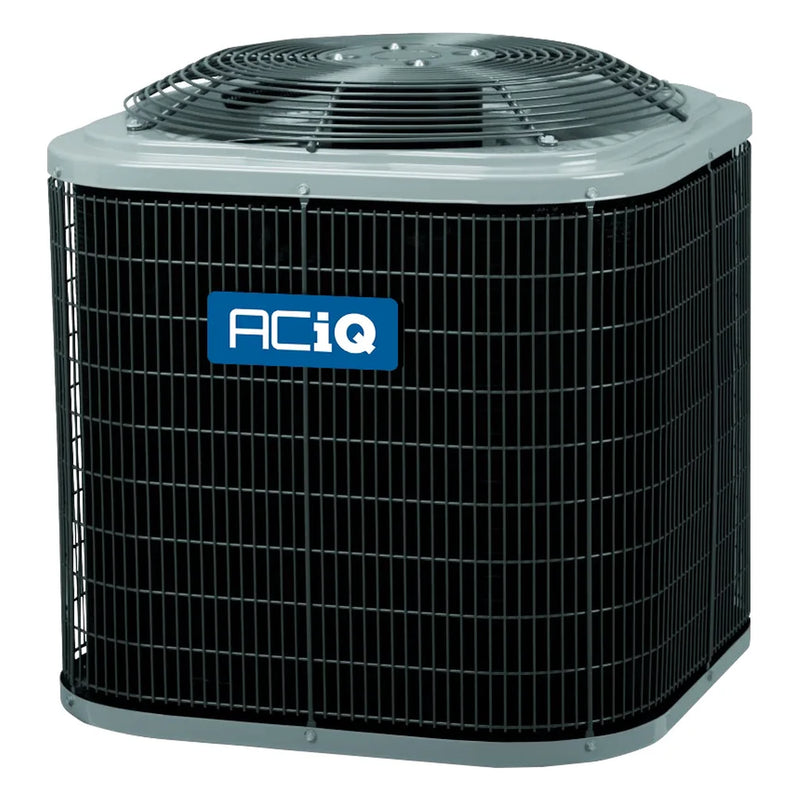

ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser Single Stage R454B 230V R5A4S42AKANA-MH
The ACiQ R5A4S42AKANA-MH is a 3.5-ton, AC-only condenser designed to provide reliable, cost-effective cooling with modern 13.4 SEER2 efficiency. Engineered for standard residential applications, this unit features a durable steel cabinet with reinforced corner posts and a protective inlet grille for added durability. It comes factory-charged with R-454B refrigerant for a 15-foot line set, reducing installation time and ensuring proper system startup. The single-stage scroll compressor offers dependable performance and quieter operation, making it a practical choice for medium-sized homes in most U.S. regions outside of SEER2-restricted states. This condenser must be paired with a compatible indoor coil or air handler for proper functionality.
Key Features
- 3.5 Ton Cooling Capacity
- 13.4 SEER2 Efficiency for Energy Savings
- Pre-Charged with R-454B Refrigerant for a 15-Foot Line Set
- Single Stage Scroll Compressor for Reliable Operation
- Durable Cabinet with Reinforced Corners and Inlet Grille
- UL Listed and Factory Run-Tested
- Filter Drier Included for Field Installation
- Quiet Performance at Just 74 dBA
- Requires Compatible Indoor Coil or Air Handler (Sold Separately)
Note: This unit is not permitted for installation in select states with SEER2 minimums higher than 13.4. Check state regulations before purchasing.
ACiQ 5 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH59AU4VWEC
The ACiQ ACIQ-MH59AU4VWEC is an uncased downflow evaporator coil built specifically for mobile and manufactured home split-system installations. It uses left-hand refrigerant and plumbing connections with sweat/braze fittings, and a factory-installed TXV for accurate refrigerant metering.
Constructed with rifled aluminum tubing, enhanced aluminum fins, and a heavy-duty polypropylene drain pan, this 5 ton coil is AHRI certifiable with any brand of compatible condenser and includes a downflow plate kit for straightforward field installation.
Key Features and Benefits:
-
5 Ton Downflow Coil
Sized for mobile and manufactured home split systems.
-
R454B Refrigerant Compatible
Built for use with modern R454B split systems.
-
Factory-Installed TXV
Ensures precise refrigerant metering for improved efficiency.
-
Rifled Aluminum Tubing
Enhanced aluminum fins promote efficient heat transfer.
-
Left-Hand Connections
Sweat/braze fittings simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Resists corrosion for long-term reliability.
-
Downflow Plate Kit Included
Built specifically for mobile and manufactured home use.
Installation Requirements
This coil is designed for mobile and manufactured home applications only and must be matched with a compatible condenser and mobile home furnace or air handler cabinet; it cannot operate as a standalone unit. Disclaimer: This coil is intended for use with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, ensure the paired condenser and system include proper leak detection where required. Please call us at 1-888-557-9206 if you have any questions.
ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 3-5 Ton ACIQ-EFL1520FD-MH
The ACiQ-EFL1520FD-MH is a 15 kilowatt electric downflow furnace rated at 49,100 BTU, sized to pair with larger 3 to 5 ton mobile home air conditioning systems. An ECM multi-speed blower delivers up to 1,710 CFM through a direct-drive 3/4 HP motor, and the unit draws power through a 240V single-phase circuit protected by dual breakers.
This model ships with an AC coil cabinet included, though the condenser and evaporator coil are sold separately, giving installers a ready-made cabinet to build the rest of the system around. Factory-installed sequencers and temperature limit switches manage staged heating safely, and heat modules install via molex plug in the field or ship pre-installed from the factory.
Key Features
-
15kW / 49,100 BTU Output - Delivers electric resistance heat sized for 3 to 5 ton mobile home AC systems.
-
AC Coil Cabinet Included - Ships with the coil cabinet in place; condenser and evaporator coil are sold separately.
-
Dual Circuit Breakers - Ships with a 60 amp and a 25 amp breaker to protect the staged heating elements.
-
ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,710 CFM for even heat distribution.
-
Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
-
Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
-
Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
-
Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
