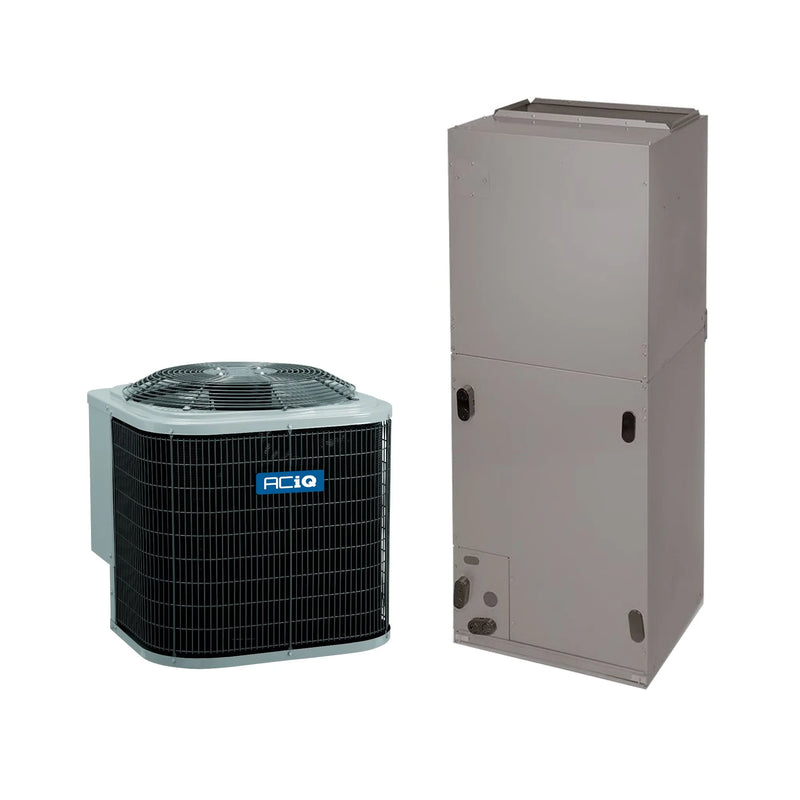

ACiQ 3.5 Ton 15.5 SEER2 Air Conditioner Split System Multi-Positional R454B

Name: ACiQ 3.5 Ton 15.5 SEER2 Air Conditioner Split System Multi-Positional R454B
Brand: ACiQ
SKU: R5A5S42AKAWA FHMA5X42L0CA
Price: 4725.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | Model: R5A5S42AKAWA FHMA5X42L0CA | ID: 111477

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,725.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S42AKAWA

The ACiQ R5A5S42AKAWA is a reliable and efficient standard AC-only condenser designed to deliver consistent cooling comfort for medium to large homes. Offering a cost-effective yet higher-than-standard energy efficiency option, this 3.5 ton condenser is ideal for a wide range of residential air conditioning applications. With a 14.3 SEER2 rating and factory pre-charged refrigerant, it ensures optimal performance and easy installation right out of the box.

Product Features and Benefits:

3.5 Ton Cooling Capacity
Effectively cools medium to large-sized homes or larger zones in moderate climates, providing consistent and comfortable indoor temperatures.
14.3 SEER2 Energy Efficiency Rating
Delivers 5–7% greater energy savings compared to standard 13.4 SEER2 units, helping lower electricity costs and reduce energy consumption.
Single Stage Compressor
Provides steady and dependable cooling performance with a simplified, long-lasting design.
Pre-Charged with R454B Refrigerant
Factory-charged with eco-friendly R454B refrigerant for a 15-foot line set, allowing quick and accurate installation.
Filter Drier Included
Protects the system by filtering out moisture and debris during field installation, promoting long-term reliability.
Robust and Durable Cabinet
Constructed with reinforced corner posts and a protective inlet grille to safeguard internal components from weather and external damage.
10-Year Limited Parts Warranty
Backed by ACiQ’s 10-year parts warranty when installed to code and registered with a certified indoor coil, ensuring long-term peace of mind.
Pre-Charged for 15-Foot Line Set
Minimizes installation time and labor by eliminating the need for manual refrigerant charging. Additional refrigerant may be required for longer line sets.
Safety Compliance with R454B Refrigerant
Requires pairing with an R454B-compatible air handler or evaporator coil that includes a leakage detection system to meet safety regulations and preserve warranty coverage.

Important Information

This condenser is designed solely for cooling and must be paired with a compatible indoor coil or air handler. It does not offer heating capabilities.

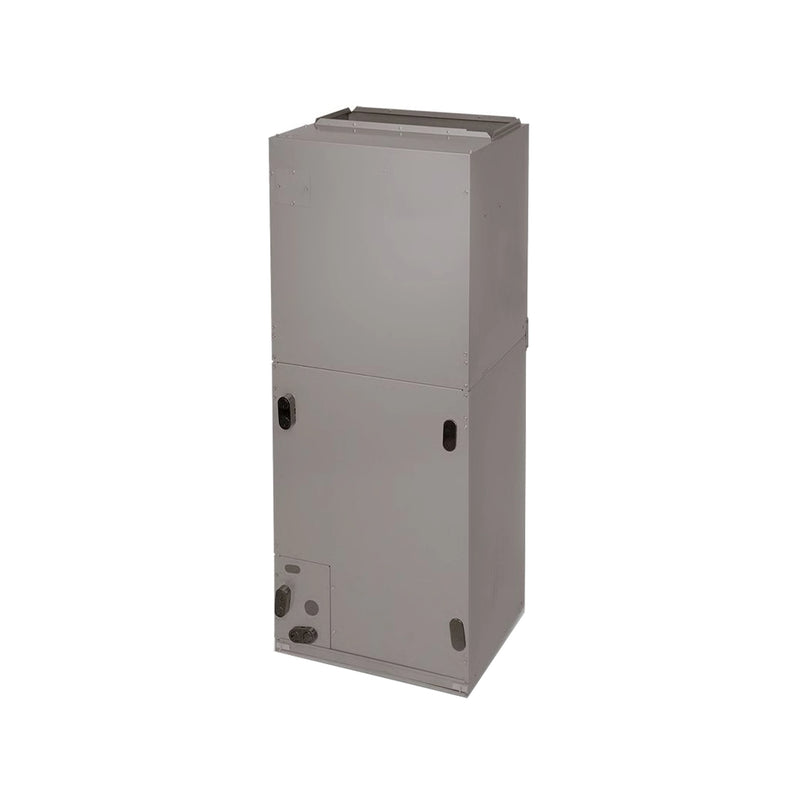

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

Experience enhanced indoor comfort and lasting performance with the ACiQ FHMA5X42L0CA air handler. Engineered for energy efficiency, durability, and flexible installation, this 3.5 ton air handler is an excellent solution for homeowners seeking a reliable HVAC component compatible with both AC and heat pump systems.

Product Features:

3.5 Ton Cooling Capacity
Delivers powerful airflow and comfort for medium to large residential spaces.
Uses Eco-Friendly R454B Refrigerant
Reduces global warming potential by 75% while preserving non-ozone depleting characteristics.
Multi 5-Speed High-Efficiency ECM Blower Motor
Promotes precise airflow control, quieter performance, and improved energy efficiency.
Multi-Positional Installation
Can be installed in upflow, downflow, or horizontal configurations, making it ideal for varied HVAC setups.
Factory-Installed TXV Kit
Optimizes refrigerant flow for enhanced system performance, reducing the need for extra installation labor.
Compatible with AC-Only and Heat Pump Condensers
Ensures flexibility across a range of HVAC system configurations.
Sturdy, Fully Insulated Cabinet
Includes a corrosion-resistant aluminum coil and heavy-duty casing to protect internal components.
Intelligent Comfort Control
Integrated control board adjusts blower speed automatically based on thermostat feedback, maintaining stable home temperatures.

Warranty Information:

ACiQ backs the FHMA5X42L0CA with a 5-year no-hassle replacement warranty and a 10-year parts warranty. To maintain warranty eligibility, proper installation is required in accordance with local codes, along with use of a certified coil and timely system registration. Our team will assist you post-purchase to complete the registration process.

Installation and Durability:

Engineered for versatility, this air handler supports multiple installation configurations. A pre-installed TXV kit helps streamline the installation process. Its rugged, single-piece outer cabinet and corrosion-resistant aluminum coil ensure lasting durability and efficient operation over the unit’s lifespan.

View More Air Conditioner Split Systems

Specifications

ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S42AKAWA

Brand	ACiQ	SKU	R5A5S42AKAWA
Refrigerant Charge	15'	Weight (in lbs)	215
Product Features	New Refrigerant Compliant	Cooling BTU	42,000
Maximum CFM	4900	Decibel Level (dBA)	75
Motor RPM	1100	Horsepower	1/5 HP
Refrigerant	R454B	SEER2 (Efficiency)	14.3
Condenser Stages	Single Stage	Compressor Type	Scroll
Liquid Valve Size	3/8"	Suction Valve Size	7/8"
Electrical	208 / 230 V. 1 Phase 60 Hz	Tonnage	3.5 Ton
Height	38 7/16"	Width	31 3/16"
Depth	31 3/16"	Warranty	10 Year Parts Limited Warranty with Online Registration

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

Brand	ACiQ	SKU	FHMA5X42L0CA
Weight	166	Manufacturer	ACiQ
Cooling BTU	42,000	Blower Motor	Multi-tap 5-Speed ECM
Maximum CFM	1225	Horsepower	1/2 HP
Electric Backup Heat Capabilities (Optional)	5, 8, 10, 15, 20 Kilowatts	Configuration	Multi-Positional
Refrigerant	R454B	Filter Size	20" x 20"
Liquid Line	3/8"	Suction Line	7/8"
Electrical	208/230v 1 Phase 60 Hz	Max Breaker Size	15 Amps
Min. Breaker Size	5.3 Amps	Tonnage	3.5 Ton
Connection	Sweat	Height	49 5/8"
Width	21 1/8"	Depth	22 1/16"
Warranty	10 Years Parts and 5 Years No Hassle Replacement with Online Registration

Warranty

ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S42AKAWA

Warranty Type	Parts
Registered Warranty	10 Years

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

Warranty Type	Parts	Replacement
Registered Warranty	10 Years	5 Years

Documents

ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R5A5S42AKAWA

R5A5S Owner's Manual

R5A5S Specifications Sheet

ACiQ Warranty

ACiQ 3.5 Ton Air Handler High Efficiency Multi Positional 21" Width R454B FHMA5X42L0CA

FHMA5 Installation Manual

FHMA5 Specifications Sheet

FHMA5 Service Manual

FHMA5 Warranty
