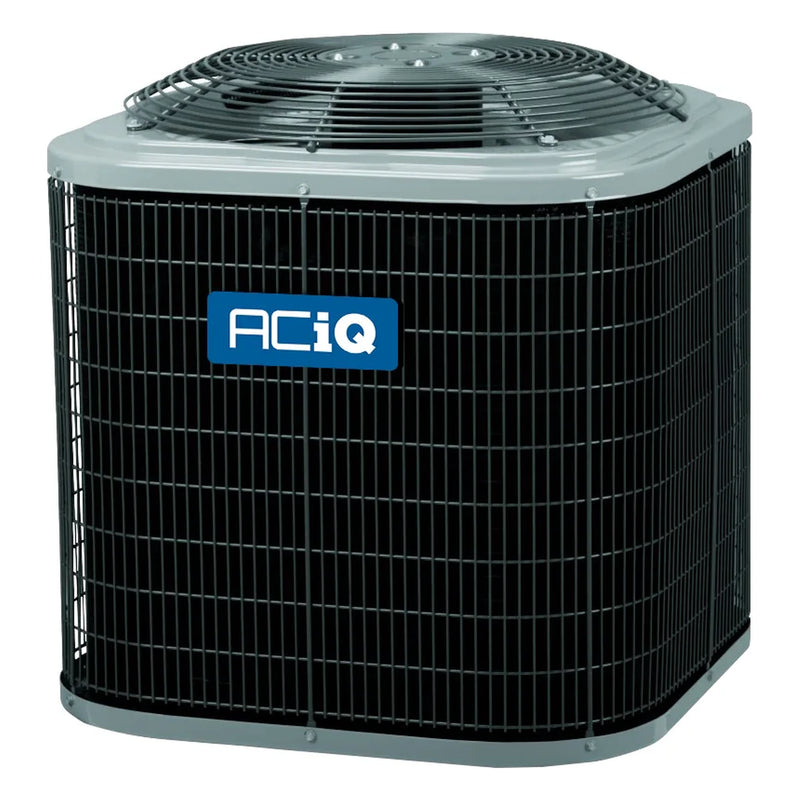

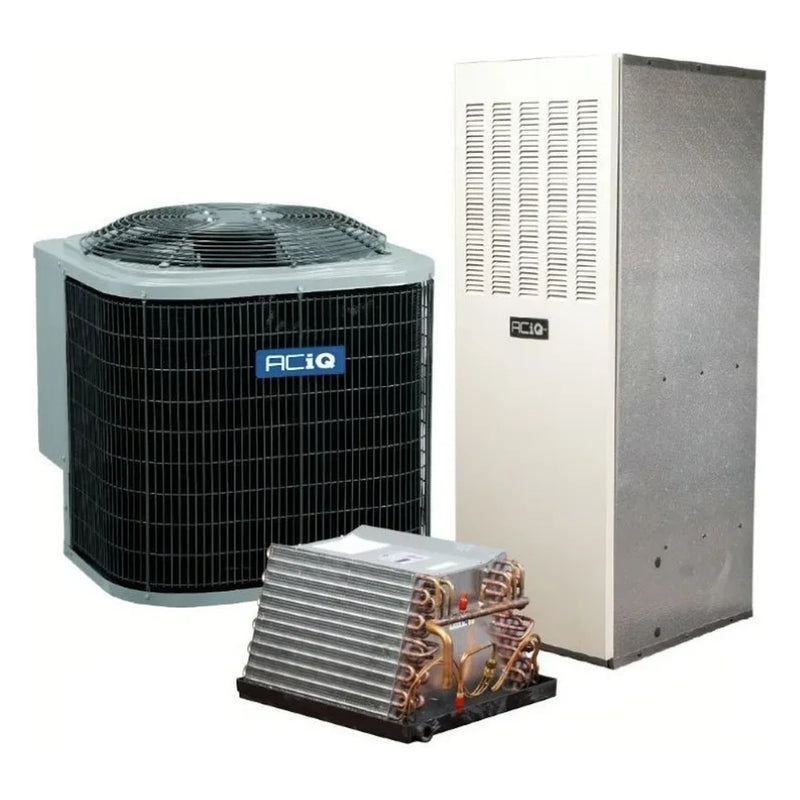

ACiQ 3 Ton 13.4 SEER2 Central Air Conditioner Condenser Single Stage R5A4S36AKANA-MH
The ACiQ R5A4S36AKANA-MH is a reliable and cost-effective 3 ton central air conditioner condenser, ideal for cooling larger homes or zones in moderate climates. Engineered for energy efficiency and dependable performance, this AC-only outdoor unit is a smart choice for homeowners seeking long-lasting comfort at a competitive price. With its 13.4 SEER2 rating and pre-charged refrigerant design, it simplifies installation while reducing long-term energy costs.
Key Features and Benefits:
-
3 Ton Cooling Capacity - Effectively cools larger homes or zones in average climates with consistent and efficient performance.
-
13.4 SEER2 Energy Efficiency Rating - Offers up to 7% improved efficiency over standard 13 SEER models, helping lower monthly utility bills.
-
Single Stage Compressor - Provides reliable, steady cooling with a simplified design for long-term durability and lower maintenance.
-
Pre-Charged with R-454B Refrigerant - Comes factory pre-charged for a 15-foot line set, ensuring quick, accurate installation and optimal performance.
-
Includes Filter Drier for Field Installation - Enhances system protection by removing moisture and contaminants, promoting longer equipment life.
-
Durable, Reinforced Cabinet Design - Built to last with reinforced corner posts and a protective inlet grille to guard internal components.
-
10-Year Limited Parts Warranty - Backed by a comprehensive parts warranty when installed according to local codes and registered online.
-
Ideal for Residential Cooling Applications - A dependable, efficient cooling solution for homeowners not requiring integrated heating.
Note: This unit is not eligible for installation in the following states due to SEER2 compliance regulations: AL, AZ, AR, CA, DE, FL, GA, KY, LA, MD, MS, NV, NM, NC, OK, SC, TN, TX, and VA.
Installation Requirements
This condenser must be paired with a compatible indoor coil or air handler to operate. It does not provide heating capabilities. For maximum performance and to maintain warranty eligibility, professional installation following all local and state codes is required.
ACiQ 3 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH36BU3VWEC
The ACiQ ACIQ-MH36BU3VWEC is an uncased downflow evaporator coil built specifically for mobile and manufactured home split-system installations. It uses left-hand refrigerant and plumbing connections with sweat/braze fittings, and a factory-installed TXV for accurate refrigerant metering.
Constructed with rifled aluminum tubing, enhanced aluminum fins, and a heavy-duty polypropylene drain pan, this 3 ton coil is AHRI certifiable with any brand of compatible condenser and includes a downflow plate kit for straightforward field installation.
Key Features and Benefits:
-
3 Ton Downflow Coil
Sized for mobile and manufactured home split systems.
-
R454B Refrigerant Compatible
Built for use with modern R454B split systems.
-
Factory-Installed TXV
Ensures precise refrigerant metering for improved efficiency.
-
Rifled Aluminum Tubing
Enhanced aluminum fins promote efficient heat transfer.
-
Left-Hand Connections
Sweat/braze fittings simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Resists corrosion for long-term reliability.
-
Downflow Plate Kit Included
Built specifically for mobile and manufactured home use.
Installation Requirements
This coil is designed for mobile and manufactured home applications only and must be matched with a compatible condenser and mobile home furnace or air handler cabinet; it cannot operate as a standalone unit. Disclaimer: This coil is intended for use with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, ensure the paired condenser and system include proper leak detection where required. Please call us at 1-888-557-9206 if you have any questions.
ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH
The ACiQ-EFS1520FD-MH is a 15 kilowatt electric downflow furnace rated at 49,100 BTU, sized to pair with 2 to 3 ton mobile home air conditioning systems. An ECM multi-speed blower delivers up to 1,710 CFM through a direct-drive 3/4 HP motor, and the unit draws power through a 240V single-phase circuit protected by dual breakers.
Like the rest of the ACiQ mobile home furnace lineup, this model uses factory-installed sequencers and temperature limit switches for safe, efficient staged heating, with heat modules that install via molex plug in the field or ship pre-installed from the factory. Front-accessible controls and a flush-mounted disconnect keep routine service simple.
Key Features
-
15kW / 49,100 BTU Output - Delivers electric resistance heat sized for 2 to 3 ton mobile home AC systems.
-
ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,710 CFM for even heat distribution.
-
Dual Circuit Breakers - Ships with a 60 amp and a 25 amp breaker to protect the staged heating elements.
-
Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
-
Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
-
Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
-
Flush-Mounted Disconnect - The electrical disconnect does not protrude through the wall panel, keeping installs tidy.
-
Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
