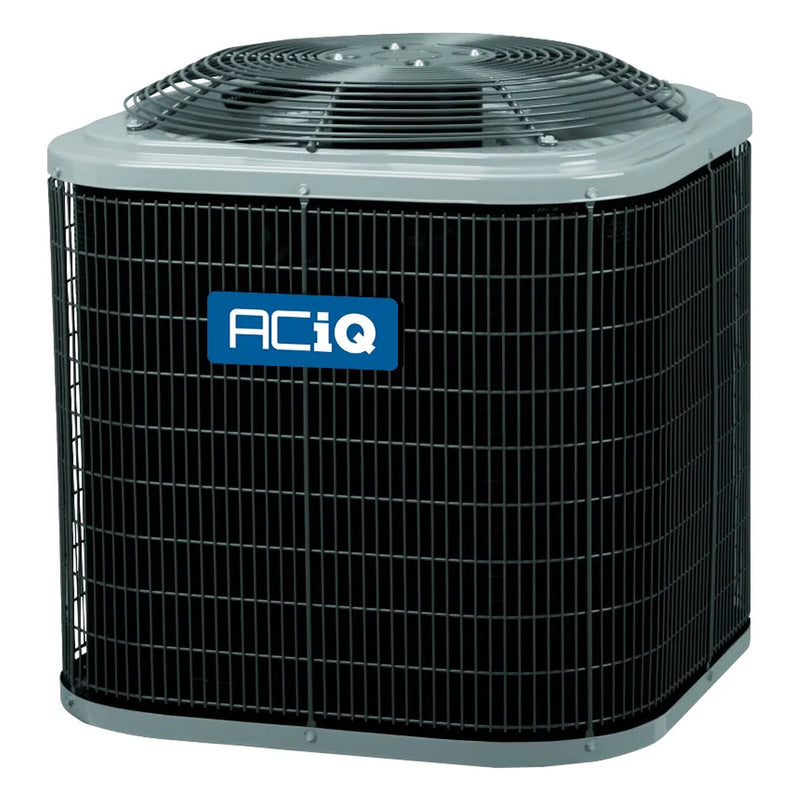

ACiQ 3 Ton 14.3 SEER2 Central Air Conditioner Condenser Single Stage R5A5S36AKAWA-MH
The ACiQ R5A5S36AKAWA-MH is a reliable and efficient standard AC-only condenser designed to deliver consistent cooling comfort for medium to large homes. Offering a cost-effective yet higher-than-standard energy efficiency option, this 3 ton condenser is ideal for a wide range of residential air conditioning applications. With a 14.3 SEER2 rating and factory pre-charged refrigerant, it ensures optimal performance and easy installation right out of the box.
Product Features and Benefits:
-
3 Ton Cooling Capacity
Effectively cools medium to large-sized homes or larger zones in moderate climates, providing consistent and comfortable indoor temperatures.
-
14.3 SEER2 Energy Efficiency Rating
Delivers 5–7% greater energy savings compared to standard 13.4 SEER2 units, helping lower electricity costs and reduce energy consumption.
-
Single Stage Compressor
Provides steady and dependable cooling performance with a simplified, long-lasting design.
-
Pre-Charged with R454B Refrigerant
Factory-charged with eco-friendly R454B refrigerant for a 15-foot line set, allowing quick and accurate installation.
-
Filter Drier Included
Protects the system by filtering out moisture and debris during field installation, promoting long-term reliability.
-
Robust and Durable Cabinet
Constructed with reinforced corner posts and a protective inlet grille to safeguard internal components from weather and external damage.
-
10-Year Limited Parts Warranty
Backed by ACiQ’s 10-year parts warranty when installed to code and registered with a certified indoor coil, ensuring long-term peace of mind.
-
Pre-Charged for 15-Foot Line Set
Minimizes installation time and labor by eliminating the need for manual refrigerant charging. Additional refrigerant may be required for longer line sets.
-
Safety Compliance with R454B Refrigerant
Requires pairing with an R454B-compatible air handler or evaporator coil that includes a leakage detection system to meet safety regulations and preserve warranty coverage.
Important Information
This condenser is designed solely for cooling and must be paired with a compatible indoor coil or air handler. It does not offer heating capabilities.
ACiQ 3 Ton Uncased Downflow Mobile Home Coil With TXV R454B ACIQ-MH36BU3VWEC
The ACiQ ACIQ-MH36BU3VWEC is an uncased downflow evaporator coil built specifically for mobile and manufactured home split-system installations. It uses left-hand refrigerant and plumbing connections with sweat/braze fittings, and a factory-installed TXV for accurate refrigerant metering.
Constructed with rifled aluminum tubing, enhanced aluminum fins, and a heavy-duty polypropylene drain pan, this 3 ton coil is AHRI certifiable with any brand of compatible condenser and includes a downflow plate kit for straightforward field installation.
Key Features and Benefits:
-
3 Ton Downflow Coil
Sized for mobile and manufactured home split systems.
-
R454B Refrigerant Compatible
Built for use with modern R454B split systems.
-
Factory-Installed TXV
Ensures precise refrigerant metering for improved efficiency.
-
Rifled Aluminum Tubing
Enhanced aluminum fins promote efficient heat transfer.
-
Left-Hand Connections
Sweat/braze fittings simplify field installation.
-
Heavy-Duty Polypropylene Drain Pan
Resists corrosion for long-term reliability.
-
Downflow Plate Kit Included
Built specifically for mobile and manufactured home use.
Installation Requirements
This coil is designed for mobile and manufactured home applications only and must be matched with a compatible condenser and mobile home furnace or air handler cabinet; it cannot operate as a standalone unit. Disclaimer: This coil is intended for use with R454B refrigerant systems, which are classified as A2L. To comply with safety standards, ensure the paired condenser and system include proper leak detection where required. Please call us at 1-888-557-9206 if you have any questions.
ACiQ 49,100 BTU Mobile Home Electric Furnace Downflow R454B & R32 2-3 Ton ACIQ-EFS1520FD-MH
The ACiQ-EFS1520FD-MH is a 15 kilowatt electric downflow furnace rated at 49,100 BTU, sized to pair with 2 to 3 ton mobile home air conditioning systems. An ECM multi-speed blower delivers up to 1,710 CFM through a direct-drive 3/4 HP motor, and the unit draws power through a 240V single-phase circuit protected by dual breakers.
Like the rest of the ACiQ mobile home furnace lineup, this model uses factory-installed sequencers and temperature limit switches for safe, efficient staged heating, with heat modules that install via molex plug in the field or ship pre-installed from the factory. Front-accessible controls and a flush-mounted disconnect keep routine service simple.
Key Features
-
15kW / 49,100 BTU Output - Delivers electric resistance heat sized for 2 to 3 ton mobile home AC systems.
-
ECM Multi-Speed Blower - Direct-drive 3/4 HP ECM motor moves up to 1,710 CFM for even heat distribution.
-
Dual Circuit Breakers - Ships with a 60 amp and a 25 amp breaker to protect the staged heating elements.
-
Safety Sequencers & Limit Switches - Factory-installed controls stage heating elements safely and protect against overheating.
-
Molex Plug Modules - Heat modules install or service in the field via molex connections, or ship factory-installed.
-
Front-Access Controls - Service points are accessible from the front of the cabinet for faster maintenance.
-
Flush-Mounted Disconnect - The electrical disconnect does not protrude through the wall panel, keeping installs tidy.
-
Washable Filter - Easy-to-clean or replace filter helps lower long-term maintenance costs.
