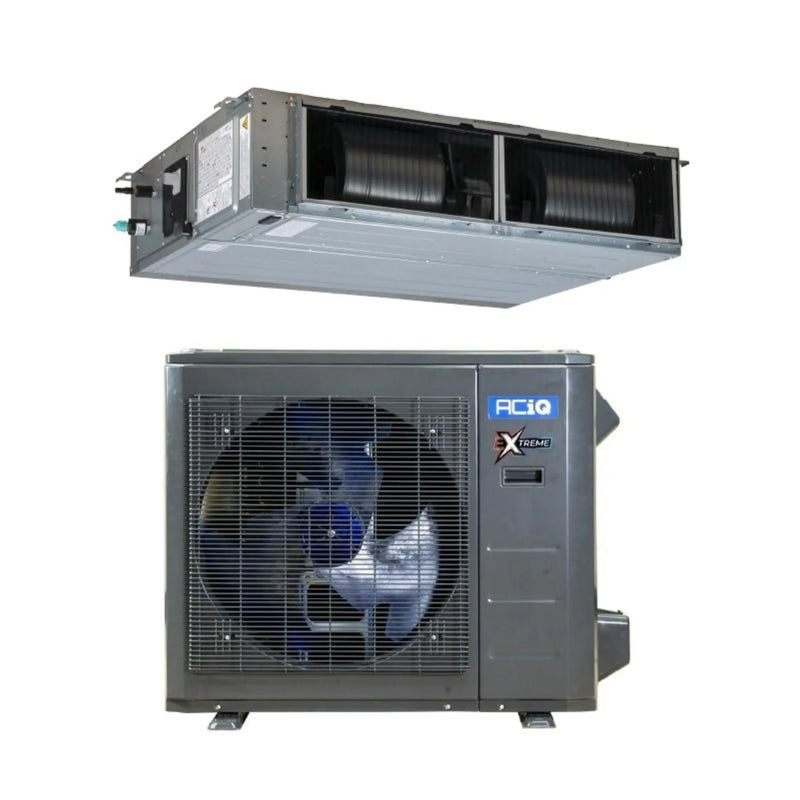

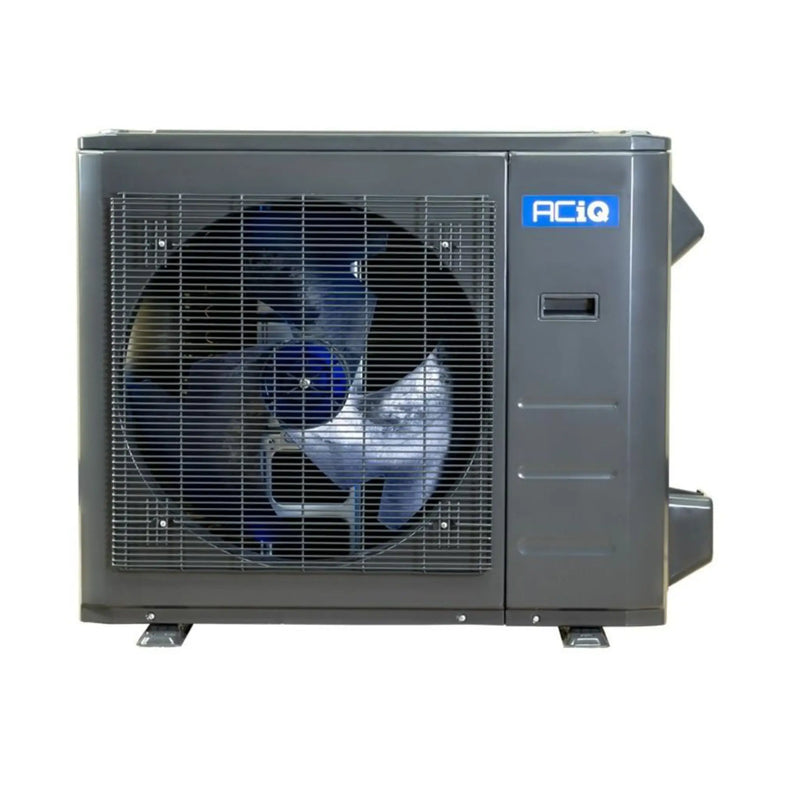

ACiQ 3 Ton 16.1 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter - ACIQ-36-EHPD
The ACIQ-36-EHPD is a 3-ton high-efficiency inverter heat pump condenser that uses inverter technology to convert AC power to DC, allowing the compressor to continuously adjust its speed. This lets the condenser modify its BTU output based on real-time demand, delivering efficient, adaptable performance across a wide range of weather conditions.
Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During initial startup it enters a learning mode, collecting and storing data to optimize future operation for maximum efficiency.
With its self-adjusting inverter design, the ACIQ-36-EHPD can be sized around your heating needs. Standard heat pumps sized for heating can cause discomfort in the summer, but this unit automatically scales down to function like a smaller unit, delivering ideal cooling performance without excess humidity.
Key Features
- Variable output based on demand: 12,000-36,000 BTU for cooling, 12,000-36,000 BTU for heating
- R454B refrigerant
- Inverter heat pump system for ducted applications
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Reliable heating from -13°F to 75°F outdoor temperatures
- Durable gold fin condenser coil coating for longevity
- Quiet operation, even under high workloads
Performance Overview
Boasting an efficiency rating of 16.1 SEER2, the ACIQ-36-EHPD provides versatile comfort across a range of climates, delivering reliable performance with a variable output that eliminates short cycling for lasting efficiency.
Not all heat pumps are built the same — depending on your climate, the best fit can depend heavily on the unit's efficiency at lower outdoor temperatures. At 0°F, this heat pump still operates at 72% efficiency, making it a strong fit for maximizing efficiency in colder climates.

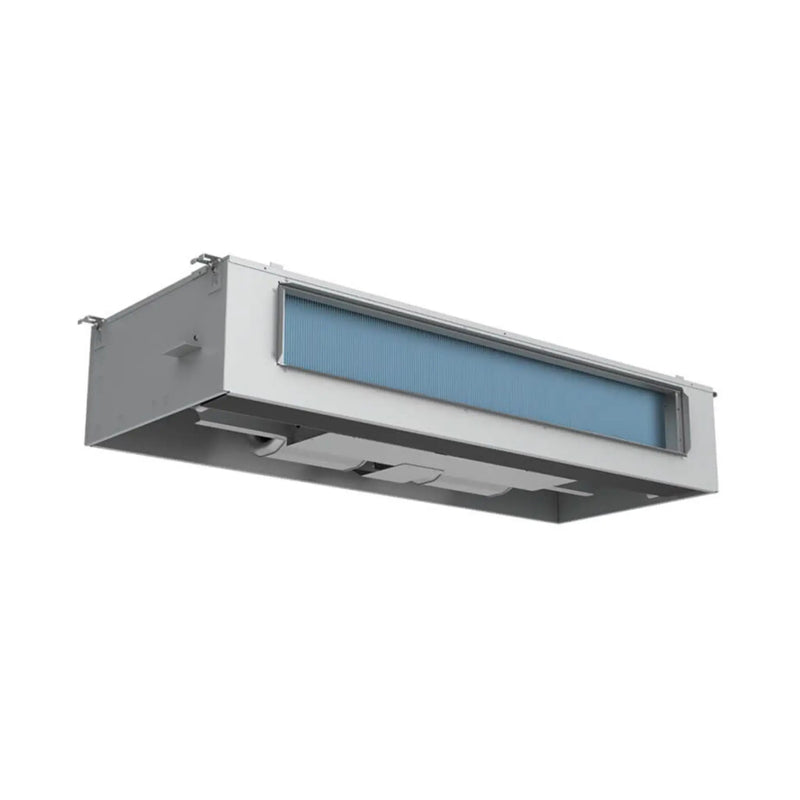

ACiQ 3 Ton Ducted Air Handler - Ceiling Mounted - R454B - ACIQ-36W-PB
The ACIQ-36W-PB Ceiling Mounted Ducted Air Handler — commonly known as the "pancake" air handler — is specifically engineered for use with R454B refrigerant. It's well-suited for installation in drop ceilings and attic spaces and connects directly to ductwork. Designed to pair seamlessly with ACIQ High Efficiency inverter systems, this unit delivers optimal efficiency and quiet operation. Durably built with galvanized-steel construction and offering easy service access, it provides dependable performance, backed by a 7-year parts warranty with online registration.
Key Features
- Connects to ductwork
- Suitable for use with R454B refrigerant
- Variable speed motor for ultimate efficiency
- Quiet operation
- Galvanized-steel construction
- Easy service access
- 7-Year Parts Warranty with Online Registration
- Works with our high-efficiency inverter condensers
Performance Overview
This 3-ton ceiling-mounted air handler delivers up to 1,189 CFM of airflow through a variable-speed blower motor, running as quiet as 59.5 dBA. Its low-profile 10.93" height makes it ideal for drop-ceiling installations in multi-tenant and light-commercial applications, and it connects via 3/8" liquid and 3/4" suction lines to match the ACIQ-36-EHPD condenser. Optional 3kW, 5kW, 8kW, or 10kW electric heat kits are available for supplemental backup heat.
Important Refrigerant Safety Notice: This system uses R454B, an A2L mildly flammable refrigerant. The condenser must be paired with a compatible, leak-detection-equipped indoor unit such as this air handler. If you have any questions about compatibility, please call 1-888-557-9206 before purchasing.
