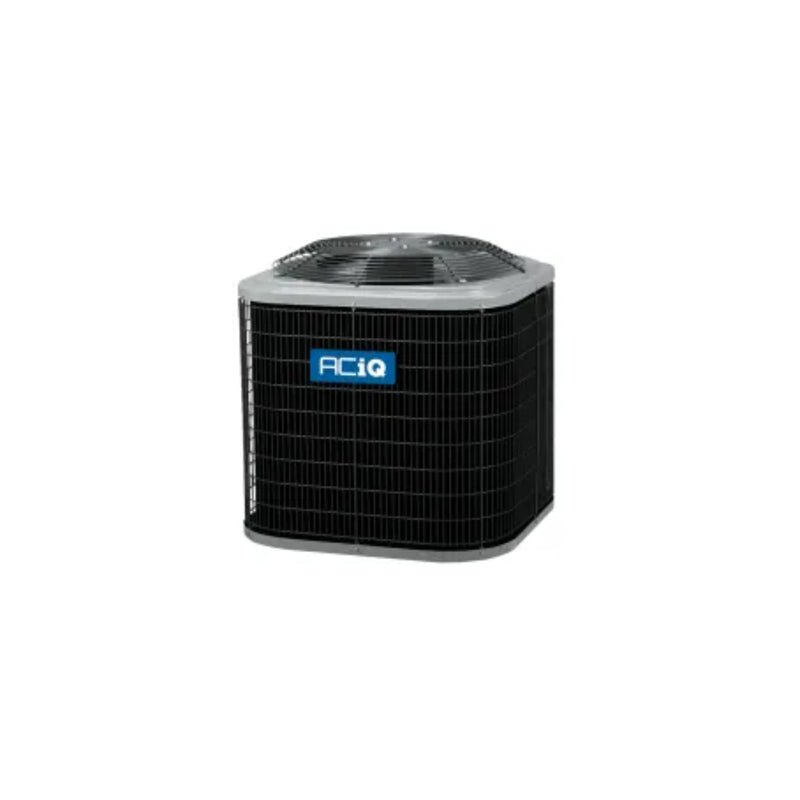

ACiQ 3 Ton Air Conditioner Condenser 14.3 SEER2 R454B R5A5S36AKAWA
The ACiQ R5A5S36AKAWA is a reliable and efficient standard AC-only condenser designed to deliver consistent cooling comfort for medium to large homes. Offering a cost-effective yet higher-than-standard energy efficiency option, this 3 ton condenser is ideal for a wide range of residential air conditioning applications. With a 14.3 SEER2 rating and factory pre-charged refrigerant, it ensures optimal performance and easy installation right out of the box.
Product Features and Benefits:
-
3 Ton Cooling Capacity
Effectively cools medium to large-sized homes or larger zones in moderate climates, providing consistent and comfortable indoor temperatures.
-
14.3 SEER2 Energy Efficiency Rating
Delivers 5–7% greater energy savings compared to standard 13.4 SEER2 units, helping lower electricity costs and reduce energy consumption.
-
Single Stage Compressor
Provides steady and dependable cooling performance with a simplified, long-lasting design.
-
Pre-Charged with R454B Refrigerant
Factory-charged with eco-friendly R454B refrigerant for a 15-foot line set, allowing quick and accurate installation.
-
Filter Drier Included
Protects the system by filtering out moisture and debris during field installation, promoting long-term reliability.
-
Robust and Durable Cabinet
Constructed with reinforced corner posts and a protective inlet grille to safeguard internal components from weather and external damage.
-
10-Year Limited Parts Warranty
Backed by ACiQ’s 10-year parts warranty when installed to code and registered with a certified indoor coil, ensuring long-term peace of mind.
-
Pre-Charged for 15-Foot Line Set
Minimizes installation time and labor by eliminating the need for manual refrigerant charging. Additional refrigerant may be required for longer line sets.
-
Safety Compliance with R454B Refrigerant
Requires pairing with an R454B-compatible air handler or evaporator coil that includes a leakage detection system to meet safety regulations and preserve warranty coverage.
Important Information
This condenser is designed solely for cooling and must be paired with a compatible indoor coil or air handler. It does not offer heating capabilities.

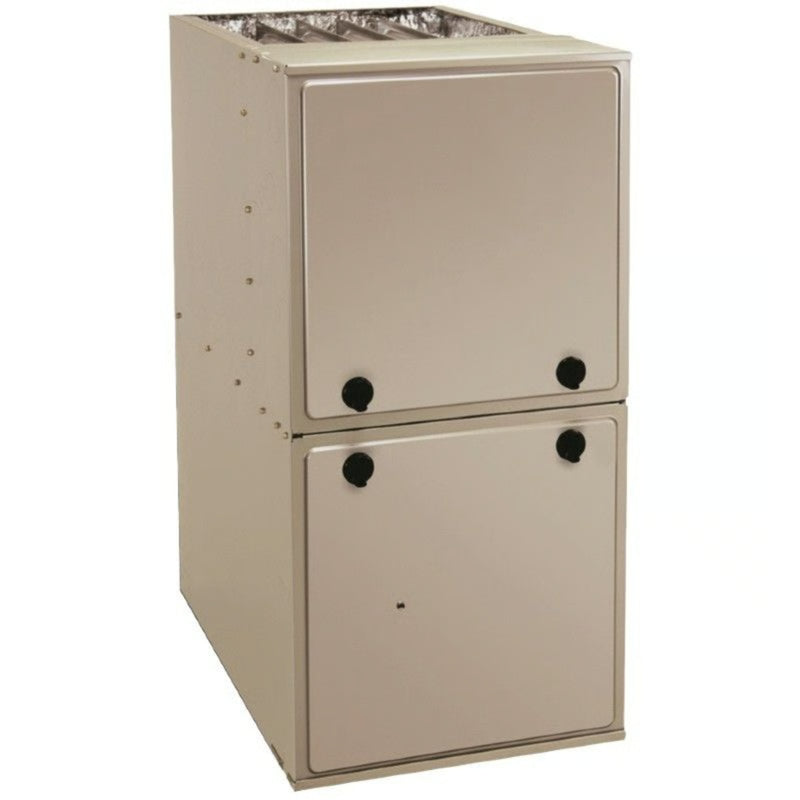

ACiQ 92% Gas Furnace – 60,000 BTU, Single Stage, Multi-Positional, 115V 1-Phase 60Hz
The R92MSN series from ACiQ is a highly efficient furnace with a 92% efficiency rating. It's built to meet strict Low NOx standards, which means it helps reduce nitrogen oxide emissions and is a good eco-friendly heating option. These furnaces can also be used in mobile or manufactured homes, but you’ll need a conversion kit to make it work for those setups. This makes them versatile for different living spaces.
One important part of setting up the R92MSN is the exhaust flue. It needs to be made of plastic or PVC. This material is essential because it can handle the lower heat and moisture levels that come from this efficient unit. Using the right flue ensures the system works well and stays safe. Metal flues wouldn’t hold up as well under these conditions and might corrode. By following these guidelines, you can help your furnace last longer and keep your home warm and safe in an environmentally friendly way.
- 92% Gas Furnace
- 18-speed ECM blower motor
- Single stage gas valve
- Multi-positional – Can be installed in upflow, downflow, or horizontal orientations
- Field-convertible to propane with an optional propane conversion kit
- On board self-diagnostics
- Low NOx compliant with NOx emissions of less than 40 ng/J
- Approved for mobile/manufactured housing installation with the appropriate conversion kit

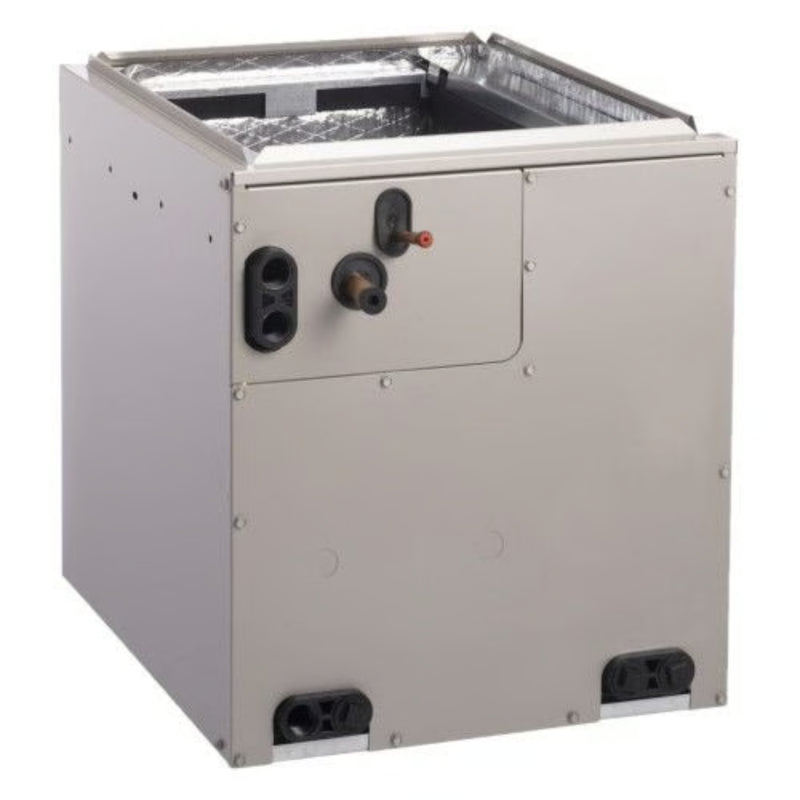

ACiQ 3 Ton Evaporator Coil Cased 17.5" Width Multi-Position With TXV R454B EVM5X36M17A
The ACiQ multipoise evaporator coil with Power-V Technology is engineered for superior energy efficiency, durability, and flexible installation. Featuring a patent-pending V-coil design, this cased coil provides excellent heat transfer performance and is constructed from corrosion-resistant all-aluminum materials. Ideal for a wide range of HVAC applications, this evaporator coil is a smart choice for consistent indoor comfort and reduced energy consumption.
Product Features
-
Power-V Technology: Innovative V-shape coil design maximizes heat transfer efficiency
-
Cased Multi-Orientation Design: Supports upflow, downflow, and horizontal installation configurations for flexible system integration
-
Thermostatic Expansion Valve (TXV): Factory-installed TXV metering device optimizes refrigerant control for enhanced system efficiency
-
All-Aluminum Coil: Lightweight and corrosion-resistant design ensures long-lasting performance and improved system efficiency
-
Environmentally Friendly: Fully recyclable aluminum construction aligns with sustainable design principles
-
Durable Drain Pan: Corrosion-resistant Polybutylene Terephthalate (PBT) drain pan offers exceptional strength and helps prevent mold and bacteria buildup
-
Fully Insulated Cabinet: Reduces energy loss and protects internal components for extended equipment life
-
10-Year Parts Limited Warranty: Warranty coverage available upon product registration
Installation & Serviceability
ACiQ’s Power-V evaporator coil is built with the installer and service technician in mind. Its multipoise capability ensures compatibility with a wide variety of HVAC systems, while enhanced serviceability features allow for quicker, easier maintenance. This coil is an excellent solution for homeowners and professionals seeking reliable performance, energy savings, and installation flexibility.
