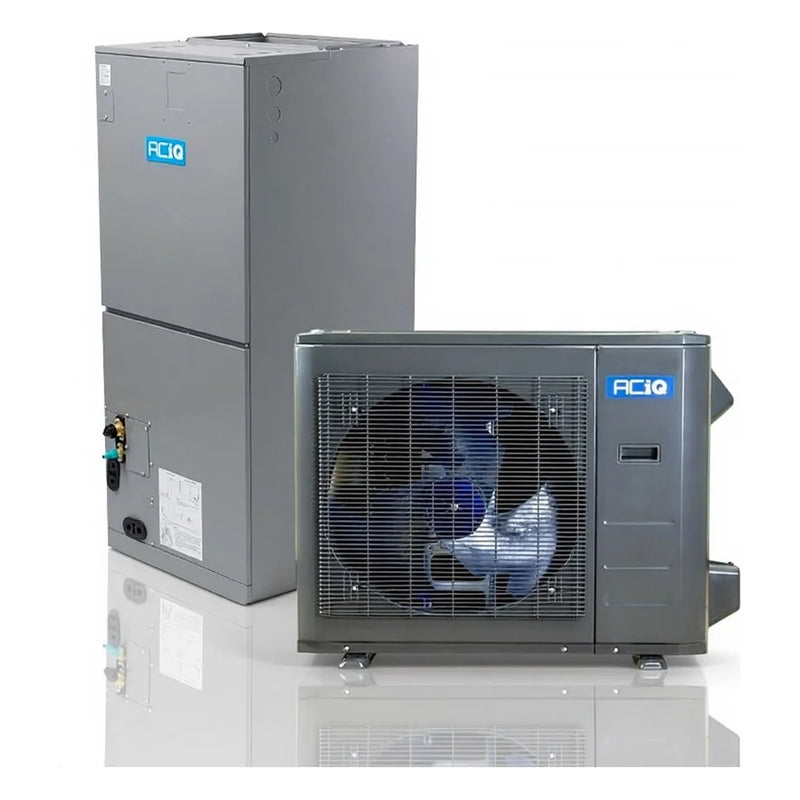

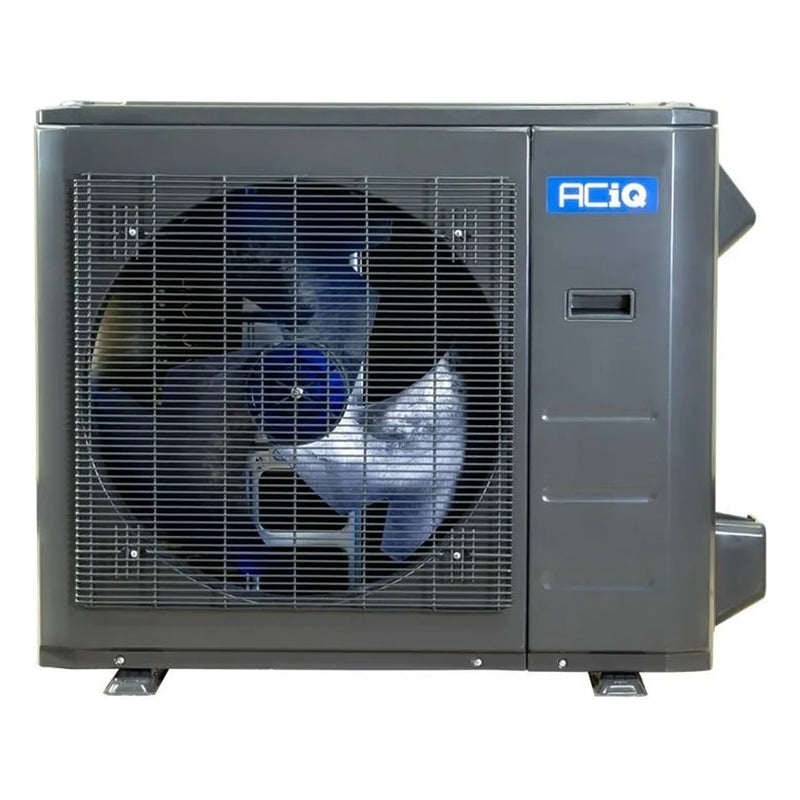

ACiQ 3 Ton 15.6 SEER2 Air Conditioner Condenser Inverter 230V R454B ACIQ-36-AC-B
The ACIQ-36-AC-B is a 3 ton, 15.6 SEER2 air conditioner condenser built around a variable-speed inverter compressor and R454B refrigerant. Instead of cycling on and off at full capacity, the compressor speeds up and slows down to track real-time demand, and ACiQ's Learning Condenser technology monitors indoor and outdoor temperature, duct pressure, and refrigerant temperature during startup to fine-tune performance going forward.
Rated at 34,000 BTU of cooling with up to 3,002 CFM airflow and as low as 58 dBA of operating sound, this condenser can also throttle down to roughly a 1 ton unit when full capacity isn't needed, making it a good seasonal AC-only option for homes that already have another primary heat source such as a boiler or fireplace. It runs on a 208/230V single-phase circuit and weighs 144.4 lbs.
Key Features
-
Variable-Speed Inverter Compressor - Self-adjusts BTU output to match real-time demand instead of cycling at full capacity.
-
Learning Condenser Technology - Monitors temperature, duct pressure, and refrigerant temperature during startup to optimize future performance.
-
15.6 SEER2 Efficiency - Rated 15.6 SEER2 / 10.2 EER2 for lower cooling operating costs.
-
34,000 BTU Cooling Capacity - Delivers 34,000 BTU of cooling with up to 3,002 CFM of airflow.
-
Quiet Operation - Runs as low as 58 dBA, noticeably quieter than a fixed-speed condenser at full load.
-
R454B Refrigerant - Uses the lower-GWP R454B refrigerant charge required for current equipment.
-
Down to 1 Ton Operation - Inverter design lets the compressor throttle down for seasonal AC-only supplemental cooling.
-
208/230V Single-Phase Electrical - Runs on a 208/230V 1-phase 60 Hz circuit with a 25 Amps max breaker.
Important Refrigerant Safety Notice: This unit uses R454B, an A2L mildly flammable refrigerant. It must be paired with a compatible, A2L-rated indoor coil or air handler equipped with proper leak detection. Please call 1-888-557-9206 with any compatibility questions before purchasing or installing.

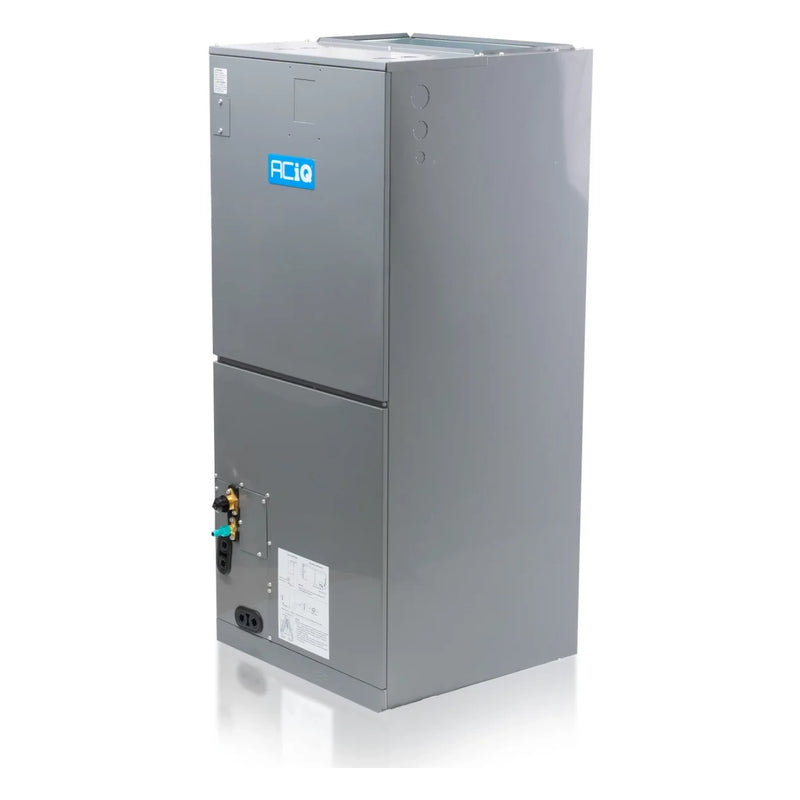

ACiQ 3 Ton Central Ducted Air Handler Multi-Positional Variable Speed R454B ACIQ-36-AHD
The ACIQ-36-AHD air handler is designed for ultimate comfort and efficiency. Featuring a variable speed DC blower and advanced communicating technology, this unit works seamlessly with your thermostat and inverter condenser to self-adjust BTU output based on your home's needs. This dynamic performance not only ensures consistent indoor temperatures but also maximizes energy efficiency. Engineered to integrate with your existing ductwork, the ACIQ-36-AHD efficiently circulates heated or cooled air throughout your home, delivering year-round comfort you can count on.
ACIQ-36-AHD 36,000 BTU 3 Ton Variable Speed Air Handler – R454B Compatible
-
36,000 BTU / 3 Ton Capacity – Provides powerful and efficient climate control for small to medium-sized homes
-
Central Ducted Air Handler – Easily connects to standard duct systems for even airflow throughout your home
-
Variable Speed DC Blower Motor – Promotes quieter operation, consistent comfort, and reduced energy usage
-
24V Thermostat Compatible – Works with any 24V thermostat, including smart and programmable models
-
Multi-Positional Design – Versatile installation options: upflow, downflow, or horizontal left/right
-
R454B Refrigerant Compatible – Environmentally friendly and future-ready refrigerant compatibility
-
Communicating System Ready – Integrates with inverter condensers for smart BTU modulation and energy savings
-
Ideal for New or Replacement Installs – A perfect fit for upgrading older air handlers or new HVAC systems
Installation & Maintenance
Installing the ACiQ central ducted air handler is straightforward and follows the same basic steps as replacing a traditional air handler. A qualified technician will handle all necessary connections, including electrical wiring, refrigerant lines, thermostat integration, and system communication. The unit is also connected to your home’s return and supply ductwork for seamless air distribution.
Designed for flexibility, this air handler is multi-positional and supports upflow, downflow, or horizontal configurations—making it easy to fit into a variety of system layouts. It’s compatible with any standard 24V thermostat that supports two stages of heating.
For colder climates or added peace of mind, optional supplemental electric heat kits are available to provide backup heat when needed. Routine maintenance is simple, and the built-in intelligent control board offers fault code diagnostics to help technicians quickly identify and resolve system issues.
Important Note: This air handler must be installed with a compatible condenser and additional system components, which may be sold separately if not included in your package. To operate using electric-only heat, a compatible electric heat kit is required and also sold separately.
