ACiQ ES-36Z-M5C ACIQ-06W-HH-MD-4 ACIQ-12W-HH-MD

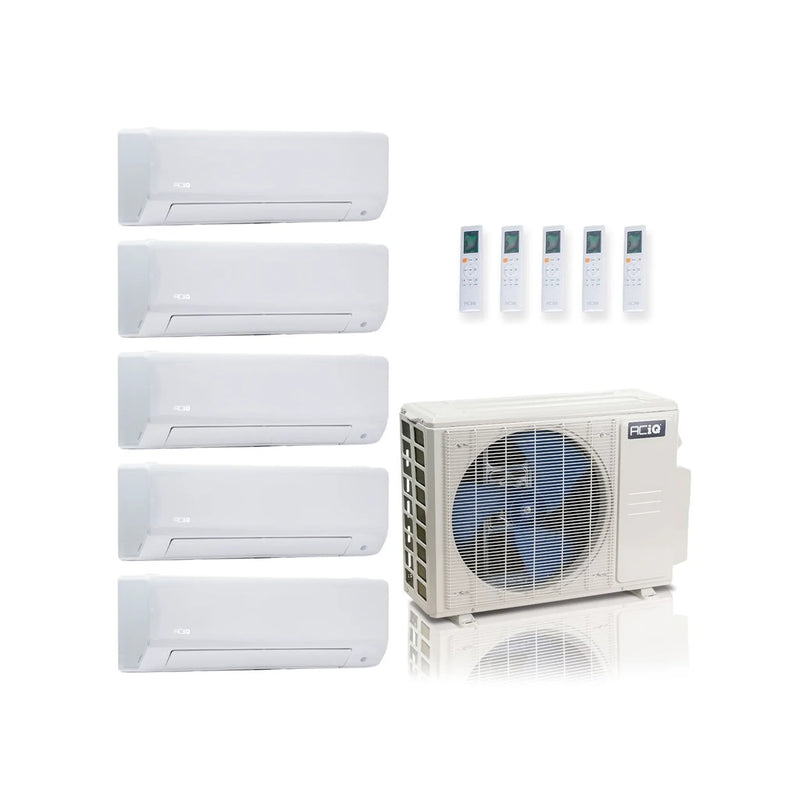

ACiQ 36,000 BTU 24 SEER2 5-Zone Mini Split System R454B 230V 6+6+6+6+12

Name: ACiQ 36,000 BTU 24 SEER2 5-Zone Mini Split System R454B 230V 6+6+6+6+12
Brand: ACiQ
SKU: ES-36Z-M5C ACIQ-06W-HH-MD-4 ACIQ-12W-HH-MD
Price: 6076.96 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-36Z-M5C ACIQ-06W-HH-MD-4 ACIQ-12W-HH-MD | ID: 88606

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,076.96 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-36Z-M5C allows for up to 5 air handlers to run off a single condenser, saving space outdoors while keeping your home perfectly comfortable.

Key Features

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

The 36,000 BTU, 24.0 SEER2 ES-36Z-M5C is designed to support up to 5 air handlers, providing adaptive heating and cooling with precise temperature control in each room or zone. This inverter condenser offers high efficiency and intelligent money-saving features. Professional installation is required, and additional installation materials are available for purchase.

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x4

The 6,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. Equipped with adaptive technology, it constantly monitors and maintains your ideal temperature regardless of the weather outside.

Key Features

6,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-06W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. It is WiFi ready and can be controlled via smart devices from anywhere in the world. Please note that installation with a condenser and other equipment is required for proper functionality.

ACiQ 12,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-12W-HH-MD

The 12,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. Using adaptive technology, it constantly monitors and maintains your ideal temperature regardless of the weather outside.

Key Features

12,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-12W-HH-MD air handler features a soft LED display on the front, providing information at a glance. It displays room temperature, temperature setpoint changes, and mode changes. Error codes from the self-diagnosing control board are also displayed for proper maintenance. The smart remote has a built-in LCD display for notifications as well. WiFi ready, ACiQ allows control of heating and cooling via smart devices from anywhere, and is compatible with Amazon Alexa and Google Assistant.

View More 5 Zone Mini Splits

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

Brand	ACiQ	SKU	ES-36Z-M5C
Replaces	ES-36Z-M4B	HSPF2	9.5
Cooling BTU	36000 BTU	Heating BTU	37000 BTU
Maximum CFM	2148	Decibel Level (dBA)	64.5
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	24
Compressor Type	Rotary	Liquid Line	1/4" (5)
Suction Line	3/8" (4); 1/2" (1)	Electrical	208/230V 1 Phase 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	35 A
Min. Breaker Size	30.5 A	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-13 ~ 122
Height	31.89"	Width	37.24"
Depth	16.14"

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x4

Brand	ACiQ	SKU	ACIQ-06W-HH-MD
Cooling BTU	6000 BTU	Heating BTU	7000 BTU
Maximum CFM	364.71	Decibel Level (dBA)	As low as 23
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	6,000 BTU/0.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Height	11.76"
Width	33.40"	Depth	9.18"

ACiQ 12,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-12W-HH-MD

Brand	ACiQ	SKU	ACIQ-12W-HH-MD
Cooling BTU	12000 BTU	Heating BTU	12000 BTU
Maximum CFM	324	Decibel Level (dBA)	38
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	21-22	SEER2	22.3
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60 Hz	BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Single Zone
Length	33.40"	Height	11.76"
Depth	9.18"

Warranty

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor, 7 year parts

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x4

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor, 7 year parts

ACiQ 12,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-12W-HH-MD

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor, 7 year parts
