ACiQ ES-36Z-M5C ACIQ-06W-HH-MD-4 ACIQ-09W-HH-MD

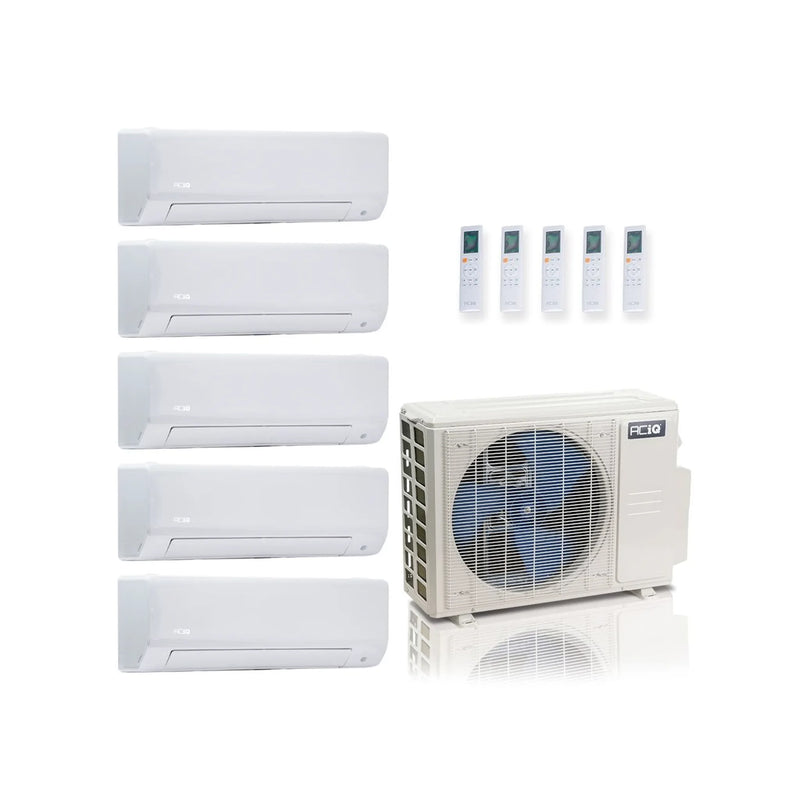

ACiQ 36,000 BTU 24 SEER2 5-Zone Mini Split System R454B 230V 6+6+6+6+9

Name: ACiQ 36,000 BTU 24 SEER2 5-Zone Mini Split System R454B 230V 6+6+6+6+9
Brand: ACiQ
SKU: ES-36Z-M5C ACIQ-06W-HH-MD-4 ACIQ-09W-HH-MD
Price: 5914.96 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-36Z-M5C ACIQ-06W-HH-MD-4 ACIQ-09W-HH-MD | ID: 88610

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$5,914.96 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-36Z-M5C model allows up to 5 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.

Key Features

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

The ACiQ ES-36Z-M5C is a versatile and efficient multi-zone condenser designed to provide precise heating and cooling for each room or zone. With a high efficiency rating of 24.0 SEER2, this system intelligently saves you money both upfront and over its lifetime.

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x4

The 6,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers Platinum Performance. This air handler is compatible with ACiQ Multizone or Platinum Single Zone condensers, creating an efficient Hyper Heat system. It is ideal for small to medium sized rooms, utilizing adaptive technology to maintain your desired temperature regardless of external weather conditions.

Key Features

6,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-06W-HH-MD air handler features a soft LED display for easy monitoring. It offers Intelligent Heating and Cooling with error code notifications for self-diagnosing. The unit is WiFi ready, allowing control via smart devices and compatibility with Amazon Alexa and Google Assistant.

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler is compatible with ACiQ Multizone or Platinum Single Zone condensers, providing efficient heating and cooling with adaptive technology to maintain your ideal temperature regardless of external conditions.

Key Features

9,000 BTU wall mounted air handler with included remote control
WiFi capable using free Net Home Plus app, Google Home, or Alexa
Easy Maintenance and Installation
Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display, intelligent heating and cooling, and WiFi compatibility for remote control using smart devices. It is designed for quiet comfort and efficient performance, ensuring a pleasant indoor environment.

View More 5 Zone Mini Splits

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

Brand	ACiQ	SKU	ES-36Z-M5C
Replaces	ES-36Z-M4B	HSPF2	9.5
Cooling BTU	36000 BTU	Heating BTU	37000 BTU
Maximum CFM	2148	Decibel Level (dBA)	64.5
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	24
Compressor Type	Rotary	Liquid Line	1/4" (5)
Suction Line	3/8" (4); 1/2" (1)	Electrical	208/230V 1 Phase 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	35 A
Min. Breaker Size	30.5 A	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-13 ~ 122
Height	31.89"	Width	37.24"
Depth	16.14"

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x4

Brand	ACiQ	SKU	ACIQ-06W-HH-MD
Cooling BTU	6000 BTU	Heating BTU	7000 BTU
Maximum CFM	364.71	Decibel Level (dBA)	As low as 23
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	6,000 BTU/0.5 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Height	11.76"
Width	33.40"	Depth	9.18"

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Brand	ACiQ	SKU	ACIQ-09W-HH-MD
Cooling BTU	9000 BTU	Heating BTU	10000 BTU
Maximum CFM	335.29	Decibel Level (dBA)	38
Electric Heat	Heat Pump	Refrigerant	R454B
SEER	23-24	SEER2	22.3
Liquid Line	1/4"	Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz	BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted	Zone Compatibility	Multi Zone
Length	33.40"	Height	11.76"
Depth	9.18"

Warranty

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B ES-36Z-M5C

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor, 7 year parts

ACiQ 6,000 BTU Platinum Multi Zone Air Handler With WiFi ACIQ-06W-HH-MD x4

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor, 7 year parts

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Warranty Type	Parts
Standard Warranty	7 year parts
Registered Warranty	12 year compressor

Documents

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
