ACiQ ACiQ-36Z-HH-M5C ACIQ-12CD-HH-MC ACIQ-18CD-HH-MC

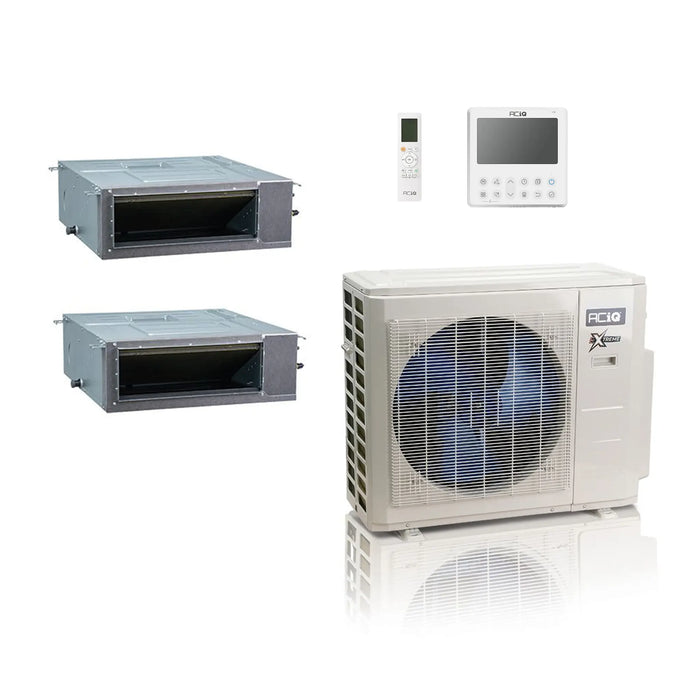

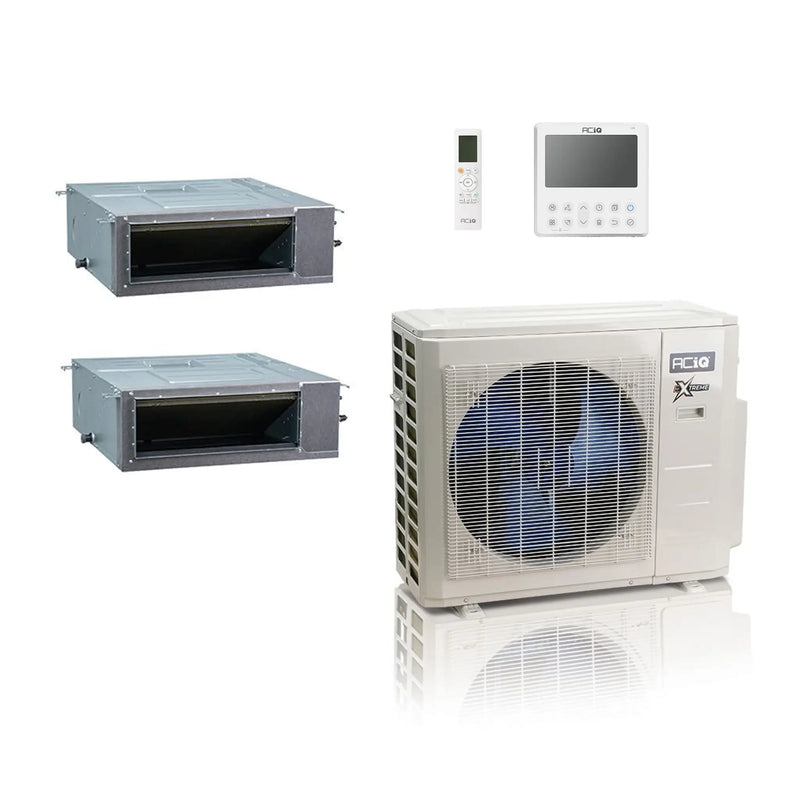

ACiQ 36K BTU 19.4 SEER2 Extreme 2-Zone Concealed Duct Mini Split 230V 12+18

Name: ACiQ 36K BTU 19.4 SEER2 Extreme 2-Zone Concealed Duct Mini Split 230V 12+18
Brand: ACiQ
SKU: ACiQ-36Z-HH-M5C ACIQ-12CD-HH-MC ACIQ-18CD-HH-MC
Price: 6896.63 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACiQ-36Z-HH-M5C ACIQ-12CD-HH-MC ACIQ-18CD-HH-MC | ID: 89027

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,896.63 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

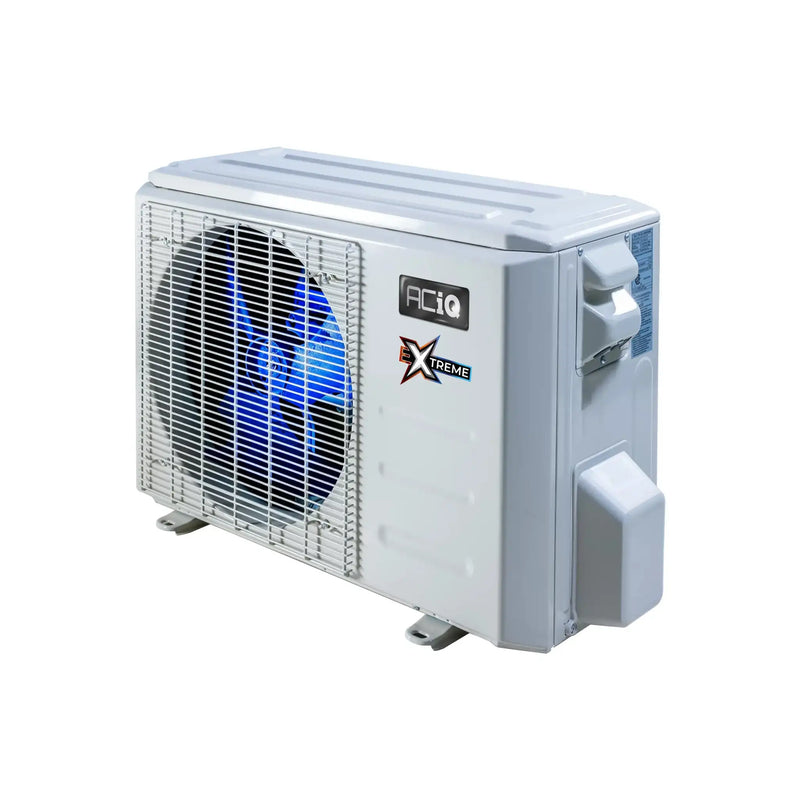

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

36,000 BTU, 23 SEER2 multi zone heat pump condenser
Supports up to 5 attached air handlers
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Integrated Extreme Heat technology with base pan heater
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

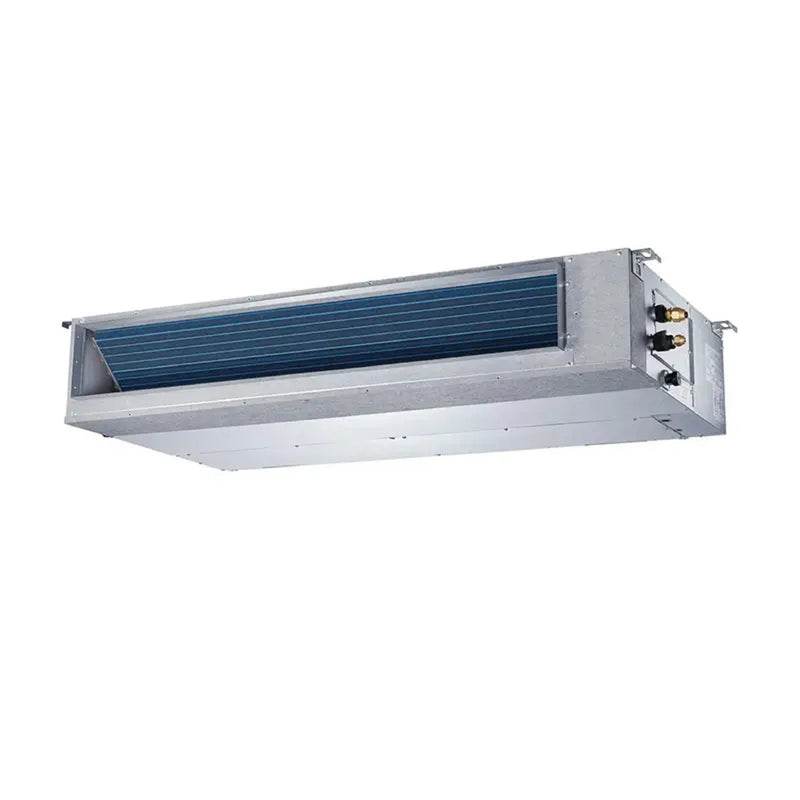

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

12,000 BTU of heating or cooling power
Dry and Fan modes for added versatility
Includes a wall-mounted thermostat for easy temperature control
Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC offers the advantages of a multi-zone mini split system without visible air handlers on your walls or ceilings. This flexible unit can be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Air distribution is achieved using flex ducting to ceiling or wall registers in your desired location.

Key Features

18,000 BTU of Heating or Cooling Capacity
Dry and Fan Modes Available
Good for Medium Rooms in Most Climates
Wall Mounted Thermostat Included
Concealed Duct Design for Flexible Installation

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC is designed for quiet comfort, with precision engineering to quickly achieve and maintain set temperatures. The system features whisper-quiet indoor and outdoor units for minimal disruption.

View More 2 Zone Mini Splits

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Brand	ACiQ	SKU	ACIQ-36Z-HH-M5C
Replaces	ACIQ-36Z-HH-M4B	Product Features	Low Ambient Heating
HSPF2	10.7	Cooling BTU	36,000 BTU
Heating BTU	36,000 BTU	Maximum CFM	3037
Decibel Level (dBA)	65	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
SEER2	23	Compressor Type	Twin Rotary
Liquid Line	1/4" (5)	Suction Line	3/8" (3); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Max Breaker Size	40 Amps
Min. Breaker Size	37 Amps	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-22 ~ 122
Height	38.39"	Width	38.58"
Depth	16.34"

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Brand	ACiQ	SKU	ACIQ-12CD-HH-MC
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 26.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Brand	ACiQ	SKU	ACIQ-18CD-HH-MC
Cooling BTU	17,500 BTU	Heating BTU	18,000 BTU
Maximum CFM	706.3	Decibel Level (dBA)	As low as 28
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Concealed Duct	Zone Compatibility	Multi Zone
Height	9.65"	Width	39.37"
Depth	29.53"

Warranty

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC

Installation & Owner's Manual

Remote Controller Manual

Submittal

Brochure

Warranty Information

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information
