ACiQ ACiQ-36Z-HH-M5C ACIQ-18CD-HH-MC ACIQ-24CD-HH-MC

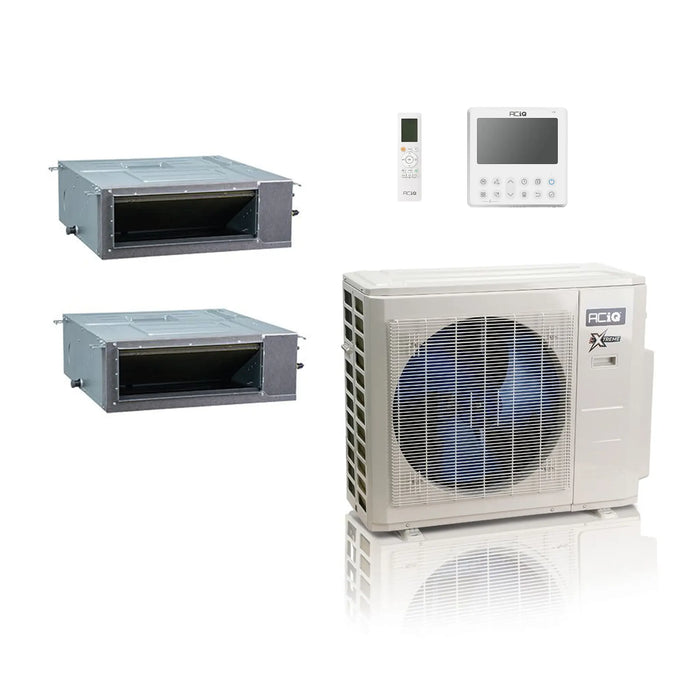

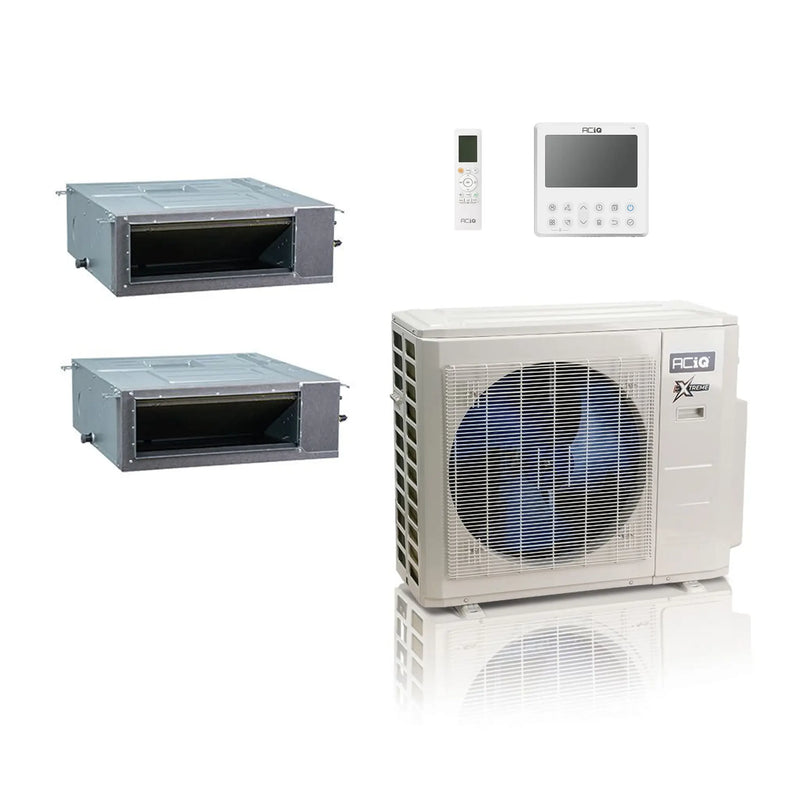

ACiQ 36K BTU 19.4 SEER2 Extreme 2-Zone Concealed Duct Mini Split 230V 18+24

By ACiQ | SKU: ACiQ-36Z-HH-M5C ACIQ-18CD-HH-MC ACIQ-24CD-HH-MC | ID: 89016
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$7,206.62 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

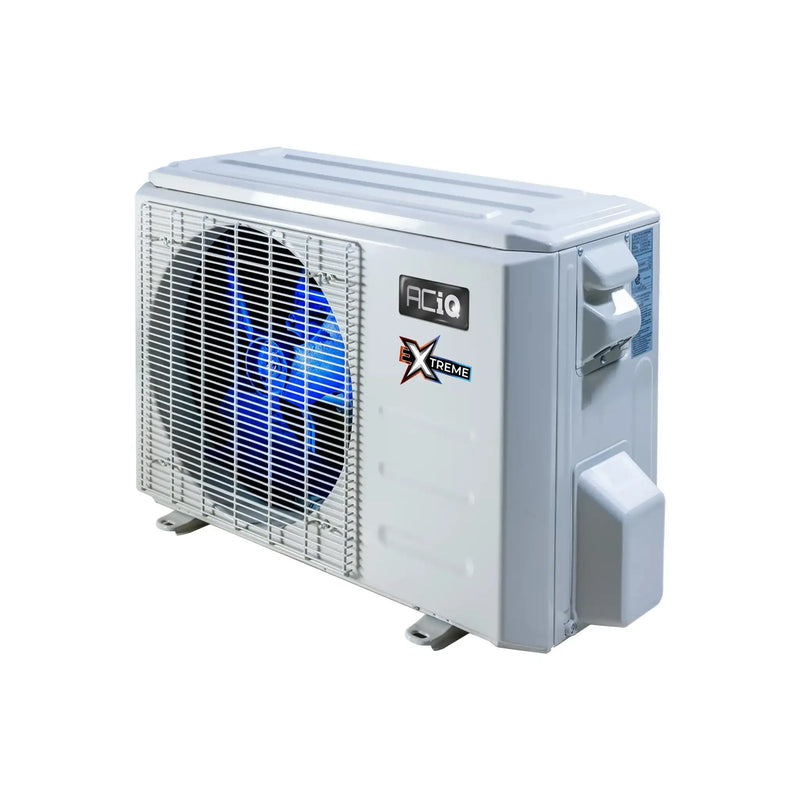

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

  • 36,000 BTU, 23 SEER2 multi zone heat pump condenser
  • Supports up to 5 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

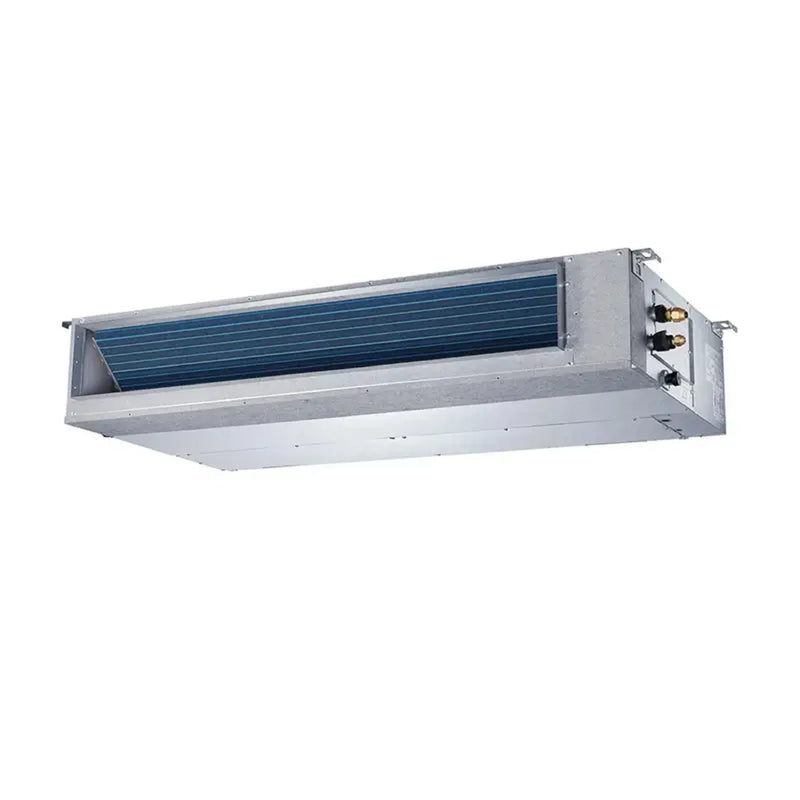

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC offers the advantages of a multi-zone mini split system without visible air handlers on your walls or ceilings. This flexible unit can be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Air distribution is achieved using flex ducting to ceiling or wall registers in your desired location.

Key Features

  • 18,000 BTU of Heating or Cooling Capacity
  • Dry and Fan Modes Available
  • Good for Medium Rooms in Most Climates
  • Wall Mounted Thermostat Included
  • Concealed Duct Design for Flexible Installation

The ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC is designed for quiet comfort, with precision engineering to quickly achieve and maintain set temperatures. The system features whisper-quiet indoor and outdoor units for minimal disruption.

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

  • 24,000 BTU for heating or cooling
  • Dry and Fan modes available
  • Suitable for medium-sized rooms in most climates
  • Includes wall-mounted thermostat
  • Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

View More 2 Zone Mini Splits

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Brand ACiQ SKU ACIQ-36Z-HH-M5C
Replaces ACIQ-36Z-HH-M4B Product Features Low Ambient Heating
HSPF2 10.7 Cooling BTU 36,000 BTU
Heating BTU 36,000 BTU Maximum CFM 3037
Decibel Level (dBA) 65 Electric Heat Heat Pump
Energy Star Yes Refrigerant R454B
SEER2 23 Compressor Type Twin Rotary
Liquid Line 1/4" (5) Suction Line 3/8" (3); 1/2" (2)
Electrical 208/230V 1 Phase 60 Hz Max Breaker Size 40 Amps
Min. Breaker Size 37 Amps Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton Mini Split Type Wall Mounted
Zone Compatibility Multi Zone Ambient Temperature Range -22 ~ 122
Height 38.39" Width 38.58"
Depth 16.34"

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Brand ACiQ SKU ACIQ-18CD-HH-MC
Cooling BTU 17,500 BTU Heating BTU 18,000 BTU
Maximum CFM 706.3 Decibel Level (dBA) As low as 28
Electric Heat Heat Pump Refrigerant R454B
Liquid Line 1/4" Suction Line 1/2"
Electrical 208/230V 1 Phase 60Hz BTU/Tonnage 18,000 BTU/1.5 Ton
Mini Split Type Concealed Duct Zone Compatibility Multi Zone
Height 9.65" Width 39.37"
Depth 29.53"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Brand ACiQ SKU ACIQ-24CD-HH-MC
Cooling BTU 24,000 BTU Heating BTU 26,000 BTU
Maximum CFM 853.5 Decibel Level (dBA) As Low as 29.5
Electric Heat Heat Pump Refrigerant R454B
Liquid Line 3/8" Suction Line 5/8"
Electrical 208/230V 1 Phase 60Hz Electric Phase Filter Single Phase
BTU/Tonnage 24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton Mini Split Type Concealed Duct
Zone Compatibility Multi Zone Height 9.65"
Width 39.37" Depth 29.53"
Warranty

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts
Documents

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 18,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-18CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Submittal

Installation Manual

Service Manual

Owners Manual

Remote Controller Manual

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
