ACiQ ES-36Z-M5C ACIQ-12CD-HH-MC-2 ACIQ-24CD-HH-MC

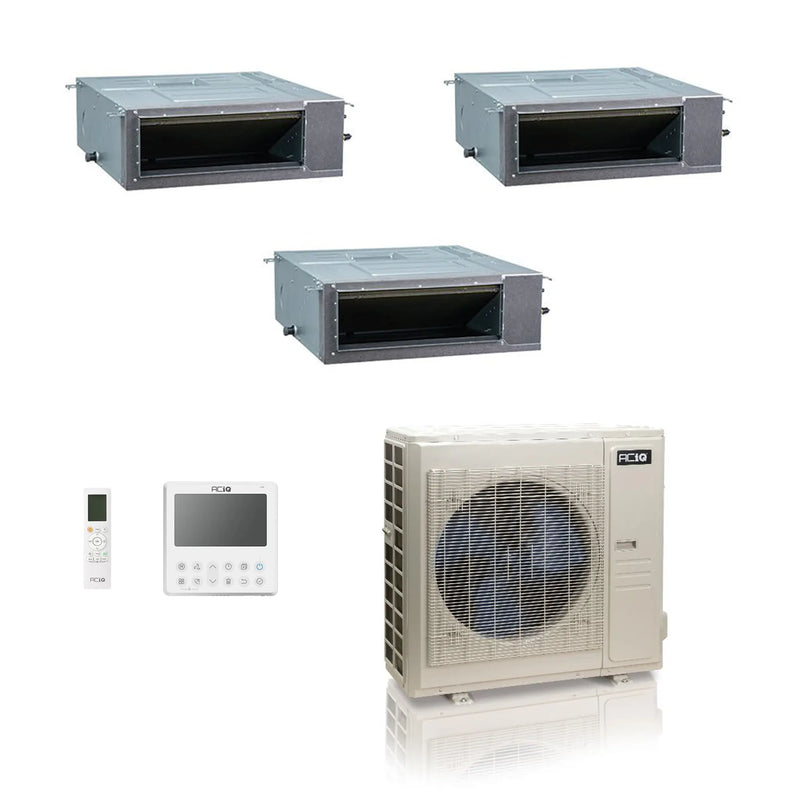

ACiQ 36K BTU 20 SEER2 Concealed Duct Mini Split System 3-Zone 230V 12+12+24

Name: ACiQ 36K BTU 20 SEER2 Concealed Duct Mini Split System 3-Zone 230V 12+12+24
Brand: ACiQ
SKU: ES-36Z-M5C ACIQ-12CD-HH-MC-2 ACIQ-24CD-HH-MC
Price: 6449.99 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ES-36Z-M5C ACIQ-12CD-HH-MC-2 ACIQ-24CD-HH-MC | ID: 88919

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,449.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

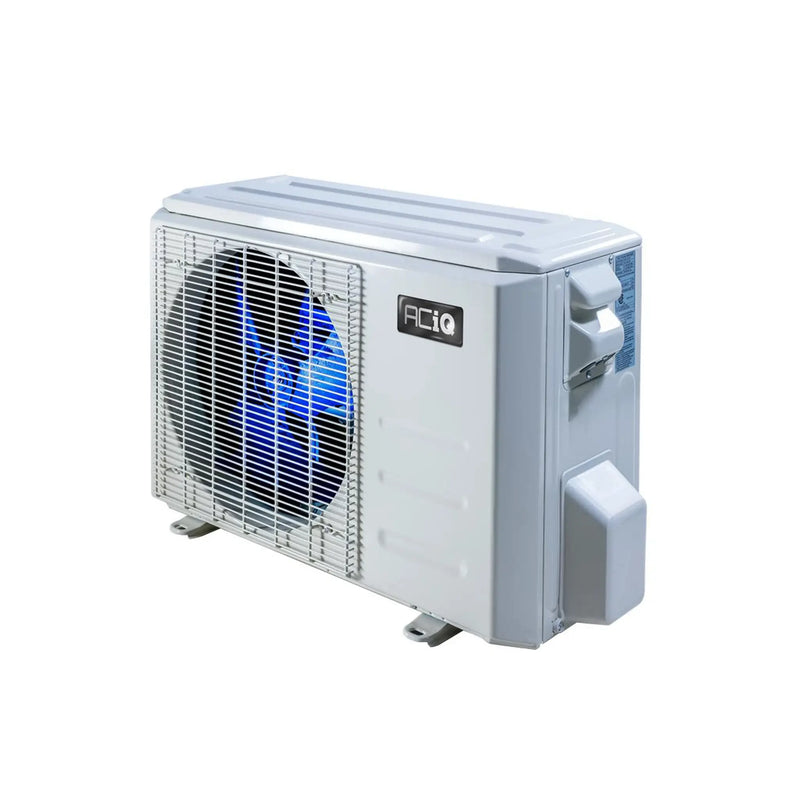

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

ACiQ offers the innovative solution for adaptive heating and cooling in various climates, all while remaining cost-effective. The ES-36Z-M5C model allows for up to 5 air handlers to run off a single condenser, optimizing space and ensuring comfort throughout your home.

Key Features

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R454B refrigerant for 25' per air handler connection. No additional refrigerant is needed in many cases. Troubleshooting is made easy with the unit's self-diagnosing control board and alerts sent to each connected air handler.

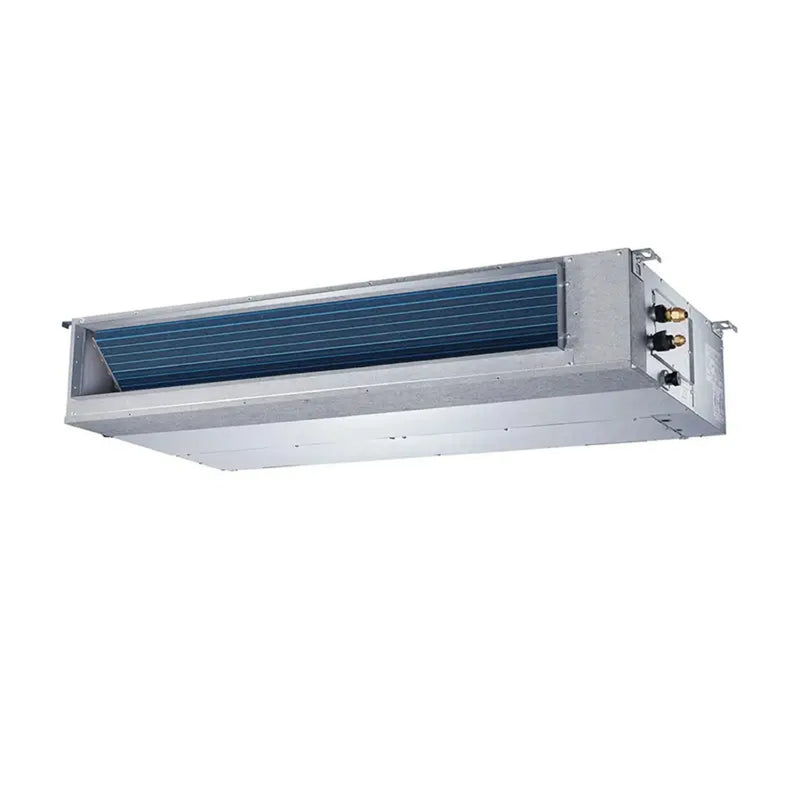

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Experience the convenience and flexibility of a multi-zone mini split system with the ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2. This unit allows for discreet installation above the ceiling, below the floor, or behind a soffit, providing efficient heating and cooling without visible air handlers on your walls or ceilings.

Key Features

12,000 BTU of heating or cooling power
Dry and Fan modes for added versatility
Includes a wall-mounted thermostat for easy temperature control
Concealed Duct design for a seamless appearance

Quiet Comfort: The ACiQ system is designed for whisper-quiet operation, ensuring a peaceful indoor environment while efficiently maintaining your desired temperature.

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

24,000 BTU for heating or cooling
Dry and Fan modes available
Suitable for medium-sized rooms in most climates
Includes wall-mounted thermostat
Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

View More 3 Zone Mini Splits

Specifications

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Brand	ACiQ	SKU	ES-36Z-M5C
Replaces	ES-36Z-M4B	HSPF2	9.5
Cooling BTU	36000 BTU	Heating BTU	37000 BTU
Maximum CFM	2148	Decibel Level (dBA)	64.5
Electric Heat	Heat Pump	Energy Star	Yes
Refrigerant	R454B	SEER2	24
Compressor Type	Rotary	Liquid Line	1/4" (5)
Suction Line	3/8" (4); 1/2" (1)	Electrical	208/230V 1 Phase 60 Hz
Electric Phase Filter	Single Phase	Max Breaker Size	35 A
Min. Breaker Size	30.5 A	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-13 ~ 122
Height	31.89"	Width	37.24"
Depth	16.14"

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Brand	ACiQ	SKU	ACIQ-12CD-HH-MC
Cooling BTU	12,000 BTU	Heating BTU	12,000 BTU
Maximum CFM	352.94	Decibel Level (dBA)	As low as 26.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	1/4"	Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
Max Breaker Size	15	Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Length	27.56"
Height	7.87"	Depth	19.92"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Brand	ACiQ	SKU	ACIQ-24CD-HH-MC
Cooling BTU	24,000 BTU	Heating BTU	26,000 BTU
Maximum CFM	853.5	Decibel Level (dBA)	As Low as 29.5
Electric Heat	Heat Pump	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz	Electric Phase Filter	Single Phase
BTU/Tonnage	24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton	Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone	Height	9.65"
Width	39.37"	Depth	29.53"

Warranty

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser Inverter R454B 230V ES-36Z-M5C

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-12CD-HH-MC x2

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Warranty Type	Parts
Standard Warranty	5 year parts
Registered Warranty	10 year parts

Documents

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
