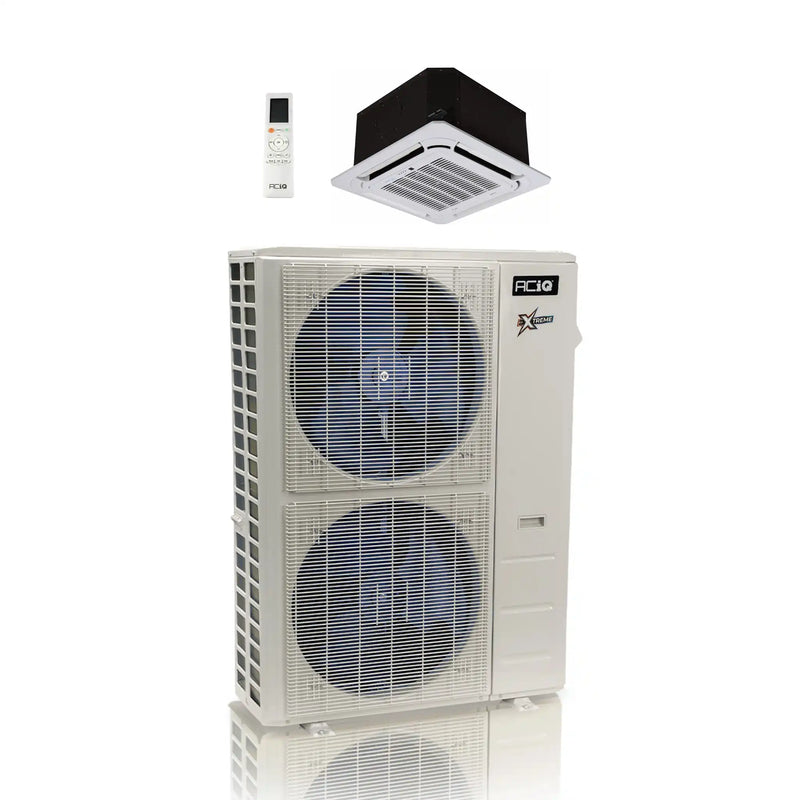

ACiQ 36K BTU 23 SEER Extreme Ceiling Cassette Mini Split System R454B 230V

Name: ACiQ 36K BTU 23 SEER Extreme Ceiling Cassette Mini Split System R454B 230V
Brand: ACiQ
SKU: ACIQ-36CC-HH-MC ACiQ-36ZPL-HP230C
Price: 3854.97 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-36CC-HH-MC ACiQ-36ZPL-HP230C | ID: 88274

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$3,854.97 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

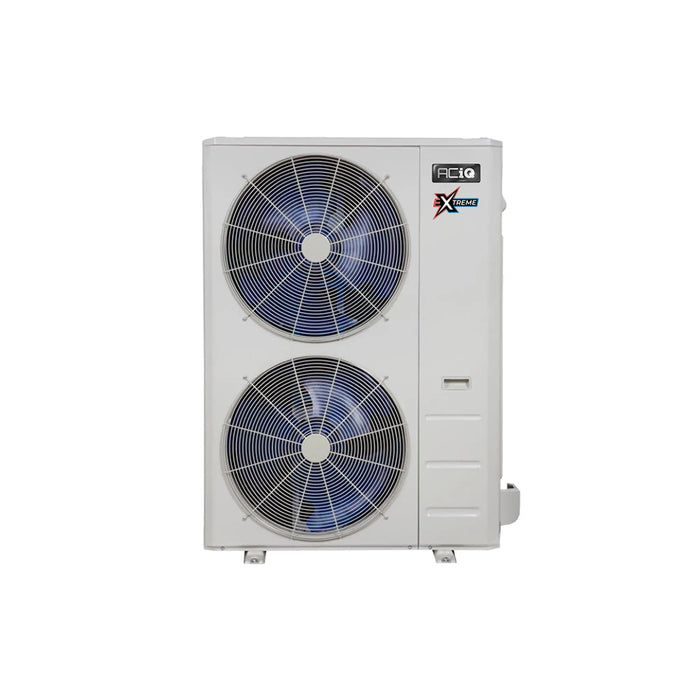

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

The ACiQ 36,000 BTU Extreme Series Single Zone Condenser delivers ultra-efficient performance at a competitive price. Powered by Hyper Heat technology, it ensures reliable heating down to -22°F and cooling up to 122°F. Built for large rooms, this condenser utilizes advanced inverter technology and a twin rotary compressor to provide powerful, quiet, and dependable operation. Designed for compatibility with multiple air handler types, this unit adapts to a variety of installation needs while reducing long-term energy costs.

Key Features

Hyper Heat performance down to -22°F for year-round comfort
High-efficiency rotary compressor with inverter control
SEER2 rating of 21.2 for superior energy savings
Gold fin condenser coil for enhanced durability
Quiet operation with max sound level of 64.5 dBA
R454B refrigerant for next-gen environmental compliance
Maximum airflow up to 3,001.9 CFM
Ideal coverage for areas between 1,200–1,800 sq. ft.
Compatible with concealed duct, wall, ceiling, and floor mount air handlers

This is not a DIY unit. Professional installation is required. Quick connect line sets not included.

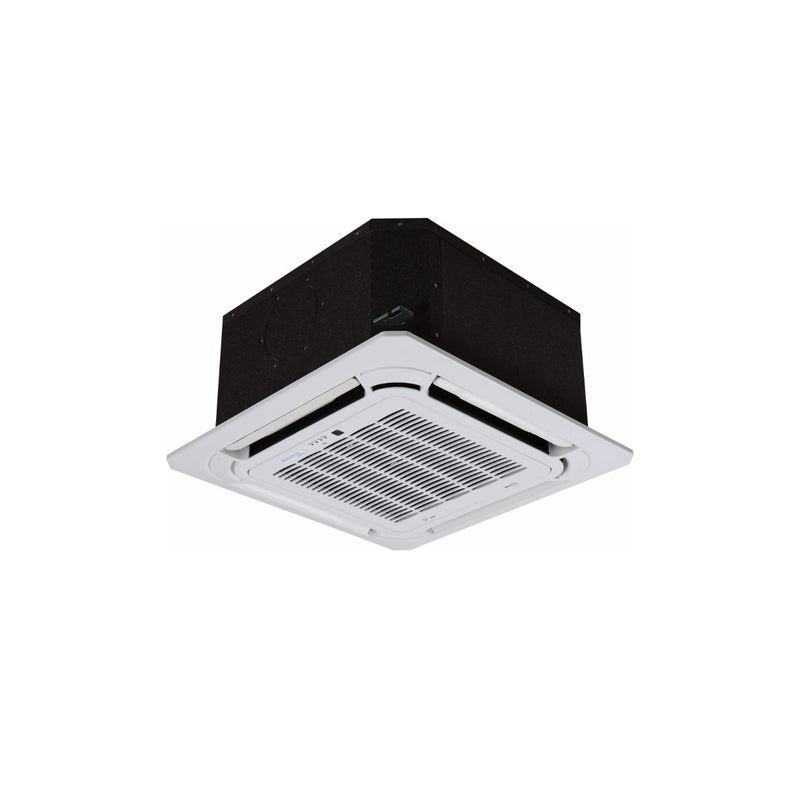

ACiQ 36,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-36CC-HH-MC

The ACiQ 36,000 BTU Ceiling Cassette Air Handler is designed for homeowners seeking discreet comfort with strong performance. This ceiling-mounted mini split air handler distributes air in four directions for balanced coverage while remaining nearly invisible. The factory-installed pump allows for easy condensate drainage, and installation is ideal between 24" on-center joists. Compatible with single and multi-zone systems, this unit pairs perfectly with the 36K condenser for quiet, efficient climate control.

Key Features

36,000 BTU cooling and 40,000 BTU heating capacity
Flush-mounted design for hidden ceiling installation
4-way air discharge for uniform room conditioning
Built-in condensation pump lifts drainage up to 14"
Quiet operation with max sound level of 52.5 dBA
Remote controller and decorative grille included
Low ambient heating with R454B refrigerant
Single and multi-zone compatible

Best suited for mid-to-large rooms where wall-mounted units are not preferred, offering aesthetics without sacrificing performance.

View More Single Zone Mini Splits

Specifications

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-36ZPL-HP230C
Cooling Capacity	36,000 BTU	Heating Capacity	42,000 BTU
SEER2	21.2	HSPF2	10.6
Max CFM	3001.9	Sound Level	64.5 dBA
Voltage	208/230V 1 Phase 60Hz	Max Breaker Size	50 Amps
Min Breaker Size	41 Amps	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Dimensions (H x W x D)	38.39" x 38.58" x 16.34"
Replace

ACiQ 36,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-36CC-HH-MC

Brand	ACiQ	Model #	ACIQ-36CC-HH-MC
Cooling Capacity	36,000 BTU	Heating Capacity	40,000 BTU
Refrigerant	R454B	Mini Split Type	Ceiling Cassette
Voltage	208/230V 1 Phase 60 Hz	Breaker Size	Min 41A / Max 50A
Liquid Line	3/8"	Suction Line	5/8"
Max CFM	1041.18	Sound Level (dBA)	52.5
Height	52.48"	Width	37.48"
Depth	16.34"

Warranty

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

ACiQ 36,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-36CC-HH-MC

Parts Warranty

7 Years (with registration)

Compressor Warranty

12 Years (with registration)

Documents

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Submittal with Concealed Duct

ACiQ 36,000 BTU Ceiling Cassette Mini Split Air Handler R454B 230V ACIQ-36CC-HH-MC

Submittal

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
