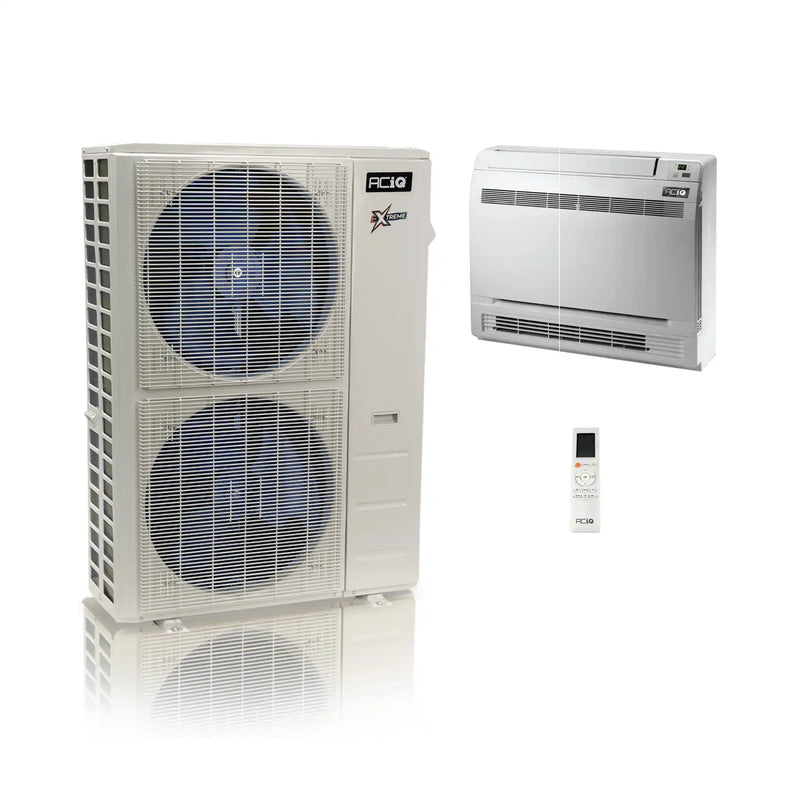

ACiQ 36K BTU 23 SEER Extreme Single Zone Floor Mount Mini Split System 230V

Name: ACiQ 36K BTU 23 SEER Extreme Single Zone Floor Mount Mini Split System 230V
Brand: ACiQ
SKU: ACIQ-36FM-HH-MD ACiQ-36ZPL-HP230C
Price: 3999.98 USD
Availability: InStock
Rating: 5 (6 reviews)

By ACiQ | SKU: ACIQ-36FM-HH-MD ACiQ-36ZPL-HP230C | ID: 88273

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$3,999.98 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

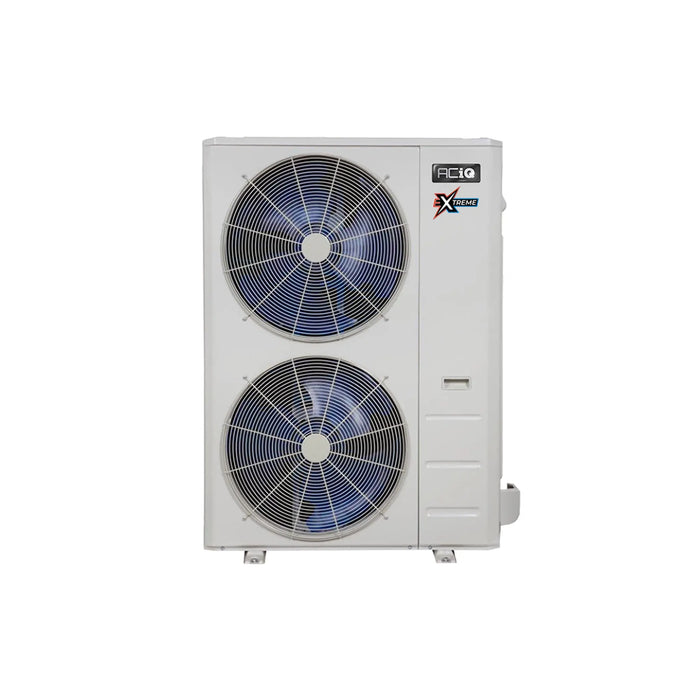

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

The ACiQ 36,000 BTU Extreme Series Single Zone Condenser delivers ultra-efficient performance at a competitive price. Powered by Hyper Heat technology, it ensures reliable heating down to -22°F and cooling up to 122°F. Built for large rooms, this condenser utilizes advanced inverter technology and a twin rotary compressor to provide powerful, quiet, and dependable operation. Designed for compatibility with multiple air handler types, this unit adapts to a variety of installation needs while reducing long-term energy costs.

Key Features

Hyper Heat performance down to -22°F for year-round comfort
High-efficiency rotary compressor with inverter control
SEER2 rating of 21.2 for superior energy savings
Gold fin condenser coil for enhanced durability
Quiet operation with max sound level of 64.5 dBA
R454B refrigerant for next-gen environmental compliance
Maximum airflow up to 3,001.9 CFM
Ideal coverage for areas between 1,200–1,800 sq. ft.
Compatible with concealed duct, wall, ceiling, and floor mount air handlers

This is not a DIY unit. Professional installation is required. Quick connect line sets not included.

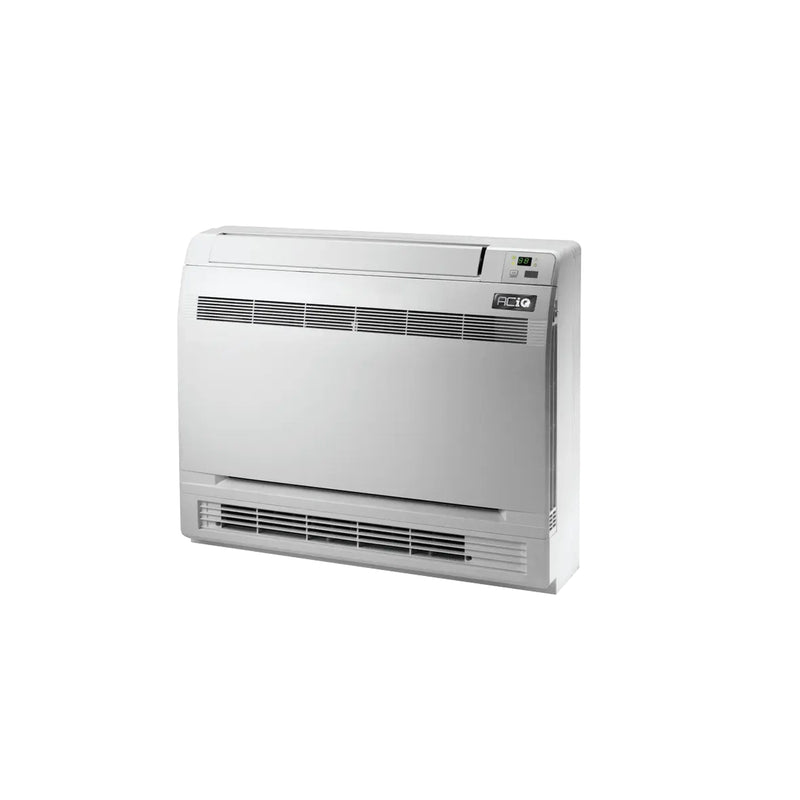

ACiQ 36,000 BTU 3 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-36FM-HH-MD

The ACiQ 36,000 BTU Floor or Ceiling Mounted Mini Split Air Handler offers versatile installation for applications where standard wall-mounted units are not suitable. Perfect for sunrooms and attics, this unit delivers warm air from the floor during heating and reverses flow for better mixing in cooling mode. With quiet operation and high efficiency, it supports both single-zone and multi-zone systems and is optimized for effective air circulation near floor or ceiling level.

Key Features

36,000 BTU capacity suitable for average-sized rooms
Mountable on floor or ceiling for flexible installation
Delivers heating from floor level to prevent stratification
Quiet performance, operating as low as 42 dBA
Compatible with both single and multi-zone systems
Wireless remote included for easy control
Energy Star certified for energy savings
Ideal for sun porches and attic remodels with limited wall space

The air handler offers efficient comfort control in spaces where conventional wall placement isn't practical, helping maintain consistent temperatures throughout the room.

View More Single Zone Mini Splits

Specifications

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Brand	ACiQ	Model #	ACIQ-36ZPL-HP230C
Cooling Capacity	36,000 BTU	Heating Capacity	42,000 BTU
SEER2	21.2	HSPF2	10.6
Max CFM	3001.9	Sound Level	64.5 dBA
Voltage	208/230V 1 Phase 60Hz	Max Breaker Size	50 Amps
Min Breaker Size	41 Amps	Refrigerant	R454B
Liquid Line	3/8"	Suction Line	5/8"
Dimensions (H x W x D)	38.39" x 38.58" x 16.34"

ACiQ 36,000 BTU 3 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-36FM-HH-MD

Brand	ACiQ	Model #	ACIQ-36FM-HH-MD
BTU/Tonnage	36,000 BTU / 3 Ton	Cooling BTU	36,000 BTU
Heating BTU	39,000 BTU	Energy Star	Yes
Max CFM	1036.47	Decibel Level	As low as 42 dBA
Electrical	208/230V 1 Phase 60Hz	Max Breaker Size	50
Min. Breaker Size	41	Mini Split Type	Floor Mounted
Controller	Wireless Included	Zone Compatibility	Single Zone, Multi Zone
Dimensions (H × W × D)	26.57" × 50.59" × 9.25"

Warranty

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Compressor

12 Years (with registration)

Parts

7 Years (with registration)

ACiQ 36,000 BTU 3 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-36FM-HH-MD

Parts Warranty

7 Years with Registration

Compressor Warranty

12 Years with Registration

Documents

ACiQ 3 Ton 21.2 SEER2 Heat Pump Condenser | Extreme Series R454B 230V ACIQ-36ZPL-HP230C

Submittal

ACiQ 36,000 BTU 3 Ton Mini Split Floor/Ceiling Air Handler R454B 230V ACIQ-36FM-HH-MD

Submittal

Installation Manual

Owner's Manual

Remote Manual

Service Manual

Extended Performance Table

AHRI Certificate
