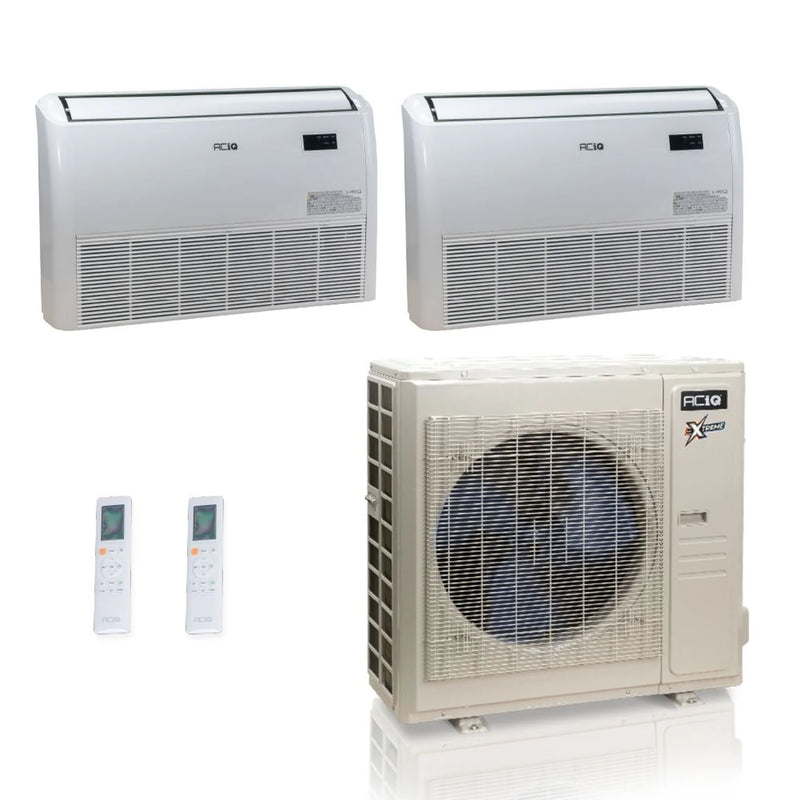

ACiQ 36K BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 18+18

Name: ACiQ 36K BTU 23 SEER2 2-Zone Floor Mount Mini Split R454B 230 Volts 18+18
Brand: ACiQ
SKU: ACIQ-36Z-HH-M5C
Price: 6539.99 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By ACiQ | Model: ACIQ-36Z-HH-M5C / ACIQ-18FM-HH-MD-2 | ID: 91132

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,539.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

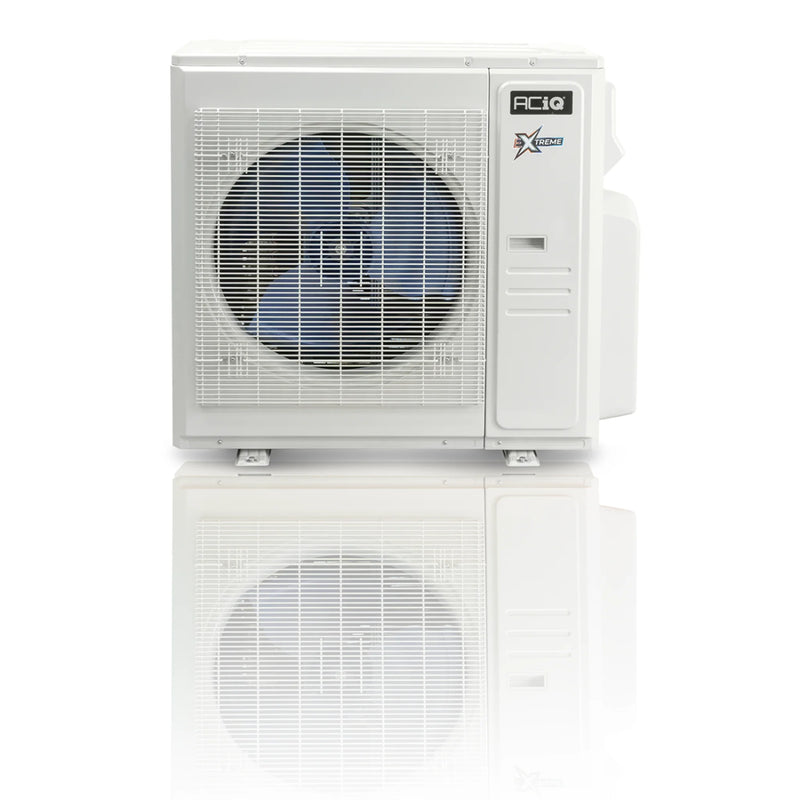

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

36,000 BTU, 23 SEER2 multi zone heat pump condenser
Supports up to 5 attached air handlers
Efficient cooling from -22°F to 122°F outdoor temperatures
Efficient heating from -22°F to 75°F outdoor temperatures
Integrated Extreme Heat technology with base pan heater
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

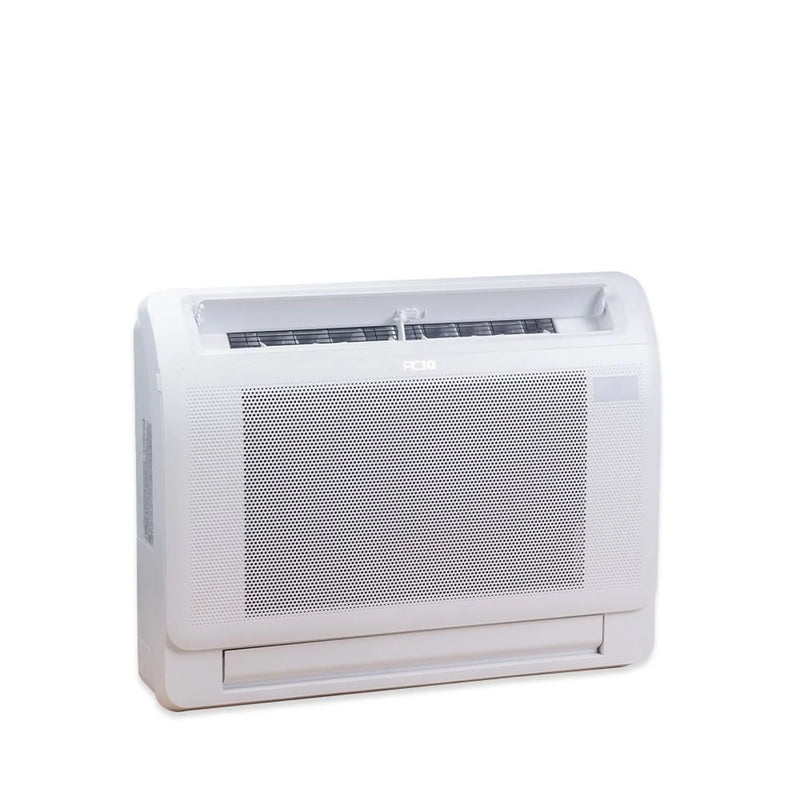

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x2

The ACiQ 18,000 BTU Floor or Ceiling Mounted Air Handler offers flexible installation in challenging spaces where high-wall mounting isn't possible. Its compact form and powerful airflow design make it ideal for sunrooms, attic remodels, or rooms with knee walls or below-window space. This unit can be wall-mounted close to the floor or suspended from the ceiling using an adjustable rod system, and it includes a wireless remote for intuitive control. Its whisper-quiet performance and low-profile design deliver both functionality and comfort for any interior space.

Key Features

18,000 BTU (cooling: 17,000 / heating: 19,000 BTU)
Versatile installation – floor- or ceiling-mounted configuration
Ideal for sunrooms, attics, or rooms with angled ceilings
Maximum CFM: 576.8 with quiet operation as low as 29 dBA
Pre-wired for condensate pump with overflow shutoff
Wireless remote included
R454B refrigerant – eco-friendly and efficient
Energy Star certified

This unit is designed for creative installation solutions where traditional wall-mounted systems won’t work. Whether elevated above a windowsill or suspended from a ceiling, it provides quiet, efficient comfort.

View More 2 Zone Mini Splits

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Brand	ACiQ	SKU	ACIQ-36Z-HH-M5C
Replaces	ACIQ-36Z-HH-M4B	Product Features	Low Ambient Heating
HSPF2	10.7	Cooling BTU	36,000 BTU
Heating BTU	36,000 BTU	Maximum CFM	3037
Decibel Level (dBA)	65	Electric Heat	Heat Pump
Energy Star	Yes	Refrigerant	R454B
SEER2	23	Compressor Type	Twin Rotary
Liquid Line	1/4" (5)	Suction Line	3/8" (3); 1/2" (2)
Electrical	208/230V 1 Phase 60 Hz	Max Breaker Size	40 Amps
Min. Breaker Size	37 Amps	Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton	Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone	Ambient Temperature Range	-22 ~ 122
Height	38.39"	Width	38.58"
Depth	16.34"

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x2

Brand	ACiQ	SKU	ACIQ-18FM-HH-MD
Cooling BTU	17,000 BTU	Heating BTU	19,000 BTU
CFM	576.8	Decibel Level	As low as 29 dBA
Mini Split Type	Floor Mounted	Zone Compatibility	Multi Zone
Controller	Wireless Included	Refrigerant	R454B
Electrical	208/230V \| 1 Phase \| 60 Hz	Liquid / Suction Line	1/4" / 1/2"
Dimensions (H x W x D)	9.25" x 42.05" x 26.57"

Warranty

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Warranty Type	Compressor	Parts
Standard Warranty	7 year parts	5 year parts
Registered Warranty	12 year parts	7 year parts

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x2

Warranty Type	Compressor	Parts
Standard Warranty	7 years	5 years
Registered Warranty	12 years	7 years

Documents

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 18,000 BTU Extreme Series Floor/Ceiling Mounted Air Handler R454B 230V ACIQ-18FM-HH-MD x2

Submittal

Installation Manual

Owner's Manual

Remote Manual

Service Manual

Extended Performance Table

Warranty Information
