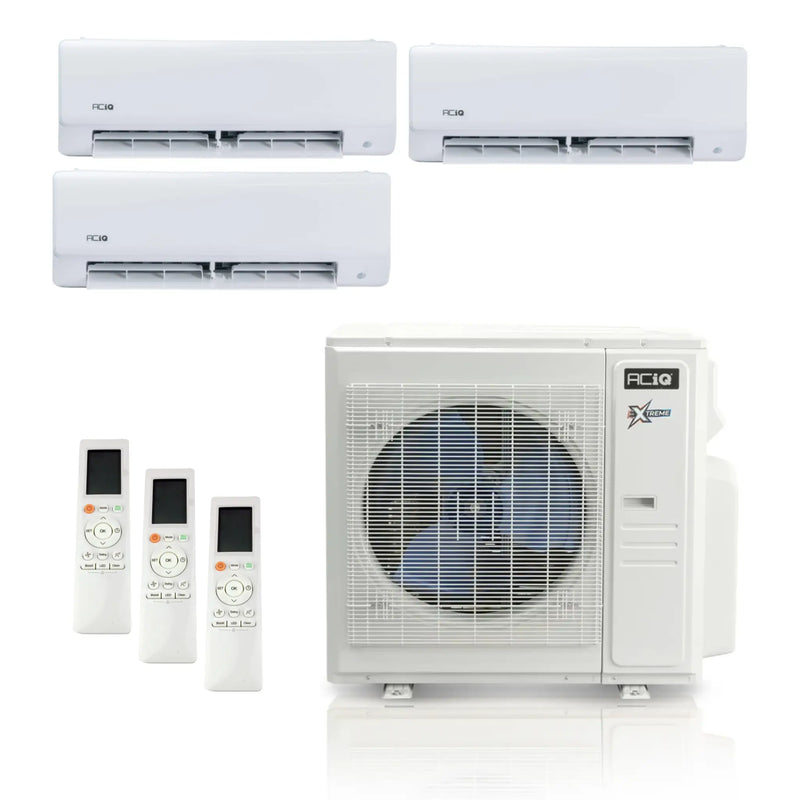

ACiQ 36K BTU 23 SEER2 3-Zone Wall Mount Mini Split R454B 230V 12+12+12

By ACiQ | Model: ACiQ-36Z-HH-M5C / ACIQ-12W-HH-MD-3 | ID: 91067
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$6,109.99 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

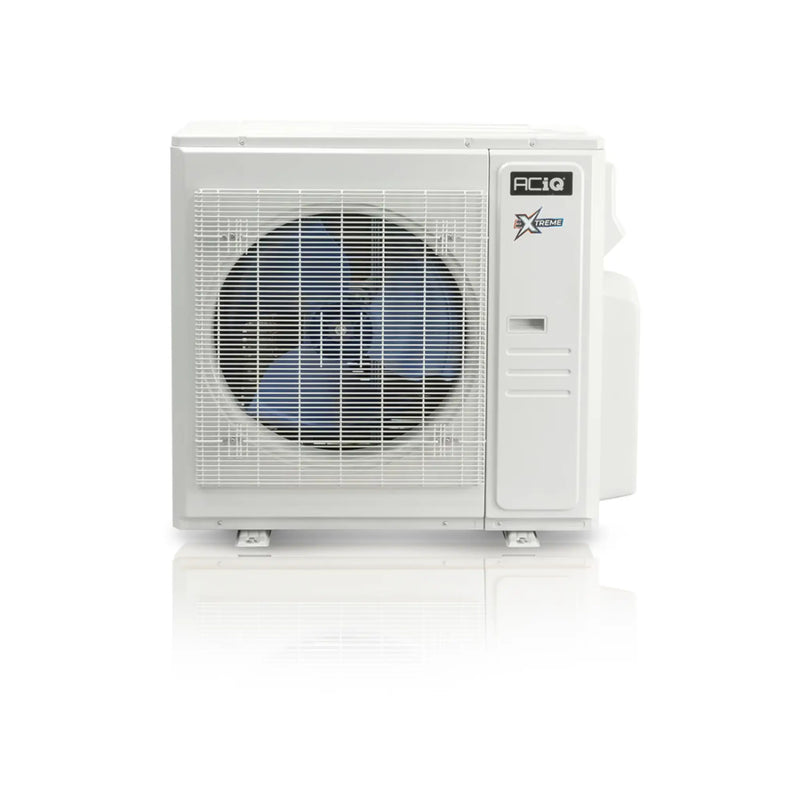

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

  • 36,000 BTU, 23 SEER2 multi zone heat pump condenser
  • Supports up to 5 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

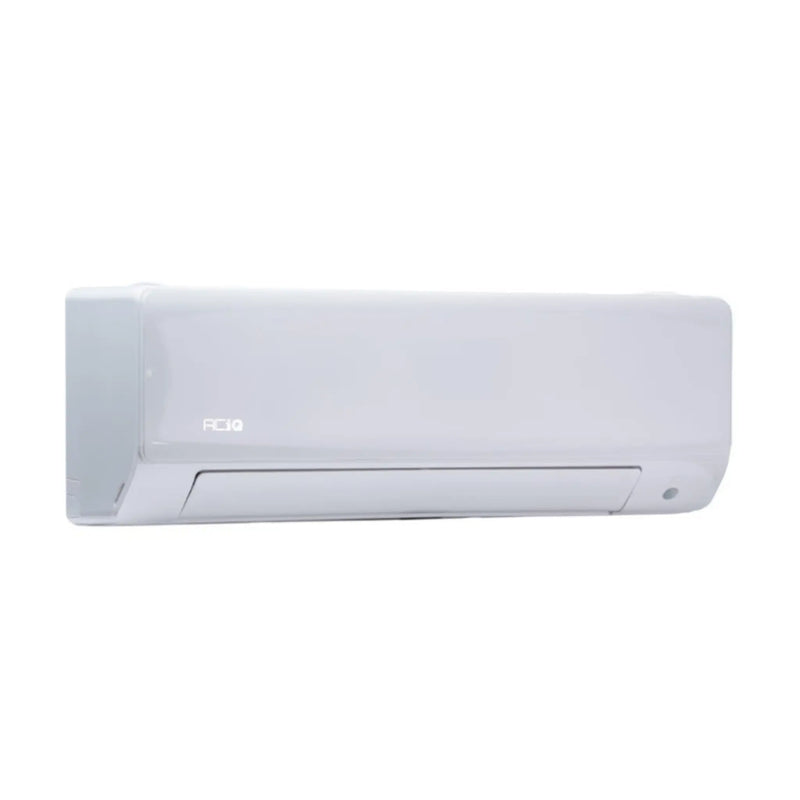

ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD x3

The ACiQ 12,000 BTU wall-mounted air handler delivers powerful, whisper-quiet performance for both single and multizone mini split systems. Compatible with ACiQ’s Multizone and Platinum Series condensers, this unit offers reliable heating and cooling for small to medium spaces. Equipped with smart technology, this unit features intelligent temperature control, an onboard diagnostic LED display, and full integration with WiFi, Alexa, and Google Home for remote access. Whether you're upgrading a zone or building a new system, this wall mount is a dependable choice for comfort and energy efficiency year-round.

Key Features

  • 12,000 BTU wall-mounted ductless air handler – ideal for small to medium rooms
  • WiFi enabled for smartphone control via Net Home Plus, Alexa, and Google Home
  • Compatible with ACiQ Multizone and Platinum Hyper Heat single zone condensers
  • Quiet operation – as low as 19.5 dB for undisturbed comfort
  • Advanced display panel with real-time temperature and diagnostic alerts
  • Enhanced modes: Dry Mode, Intelligent Sleep Mode, and Power Save Mode
  • Smart remote control included with LCD feedback screen
  • Quick installation with flexible refrigerant line and drain exit
  • Energy-efficient R454B refrigerant for reduced environmental impact

Ideal for home offices, bedrooms, or additions, this unit brings precise comfort control and flexible compatibility into any ductless system design.

View More 3 Zone Mini Splits

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Brand ACiQ SKU ACIQ-36Z-HH-M5C
Replaces ACIQ-36Z-HH-M4B Product Features Low Ambient Heating
HSPF2 10.7 Cooling BTU 36,000 BTU
Heating BTU 36,000 BTU Maximum CFM 3037
Decibel Level (dBA) 65 Electric Heat Heat Pump
Energy Star Yes Refrigerant R454B
SEER2 23 Compressor Type Twin Rotary
Liquid Line 1/4" (5) Suction Line 3/8" (3); 1/2" (2)
Electrical 208/230V 1 Phase 60 Hz Max Breaker Size 40 Amps
Min. Breaker Size 37 Amps Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton Mini Split Type Wall Mounted
Zone Compatibility Multi Zone Ambient Temperature Range -22 ~ 122
Height 38.39" Width 38.58"
Depth 16.34"

ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD x3

Brand ACiQ SKU ACIQ-12W-HH-MD
Weight (in lbs) 29 Product Features WiFi
Cooling BTU 12,000 BTU Heating BTU 12,000 BTU
Maximum CFM Up to 441.4 CFM Decibel Level (dBA) As low as 19.5 Decibels
Electric Heat Heat Pump Refrigerant R454B
Liquid Line 1/4" Suction Line 3/8"
Electrical 208/230V, 1 Phase, 60 Hz Phase Single Phase
BTU/Tonnage 12,000 BTU/1 Ton Mini Split Type Wall Mounted
Zone Compatibility Multi Zone, Single Zone Height 11.76"
Width 33.40" Depth 9.18"
Warranty 7 Years Parts with Online Registration
Warranty

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD x3

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 7 year parts
Documents

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD x3

Submittal

Installation & Owner's Manual

Remote Control User Manual

Service Manual

Smart AC / WiFi User Manual

Warranty Information
