ACiQ ACiQ-36Z-HH-M5C ACIQ-09CC-HH-MC ACIQ-24CC-HH-MC

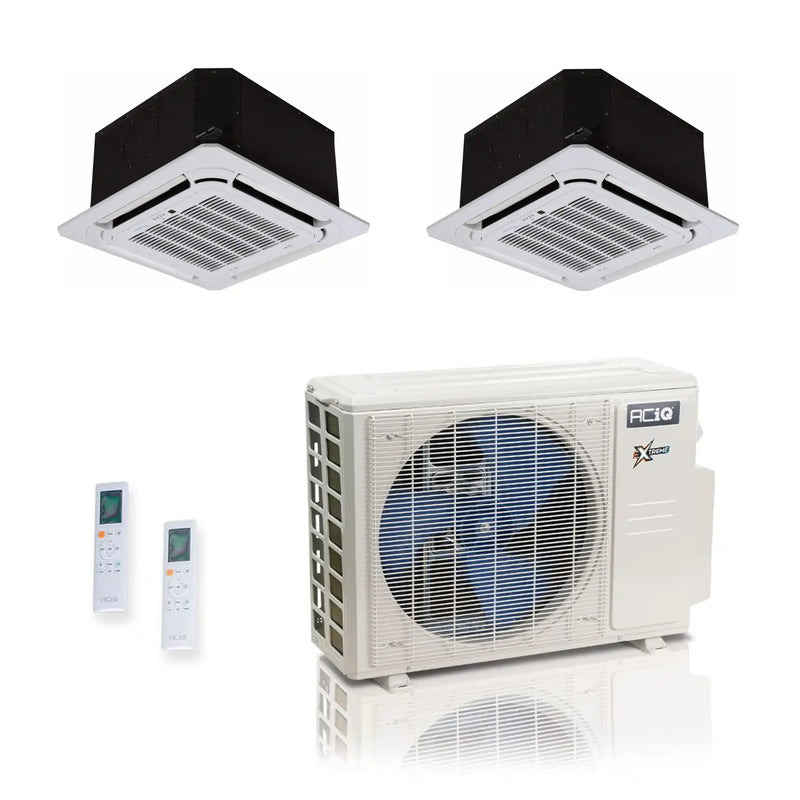

ACiQ 36K BTU 23 SEER2 Extreme Mini Split 2-Zone Ceiling Cassette 230V 9+24

By ACiQ | SKU: ACiQ-36Z-HH-M5C ACIQ-09CC-HH-MC ACIQ-24CC-HH-MC | ID: 89033
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$6,756.63 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

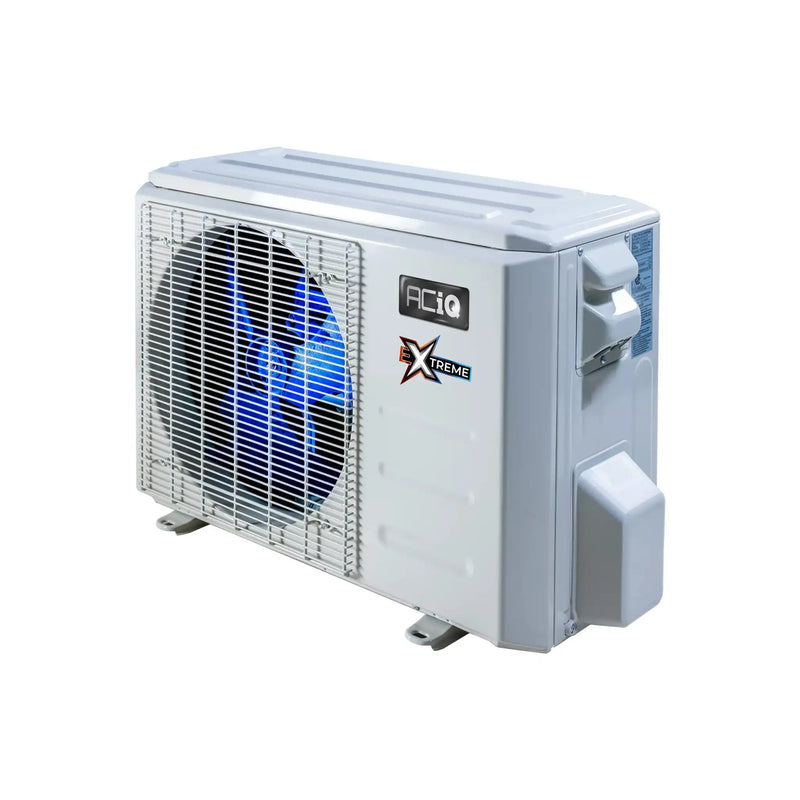

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Experience adaptive heating and cooling with the ACiQ-36Z-HH-M5C multi zone condenser from the Extreme Series. This smart solution allows up to 5 air handlers to run off a single condenser, providing efficient comfort control in any space and climate.

Key Features

  • 36,000 BTU, 23 SEER2 multi zone heat pump condenser
  • Supports up to 5 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

Ensure precise temperature control in each room or zone with the adaptive, inverter technology of the ACiQ-36Z-HH-M5C. This system not only saves space outside with its ability to support multiple air handlers, but also saves you money upfront and over the lifetime of the unit with its high efficiency rating of 24 SEER.

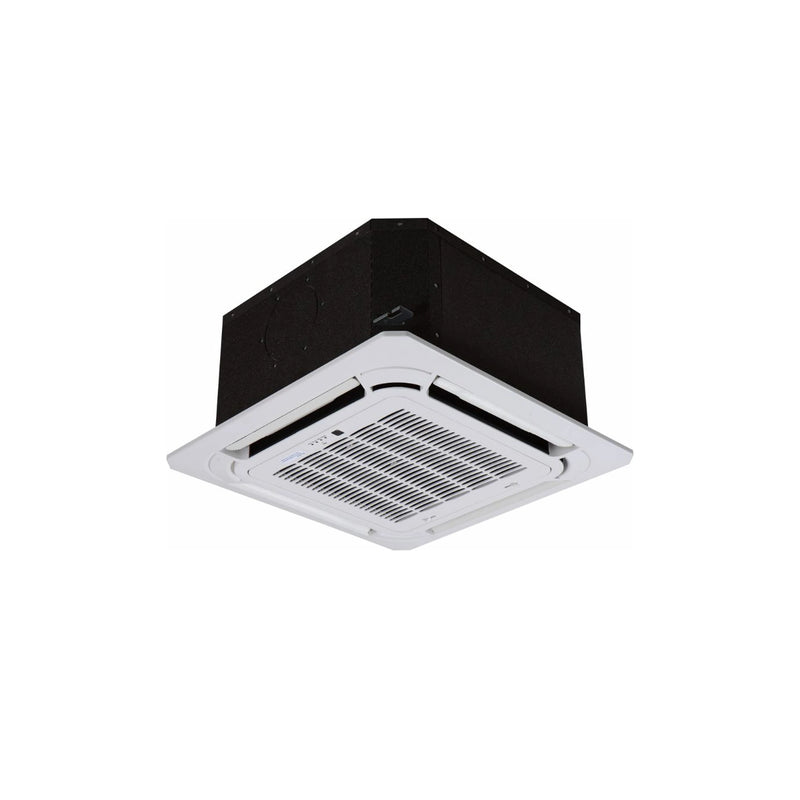

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Looking for a more discreet air handler option? The ACiQ-09CC-HH-MC ceiling cassette mini split system is the perfect solution. With a hidden appearance and centralized air distribution, this ceiling cassette unit offers high-efficiency heating and cooling with a sleek design. The included hand-held remote control makes operation a breeze, and once installed, only the grille is visible for a seamless look.

Key Features

  • 9,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for small rooms in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote and Decorative Grille included

Ceiling Cassettes provide a quiet and efficient way to cool or heat your space, with the added benefit of a flush-mounted design for a discreet appearance. The factory-installed condensation pump ensures proper drainage, while the 4-way air supply delivers comfort in all directions.

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Looking for a more hidden appearance and centralized air distribution? The ACiQ-24CC-HH-MC ceiling cassette air handler is the perfect solution. This ceiling cassette unit offers high-efficiency heating and cooling, with a sleek and understated appearance once installed.

Key Features

  • 24,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for a medium room in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote included
  • Decorative Grille included
  • Ceiling Cassette for hidden appearance

Ceiling Cassettes offer a flush-mounted design for a discreet look and provide quiet comfort with precision engineering to maintain set temperatures efficiently. The unit comes with a factory-installed condensation pump for easy maintenance.

View More 2 Zone Mini Splits

Specifications

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Brand ACiQ SKU ACIQ-36Z-HH-M5C
Replaces ACIQ-36Z-HH-M4B Product Features Low Ambient Heating
HSPF2 10.7 Cooling BTU 36,000 BTU
Heating BTU 36,000 BTU Maximum CFM 3037
Decibel Level (dBA) 65 Electric Heat Heat Pump
Energy Star Yes Refrigerant R454B
SEER2 23 Compressor Type Twin Rotary
Liquid Line 1/4" (5) Suction Line 3/8" (3); 1/2" (2)
Electrical 208/230V 1 Phase 60 Hz Max Breaker Size 40 Amps
Min. Breaker Size 37 Amps Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton Mini Split Type Wall Mounted
Zone Compatibility Multi Zone Ambient Temperature Range -22 ~ 122
Height 38.39" Width 38.58"
Depth 16.34"

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Brand ACiQ SKU ACIQ-09CC-HH-MC
Controller Wireless Included Product Features Low Ambient Heating
Cooling BTU 9,000 BTU Heating BTU 9,800 BTU
Maximum CFM 352.94 CFM Decibel Level (dBA) As low as 32.5
Electric Heat Heat Pump Refrigerant R454B
Capacity Dehumidification Rate: 0.272 gal/hr SEER2 20.5
Liquid Line 1/4" Suction Line 3/8"
Electrical 208/230V 1 Phase 60Hz Electric Phase Filter Single Phase
Max Breaker Size 15 Min. Breaker Size 15
BTU/Tonnage 9,000 BTU/0.75 Ton Mini Split Type Ceiling Cassette
Zone Compatibility Multi Zone Length 22.44"
Height 10.24" Width 22.44"
Depth 22.44"

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Brand ACiQ SKU ACIQ-24CC-HH-MC
Controller Wireless Included Product Features WiFi
Cooling BTU 24,000 BTU Heating BTU 24,000 BTU
Maximum CFM 765.2 Decibel Level (dBA) As low as 33.5
Electric Heat Heat Pump Refrigerant R454B
SEER2 20 Liquid Line 3/8"
Suction Line 5/8" Electrical 208/230V 1 Phase 60Hz
Electric Phase Filter Single Phase BTU/Tonnage 24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split Type Ceiling Cassette Zone Compatibility Multi Zone, Single Zone
Height 8.07" Width 32.68"
Depth 32.68" Replaces N/A
Warranty

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Warranty Type Parts
Standard Warranty 5 year parts
Registered Warranty 10 year parts
Documents

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series R454B 230V ACIQ-36Z-HH-M5C

Installation and Owner's Manual

Submittal

AHRI Certificate - Ducted Indoor Units

AHRI Certificate - Non-Ducted Indoor Units

Warranty Information

Heat Performance Chart

ACiQ 9,000 BTU Ceiling Cassette Mini Split Air Handler ACIQ-09CC-HH-MC

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC

Submittal

Brochure

Installation and Owner's Manual

Remote Manual

Heating Performance Table

Warranty Information
